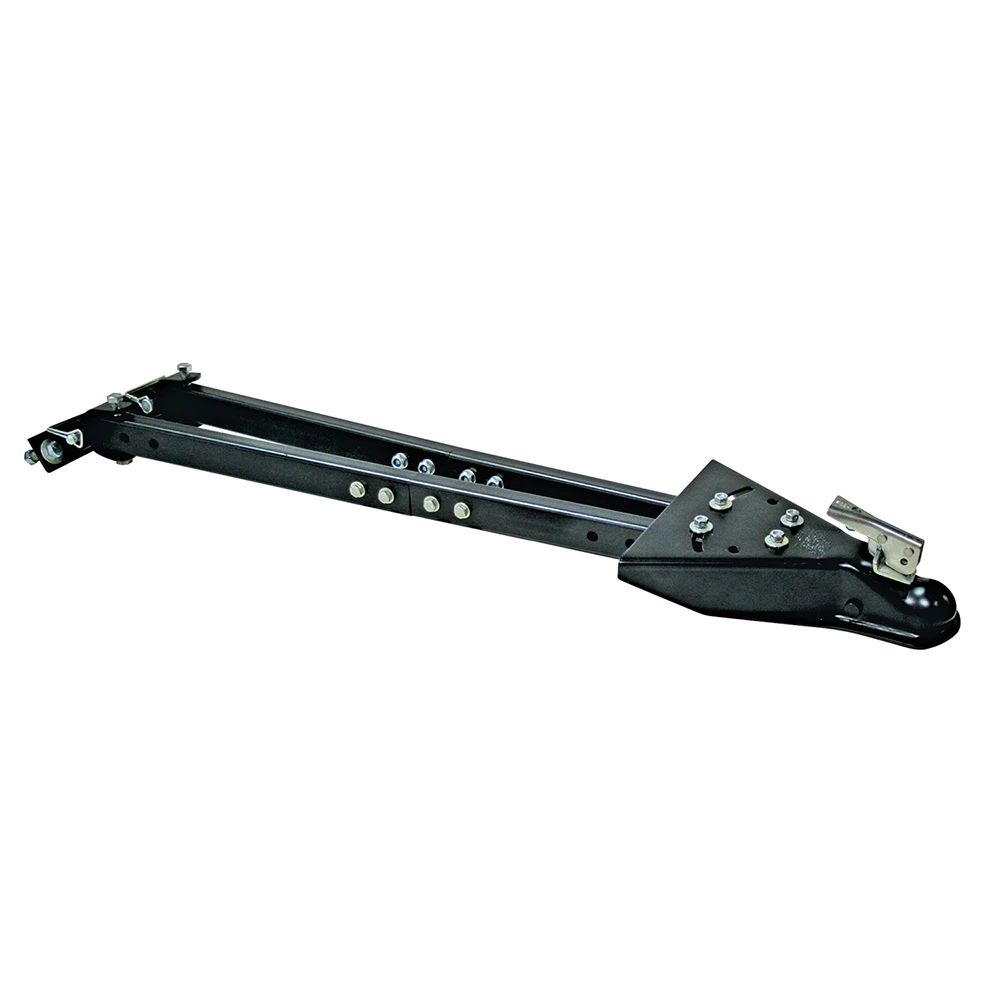

Reese Adjustable Tow Bar Flat Towing Trailer Universal 5000 Pounds Capacity 7014200
Model: 7014200REESE® Adjustable Tow Bars
Be prepared for life's unexpected moments with REESE® Adjustable Tow Bars. Whether you're transporting lumber across town or moving Grandpa's classic car, these tow bars provide the reliability you need to keep moving. Designed with a focus on versatility and strength, they are an essential addition to your vehicle's toolkit.
- Strong 5,000 lbs. Capacity: Safely tow a variety of vehicles without worry.
- Secure Installation: Mounting Brackets bolt securely to your vehicle’s bumper, ensuring a firm fit.
- Universal Compatibility: Fits 2-inch Hitch Balls, making it suitable for most vehicles.

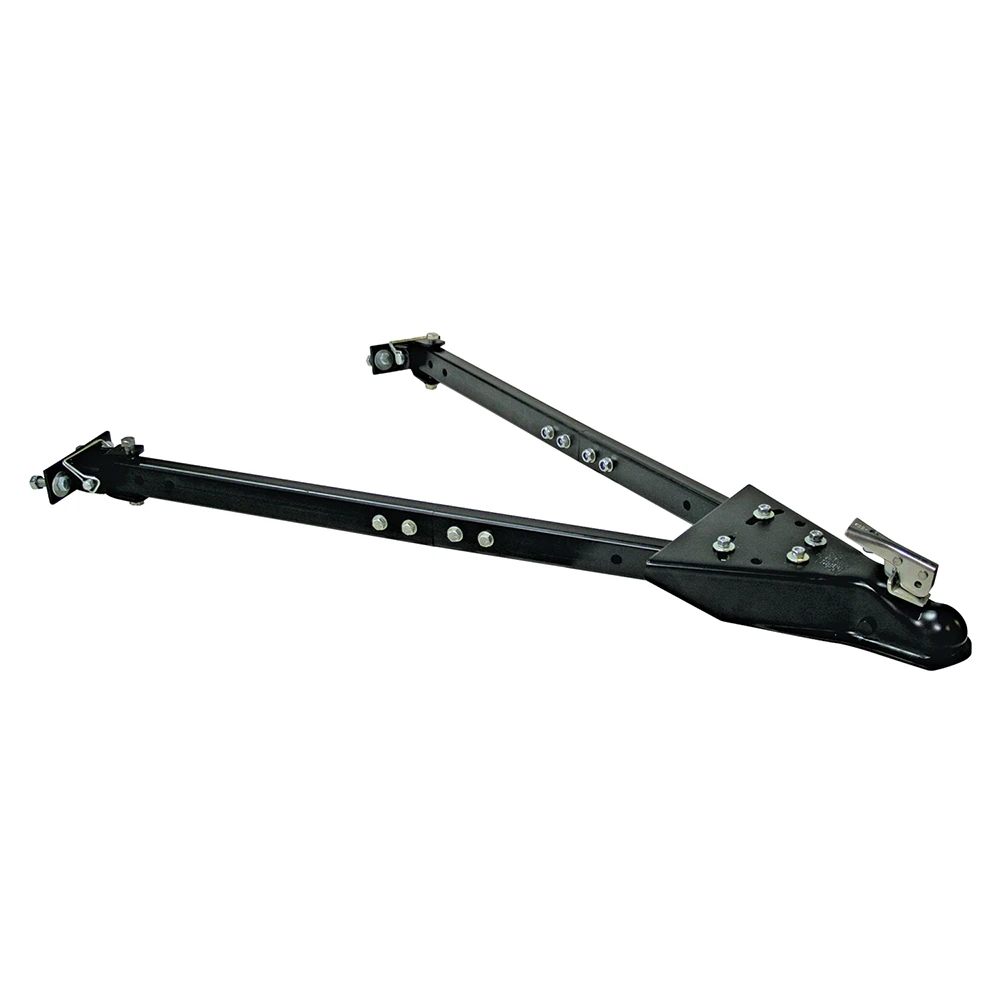

- Adjustable Design: Arms extend from 26 inches to 41 inches to accommodate various vehicle sizes.
- Optional Base Plate: A base plate might be required for some vehicles for optimal performance.
- Durable Finish: Black Powder Coat Finish offers a sleek look and resists corrosion.
- Additional Accessories: Safety Chains are sold separately for enhanced towing safety.
With REESE® Adjustable Tow Bars, tackle any towing challenges head-on and enjoy the confidence of being ready for whatever comes your way.
| Specifications: | |
|---|---|
| Tow Bar Type | Fixed |
| Weight Capacity | 5000 lbs |
| Mount Type | Coupler Style |
| Storage Method | Stores Separately |
| Fitment Compatibility | Universal |
$121 34 $212.50 43% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$212.50 $121 34
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $30.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 7014200
- UPC: 42899701422
- Includes: Adjustable Tow Bar
Description
Get Expert Help
Reese Adjustable Tow Bar Flat Towing Trailer Universal 5000 Pounds Capacity 7014200 Install Notes
Installation Instructions for Adjustable Tow Bar
Model Number:
-
70142
Tools Required:
-
None specified
Step-by-Step Instructions:
General Installation:
- Attach the two front arms to the coupler using (2) bolt blocks, (4) toothed washers, and (4) 3/8” locknuts. Do not fully tighten the locknuts; the front arms should still swing open and closed.
- Insert a steel insert into the open end of each front arm and secure with (2) 3/8” x 2” bolts, (4) washers, and (2) 3/8” locknuts. Tighten the locknuts to 32 ft-lbs.
- Slide a rear arm over the remaining portion of each steel insert and secure with (2) 3/8” x 2” bolts, (4) washers, and (2) 3/8” locknuts. Tighten the locknuts to 32 ft-lbs.
- Attach a pivot bracket assembly to the end of each arm with a ½” x 3.5” bolt and ½” flange locknut. Tighten until snug but still allowing free pivot movement.
Tow Bar Assembly:
- Center the tow bar on the attachment surface, spreading side arms to at least 24” but no more than 41”. Mark tow bar bracket centerlines.
- Drill (2) ½” holes into the attachment surface using the tow bar brackets as templates.
- Attach the brackets with ½” x 1.75” Grade 5 bolts (or longer bolts if necessary). Secure with flat washers and locknuts, tightening to 75 ft-lbs.
- Attach the tow bar to the brackets using (2) wire-lock pins.
- Connect the tow bar coupler to the 2” ball of the towing vehicle. Tighten (4) 3/8” nuts on the side arms to the coupler to 31 ft-lbs.
- Install safety chains and connect an appropriate wiring harness to ensure proper lighting functionality.
Hardware List:
- (2) Bolt Blocks
- (4) Toothed Washers
- (8) Flat Washers (3/8”)
- (8) Locknuts (3/8”-16)
- (4) Hex Bolts (½”-13 x 1.75” Grade 5)
- (4) Hex Bolts (½”-13 x 3.5” Grade 5)
- (2) Steel Inserts
- (2) Pivot Brackets
- (2) Rear Arms
- (2) Front Arms
- (4) U-Bolts (7/16” Grade 2) with Flanged Locknuts
Safety Notes:
- Do not exceed a total towed vehicle weight of 5,000 lbs.
- Ensure the towing vehicle weighs more than the towed vehicle.
- Verify all connections, hitch, and ball frequently during towing.
- Reduce speed on rough roads and avoid exceeding 45 mph.
- Check for stability and discontinue towing if instability persists.
- Install this product according to the mounting instructions provided.
- Always remove the tow bar when not towing.
- Ensure proper lighting functionality or use a temporary lighting system if needed.
Specifications:
- Tow bar must be installed within areas of adequate strength.
- Coupler must remain level within 5° when attachment is complete.
- Bumper attachments should be reinforced.
- Tightening Specifications:
- Locknuts (front and rear arms): 32 ft-lbs
- Tow bar brackets: 75 ft-lbs
- Side arms to coupler: 31 ft-lbs
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product includes a 1-year limited warranty.
- For complete warranty instructions, please download the full installation PDF.
