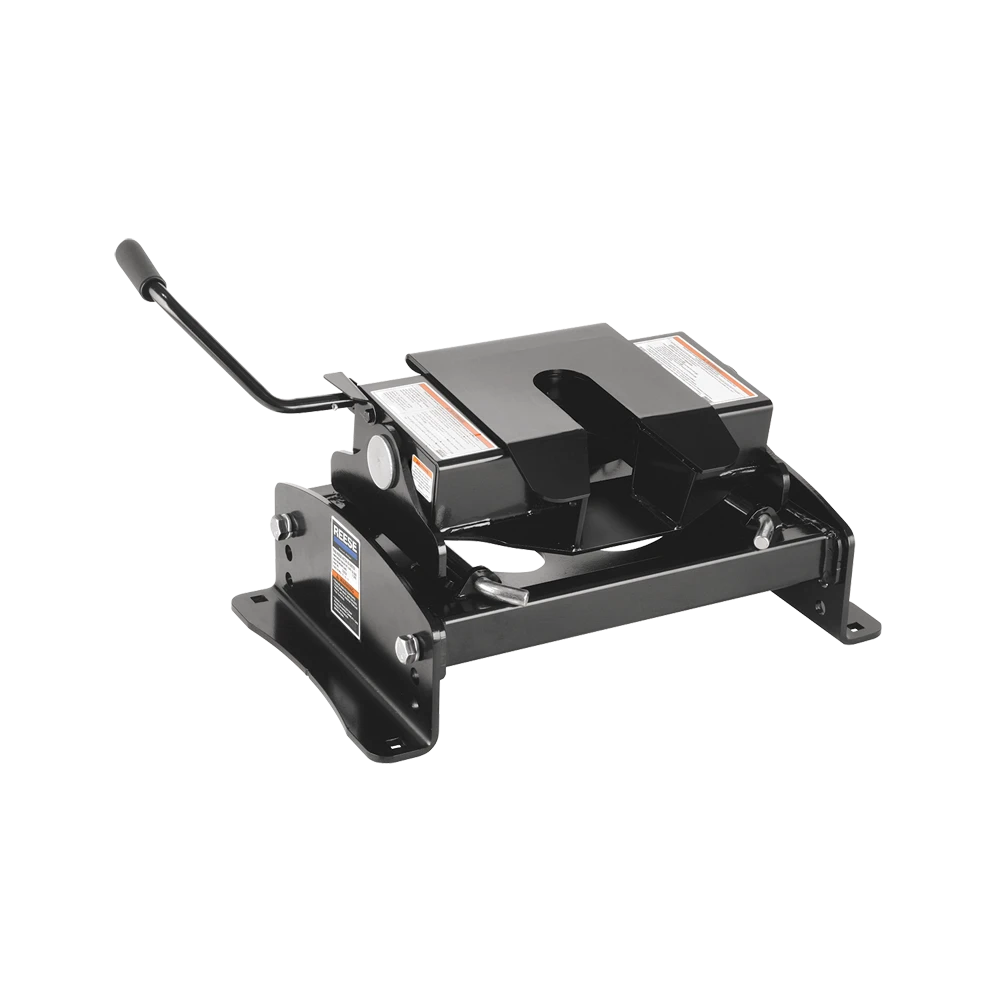

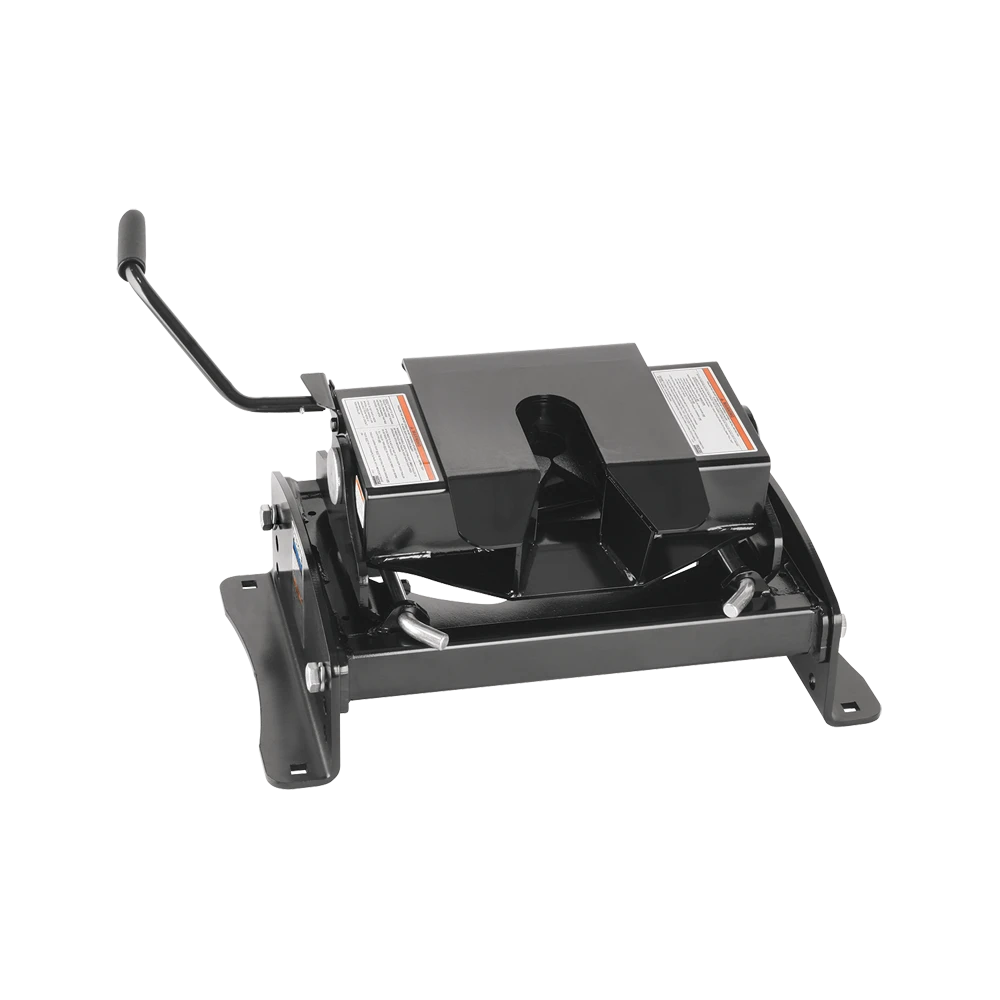

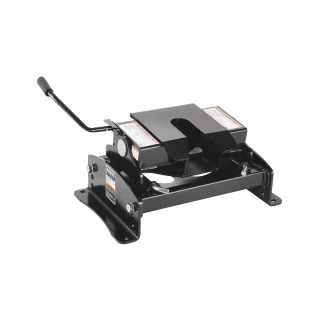

Reese Fifth Wheel Hitch Dual Jaw System 30000 lbs Cab and Chassis Part Number 30054
Model: 30054REESE® 30K Heavy-Duty Fifth Wheel Hitch
When demanding tasks call, the REESE® 30K Heavy-Duty Fifth Wheel Hitch stands ready to deliver unparalleled performance. Perfectly crafted for professionals, this hitch offers a robust 30,000 pounds of towing capacity and 7,500 pounds of pin weight capacity, all within a sleek, low-profile design.
Engineered for Excellence
- Actuating Handle: Simplifies use and provides easy accessibility.
- Dual Jaw Mechanism: Ensures a more secure, reliable connection.
- Side-to-Side Rocker: Minimizes frame stress for a smoother ride.
- Front-to-Rear Tilt: Enables easier hook-up, regardless of terrain.
Built for Medium-Duty Trucks
This hitch is optimized for medium-duty conversion trucks, having been rigorously tested to meet and often exceed the industry's toughest standards, allowing you to tow with confidence.
Outstanding Features
- Weight Ratings: Supports up to 30,000 lbs. tow capacity, with 7,500 lbs. pin weight.
- Vertical Adjustment: Offers up to 3 inches for customized fit.
- Wide Stance: Enhances stability during towing operations.
- Durable Finish: Black powder coat over E-coat ensures longevity and resistance to the elements.
Trust in REESE® for top-tier towing performance, ideal for your most demanding needs. Experience a superior ride with this heavy-duty hitch and trailer with peace of mind.
| Specifications: | |
|---|---|
| Gross Towing Weight | 30000 LB GTW |
| Compatible Trucks | Fifth Wheel Trailer |
| Hitch Type | Cab and Chassis Trucks |
| Features | Fixed Fifth Wheel |
| Features | King Pin |
$1,816 76 $2,169.68 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,169.68 $1,816 76
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $454.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 30054
- UPC: 16118033885
- Includes: 5th Wheel Hitch
Get Expert Help
Reese Fifth Wheel Hitch Dual Jaw System 30000 lbs Cab and Chassis Part Number 30054 Install Notes
Installation Instructions for 30K Fifth Wheel Hitch
Part Numbers:
- 30054
Rated Capacity:
- Maximum Gross Trailer Weight: 30,000 lbs
- Maximum Pin Weight: 7,500 lbs
Tools Required:
- Wrenches: 3/4", 15/16"
- Drill and Drill Bits: 1/4", 5/8"
- Torque Wrench
- Grease (Engine Oil or Spray Lube)
Hardware List:
- 3/4” Bolts (Qty: 4)
- 3/4” Lock Washers (Qty: 4)
- Stop Rods (Qty: 2)
- Cotter Pins (Qty: 3)
- Snap Rings (Qty: 4)
- Rocker Plate (Qty: 1)
- Base Assembly (Qty: 1)
- Head Assembly (Qty: 1)
- Outer Handle (Qty: 1)
- Inner Handle (Qty: 1)
Warnings:
- This hitch is designed for medium-duty trucks (e.g., Freightliner or Ford F-650). DO NOT use on light-duty pickups.
- Follow the vehicle manufacturer’s rated towing capacities.
- Maintain at least 6 inches of clearance between the truck bed walls and the trailer.
Step-by-Step Instructions:
1. Assembly:
- Attach side plates to the base using 3/4” bolts and lock washers. Torque to 200 ft-lbs.
- Position the base assembly vertically above or 4 inches ahead of the rear axle.
- Mark and drill four 5/8” holes through the truck bed and a 1/2” steel plate below.
- Secure the base assembly using 5/8” Grade 5 carriage bolts (not supplied), lock nuts, and washers.
2. Lubrication:
- Lubricate pivot pins and points in the head and base assembly using engine oil or spray lube.
- Grease the skid plate surface with chassis grease or a plastic lube plate (10” diameter, 3/16” thick).
3. Hitching Procedure:
- Block trailer wheels securely to prevent movement.
- Adjust the trailer height using landing gear so the bottom of the pin box is 1/2" to 1" below the hitch skid plate.
- Back the truck slowly into the trailer. Ensure the kingpin engages the hitch jaws.
- Verify the jaws are fully closed, and the handle is locked in place.
4. Pull Test:
- Keep the trailer wheels blocked and the landing gear supporting the trailer.
- Apply trailer brakes and attempt to pull forward gently to confirm a secure connection.
- If the trailer separates, repeat the hitching procedure.
5. Unhitching Procedure:
- Lower the landing gear to support the trailer weight.
- Disconnect the electrical and breakaway cables.
- Open the handle latch and pull the handle to release the kingpin.
- Drive the truck away slowly, ensuring the trailer remains stationary.
Maintenance:
- Inspect all bolts and pins every 1,000 miles and retorque as necessary.
- Lubricate pivot points and the skid plate regularly.
- Visually check all cotter pins and snap rings for proper placement and wear.
Warranty:
Attention: This is a summary of warranty coverage. For detailed warranty instructions, please download the full installation PDF.
- Five-Year Limited Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes misuse, overloading, or improper installation.
For Technical Support: Our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
For Warranty Information: Warranty coverage details are available in the full installation PDF. Please download the PDF for complete instructions.
