Product Details
- Brand: Reese
- Model: 56005-53 30119
- Includes: Fifth Wheel Hitch Mounting System Custom Bracket, Fifth Wheel Hitch Mounting System Rails Only, Fifth Wheel Hitch 20K
Compatibility Chart
Get Expert Help

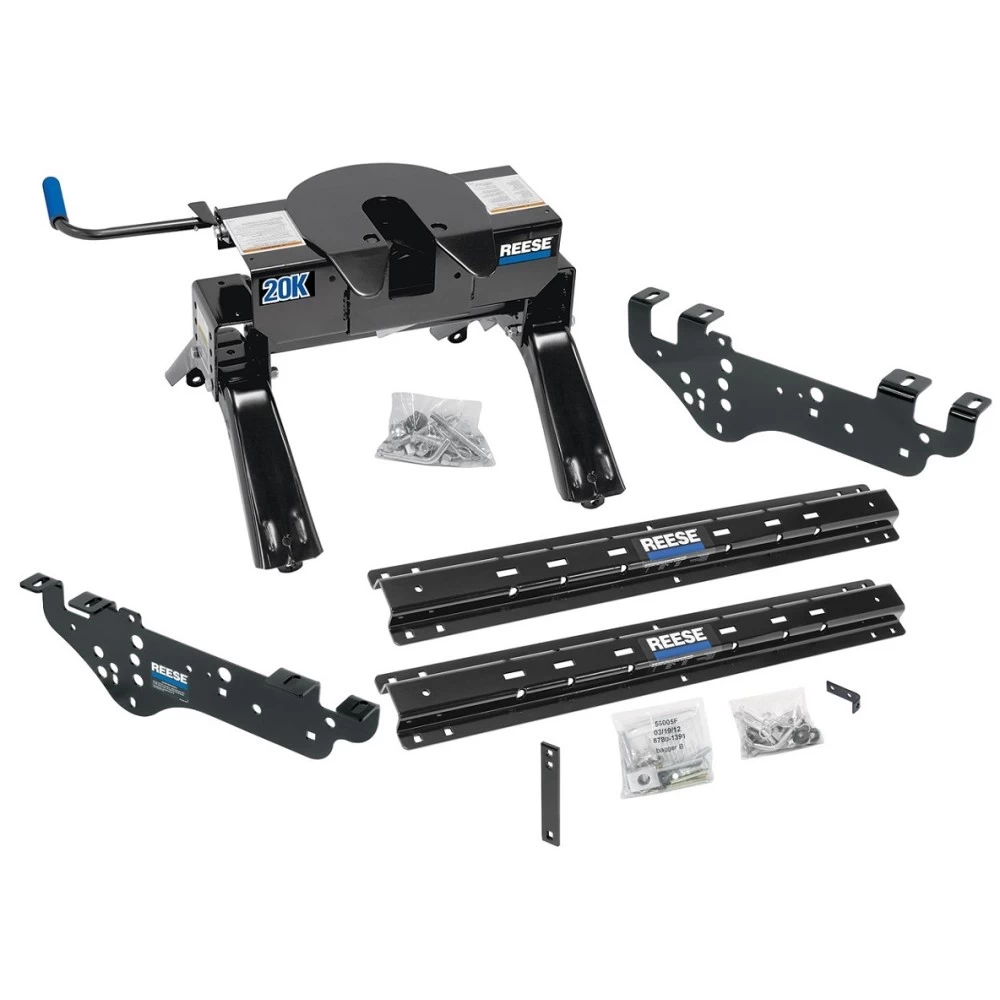

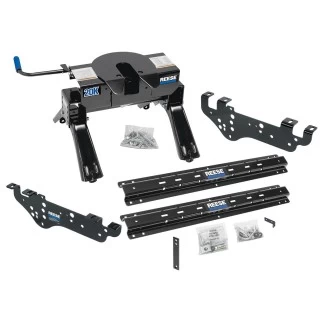

Reese Outboard Quick Install Rail Kit and 20K 5th Wheel Hitch For 99-10 Ford F250 F350 F450 Custom Fit No Drill Base Rails For 5th Wheel and Trailer Fifth Install Notes

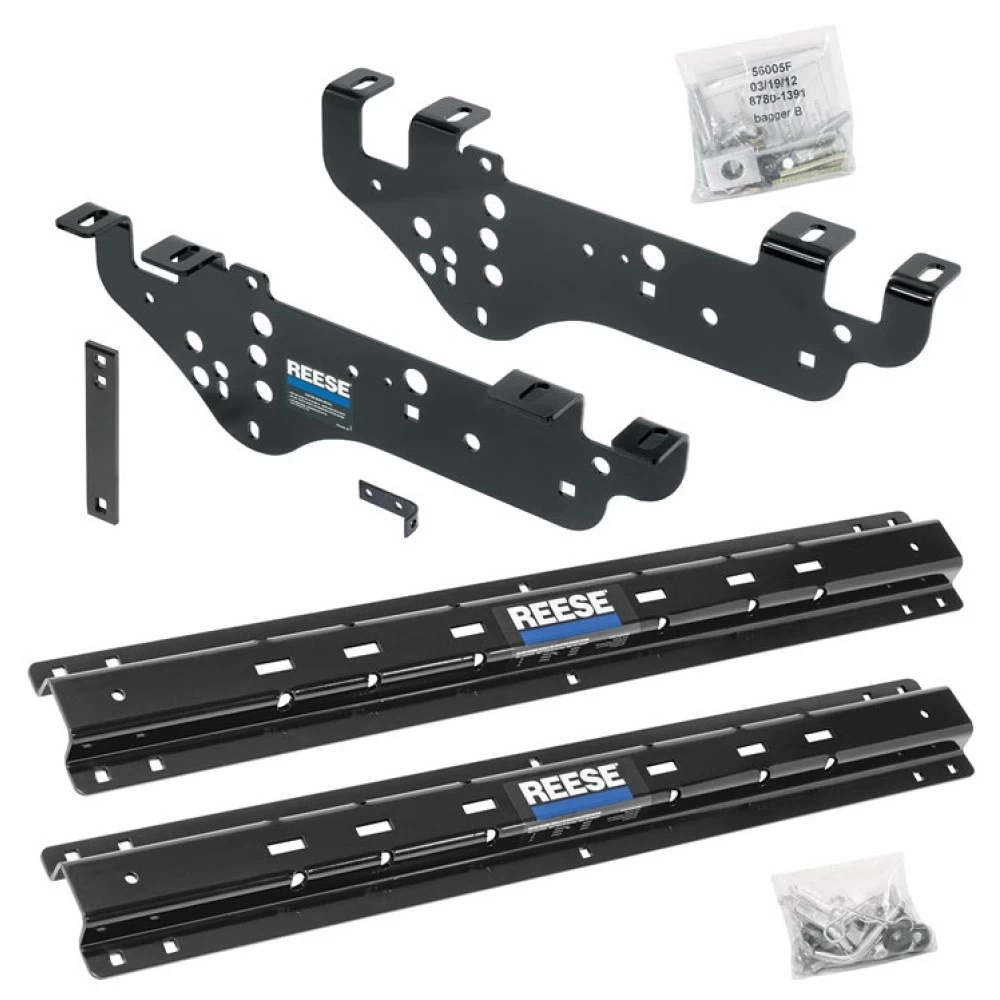

Installation Instructions for Custom Quick Install Mounting Kit
Part Number:
- 56005
Tools Required:
- Drill Bits: 1/8”, 9/16”
- Wrenches: 3/4”, 7/8”, 15/16”, 15mm
- Center Punch
- Measuring Tape
Hardware List:
- Driver Side Frame Bracket
- Passenger Side Frame Bracket
- Carriage Bolts (1/2”-13 x 4.5”, 5/8”-11 x 2.5”)
- Conical Washers (1/2”, 5/8”)
- Spacer Blocks
- U-shaped Spacers
- Hex Nuts (1/2”-13, 5/8”-11)
- Lock Washers (1/2”, 5/8”)
Step-by-Step Instructions:
Pre-Installation:
-
Prepare Vehicle:
- Lower and remove the spare tire if additional space is required.
- For gas engine vehicles (2005-2010), relocate the vapor tube along the driver-side frame rail. Use the provided L-bracket for proper installation.
-
Position Rear Mounting Rail:
- Place the rear mounting rail in the truck bed.
- Center the rail between the weld seams and measure the specified distance from the rear edge of the truck box.
Installation Steps:
1. Drill and Enlarge Holes:
- Mark and drill 1/8” pilot holes at the specified locations.
- Enlarge the pilot holes to 9/16”.
2. Install Frame Brackets:
- Temporarily position the frame brackets to align with the drilled holes.
- Secure the brackets using the provided bolts, washers, and spacers.
- For 2008-2010 trucks, include a 5/8” spacer between the bracket and frame.
3. Secure Rear Rail:
- Reposition the rear mounting rail over the holes.
- Insert carriage bolts with U-shaped spacers to prevent crushing bed corrugations.
- Secure the bolts with conical washers and nuts.
4. Install Front Rail:
- Align the front rail using the fifth-wheel hitch for positioning.
- Repeat the drilling and securing process.
5. Final Tightening:
- Torque 1/2” hardware to 110 ft-lbs.
- Torque 5/8” hardware to 212 ft-lbs.
- Tighten fasteners in the following sequence:
- Mounting rails to frame brackets.
- Frame brackets to the truck frame.
Important Notes:
- Do not install mounting rails over plastic bed liners. Metal-to-metal contact is required.
- Ensure all hardware is Grade 8 unless otherwise specified.
- Verify proper clearance between the cab, trailer, and hitch.
Maintenance:
- Inspect bolts and re-torque as necessary.
- Repaint any exposed metal to prevent rust.
Warranty:
- Limited Lifetime Warranty covers defects in material and workmanship.
- For complete warranty instructions, please download the full installation PDF.
Safety Notes:
- Verify hitch compatibility and clearances before towing.
- Follow all torque specifications for a secure installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Reese Rail Mounting Kit #30153
Part Numbers:
- 30153
Step-by-Step Instructions:
Step 1: Prepare the truck bed.
- Do not install mounting rails over plastic bed liners. Plastic bed liners must be cut out of the way to allow the rails to sit directly on the truck bed.
- If you have a spray-in bed liner, installation is allowed. Note: Consult your installer regarding the recommended curing time for the spray-in liner before installation.
Step 2: Verify hardware components.
- Use only the bolts, nuts, and washers supplied by Cequent Performance Products, Inc. for this installation.
- All bolts are Grade 8 hardware, designed to meet North American towing standards.
Step 3: Install the base rails.
- Position the Reese base rails on the truck bed according to the instructions provided with the Reese Series Custom Mounting Kit (part #56000 series only).
- Align the rails carefully to ensure proper placement.
Step 4: Insert and secure the carriage bolts.
- Insert the 1/2" x 2" Grade 8 carriage bolts through the mounting holes in the base rails.
- Use the supplied truck bed spacers under the bed if needed to ensure a level installation.
Step 5: Attach washers and nuts.
- Place the 1/2" conical toothed washers over the bolts and secure them with the 1/2" nuts.
- Tighten all bolts using a wrench until they are snug. Ensure all hardware is secured firmly.
Step 6: Final tightening.
- Double-check the alignment of the base rails.
- Fully tighten all bolts to the torque specifications provided in the Reese Series Custom Mounting Kit instructions.
Step 7: Complete the installation.
- Inspect all hardware and connections to ensure proper installation.
- Verify that no bolts are loose and all components are firmly secured.
Step 8: Warranty and final checks.
- Ensure the owner receives and fills out the warranty information page included with this kit.
- Instruct the owner to check the bolt tightness annually to maintain safe operation.
Hardware List:
- (2) Reese Base Rails
- (10) 1/2" x 2" Grade 8 Carriage Bolts
- (10) Truck Bed Spacers
- (10) 1/2" Conical Toothed Washers
- (10) 1/2" Nuts
Safety Notes:
- Tighten all bolts securely to prevent loosening during towing.
- Follow all instructions carefully to ensure safe installation and proper function of the rail mounting kit.
- Verify alignment and hardware tightness before use.
Manufacturer Notes:
- Kit must be used with Reese Series Custom Mounting Kits (Part #56000 series only).
- Meets North American testing standards for towing (SAE J2638).
- Hardware meets Grade 8 requirements for commercial and recreational towing.
Specifications:
- SAE J2638 Rated
- Limited Lifetime Warranty
Installation Instructions for Rail Mounting Kit #30153
Part Numbers:
- 30153
Step-by-Step Instructions:
Step 1: Prepare the truck bed.
- Do not install mounting rails over plastic bed liners. Plastic bed liners must be cut out of the way to allow the rails to sit directly on the truck bed.
- If you have a spray-in bed liner, installation is allowed. Note: Consult your installer regarding the recommended curing time for the spray-in liner before installation.
Step 2: Verify hardware components.
- Use only the bolts, nuts, and washers supplied for this installation.
- All bolts are Grade 8 hardware, designed to meet North American towing standards.
Step 3: Install the base rails.
- Position the base rails on the truck bed according to the instructions provided with the Custom Mounting Kit (part #56000 series only).
- Align the rails carefully to ensure proper placement.
Step 4: Insert and secure the carriage bolts.
- Insert the 1/2" x 2" Grade 8 carriage bolts through the mounting holes in the base rails.
- Use the supplied truck bed spacers under the bed if needed to ensure a level installation.
Step 5: Attach washers and nuts.
- Place the 1/2" conical toothed washers over the bolts and secure them with the 1/2" nuts.
- Tighten all bolts using a wrench until they are snug. Ensure all hardware is secured firmly.
Step 6: Final tightening.
- Double-check the alignment of the base rails.
- Fully tighten all bolts to the torque specifications provided in the Custom Mounting Kit instructions.
Step 7: Complete the installation.
- Inspect all hardware and connections to ensure proper installation.
- Verify that no bolts are loose and all components are firmly secured.
Step 8: Warranty and final checks.
- Ensure the owner receives and fills out the warranty information page included with this kit.
- Instruct the owner to check the bolt tightness annually to maintain safe operation.
Hardware List:
- (2) Base Rails
- (10) 1/2" x 2" Grade 8 Carriage Bolts
- (10) Truck Bed Spacers
- (10) 1/2" Conical Toothed Washers
- (10) 1/2" Nuts
Safety Notes:
- Tighten all bolts securely to prevent loosening during towing.
- Follow all instructions carefully to ensure safe installation and proper function of the rail mounting kit.
- Verify alignment and hardware tightness before use.
Important Notes:
- Kit must be used with Custom Mounting Kits (Part #56000 series only).
- Meets North American testing standards for towing (SAE J2638).
- Hardware meets Grade 8 requirements for commercial and recreational towing.
Specifications:
- SAE J2638 Rated
- Limited Lifetime Warranty
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

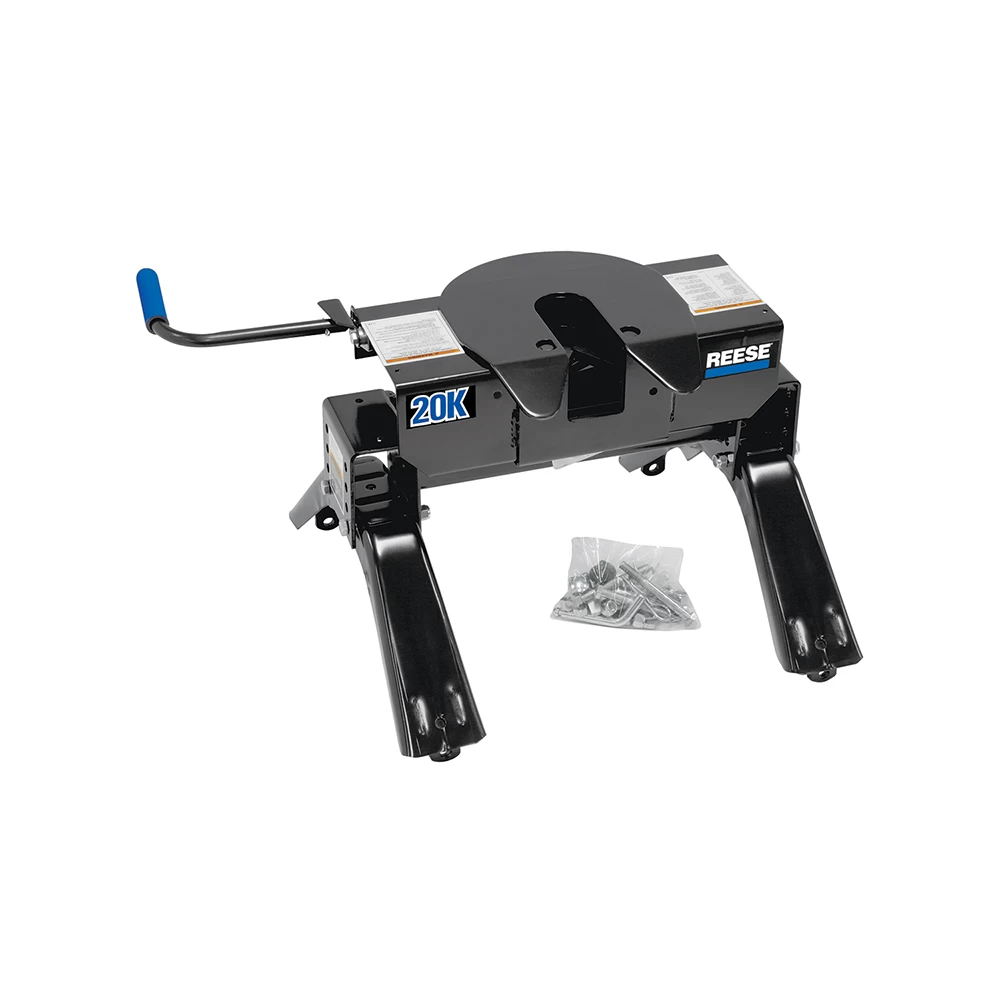

Installation Instructions for Pro Series 20K Fifth Wheel Hitch
Part Numbers:
- 30119 (Combines 30118 and 30727)
Tools Required:
- Torque Wrench
- 3/4" Socket and Wrench
- 7/8" Socket and Wrench
- 5/8" Socket and Wrench
- Tape Measure
- Marking Pencil
- Grease or Spray Lithium Lubricant
Step-by-Step Instructions:
Step 1: Verify Vehicle and Trailer Compatibility
- Ensure the Gross Trailer Weight (GTW) does not exceed 20,000 lbs.
- Verify the kingpin weight is between 15-25% of the trailer weight, with a maximum pin weight of 5,000 lbs.
- Maintain a minimum clearance of 6 inches between the trailer and truck bed rails during towing.
Step 2: Install Base Rails and Mounting Brackets
-
Positioning the Base Rails:
- Place the base rails across the truck bed as specified in the mounting rail kit instructions (sold separately).
- Ensure that the rails are spaced 22 inches apart, center-to-center, and aligned properly.
- Check diagonal measurements to confirm alignment (should not differ by more than 1/8 inch).
-
Install the Mounting Brackets:
- Secure the mounting brackets to the truck frame using the hardware provided in the rail kit.
- Insert spacers under the base rails as needed to fill any gaps caused by truck bed corrugations.
-
Torque the Bolts:
- Torque all fasteners to the specifications provided in the mounting kit (usually 75 lb.-ft. for 1/2" bolts).
Step 3: Assemble the Fifth Wheel Legs and Head
-
Attach the Legs to the Base Rails:
- Position the fifth wheel legs in the base rail slots. Secure them using pull pins and spring retaining clips.
-
Mount the Hitch Head:
- Place the hitch head onto the legs and align the bolt holes.
- Use the provided 5/8" bolts, lock washers, and nuts to attach the hitch head to the legs.
- Torque all bolts to 110 lb.-ft. using a torque wrench.
-
Adjust Hitch Height:
- Set the height of the hitch to match the trailer’s kingpin height. Adjustments can be made using the leg mounting holes, which provide multiple height settings between 13 and 17 inches.
Step 4: Hitching Procedure
- Block the trailer wheels on both sides.
- Lower the trailer's kingpin so it is aligned with the hitch skid plate (within 1 inch).
- Place the hitch in the Ready-to-Hitch Position:
- Open the locking jaws by pulling the handle fully outward until it clicks into place.
- Ensure the locking indicator is in the open position.
- Slowly back the truck so the kingpin slides into the hitch funnel.
- The locking jaws will automatically close around the kingpin, and the handle will return to the locked position.
- Verify that the kingpin is fully engaged in the jaws with no gap visible between the kingpin and the hitch skid plate.
- Perform a pull test:
- Apply trailer brakes and gently try to pull the truck forward to ensure the hitch is securely locked.
Step 5: Unhitching Procedure
- Block the trailer wheels and ensure the truck is in park with the emergency brake engaged.
- Lower the trailer landing gear until it supports the trailer weight.
- Disconnect the power and breakaway switch cables.
- Pull the handle fully outward to open the jaws and release the kingpin.
- Slowly drive the truck forward to separate from the trailer.
Maintenance Schedule:
- Before Each Use:
- Inspect all bolts, pins, and clips for damage or wear.
- Apply grease or spray lubricant to the skid plate and locking jaws.
- Annually or as Needed:
- Inspect the legs, base rails, and mounting brackets for cracks, rust, or damage.
- Re-torque all bolts to their original specifications.
Hardware List:
- (2x) Fifth Wheel Legs
- (1x) Fifth Wheel Hitch Head
- (4x) Pull Pins
- (4x) Spring Retaining Clips
- (4x) 5/8" Bolts
- (4x) Lock Washers
- (4x) Nuts
- Additional mounting hardware from the rail kit (sold separately)
Safety Notes:
- WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching or unhitching.
- Never exceed the Gross Trailer Weight (GTW) or Kingpin Weight rating.
- Regularly inspect all hitch components to ensure safe towing.
- Avoid placing any part of your body between the truck and trailer unless all safety precautions are followed.
Specifications:
- Gross Trailer Weight (GTW): 20,000 lbs
- Maximum Kingpin Weight: 5,000 lbs
- Recommended Torque:
- 1/2" Bolts: 75 lb.-ft.
- 5/8" Bolts: 110 lb.-ft.
- Compliance: Designed for use with Industry Standard Rails (ISR).
Installation Instructions for Pro Series 20K Fifth Wheel Hitch
Part Numbers:
- 30119 (Combines 30118 and 30727)
Tools Required:
- Torque Wrench
- 3/4" Socket and Wrench
- 7/8" Socket and Wrench
- 5/8" Socket and Wrench
- Tape Measure
- Marking Pencil
- Grease or Spray Lithium Lubricant
Step-by-Step Instructions:
Step 1: Verify Vehicle and Trailer Compatibility
- Ensure the Gross Trailer Weight (GTW) does not exceed 20,000 lbs.
- Verify the kingpin weight is between 15-25% of the trailer weight, with a maximum pin weight of 5,000 lbs.
- Maintain a minimum clearance of 6 inches between the trailer and truck bed rails during towing.
Step 2: Install Base Rails and Mounting Brackets
-
Positioning the Base Rails:
- Place the base rails across the truck bed as specified in the mounting rail kit instructions (sold separately).
- Ensure that the rails are spaced 22 inches apart, center-to-center, and aligned properly.
- Check diagonal measurements to confirm alignment (should not differ by more than 1/8 inch).
-
Install the Mounting Brackets:
- Secure the mounting brackets to the truck frame using the hardware provided in the rail kit.
- Insert spacers under the base rails as needed to fill any gaps caused by truck bed corrugations.
-
Torque the Bolts:
- Torque all fasteners to the specifications provided in the mounting kit (usually 75 lb.-ft. for 1/2" bolts).
Step 3: Assemble the Fifth Wheel Legs and Head
-
Attach the Legs to the Base Rails:
- Position the fifth wheel legs in the base rail slots. Secure them using pull pins and spring retaining clips.
-
Mount the Hitch Head:
- Place the hitch head onto the legs and align the bolt holes.
- Use the provided 5/8" bolts, lock washers, and nuts to attach the hitch head to the legs.
- Torque all bolts to 110 lb.-ft. using a torque wrench.
-
Adjust Hitch Height:
- Set the height of the hitch to match the trailer’s kingpin height. Adjustments can be made using the leg mounting holes, which provide multiple height settings between 13 and 17 inches.
Step 4: Hitching Procedure
- Block the trailer wheels on both sides.
- Lower the trailer's kingpin so it is aligned with the hitch skid plate (within 1 inch).
- Place the hitch in the Ready-to-Hitch Position:
- Open the locking jaws by pulling the handle fully outward until it clicks into place.
- Ensure the locking indicator is in the open position.
- Slowly back the truck so the kingpin slides into the hitch funnel.
- The locking jaws will automatically close around the kingpin, and the handle will return to the locked position.
- Verify that the kingpin is fully engaged in the jaws with no gap visible between the kingpin and the hitch skid plate.
- Perform a pull test:
- Apply trailer brakes and gently try to pull the truck forward to ensure the hitch is securely locked.
Step 5: Unhitching Procedure
- Block the trailer wheels and ensure the truck is in park with the emergency brake engaged.
- Lower the trailer landing gear until it supports the trailer weight.
- Disconnect the power and breakaway switch cables.
- Pull the handle fully outward to open the jaws and release the kingpin.
- Slowly drive the truck forward to separate from the trailer.
Maintenance Schedule:
- Before Each Use:
- Inspect all bolts, pins, and clips for damage or wear.
- Apply grease or spray lubricant to the skid plate and locking jaws.
- Annually or as Needed:
- Inspect the legs, base rails, and mounting brackets for cracks, rust, or damage.
- Re-torque all bolts to their original specifications.
Hardware List:
- (2x) Fifth Wheel Legs
- (1x) Fifth Wheel Hitch Head
- (4x) Pull Pins
- (4x) Spring Retaining Clips
- (4x) 5/8" Bolts
- (4x) Lock Washers
- (4x) Nuts
- Additional mounting hardware from the rail kit (sold separately)
Safety Notes:
- WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching or unhitching.
- Never exceed the Gross Trailer Weight (GTW) or Kingpin Weight rating.
- Regularly inspect all hitch components to ensure safe towing.
- Avoid placing any part of your body between the truck and trailer unless all safety precautions are followed.
Specifications:
- Gross Trailer Weight (GTW): 20,000 lbs
- Maximum Kingpin Weight: 5,000 lbs
- Recommended Torque:
- 1/2" Bolts: 75 lb.-ft.
- 5/8" Bolts: 110 lb.-ft.
- Compliance: Designed for use with Industry Standard Rails (ISR).
Warranty Information:
- Warranty Duration: 1 year from the date of purchase.
- Coverage: The warranty covers defects in material and workmanship under normal use conditions.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
