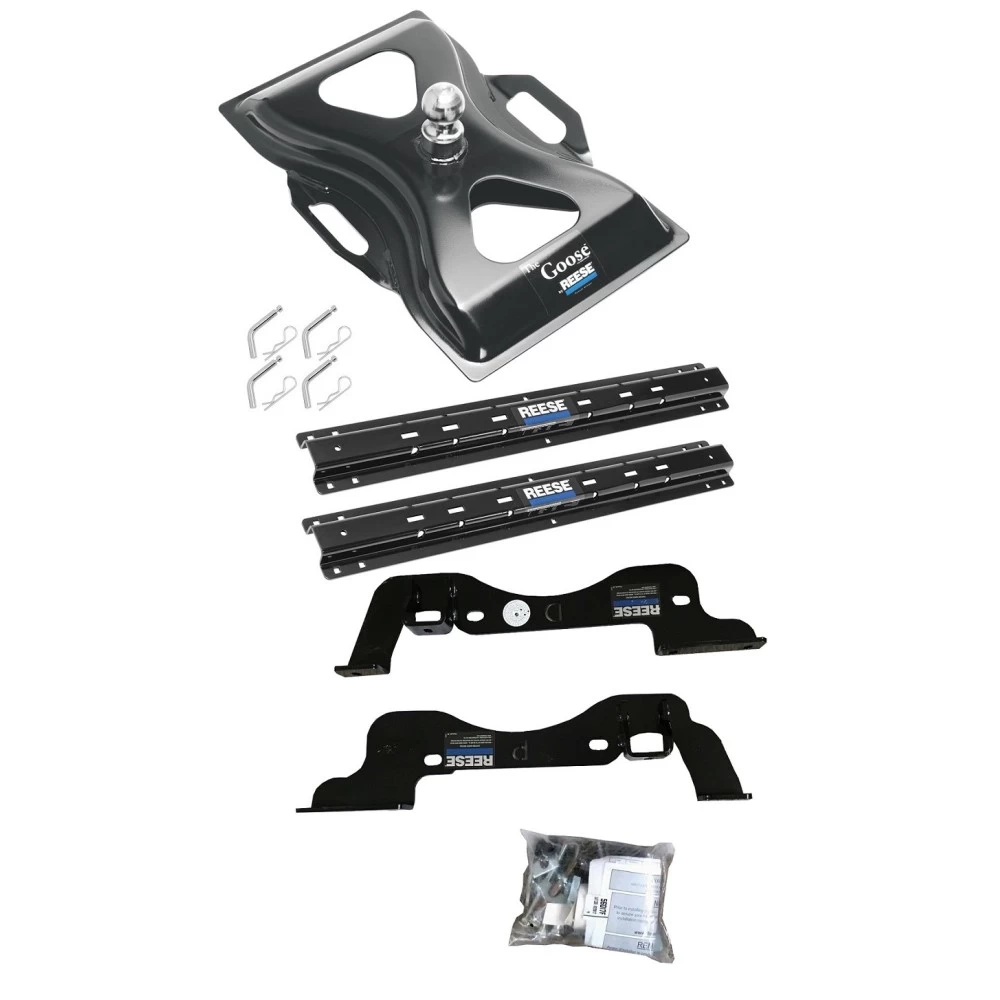

Reese Outboard Quick Install Rail Kit and 25K Gooseneck Hitch For 17‑19 Ford F250 F350 Custom Fit No Drill Base Rails For Gooseneck Trailer

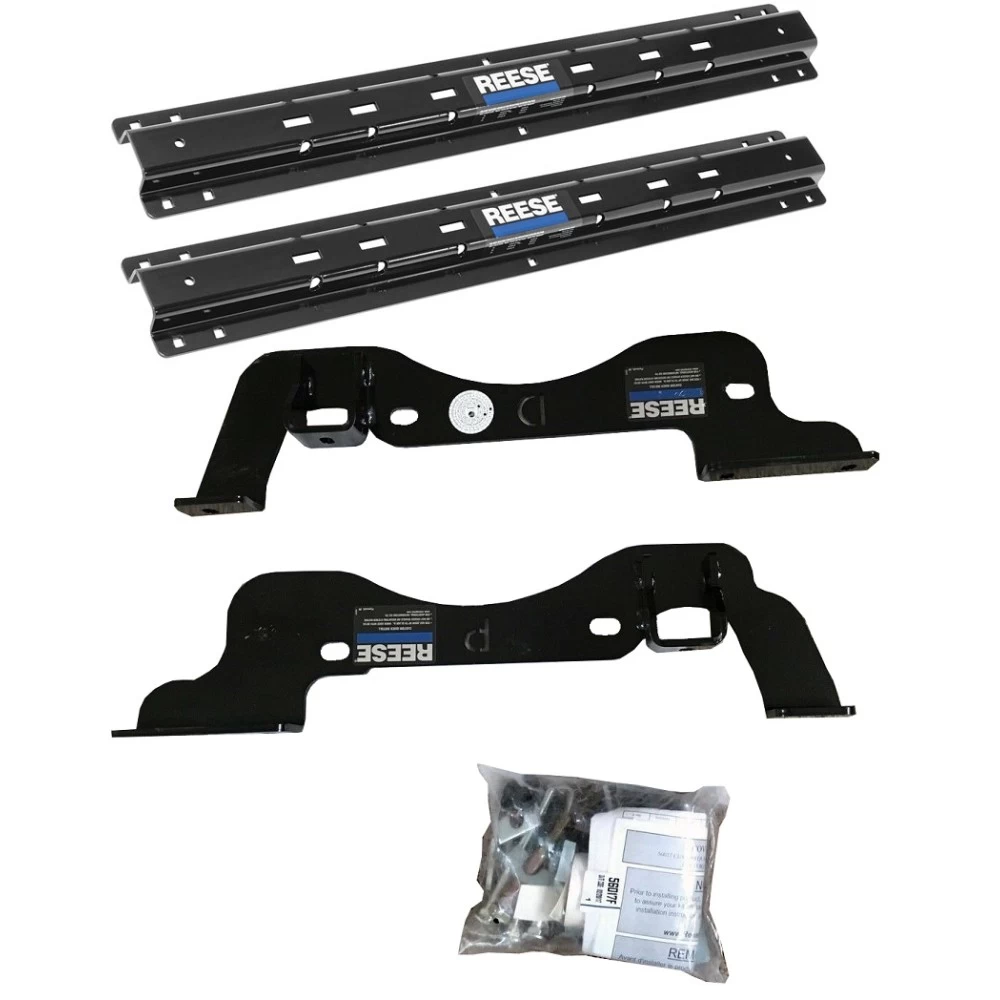

Model: 56017-53 58079Reese Outboard Fifth Wheel Rail Kit
Custom Outboard Quick Connect Brackets
Reese Above-Bed Gooseneck Hitch 25K 2-5/16" Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2017 - 2020 Ford, F-250 Super Duty, Except Cab & Chassis
2017 - 2020 Ford, F-350 Super Duty, Except Cab & Chassis
2017 - 2020 Ford, F-450 Super Duty, Except Cab & Chassis
Features:
Beaneath truck bed custom bracket mounting providing attachments for 5th wheel rails
48" wide rails allow for mounting farther out from truck frame
Quick and easy installation with full truck bed access
Uses pre-existing holes on the truck frame
Reduces installation time in half when compared to universal brackets
Adaptable hitches include: Demco, Hijacker Premier Series, Draw-Tite, Hidden Hitch, Curt, Valley above-bed 5th-wheel trailer hitches, B&W, Reese, and Husky
Rails are wider (48”) for faster install , because the mounting points are outside the truck frame, allowing the installer to avoid under-bed components
Corrosion resistant black powder coat finish
Rail Kit Specs:
| Part Number | 56017-53 |
| Brand | Reese |
|
Finish:
|
Black Powder Coat |
| Warranty: | Lifetime |
| Installation Instructions |  |
Gooseneck Features:
Easy installation and removal allows for full access to truck bed
Utilizes same base rails as our fifth wheel hitches
Ingrained saftey-chain loops work as handles
Enduring, heat-treated ball
Rotating hitch ball reduces binding with goosneck coupler
Corrosion resistant black powder coat finish
Gooseneck Specs:
| Part Number | 58079 |
| Brand | Reese |
|
Capacity:
|
25,000 lbs. |
| Pin Weight Capacity: | 6,250 lbs. |
| Ball Size: | 2-5/16" |
| Warranty: | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
The core product line of Reese is the heavy duty fifth wheels which provide safe towing for the weekend warriors and the seasoned campers. Coupled with the Reese weight distribution systems to control sway, peace of mind is easy to achieve with this product line.
The best known Reese products include the Titan Fifth Wheel series, the Sidewinder, and the Goosebox. These products, among others, have helped Reese achieve the Trailer Life Readers’ Choice Gold winner in the '5th Wheel Hitch' category and the Silver winner in the 'Travel Trailer' category status in 2013.
$839 77 $1,048.23 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$1,048.23 $839 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $209.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 56017-53 58079
- Includes: Fifth Wheel Hitch Mounting System Custom Install Kit, The Goose Fifth Wheel Gooseneck Hitch
Compatibility Chart
Reese Outboard Fifth Wheel Rail Kit
Custom Outboard Quick Connect Brackets
Reese Above-Bed Gooseneck Hitch 25K 2-5/16" Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2017 - 2020 Ford, F-250 Super Duty, Except Cab & Chassis
2017 - 2020 Ford, F-350 Super Duty, Except Cab & Chassis
2017 - 2020 Ford, F-450 Super Duty, Except Cab & Chassis
Features:
Beaneath truck bed custom bracket mounting providing attachments for 5th wheel rails
48" wide rails allow for mounting farther out from truck frame
Quick and easy installation with full truck bed access
Uses pre-existing holes on the truck frame
Reduces installation time in half when compared to universal brackets
Adaptable hitches include: Demco, Hijacker Premier Series, Draw-Tite, Hidden Hitch, Curt, Valley above-bed 5th-wheel trailer hitches, B&W, Reese, and Husky
Rails are wider (48”) for faster install , because the mounting points are outside the truck frame, allowing the installer to avoid under-bed components
Corrosion resistant black powder coat finish
Rail Kit Specs:
| Part Number | 56017-53 |
| Brand | Reese |
|
Finish:
|
Black Powder Coat |
| Warranty: | Lifetime |
| Installation Instructions | |
Gooseneck Features:
Easy installation and removal allows for full access to truck bed
Utilizes same base rails as our fifth wheel hitches
Ingrained saftey-chain loops work as handles
Enduring, heat-treated ball
Rotating hitch ball reduces binding with goosneck coupler
Corrosion resistant black powder coat finish
Gooseneck Specs:
| Part Number | 58079 |
| Brand | Reese |
|
Capacity:
|
25,000 lbs. |
| Pin Weight Capacity: | 6,250 lbs. |
| Ball Size: | 2-5/16" |
| Warranty: | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
The core product line of Reese is the heavy duty fifth wheels which provide safe towing for the weekend warriors and the seasoned campers. Coupled with the Reese weight distribution systems to control sway, peace of mind is easy to achieve with this product line.
The best known Reese products include the Titan Fifth Wheel series, the Sidewinder, and the Goosebox. These products, among others, have helped Reese achieve the Trailer Life Readers’ Choice Gold winner in the '5th Wheel Hitch' category and the Silver winner in the 'Travel Trailer' category status in 2013.
Get Expert Help
Reese Outboard Quick Install Rail Kit and 25K Gooseneck Hitch For 17-19 Ford F250 F350 Custom Fit No Drill Base Rails For Gooseneck Trailer Install Notes
Installation Instructions for Custom Quick Install Mounting Kit
Part Number:
- 56017-53
Tools Required:
- Drill Bits: 1/8”, 9/16”, 1-1/8”
- Wrenches: 3/4”, 15/16”
- Torque Wrench (capable of 212 ft-lbs)
- Center Punch
- Measuring Tape
Hardware List:
- Driver Side Bracket
- Passenger Side Bracket
- Carriage Bolts: 1/2"-13 x 5.5", 1/2"-13 x 4.5"
- Hex Nuts: 1/2"-13, 5/8"-11
- Conical Washers: 1/2", 5/8"
- Galvanic Isolator Strips
- Tube Spacers
- Spacer Blocks
- Pull Wires
Step-by-Step Instructions:
Pre-Installation:
-
Inspect Vehicle:
- Lower and remove the spare tire if additional space is required.
- Remove inner plastic wheel well liners for access to the frame.
-
Prepare Bed:
- Place galvanic isolator strips on the underside of mounting rails to protect the aluminum bed from corrosion.
- Center the rear rail and mark the drill hole locations.
Installation Steps:
1. Position and Mark Rear Rail:
- Place the rear mounting rail in the truck bed, ensuring it is centered and at the specified distance from the rear edge.
- Drill 1/8” pilot holes through the marked locations.
2. Enlarge Holes:
- Enlarge the pilot holes to 9/16”.
- For row 3, drill through both the bed and the crossmember. Enlarge the holes in the truck bed to 1-1/8” but not in the crossmember.
3. Install Frame Brackets:
- Attach frame brackets loosely using the provided bolts and nuts.
- Align the drilled holes with the rail slots and adjust brackets if necessary.
4. Secure Rear Rail:
- Insert tube spacers and spacer blocks in the drilled holes.
- Place bolts through the rail, spacers, and brackets. Tighten nuts and washers.
5. Install Front Rail:
- Use the hitch to align the front rail.
- Mark, drill, and secure the front rail using the same process as the rear rail.
6. Final Adjustments:
- Tighten all bolts to the specified torque values:
- 1/2” hardware: 110 ft-lbs
- 5/8” hardware: 212 ft-lbs
- Ensure all rails and brackets are securely fastened.
Important Notes:
- Do not drill through both sides of the truck frame.
- Repaint any bare metal areas to prevent rust.
- Verify proper clearance between the hitch and the truck cab before towing.
Maintenance:
- Inspect and re-torque bolts annually.
- Repaint drilled areas to prevent corrosion.
Warranty:
- Limited Lifetime Warranty covers defects in material and workmanship.
- For complete warranty instructions, please download the full installation PDF.
Safety Notes:
- Ensure all fasteners are tightened to the specified torque values.
- Check for proper clearances between the truck, hitch, and trailer before use.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Gooseneck Hitch
Part Numbers:
- 58079
Rated Capacity:
- As per the towing vehicle manufacturer's GVWR (Gross Vehicle Weight Rating).
Tools Required:
- Wrenches and sockets as specified in the base rail instructions.
Warnings:
- DO NOT exceed the manufacturer's GVWR for your vehicle.
- Ensure proper inspection, lubrication, and securing of components before each tow.
Step-by-Step Instructions:
1. Base Rail Installation:
- Place the base rails across the truck bed according to the base rail mounting kit instructions.
- Position the hitch on the base rails to establish the correct spread.
- If additional fasteners are required, drill holes in the center of the base rails at the nearest truck bed channel using the provided fasteners.
2. Hitch Installation:
- Secure the hitch to the base rails using pull pins and spring cotter pins.
- For safety chains:
- Insert the chain link into the provided slot.
- Secure the chain with additional pull pins and spring cotter pins (not included). The Reese Safety Chain Kit (#50223) is recommended.
3. Final Check:
- Inspect the hitch for any damage or missing components.
- Lubricate the ball and inspect all clips and pins for proper functionality.
- Verify the hitch is properly secured to the base rails and all components are in good condition.
Additional Mounting Instructions:
- Install base rails in accordance with the provided mounting instructions.
- If additional center bolts are not installed:
- Drill a 1/2” hole in the truck bed using the center hole in the base rail as a guide.
- Insert a 1/2” carriage bolt and secure it with a serrated washer, lock washer, and hex nut.
- Insert a spacer between the truck bed corrugation and the base rail to prevent crushing.
- Torque all 1/2” nuts to 75 ft-lbs.
- Repeat the process for the other base rail.
Maintenance:
- Regularly inspect the gooseneck hitch, safety chains, pull pins, and spring cotter pins for wear or damage.
- Clean and lubricate the ball before use.
- Retorque all fasteners to maintain secure connections.
Warranty:
- Limited Lifetime Warranty:
- Covers material defects under normal use.
- Excludes wear and tear, misuse, overloading, and improper installation.
- Warranty Claims:
- Contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, or call 1-888-521-0510.
- Proof of purchase is required for processing warranty claims.
For additional technical assistance or questions, contact the support team at the number above.
Installation Instructions for Gooseneck Hitch
Part Numbers:
- 58079
Rated Capacity:
- As per the towing vehicle manufacturer's GVWR (Gross Vehicle Weight Rating).
Tools Required:
- Wrenches and sockets as specified in the base rail instructions.
Warnings:
- DO NOT exceed the manufacturer's GVWR for your vehicle.
- Ensure proper inspection, lubrication, and securing of components before each tow.
Step-by-Step Instructions:
1. Base Rail Installation:
- Place the base rails across the truck bed according to the base rail mounting kit instructions.
- Position the hitch on the base rails to establish the correct spread.
- If additional fasteners are required, drill holes in the center of the base rails at the nearest truck bed channel using the provided fasteners.
2. Hitch Installation:
- Secure the hitch to the base rails using pull pins and spring cotter pins.
- For safety chains:
- Insert the chain link into the provided slot.
- Secure the chain with additional pull pins and spring cotter pins (not included). The Reese Safety Chain Kit (#50223) is recommended.
3. Final Check:
- Inspect the hitch for any damage or missing components.
- Lubricate the ball and inspect all clips and pins for proper functionality.
- Verify the hitch is properly secured to the base rails and all components are in good condition.
Additional Mounting Instructions:
- Install base rails in accordance with the provided mounting instructions.
- If additional center bolts are not installed:
- Drill a 1/2” hole in the truck bed using the center hole in the base rail as a guide.
- Insert a 1/2” carriage bolt and secure it with a serrated washer, lock washer, and hex nut.
- Insert a spacer between the truck bed corrugation and the base rail to prevent crushing.
- Torque all 1/2” nuts to 75 ft-lbs.
- Repeat the process for the other base rail.
Maintenance:
- Regularly inspect the gooseneck hitch, safety chains, pull pins, and spring cotter pins for wear or damage.
- Clean and lubricate the ball before use.
- Retorque all fasteners to maintain secure connections.
Warranty:
- Limited Lifetime Warranty:
- Covers material defects under normal use.
- Excludes wear and tear, misuse, overloading, and improper installation.
- Warranty Claims:
- For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
