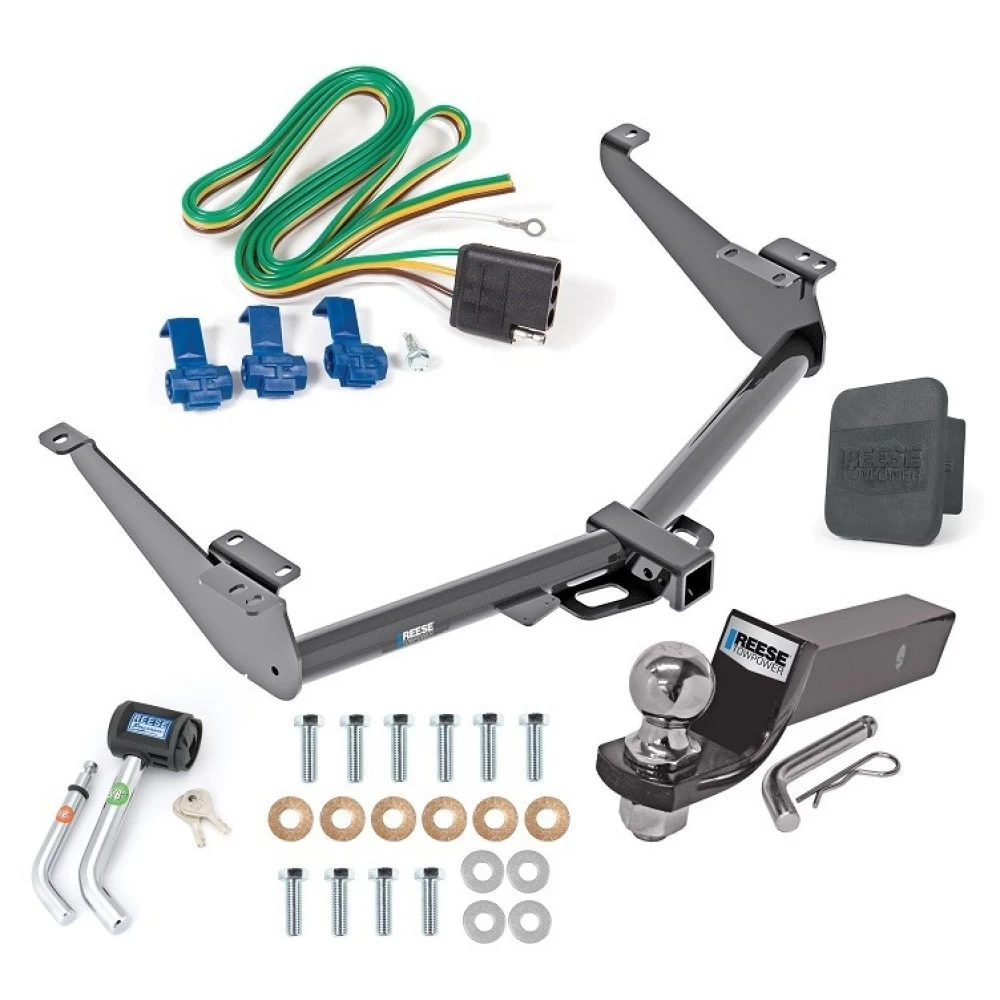

Installation Instructions for Trailer Hitch

Part Numbers:

• 76154
• 84154
• CQT76154

Applications:

• Years: 2017-Current
  • Make and Models: Nissan Titan

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17 mm, 19 mm
• 6" Socket Extension
• Wire Brush

Step-by-Step Instructions:

1. Remove Tow Hook Brackets:

• Using a 17 mm socket, remove the factory tow hook brackets (if present) by removing (10) M12 flange head bolts.
• Return bolts and brackets to the vehicle owner.
  • Note: For vehicles without factory tow hook brackets, clean the existing weld nuts in the frame using a wire brush or compressed air.

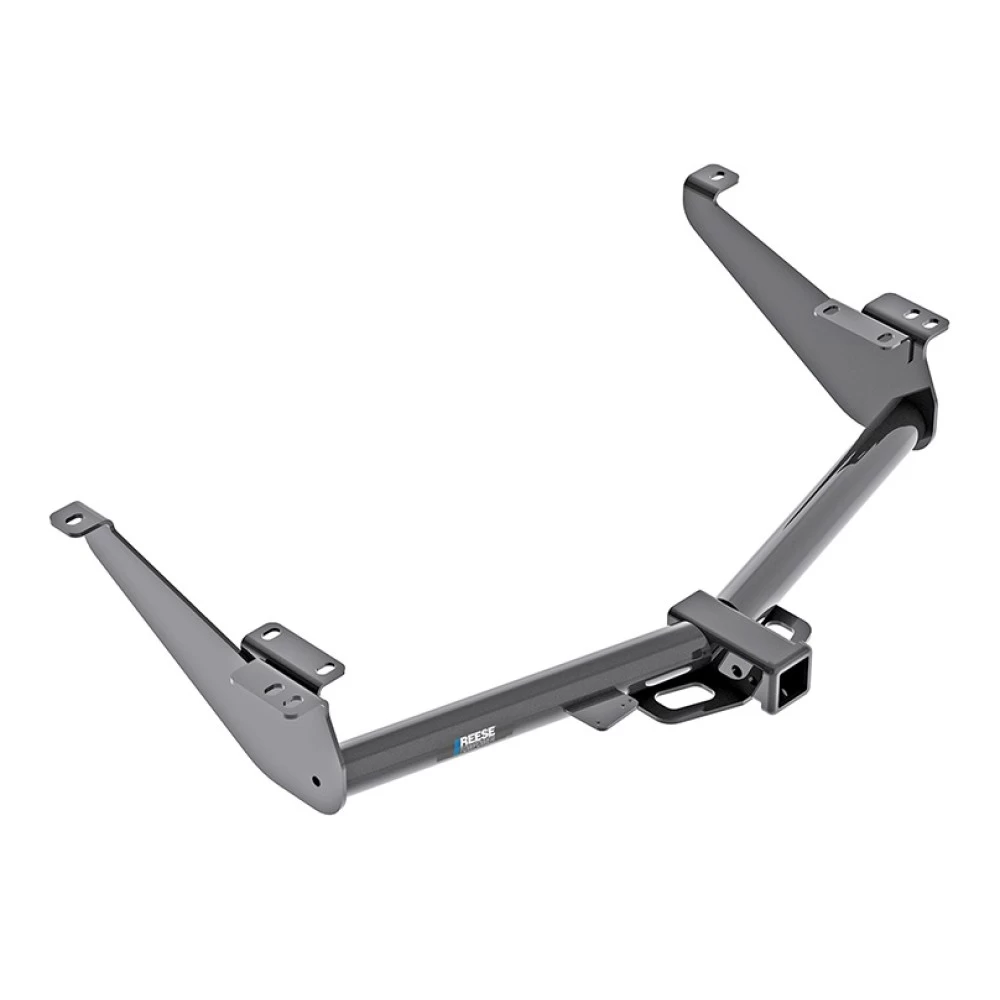

2. Install Hitch:

• Raise the hitch into position, starting with the passenger-side hitch bracket above the exhaust, followed by the driver’s side.
• Using the supplied hardware, install the M12 bolts, conical toothed washers (teeth side against the hitch), and hardened flat washers as shown in Figure 1.

3. Tighten Fasteners:

• Torque all M12 CL10.9 fasteners to 76 lb-ft (103 N·m).

Hardware List:

• 10 × M12 × 1.25 × 40 mm Bolts (CL10.9)
• 6 × Conical Toothed Washers (1/2")
• 4 × Hardened Flat Washers (1/2")

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to secure the hitch to the vehicle.
• Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 8,000 lbs (3,632 kg)
• Max Tongue Weight (Weight Carrying): 800 lbs (363 kg)
• Max Gross Trailer Weight (Weight Distributing): 12,000 lbs (5,448 kg)
• Max Tongue Weight (Weight Distributing): 1,200 lbs (545 kg)
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

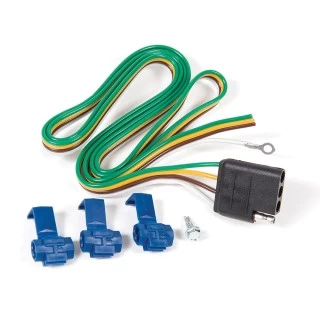

Installation Instructions for Towing Vehicle 4-Way Flat Plug

Tools Required:

• Circuit Tester
• Wire Crimp Tool
• Cable Ties

Step-by-Step Installation Instructions:

Towing Vehicle:

1. Locate the appropriate wires at the rear of the vehicle using a circuit tester and the provided wiring chart as a reference.
2. Make the connections as shown in the chart using wire taps.
3. Connect the Ground Wire (White) to the vehicle frame or body.

General:

1. Test all lights using a test light, circuit tester, or connected trailer to ensure proper functionality.
2. Secure all loose wires with cable ties.

Notes:

• Vehicles with separate turn and stop lights require a taillight converter.
• If splicing into the vehicle wiring:
  • Consult the vehicle owner's manual or local dealer for warnings or restrictions.
  • Use appropriate gauge wire splices for secure connections.

Warnings:

1. Complete Connections:
   • All connections must be complete for proper functionality. Test and verify installation with a test light, circuit tester, or trailer after installation.
2. Overloading Prevention:
   • Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s ratings or:
     • Maximum Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
     • Maximum (+) Battery, Reverse, and Electric Brake Circuits: 30 amps.
3. Additional fusing may be required. Refer to the vehicle owner's manual and instruction sheet for further details.

For further assistance or technical support, consult the vehicle’s owner's manual or contact the product manufacturer.

Installation Instructions for Towing Vehicle 4-Way Flat Plug

Tools Required:

• Circuit Tester
• Wire Crimp Tool
• Cable Ties

Step-by-Step Installation Instructions:

Towing Vehicle:

1. Locate the appropriate wires at the rear of the vehicle using a circuit tester and the provided wiring chart as a reference.
2. Make the connections as shown in the chart using wire taps.
3. Connect the Ground Wire (White) to the vehicle frame or body.

General:

1. Test all lights using a test light, circuit tester, or connected trailer to ensure proper functionality.
2. Secure all loose wires with cable ties.

Notes:

• Vehicles with separate turn and stop lights require a taillight converter.
• If splicing into the vehicle wiring:
  • Consult the vehicle owner's manual or local dealer for warnings or restrictions.
  • Use appropriate gauge wire splices for secure connections.

Warnings:

1. Complete Connections:
   • All connections must be complete for proper functionality. Test and verify installation with a test light, circuit tester, or trailer after installation.
2. Overloading Prevention:
   • Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s ratings or:
     • Maximum Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
     • Maximum (+) Battery, Reverse, and Electric Brake Circuits: 30 amps.
3. Additional fusing may be required. Refer to the vehicle owner's manual and instruction sheet for further details.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

The product comes with a [X]-year warranty that covers defects in materials and workmanship. For complete warranty instructions, please download the full installation PDF.
