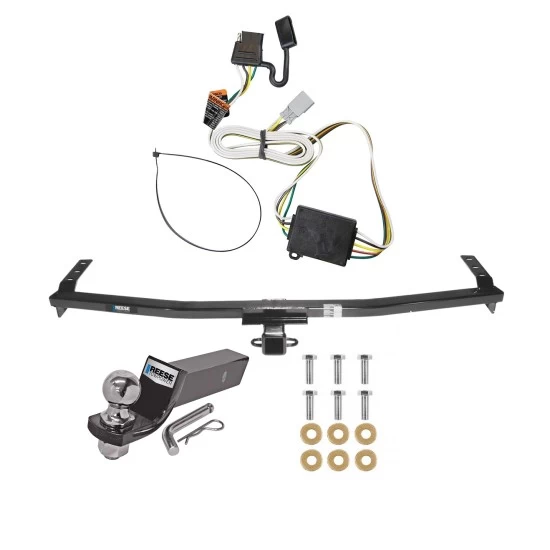

Installation Instructions for Acura MDX and Honda Pilot
(Fits with mini spare tire. Will not fit with full-size spare.)

Part Numbers:

• 44589
• 75599
• 87454

Tools Required:

• Wrenches: 10mm, 14mm, 17mm, 19mm
• Drill Bits: None

Wiring Access Location:

• SUV3

Notes:

• A transmission cooler and power steering cooler are required for maximum towing capacity. Refer to the vehicle owner’s manual for details.

Step-by-Step Instructions:

For 2001-2003 Acura MDX and 2001+ Honda Pilot:

1. Remove Tow Hook:

   • Remove the tow hook from the driver’s side of the vehicle.
   • Return the hook and fasteners to the vehicle owner.

2. Lower the Exhaust:

   • Detach three (3) rubber muffler hangers to lower the exhaust.

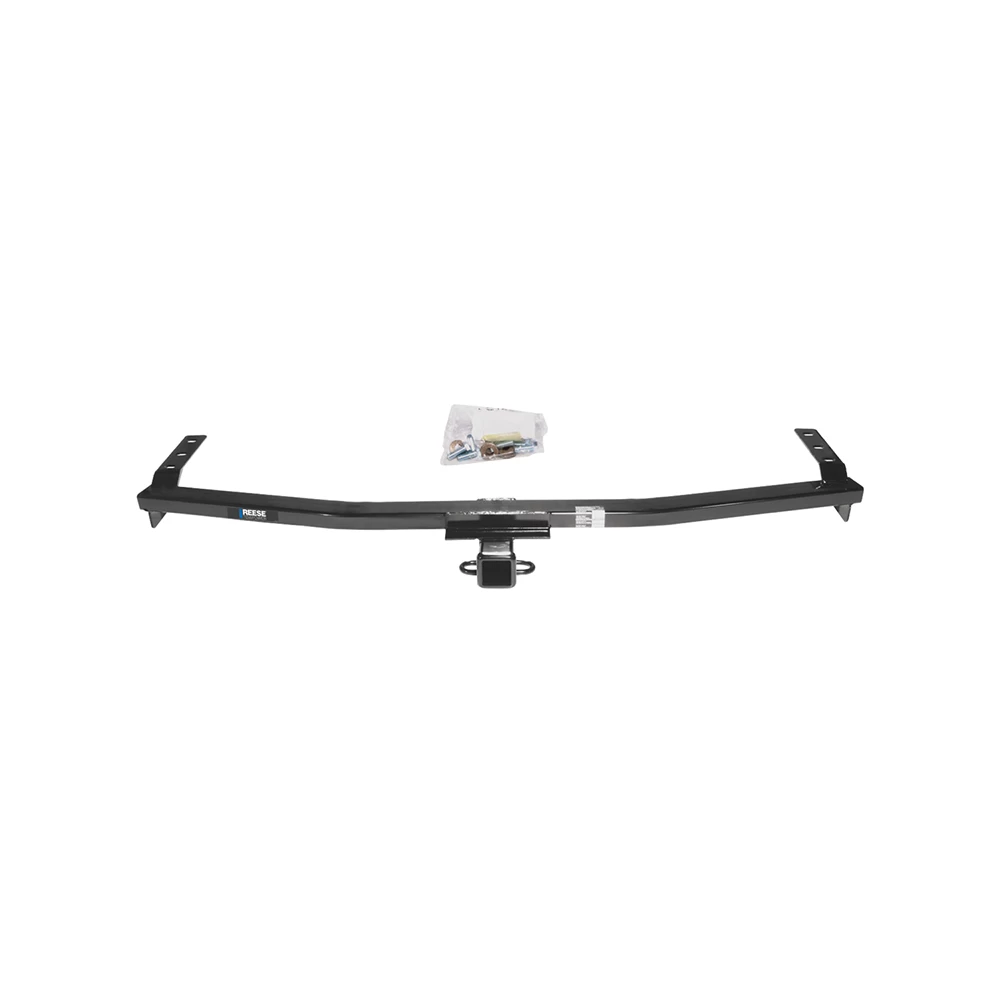

3. Position the Hitch:

   • Raise the hitch into position and align it with the existing weldnuts on the frame.
   • Secure the hitch using the provided fasteners.

4. Reinstall Exhaust:

   • Reattach the muffler hangers.

5. Adjust Heat Shield (if needed):

   • If an exhaust rattle occurs, trim the rearward exhaust heat shield between the cross tube and muffler.

For 2004 Acura MDX:

1. Remove Tow Hook:

   • Follow the same steps as outlined above.

2. Remove Fascia Covering:

   • Remove the fascia under-covering by detaching bolts and clips.
   • Return the cover and fasteners to the vehicle owner.

3. Lower the Exhaust:

   • Detach four (4) rubber muffler hangers to lower the exhaust.

4. Position the Hitch:

   • Raise the hitch into position and secure it using the provided fasteners.

5. Reinstall Exhaust:

   • Reattach the muffler hangers.

Hardware List:

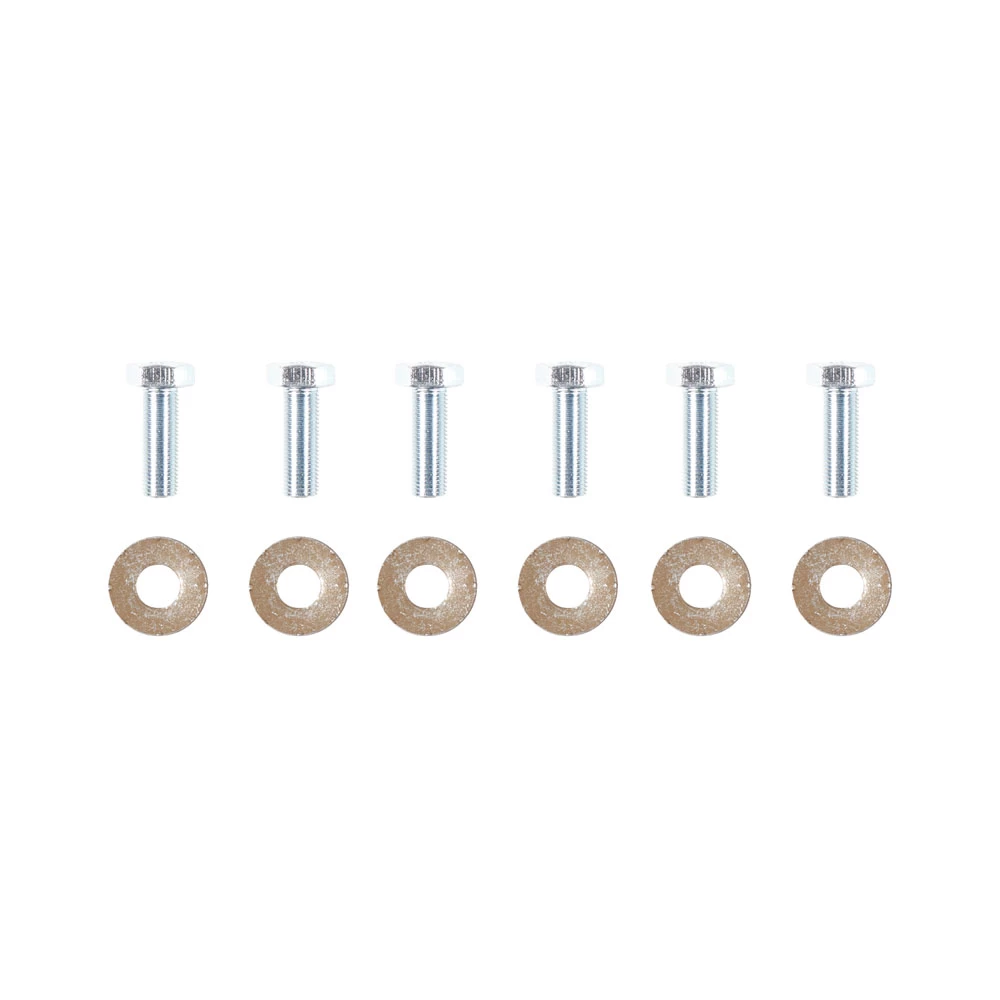

• (6) M12 x 1.25 x 35mm CL8.8 Hex Bolts
• (6) 1/2" Conical Washers

Torque Specifications:

• Tighten all M12 x 1.25 CL8.8 fasteners to 68 lb-ft (92 N·m).

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicles (Generic)
(Fits with mini spare tire. Will not fit with full-size spare.)

Part Numbers:

• 44589
• 75599
• 87454

Tools Required:

• Wrenches: 10mm, 14mm, 17mm, 19mm
• Drill Bits: None

Wiring Access Location:

• SUV3

Notes:

• A transmission cooler and power steering cooler are required for maximum towing capacity. Refer to the vehicle owner’s manual for details.

Step-by-Step Instructions:

For 2001-2003 Acura MDX and 2001+ Honda Pilot:

1. Remove Tow Hook:

   • Remove the tow hook from the driver’s side of the vehicle.
   • Return the hook and fasteners to the vehicle owner.

2. Lower the Exhaust:

   • Detach three (3) rubber muffler hangers to lower the exhaust.

3. Position the Hitch:

   • Raise the hitch into position and align it with the existing weldnuts on the frame.
   • Secure the hitch using the provided fasteners.

4. Reinstall Exhaust:

   • Reattach the muffler hangers.

5. Adjust Heat Shield (if needed):

   • If an exhaust rattle occurs, trim the rearward exhaust heat shield between the cross tube and muffler.

For 2004 Acura MDX:

1. Remove Tow Hook:

   • Follow the same steps as outlined above.

2. Remove Fascia Covering:

   • Remove the fascia under-covering by detaching bolts and clips.
   • Return the cover and fasteners to the vehicle owner.

3. Lower the Exhaust:

   • Detach four (4) rubber muffler hangers to lower the exhaust.

4. Position the Hitch:

   • Raise the hitch into position and secure it using the provided fasteners.

5. Reinstall Exhaust:

   • Reattach the muffler hangers.

Hardware List:

• (6) M12 x 1.25 x 35mm CL8.8 Hex Bolts
• (6) 1/2" Conical Washers

Torque Specifications:

• Tighten all M12 x 1.25 CL8.8 fasteners to 68 lb-ft (92 N·m).

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118336

Vehicle Compatibility:

• Acura: CL (1997-Current), RL (1996-2001), TL (1996-Current), Integra (1994-2001), MDX (2001-Current)
• Honda: Accord (1994-2002), Prelude (2001-2002), Odyssey (1995-Current), CR-V (1997-Current), Pilot (2003-Current), Element (2003-Current)
• Isuzu: Oasis (1996-1999)

Tools Required:

• Trim panel tool.
• Phillips screwdriver (varies by model).
• Wrench (varies by model).

Step-by-Step Instructions:

General Instructions for All Vehicles:

1. Remove the tape securing the wiring harness connector from the wiring loom.

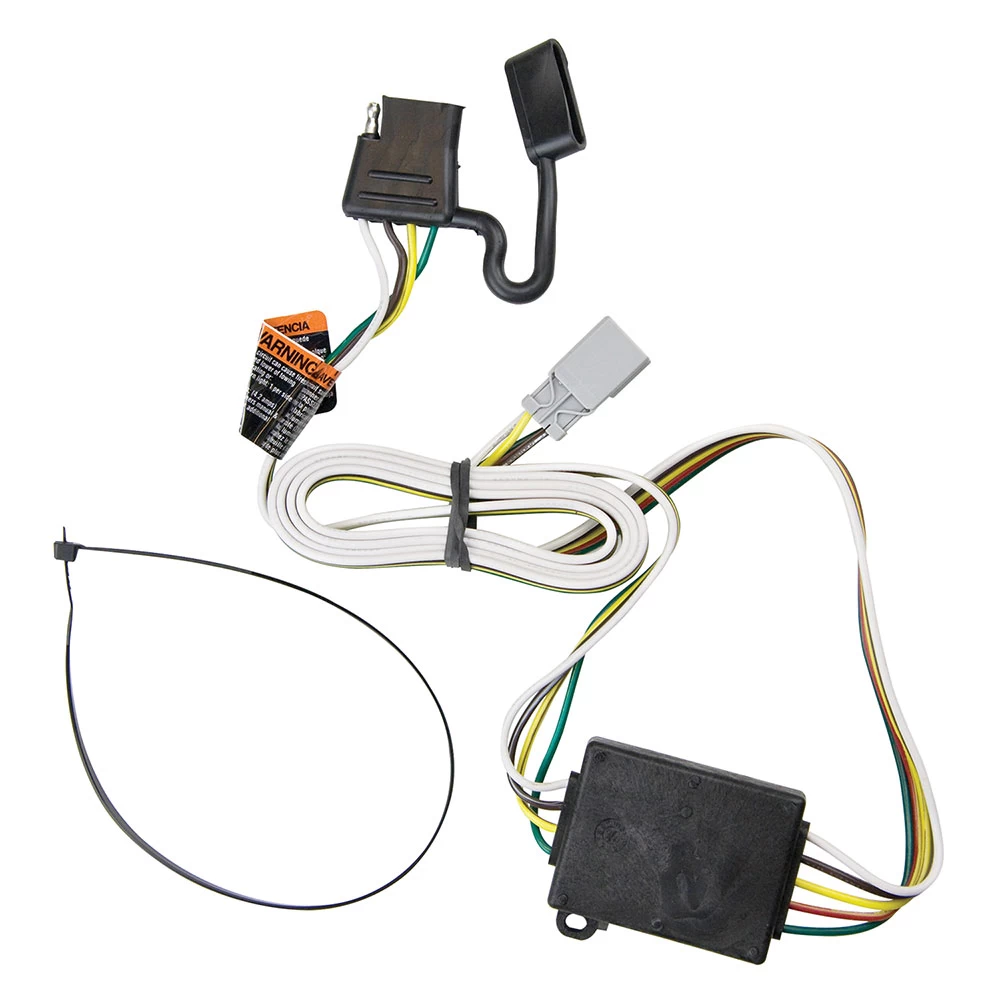

2. Attach the T-Connector adapter to the vehicle’s wiring connector.
   • Ensure the T-Connector adapter is fully inserted with locking tabs in place.
3. Secure the black box with a screw or cable tie (provided).
   • Tuck any excess wiring behind the access panel before securing it into place.
4. Re-install any plastic trim panels, screws, or brackets that were removed for installation.
5. Test the installation with a test light or trailer.

Vehicle-Specific Instructions:

Acura CL, RL, TL, Integra, Honda Accord, Prelude:

• Unscrew the knob securing the access panel on the driver’s side of the trunk.
• Remove the access panel to expose the vehicle’s wiring harness and connector.

Isuzu Oasis, Honda Odyssey (1995-1998):

• Remove the rear access panel inside the van behind the driver’s side tail light to expose the vehicle’s wiring harness and connector.

Honda Odyssey (1999-Current):

1. Open the rear tailgate and remove the driver’s side cargo bracket screw.
2. Carefully pull back the trim panel to expose the vehicle’s wiring harness and connector.

Honda CR-V (1997-2001):

1. Remove the rear driver’s side speaker and cover.
   • The speaker will be held in place with three screws.
2. Locate the vehicle connector secured to the speaker wires.

Honda CR-V (2002-Current):

1. Open the rear tailgate and remove the cargo door on the floor.
2. Remove the storage container and rear threshold.
3. Unscrew the driver’s side cargo bracket and trim panel screws to access the harness.

Acura MDX (2001-Current):

1. Open the rear tailgate and remove the cargo door on the floor.
2. Remove two clips inside the storage area on the threshold.
3. Carefully pry off the threshold to access the wiring harness connector.

Honda Pilot (2003-Current):

• Open the rear tailgate and carefully pry the threshold to remove it.
• Locate the connector under the threshold plate on the driver’s side.

Honda Element (2003-Current):

1. Open the rear tailgate and remove the cargo door on the floor.

2. Remove the screws holding the spring-loaded hinge cover.

3. Remove three plastic clips and five screws from the passenger side trim panel to access the wiring harness.

   • Specifications:
     • This unit is rated for 4 amps per circuit.

Hardware List:

• T-Connector adapter.
• Black box.
• Cable ties.
• Screw.

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118336

Vehicle Compatibility:

• Acura: CL (1997-Current), RL (1996-2001), TL (1996-Current), Integra (1994-2001), MDX (2001-Current)
• Honda: Accord (1994-2002), Prelude (2001-2002), Odyssey (1995-Current), CR-V (1997-Current), Pilot (2003-Current), Element (2003-Current)
• Isuzu: Oasis (1996-1999)

Tools Required:

• Trim panel tool.
• Phillips screwdriver (varies by model).
• Wrench (varies by model).

Step-by-Step Instructions:

General Instructions for All Vehicles:

1. Remove the tape securing the wiring harness connector from the wiring loom.
2. Attach the T-Connector adapter to the vehicle’s wiring connector.
   • Ensure the T-Connector adapter is fully inserted with locking tabs in place.
3. Secure the black box with a screw or cable tie (provided).
   • Tuck any excess wiring behind the access panel before securing it into place.
4. Re-install any plastic trim panels, screws, or brackets that were removed for installation.
5. Test the installation with a test light or trailer.

Vehicle-Specific Instructions:

Acura CL, RL, TL, Integra, Honda Accord, Prelude:

• Unscrew the knob securing the access panel on the driver’s side of the trunk.
• Remove the access panel to expose the vehicle’s wiring harness and connector.

Isuzu Oasis, Honda Odyssey (1995-1998):

• Remove the rear access panel inside the van behind the driver’s side tail light to expose the vehicle’s wiring harness and connector.

Honda Odyssey (1999-Current):

1. Open the rear tailgate and remove the driver’s side cargo bracket screw.
2. Carefully pull back the trim panel to expose the vehicle’s wiring harness and connector.

Honda CR-V (1997-2001):

1. Remove the rear driver’s side speaker and cover.
   • The speaker will be held in place with three screws.
2. Locate the vehicle connector secured to the speaker wires.

Honda CR-V (2002-Current):

1. Open the rear tailgate and remove the cargo door on the floor.
2. Remove the storage container and rear threshold.
3. Unscrew the driver’s side cargo bracket and trim panel screws to access the harness.

Acura MDX (2001-Current):

1. Open the rear tailgate and remove the cargo door on the floor.
2. Remove two clips inside the storage area on the threshold.
3. Carefully pry off the threshold to access the wiring harness connector.

Honda Pilot (2003-Current):

• Open the rear tailgate and carefully pry the threshold to remove it.
• Locate the connector under the threshold plate on the driver’s side.

Honda Element (2003-Current):

1. Open the rear tailgate and remove the cargo door on the floor.

2. Remove the screws holding the spring-loaded hinge cover.

3. Remove three plastic clips and five screws from the passenger side trim panel to access the wiring harness.

   • Specifications:
     • This unit is rated for 4 amps per circuit.

Hardware List:

• T-Connector adapter.
• Black box.
• Cable ties.
• Screw.

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
