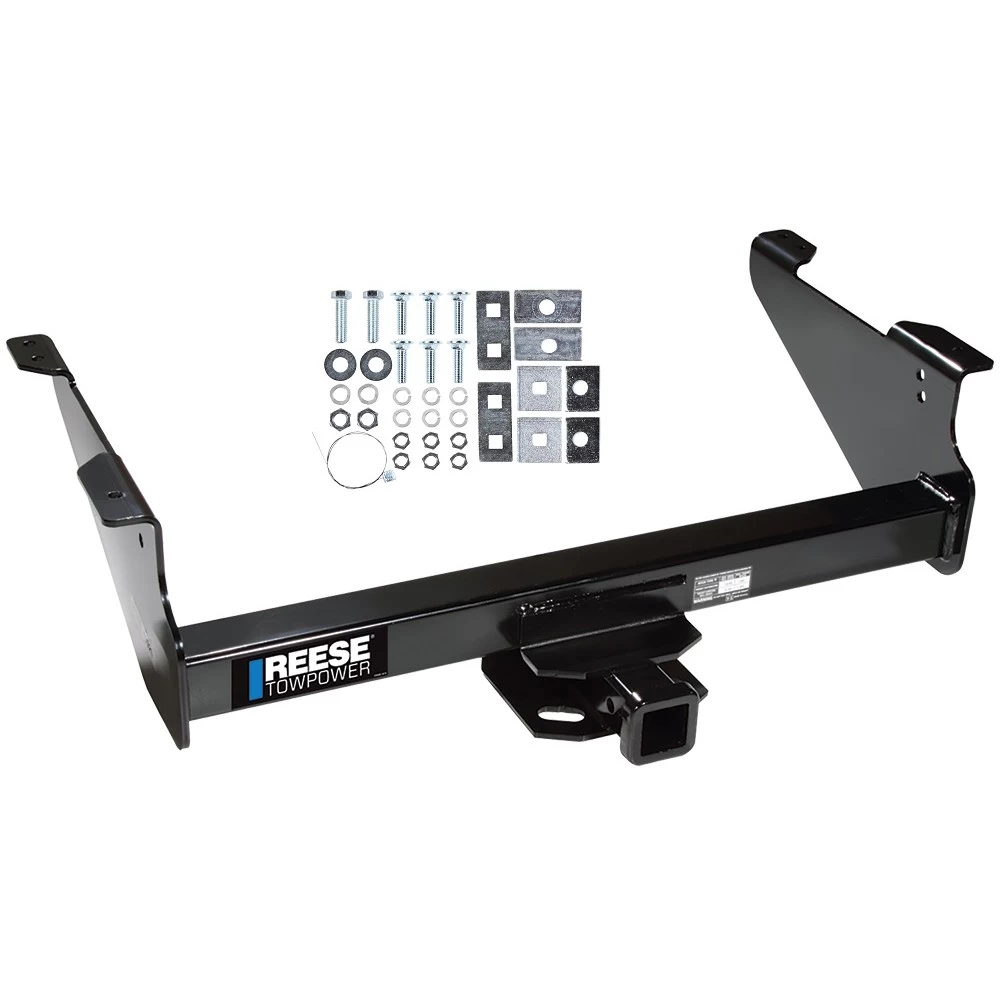

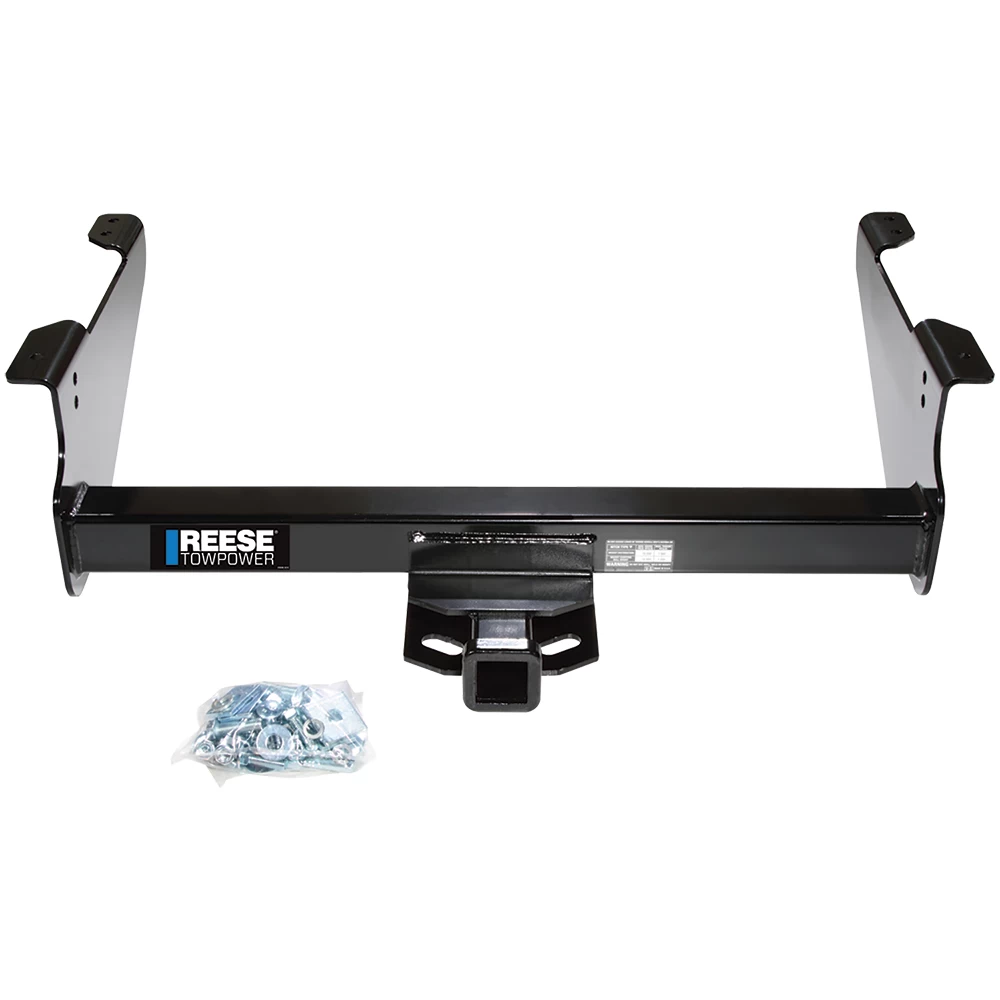

Reese Trailer Tow Hitch For 03‑24 Dodge Ram 2500 3500 03‑08 Ram 1500 2" Receiver
Model: 96929
2003 Dodge, Ram 1500, (Built After 11/2002)
2004 - 2005 Dodge, Ram 1500, Except Daytona/Hemi Sport Quad Cab/Ram Rumble Bee/SRT-10
2006 - 2008 Dodge, Ram 1500, All Styles
2003 - 2010 Dodge, Ram 2500, All Styles
2003 - 2010 Dodge, Ram 3500, All Styles
2011 - 2024 RAM, 2500, All Styles
2011 - 2024 RAM, 3500, All Styles
Trailer Hitch Specs:
SPECIAL NOTE: Will fit all models listed with or without factory hitch.
| Part Number | 96929 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 15,000 lbs |
| Max Tongue Weight | 1,200/1,500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$332 04 $518.51 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$518.51 $332 04
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $83.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 96929
- UPC: 042899000921
- Includes: Class 5 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
2003 Dodge, Ram 1500, (Built After 11/2002)
2004 - 2005 Dodge, Ram 1500, Except Daytona/Hemi Sport Quad Cab/Ram Rumble Bee/SRT-10
2006 - 2008 Dodge, Ram 1500, All Styles
2003 - 2010 Dodge, Ram 2500, All Styles
2003 - 2010 Dodge, Ram 3500, All Styles
2011 - 2024 RAM, 2500, All Styles
2011 - 2024 RAM, 3500, All Styles
Trailer Hitch Specs:
SPECIAL NOTE: Will fit all models listed with or without factory hitch.
| Part Number | 96929 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 15,000 lbs |
| Max Tongue Weight | 1,200/1,500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 03-24 Dodge Ram 2500 3500 03-08 Ram 1500 2" Receiver Install Notes
Installation Instructions for Dodge Ram Pickup with or without OEM Hitch
Part Numbers:
- 41929
- 96929
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 3/4", 13/16", 15/16"
- Drill Bits: 1/2"
- Hack Saw (for 1500 short bed models)
Step-by-Step Instructions:
-
Position Hitch:
- Raise the hitch into position by moving it forward to clear the bumper mounting bolts, then slide the hitch rearward into position.
- Align holes in the hitch with holes in the frame rail and slot in the vertical bumper bracket.
-
Adjust for 1500 Short Bed Models (2006–2008):
- Cut the inner exhaust support rod and remove it from the rubber exhaust isolator.
- Align the rearmost hole in the hitch with the rearmost hole in the vehicle frame. Forward holes will need to be drilled into the frame.
-
Install Fasteners:
- Use a hex bolt and flat washer through the hitch side bracket hole into the bumper bracket slot.
- Secure with:
- (1) Spacer Block (0.25" x 1.5" x 2.0")
- (1) Lock Washer
- (1) Hex Nut
- Tighten all 1/2"-13 fasteners to 75 lb-ft (102 N*m).
-
Drill Frame Holes:
- Use the hitch as a template to drill forward holes into the frame rail on short bed models.
- On long bed models, drill the forward-most hole into the frame as per Figure 1.
-
Install Rear Blocks and Bolts:
- Slide or push spacer blocks (0.25" x 1.5" x 3.50" and 0.25" x 2.0" x 2.0") through the end of the frame between the frame spacer and vehicle crossmember.
- Align blocks with holes in the hitch side bracket (see Figures 2 and 3).
- Fishwire carriage bolts through slots in the frame rail and down through the blocks and side brackets.
- Secure with lock washers and nuts.
-
Tighten All Fasteners:
- Tighten all 9/16"-12 fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 9/16"-12 GR5 bolts: 110 lb-ft (149 N*m)
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

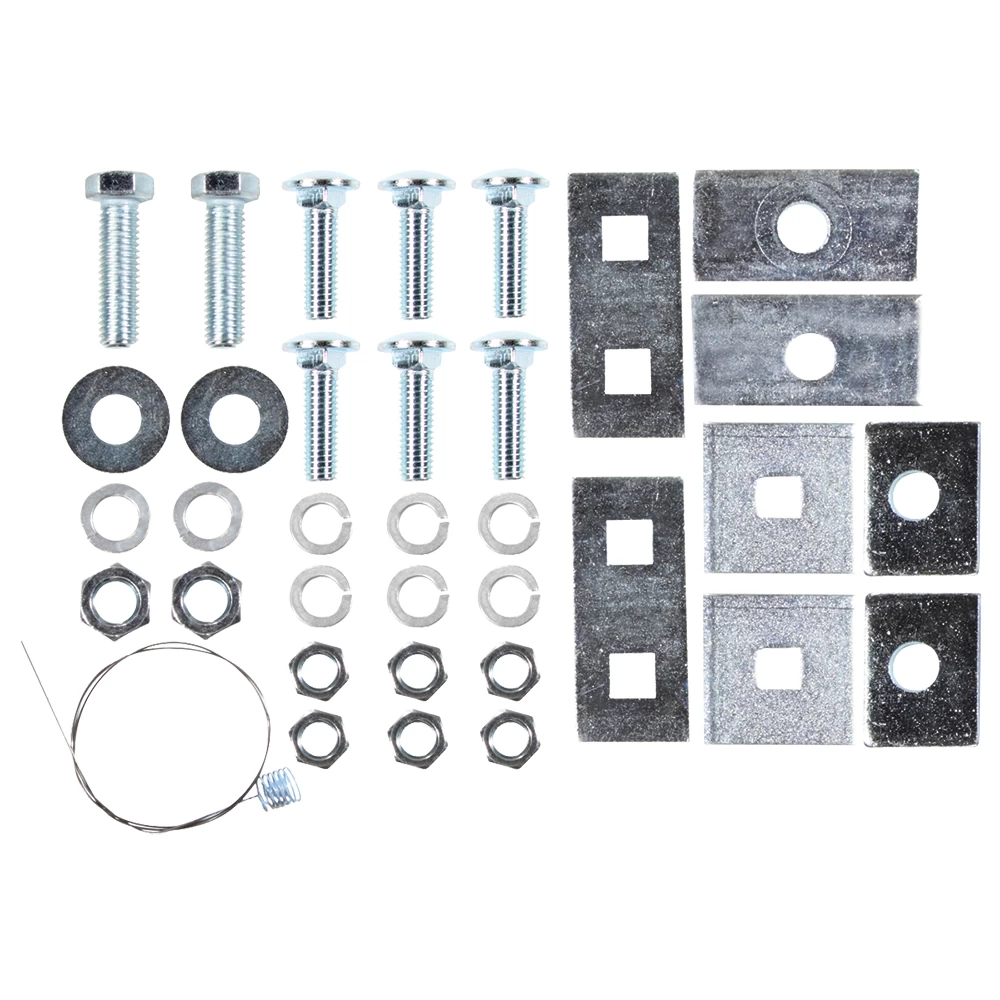

Hardware List:
- (2) Hex Bolts, 9/16"-12 x 2.0" GR5
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (2) Flat Washers, 9/16"
- (2) Blocks, 0.375" x 1.5" x 3.0"
- (2) Blocks, 0.25" x 1.5" x 2.0"
- (2) Blocks, 0.25" x 2.0" x 2.0"
- (2) Blocks, 0.25" x 1.5" x 3.5"
- (6) Lock Washers, 1/2"
- (2) Lock Washers, 9/16"
- (6) Hex Nuts, 1/2"
- (2) Hex Nuts, 9/16"-12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the vehicle's frame or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
Additional Notes:
- For short bed models (2006–2008), ensure proper alignment of rearmost holes and drill as necessary.
- On some models, it may be possible to install the rearmost carriage bolt through the end of the vehicle crossmember.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Dodge Ram Pickup with or without OEM Hitch
Part Numbers:
- 41929
- 96929
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 3/4", 13/16", 15/16"
- Drill Bits: 1/2"
- Hack Saw (for 1500 short bed models)
Step-by-Step Instructions:
-
Position Hitch:
- Raise the hitch into position by moving it forward to clear the bumper mounting bolts, then slide the hitch rearward into position.
- Align holes in the hitch with holes in the frame rail and slot in the vertical bumper bracket.
-
Adjust for 1500 Short Bed Models (2006–2008):
- Cut the inner exhaust support rod and remove it from the rubber exhaust isolator.
- Align the rearmost hole in the hitch with the rearmost hole in the vehicle frame. Forward holes will need to be drilled into the frame.
-
Install Fasteners:
- Use a hex bolt and flat washer through the hitch side bracket hole into the bumper bracket slot.
- Secure with:
- (1) Spacer Block (0.25" x 1.5" x 2.0")
- (1) Lock Washer
- (1) Hex Nut
- Tighten all 1/2"-13 fasteners to 75 lb-ft (102 N*m).
-
Drill Frame Holes:
- Use the hitch as a template to drill forward holes into the frame rail on short bed models.
- On long bed models, drill the forward-most hole into the frame as per Figure 1.
-
Install Rear Blocks and Bolts:
- Slide or push spacer blocks (0.25" x 1.5" x 3.50" and 0.25" x 2.0" x 2.0") through the end of the frame between the frame spacer and vehicle crossmember.
- Align blocks with holes in the hitch side bracket (see Figures 2 and 3).
- Fishwire carriage bolts through slots in the frame rail and down through the blocks and side brackets.
- Secure with lock washers and nuts.
-
Tighten All Fasteners:
- Tighten all 9/16"-12 fasteners to 110 lb-ft (149 N*m).
Torque Specifications:
- 9/16"-12 GR5 bolts: 110 lb-ft (149 N*m)
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
Hardware List:
- (2) Hex Bolts, 9/16"-12 x 2.0" GR5
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (2) Flat Washers, 9/16"
- (2) Blocks, 0.375" x 1.5" x 3.0"
- (2) Blocks, 0.25" x 1.5" x 2.0"
- (2) Blocks, 0.25" x 2.0" x 2.0"
- (2) Blocks, 0.25" x 1.5" x 3.5"
- (6) Lock Washers, 1/2"
- (2) Lock Washers, 9/16"
- (6) Hex Nuts, 1/2"
- (2) Hex Nuts, 9/16"-12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the vehicle's frame or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
Additional Notes:
- For short bed models (2006–2008), ensure proper alignment of rearmost holes and drill as necessary.
- On some models, it may be possible to install the rearmost carriage bolt through the end of the vehicle crossmember.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
