Reese Trailer Tow Hitch For 06‑13 Suzuki Grand Vitara 2" Towing Receiver Class 3
Model: 445432006 - 2013 Suzuki, Grand Vitara, Except 3 Dr Hatchback
Trailer Hitch Specs:
| Part Number | 44543 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350/400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 2006 2007 2008 2009 2010 2011 2012 2013
$218 17 $327.59 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$327.59 $218 17
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44543
- UPC: 016118056907
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
2006 - 2013 Suzuki, Grand Vitara, Except 3 Dr Hatchback
Trailer Hitch Specs:
| Part Number | 44543 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350/400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 2006 2007 2008 2009 2010 2011 2012 2013
Get Expert Help
Reese Trailer Tow Hitch For 06-13 Suzuki Grand Vitara 2" Towing Receiver Class 3 Install Notes
Installation Instructions for Suzuki Grand Vitara
Part Numbers:
- 44543
- 75448
- 87007
Tools Required:
- Wrenches: 19mm
- Torque Wrench
- Utility Knife
- Drill Bits: None
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Notify Vehicle Owner:
- Inform the vehicle owner that minor trimming of the fascia is required for proper hitch installation.
-
Mark Trimming Area:
- Using a felt-tipped pen, measure and mark the area to be trimmed on the bottom inside section of the license plate mounting area, as described in Figure 1.
-
Trim the Fascia:
- Carefully cut out the marked area of the fascia using a utility knife.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the two rearmost weldnuts in the bottom of the frame rail on both sides.
-
Install Fasteners:
- Loosely install the M12 hex bolts and conical toothed washers (4 total).
- Center the hitch on the fasteners.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 CL8.8 fasteners to 76 lb-ft (102 N·m).
Hardware List:

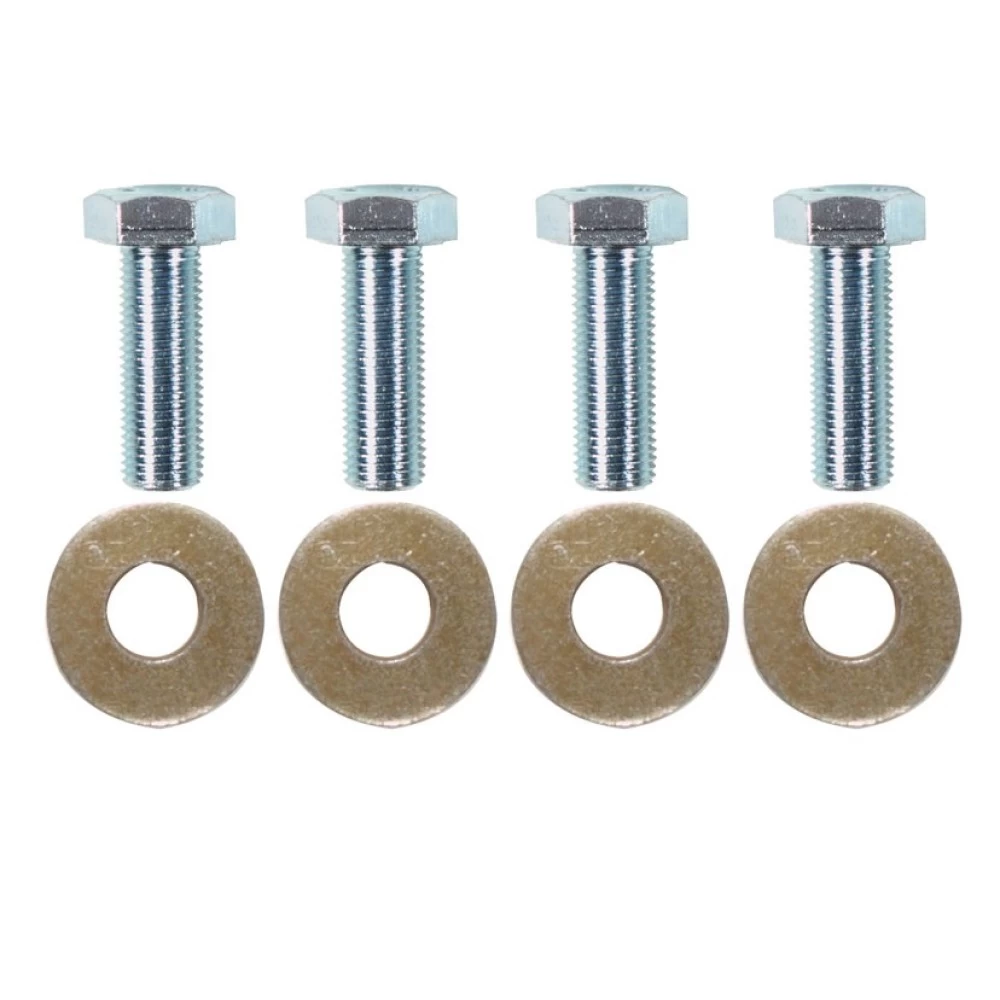

- (4) M12 x 1.25 x 35mm CL8.8 Hex Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,587 kg), Max Tongue Weight 350 lbs (158 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 44543
- 75448
- 87007
Tools Required:
- Wrenches: 19mm
- Torque Wrench
- Utility Knife
- Drill Bits: None
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Notify Vehicle Owner:
- Inform the vehicle owner that minor trimming of the fascia is required for proper hitch installation.
-
Mark Trimming Area:
- Using a felt-tipped pen, measure and mark the area to be trimmed on the bottom inside section of the license plate mounting area, as described in the diagram.
-
Trim the Fascia:
- Carefully cut out the marked area of the fascia using a utility knife.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the two rearmost weldnuts in the bottom of the frame rail on both sides.
-
Install Fasteners:
- Loosely install the M12 hex bolts and conical toothed washers (4 total).
- Center the hitch on the fasteners.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 CL8.8 fasteners to 76 lb-ft (102 N·m).
Hardware List:
- (4) M12 x 1.25 x 35mm CL8.8 Hex Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,587 kg), Max Tongue Weight 350 lbs (158 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
