Reese Trailer Tow Hitch For 11‑13 KIA Sorento SX V6 Deluxe Package Wiring 2" Ball and Lock

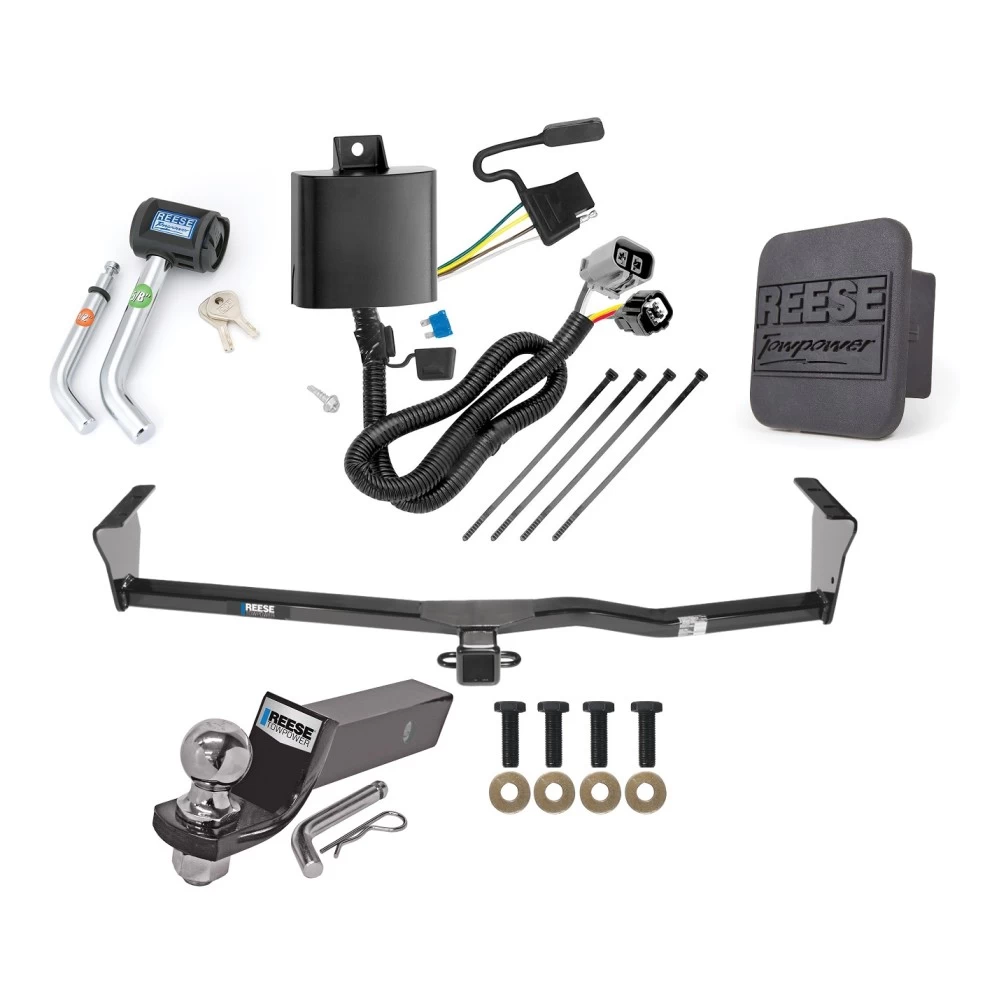

Model: 44639 85815 21536 7054430 7000600Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2013 KIA, Sorento, SX V6

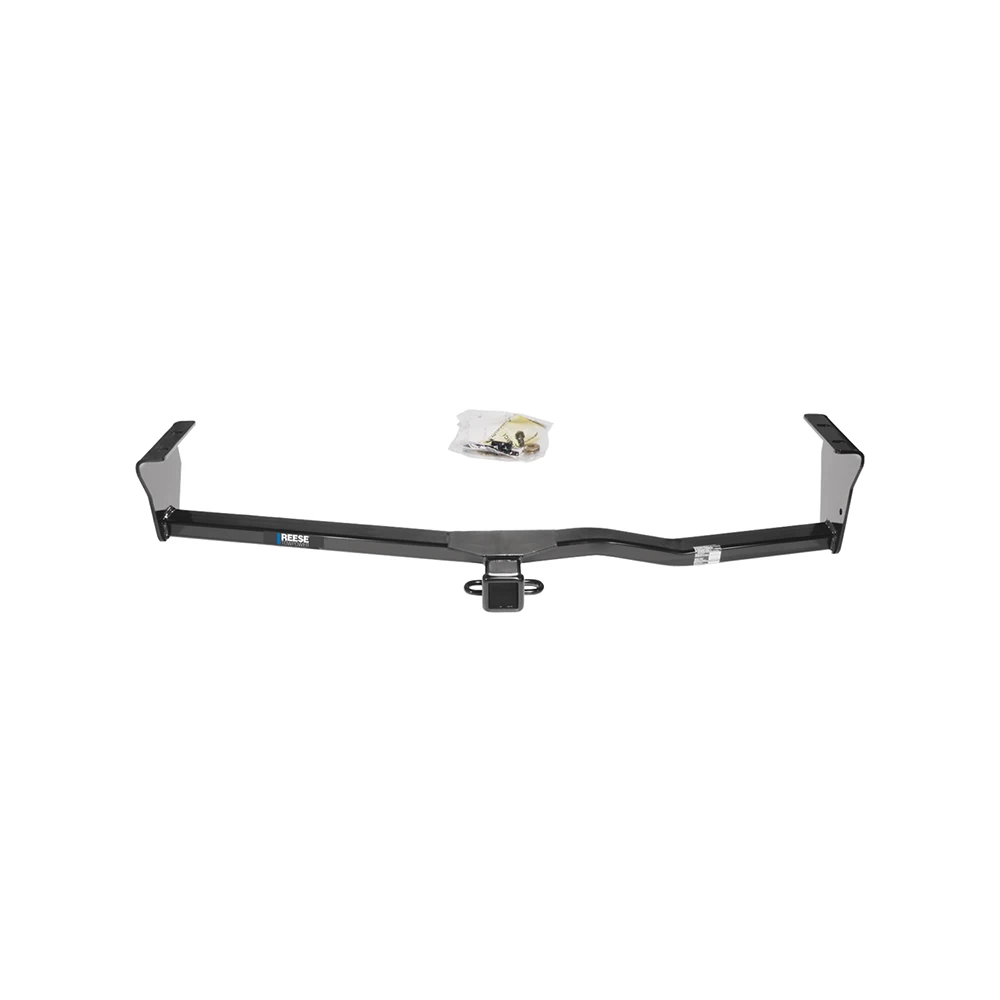

Trailer Hitch Specs:
| Part Number | 44639 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 3,500 lbs |
| Max Tongue Weight | 350/350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 85815 |
| Brand | Reese |
| Warranty | 1 Year |
| Installation Instructions | |
Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 7054430 |
| Fits | 1/2" and 5/8" Tow Receivers |
| Brand | Reese |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7000600 |
| Fits | 2" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
$290 09 $485.59 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$485.59 $290 09
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $72.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44639 85815 21536 7054430 7000600
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2013 KIA, Sorento, SX V6
Trailer Hitch Specs:
| Part Number | 44639 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 3,500 lbs |
| Max Tongue Weight | 350/350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 85815 |
| Brand | Reese |
| Warranty | 1 Year |
| Installation Instructions | |
Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 7054430 |
| Fits | 1/2" and 5/8" Tow Receivers |
| Brand | Reese |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7000600 |
| Fits | 2" Receiver |
| Brand | Reese |
| REESE Towpower rubber receiver plug is designed for 2-in hitch box openings. It keeps the hitch clean and clear of debris. | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Get Expert Help
Reese Trailer Tow Hitch For 11-13 KIA Sorento SX V6 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Hyundai Santa Fe and Kia Sorento
Part Numbers:
- 75684
- 87574
- 44639
Tools Required:
- Wrenches: 16mm
- Drill Bits: None
Wiring Access Location:
- Hyundai Santa Fe: SUV3, SUV4
- Kia Sorento: SUV7
Step-by-Step Instructions:
-
Raise the Vehicle:
- Elevate the vehicle on ramps, a hoist, or jack stands for easier access to the frame.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the existing weldnuts in the vehicle frame.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.25 x 30mm hex bolts and four (4) 7/16” conical toothed washers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 x 1.25 CL10.9 fasteners to 59 lb-ft (80 N·m).
Hardware List:
- (4) M10 x 1.25 x 30mm CL10.9 Hex Bolts
- (4) 7/16” Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75684
- 87574
- 44639
Tools Required:
- Wrenches: 16mm
- Drill Bits: None
Wiring Access Location:
- Hyundai Santa Fe: SUV3, SUV4
- Kia Sorento: SUV7
Step-by-Step Instructions:
-
Raise the Vehicle:
- Elevate the vehicle on ramps, a hoist, or jack stands for easier access to the frame.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the existing weldnuts in the vehicle frame.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.25 x 30mm hex bolts and four (4) 7/16” conical toothed washers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 x 1.25 CL10.9 fasteners to 59 lb-ft (80 N·m).
Hardware List:
- (4) M10 x 1.25 x 30mm CL10.9 Hex Bolts
- (4) 7/16” Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Kia Sorento and Hyundai Veracruz
Part Numbers:
- 118269
Tools Required:
- Trim Panel Remover
- Wire Cutters
- 10mm Socket & Ratchet or Wrench
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Vehicle Wiring:
- Kia Sorento: Lower the spare tire to access the vehicle wiring.
- Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.
-
Locate the Tow-Plug Harness:
- Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
- Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Remove the protective caps from the vehicle’s tow plug harness.
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the T-Connector Wiring:
- Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
- Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.
Warning:
- Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
- Secure all loose wires with cable ties to prevent damage or rattling.
-
Test the Installation:
- Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Test and verify the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual for additional information.
Manufacturer Notes:
- Ensure all connections are clean and secure.
- Follow all installation warnings and guidelines carefully.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118269
Tools Required:
- Trim Panel Remover
- Wire Cutters
- 10mm Socket & Ratchet or Wrench
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Vehicle Wiring:
- Kia Sorento: Lower the spare tire to access the vehicle wiring.
- Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.
-
Locate the Tow-Plug Harness:
- Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
- Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Remove the protective caps from the vehicle’s tow plug harness.
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the T-Connector Wiring:
- Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
- Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.
Warning:
- Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
- Secure all loose wires with cable ties to prevent damage or rattling.
-
Test the Installation:
- Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Test and verify the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual for additional information.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
