Product Details
- Brand: Reese
- Model: 77256 85771
- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|
Get Expert Help

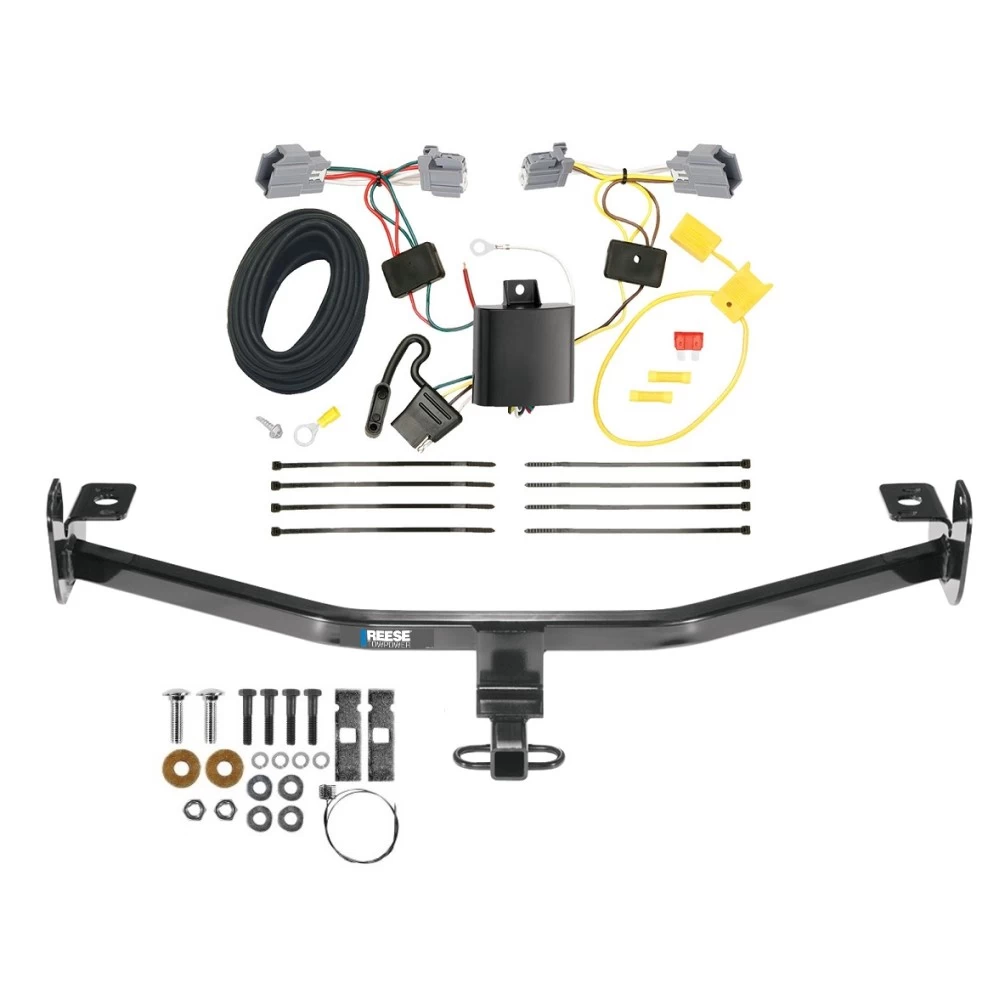

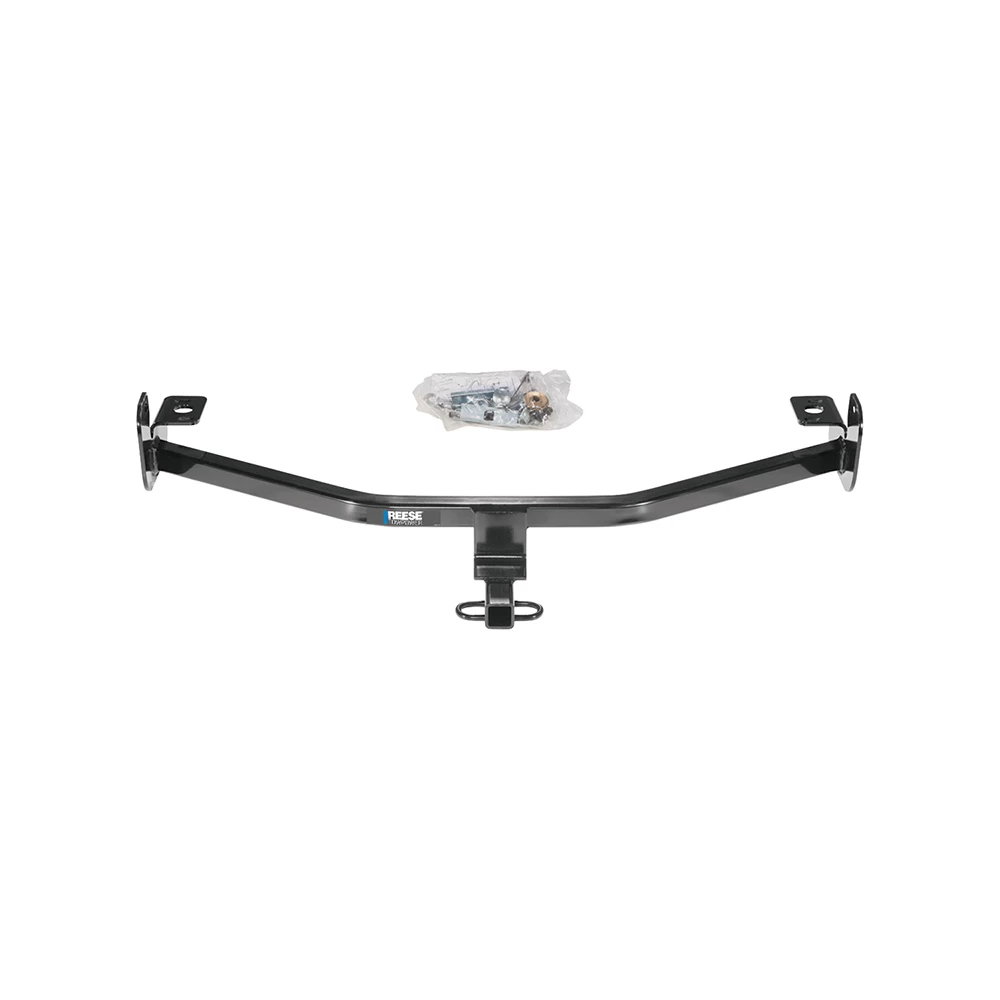

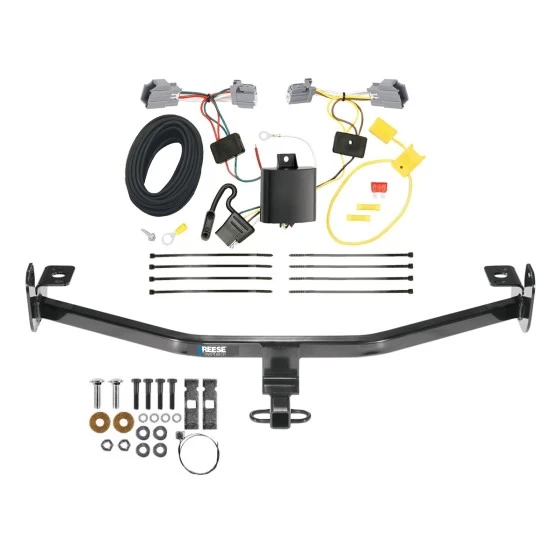

Reese Trailer Tow Hitch For 12-19 Ford Ford Focus Sedan Trailer Hitch Tow Receiver w/ Wiring Harness Kit Install Notes
Installation Instructions for Ford Focus (All Except ST Model)
Part Numbers:
- 24872
- 60290
- 77256
Wiring Access Location:
- Sedan: PC3, PC4
- 5-Door: PC1, PC2
Tools Required:
- Tin Snips
- Wrenches: 13mm, 11/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- Remove the two (2) M8 bolts holding the exhaust hangers on both sides.
- Return the bolts to the vehicle owner.
-
Trim Heat Shield:
- Use tin snips to trim the heat shield in the area where the hitch side bracket mounts to the bottom of the frame.
- Repeat for both sides.
-
Cut and Apply Plastic Isolator Strips:
- Cut the plastic isolator strips in half.
- Apply the two halves of each strip to the bottom of the hitch side brackets, between the slot and the large access hole.
- Ensure the strips are positioned between the exhaust hanger and the side bracket.
-
Raise Hitch and Reinstall Exhaust Hangers:
- Lift the hitch into position.
- Reinstall the exhaust hangers using the M8-1.25 x 40mm bolts, lock washers, and flat washers provided with the hitch.
-
Install Carriage Bolt and Block:
- Using the provided pull wire, install a block and 7/16” carriage bolt through the access hole in the hitch, bottom of the frame, and through the hole on the side of the frame.
- Note: It is easier to insert the bolt and spacer into the frame separately.
-
Secure with Conical Washer and Hex Nut:
- Attach the conical toothed washer and hex nut to the carriage bolt on both sides.
-
Tighten Fasteners:
- Torque all fasteners to specifications:
- 7/16”-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- M8-1.25 CL10.9 fasteners: 27 Lb.-Ft. (37 N*M)
- Torque all fasteners to specifications:

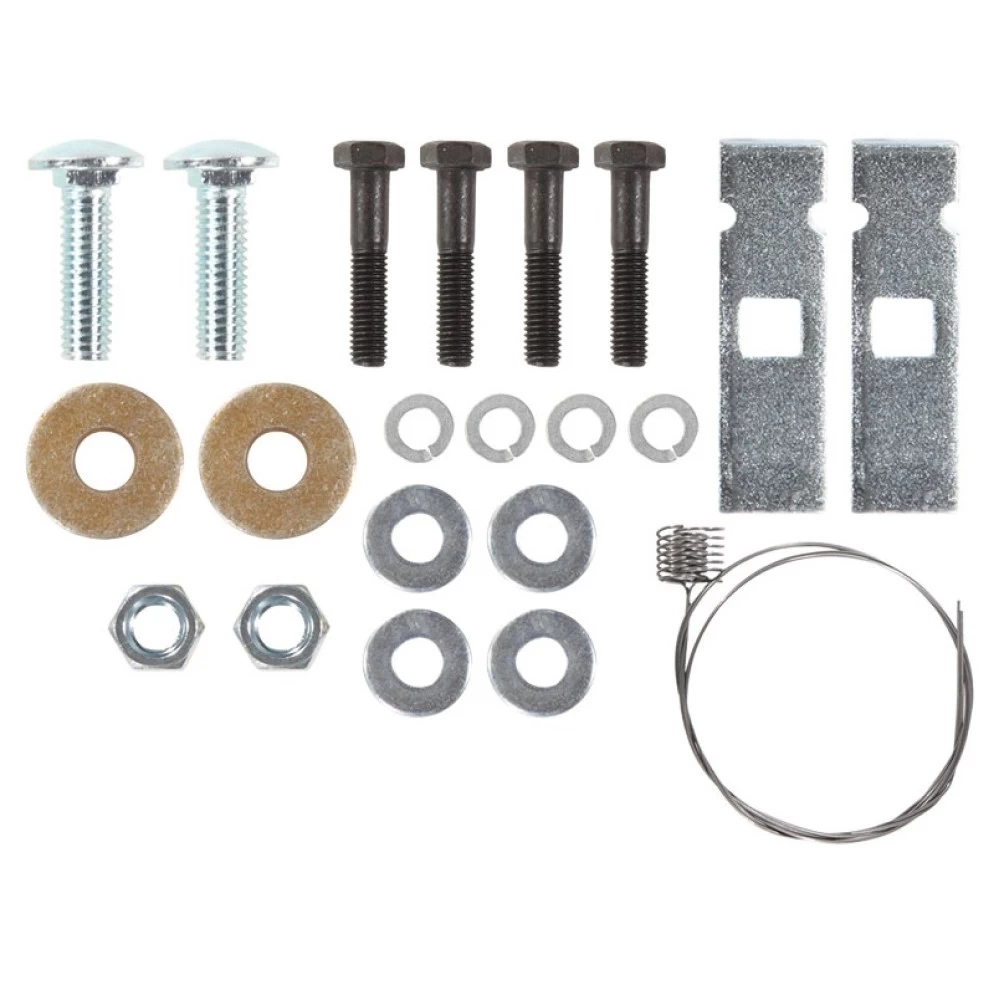

Hardware List:
- (2) 7/16”-14 x 1.50” Carriage Bolts (GR5)
- (2) 7/16” Conical Washers
- (2) 7/16”-14 Hex Nuts
- (2) Pull Wires (7/16”)
- (4) M8-1.25 x 40mm Bolts (CL10.9)
- (4) 5/16” Flat Washers
- (4) 5/16” Lock Washers
- (2) Plastic Isolators
- (2) 1/4” x 7/8” x 3.00” Blocks
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 24872
- 60290
- 77256
Wiring Access Location:
- Sedan: PC3, PC4
- 5-Door: PC1, PC2
Tools Required:
- Tin Snips
- Wrenches: 13mm, 11/16”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- Remove the two (2) M8 bolts holding the exhaust hangers on both sides.
- Return the bolts to the vehicle owner.
-
Trim Heat Shield:
- Use tin snips to trim the heat shield in the area where the hitch side bracket mounts to the bottom of the frame.
- Repeat for both sides.
-
Cut and Apply Plastic Isolator Strips:
- Cut the plastic isolator strips in half.
- Apply the two halves of each strip to the bottom of the hitch side brackets, between the slot and the large access hole.
- Ensure the strips are positioned between the exhaust hanger and the side bracket.
-
Raise Hitch and Reinstall Exhaust Hangers:
- Lift the hitch into position.
- Reinstall the exhaust hangers using the M8-1.25 x 40mm bolts, lock washers, and flat washers provided with the hitch.
-
Install Carriage Bolt and Block:
- Using the provided pull wire, install a block and 7/16” carriage bolt through the access hole in the hitch, bottom of the frame, and through the hole on the side of the frame.
- Note: It is easier to insert the bolt and spacer into the frame separately.
-
Secure with Conical Washer and Hex Nut:
- Attach the conical toothed washer and hex nut to the carriage bolt on both sides.
-
Tighten Fasteners:
- Torque all fasteners to specifications:
- 7/16”-14 GR5 fasteners: 50 Lb.-Ft. (68 N*M)
- M8-1.25 CL10.9 fasteners: 27 Lb.-Ft. (37 N*M)
- Torque all fasteners to specifications:
Hardware List:
- (2) 7/16”-14 x 1.50” Carriage Bolts (GR5)
- (2) 7/16” Conical Washers
- (2) 7/16”-14 Hex Nuts
- (2) Pull Wires (7/16”)
- (4) M8-1.25 x 40mm Bolts (CL10.9)
- (4) 5/16” Flat Washers
- (4) 5/16” Lock Washers
- (2) Plastic Isolators
- (2) 1/4” x 7/8” x 3.00” Blocks
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.

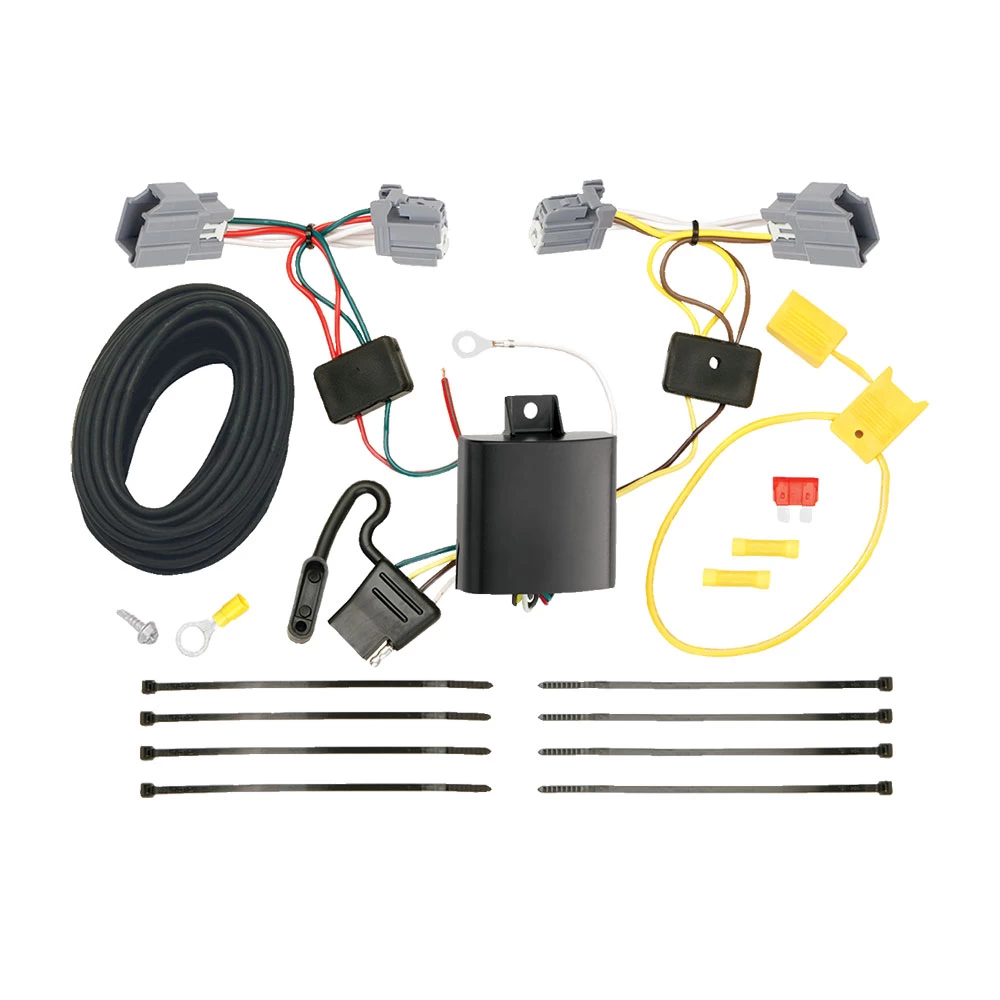

Installation Instructions for T-Connector Adapter for Ford Focus Sedan
Part Numbers:
- 118548
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Test Probe
- Phillips Head Screwdriver
Step-by-Step Instructions:
-
Open the Trunk:
- Remove the threshold panel.
- Partially remove the felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Locate the Taillight Wiring Harness:
- On the driver’s side, locate the vehicle’s taillight wiring harness and separate the connectors carefully without breaking the locking tabs.
- Ensure that the mating surfaces of the vehicle harness connectors match the T-Connector ends and are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Attach the T-Connector end containing the yellow and brown wires between the vehicle’s wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire below the threshold cover to the passenger’s side taillight housing.
- Repeat Step 3 using the T-Connector ends containing the green and red wires.
-
Mount the Black Box:
- Locate a flat surface on the driver’s side in an out-of-the-way location.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury.
-
Connect the Power Wire:
- On the driver’s side, locate the red 12-gauge power wire from the T-Connector box.
- Attach the black 12-gauge wire provided using the yellow butt connector.
-
Route the Black Wire:
- Route the black wire either through a grommet along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery.
- Avoid areas that may pinch or damage the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the vehicle’s positive (+) battery cable using the provided ring terminal.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
Warning:
- Ensure all connections are complete for proper functionality. Test with a test light or trailer to verify the installation.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Replace the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
- Store the 4-flat connector in the side storage compartment when not in use.
Installation Instructions for T-Connector Adapter for Ford Focus Sedan
Part Numbers:
- 118548
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Test Probe
- Phillips Head Screwdriver
Step-by-Step Instructions:
-
Open the Trunk:
- Remove the threshold panel.
- Partially remove the felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Locate the Taillight Wiring Harness:
- On the driver’s side, locate the vehicle’s taillight wiring harness and separate the connectors carefully without breaking the locking tabs.
- Ensure that the mating surfaces of the vehicle harness connectors match the T-Connector ends and are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Attach the T-Connector end containing the yellow and brown wires between the vehicle’s wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire below the threshold cover to the passenger’s side taillight housing.
- Repeat Step 3 using the T-Connector ends containing the green and red wires.
-
Mount the Black Box:
- Locate a flat surface on the driver’s side in an out-of-the-way location.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury.
-
Connect the Power Wire:
- On the driver’s side, locate the red 12-gauge power wire from the T-Connector box.
- Attach the black 12-gauge wire provided using the yellow butt connector.
-
Route the Black Wire:
- Route the black wire either through a grommet along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery.
- Avoid areas that may pinch or damage the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the vehicle’s positive (+) battery cable using the provided ring terminal.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
Warning:
- Ensure all connections are complete for proper functionality. Test with a test light or trailer to verify the installation.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Replace the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information: For complete warranty instructions, please download the full installation PDF.
