Installation Instructions for Trailer Hitch

Part Numbers:

• 76154
• 84154
• CQT76154

Applications:

• Years: 2017-Current
  • Make and Models: Nissan Titan

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17 mm, 19 mm
• 6" Socket Extension
• Wire Brush

Step-by-Step Instructions:

1. Remove Tow Hook Brackets:

• Using a 17 mm socket, remove the factory tow hook brackets (if present) by removing (10) M12 flange head bolts.
• Return bolts and brackets to the vehicle owner.
  • Note: For vehicles without factory tow hook brackets, clean the existing weld nuts in the frame using a wire brush or compressed air.

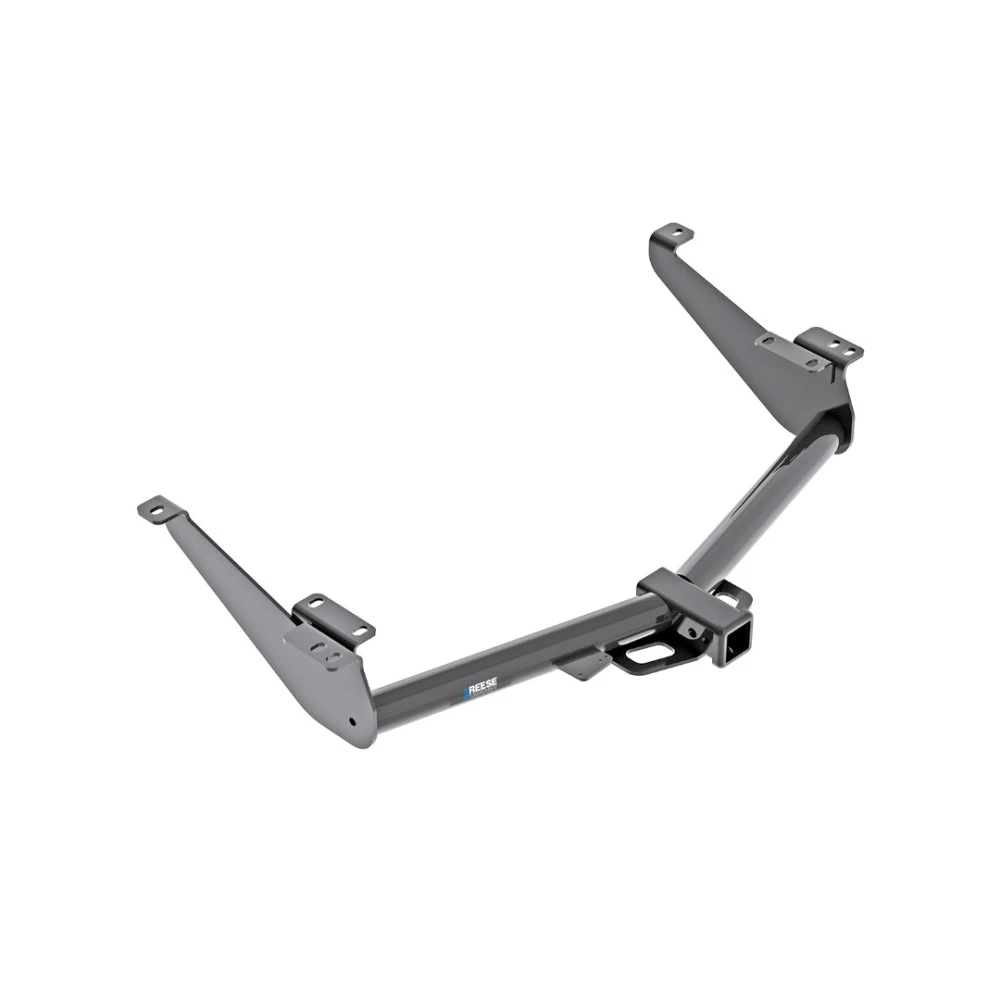

2. Install Hitch:

• Raise the hitch into position, starting with the passenger-side hitch bracket above the exhaust, followed by the driver’s side.
• Using the supplied hardware, install the M12 bolts, conical toothed washers (teeth side against the hitch), and hardened flat washers as shown in Figure 1.

3. Tighten Fasteners:

• Torque all M12 CL10.9 fasteners to 76 lb-ft (103 N·m).

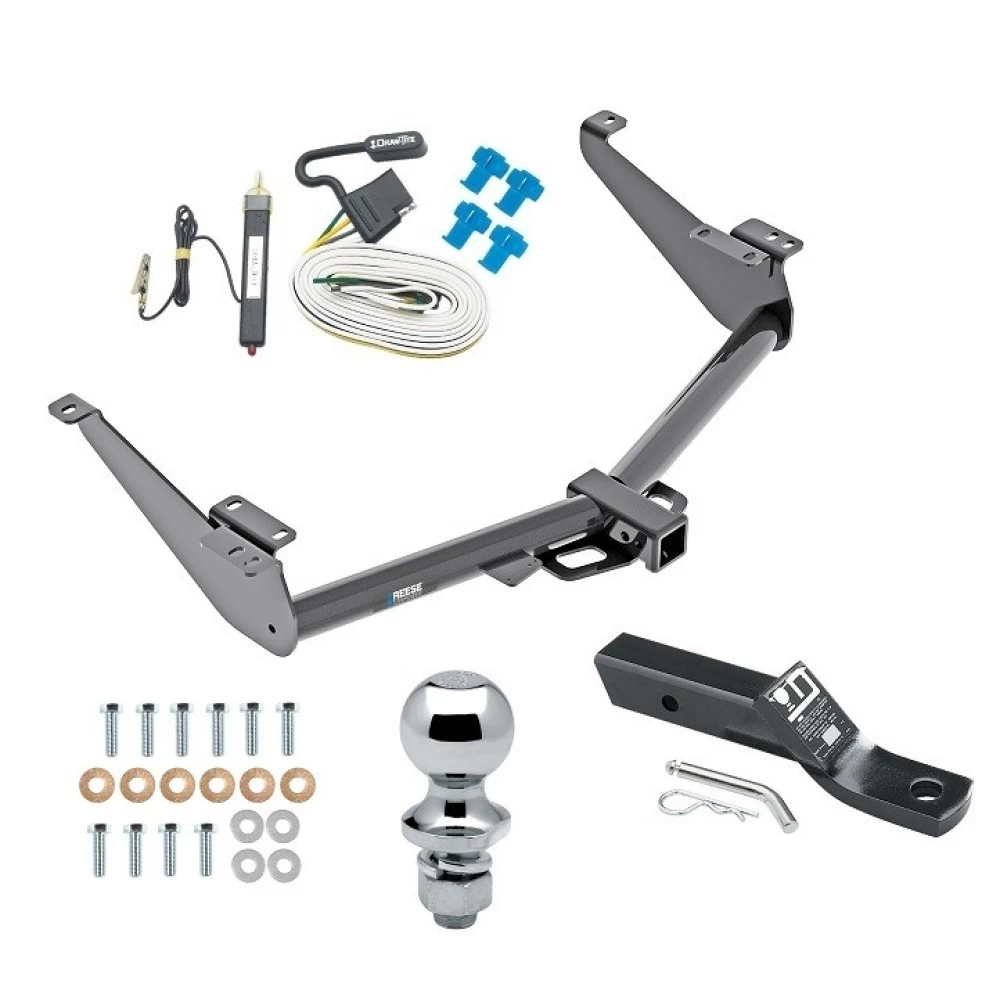

Hardware List:

• 10 × M12 × 1.25 × 40 mm Bolts (CL10.9)
• 6 × Conical Toothed Washers (1/2")
• 4 × Hardened Flat Washers (1/2")

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to secure the hitch to the vehicle.
• Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 8,000 lbs (3,632 kg)
• Max Tongue Weight (Weight Carrying): 800 lbs (363 kg)
• Max Gross Trailer Weight (Weight Distributing): 12,000 lbs (5,448 kg)
• Max Tongue Weight (Weight Distributing): 1,200 lbs (545 kg)
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

20252 Rev. A 2-6-07
