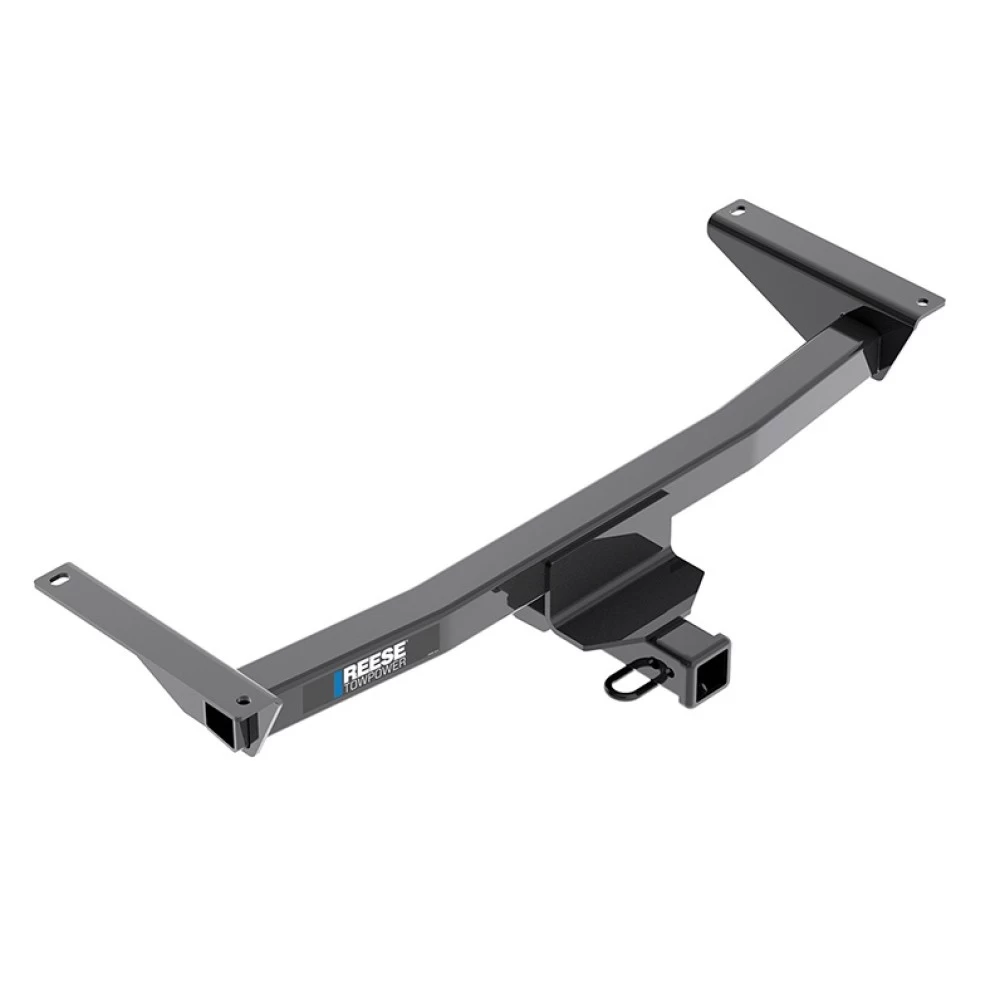

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76176, #84176, and #CQT76176

Part Numbers:

• 76176
• 84176
• CQT76176

Applications:

• Years: 2018-Current
• Make and Models: Volkswagen Atlas

Visit the manufacturer’s website for the most up-to-date application years and trim levels.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 3/4", T15 Torx Bit
• 6" Socket Extension
• Die Grinder
• Scraper
• Tape Measure
• Marker
• Utility Knife

Step-by-Step Instructions:

1. Remove Excess Caulk:

• Scrape away any excess caulk from the frame rails in the hitch installation area.

2. Enlarge Access Hole:

• Use a die grinder or a suitable tool to enlarge the access hole in the frame enough for the carriage bolt head to fit through (refer to Figure 2).

3. Install Hardware:

• Using the fish wire, install carriage bolts and spacers into the frame through the access hole as shown in Figure 1. Repeat on both sides.
  • Note: Leave the fish wire attached to the hardware.

4. Remove Screws:

• For 2021-Current models, remove (4) screws from the bottom of the fascia using a T15 Torx bit.

5. Trim Lower Fascia:

• For 2021-Current models, use a tape measure, marker, and utility knife to measure and trim the lower fascia as shown in Figure 3.
  • Note: Relocate the wiring harness if present in the area of trimming.

6. Install Hitch:

• Raise the hitch into position and feed the end of the fish wires through the attachment holes in the hitch.
• Loosely install conical washers (teeth side against hitch) and hex nuts to hold the hitch in place.
• For 2021-Current models, gently pull the fascia to raise the hitch into position.

7. Torque Fasteners:

• Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
  • Note: The hitch is designed to be close to the fascia at the center. If necessary, trim the fascia at the center lower edge for clearance.

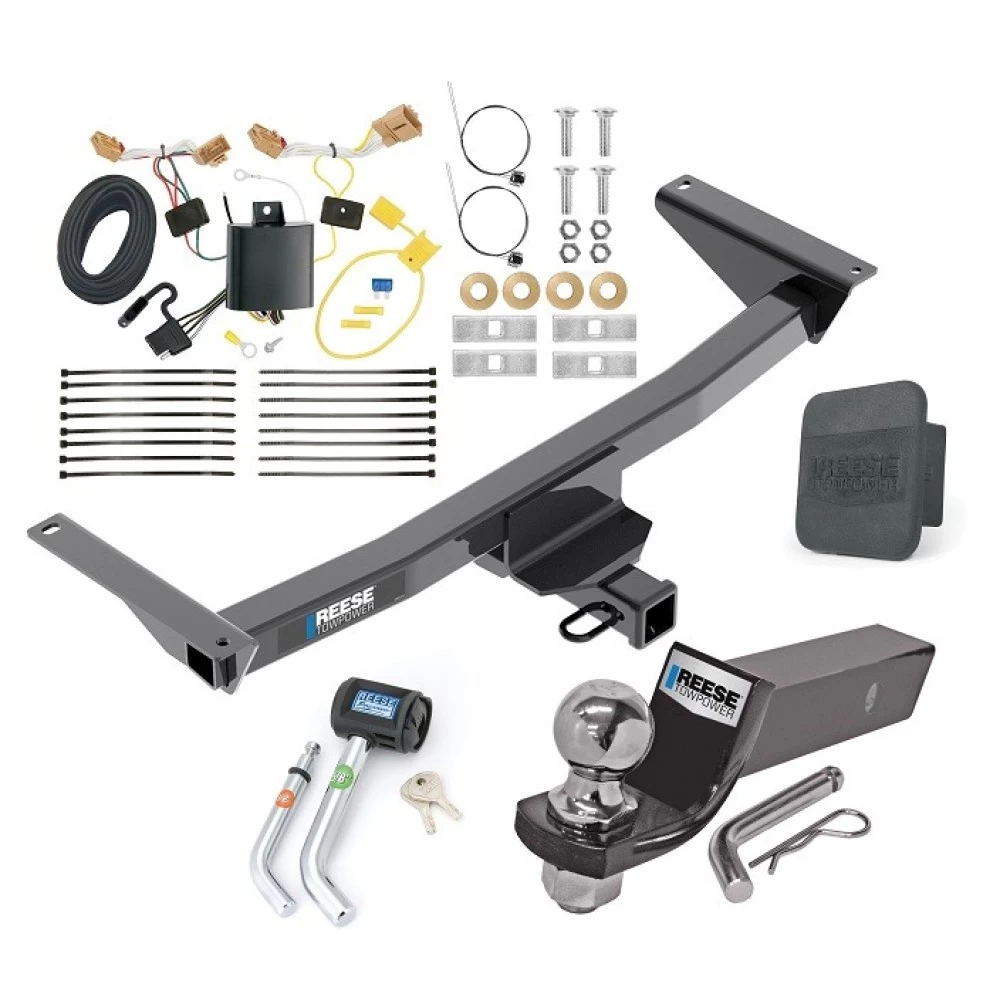

Hardware List:

• 4 × Carriage Bolts (1/2"-13 × 1.75", GR5)
• 4 × Spacers (1/4" × 1" × 3")
• 4 × Conical Washers (1/2")
• 4 × Hex Nuts (1/2"-13, GR5)
• 4 × Fish Wires (1/2")

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to secure the hitch to the vehicle.
• Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 6,000 lbs (2,724 kg)
• Max Tongue Weight (Weight Carrying/Weight Distributing): 900 lbs (409 kg)
• Installation Time: Approximately 25 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

Technical Support:

For further assistance, contact Horizon Global Technical Support at 1-800-632-3290 or visit their website.

Installation Instructions for T-One® T-Connector for Volkswagen Atlas

Part Numbers:

• 118754

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Torx T30 Driver
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Vehicle Wiring:

   • Open the hatch and partially remove the plastic threshold cover, side panels, and cargo trays to expose the vehicle’s wiring inside the rear cargo area.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides of the vehicle, locate the taillight wiring harness with a connection point matching the ends of the T-One® Connector.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
   • Lock the connectors in place, ensuring they are fully inserted and the locking tabs are secure.

4. Mount the Black Box:

   • Mount the T-One® Connector’s black box on the driver’s side using the provided double-sided tape.
   • Secure the remainder of the T-One® Connector harness with the provided cable ties to prevent damage or rattling, avoiding areas that may cut or pinch the wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Clean dirt and rustproofing from the area before securing.

   Caution: Verify what is behind the surface before drilling to prevent damage or injury.

6. Route the Passenger-Side T-Connector:

   • Route the connector containing the green wire through the threshold to the passenger side of the vehicle.
   • Insert the T-One® Connector end with the green wire between the passenger-side taillight wiring connectors, following the same procedure as for the driver’s side.

7. Route the Power Wire:

   • Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail, avoiding hot pipes, heat shields, the fuel tank, or any other points that may pinch or damage the wire.

   Warning: If routing the wire through a grommet along the exterior, ensure no damage or exposure to hazardous areas.

8. Connect to the Vehicle Battery:

   • Disconnect the Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

9. Secure the Harness:

   • Use the provided cable ties to secure the remainder of the T-One® Connector harness, avoiding areas that could pinch, cut, or melt the wire.

10. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable.
    • Insert the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

11. Reassemble the Vehicle:

    • Reinstall all trim panels, the threshold, storage covers, floor coverings, and other components removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Volkswagen Atlas

Part Numbers:

• 118754

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Torx T30 Driver
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Vehicle Wiring:

   • Open the hatch and partially remove the plastic threshold cover, side panels, and cargo trays to expose the vehicle’s wiring inside the rear cargo area.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides of the vehicle, locate the taillight wiring harness with a connection point matching the ends of the T-One® Connector.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
   • Lock the connectors in place, ensuring they are fully inserted and the locking tabs are secure.

4. Mount the Black Box:

   • Mount the T-One® Connector’s black box on the driver’s side using the provided double-sided tape.
   • Secure the remainder of the T-One® Connector harness with the provided cable ties to prevent damage or rattling, avoiding areas that may cut or pinch the wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Clean dirt and rustproofing from the area before securing.

   Caution: Verify what is behind the surface before drilling to prevent damage or injury.

6. Route the Passenger-Side T-Connector:

   • Route the connector containing the green wire through the threshold to the passenger side of the vehicle.
   • Insert the T-One® Connector end with the green wire between the passenger-side taillight wiring connectors, following the same procedure as for the driver’s side.

7. Route the Power Wire:

   • Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail, avoiding hot pipes, heat shields, the fuel tank, or any other points that may pinch or damage the wire.

   Warning: If routing the wire through a grommet along the exterior, ensure no damage or exposure to hazardous areas.

8. Connect to the Vehicle Battery:

   • Disconnect the Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

9. Secure the Harness:

   • Use the provided cable ties to secure the remainder of the T-One® Connector harness, avoiding areas that could pinch, cut, or melt the wire.

10. Reconnect the Battery and Test:

    • Reconnect the Negative (-) battery cable.
    • Insert the 15-amp fuse into the fuse holder.
    • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

11. Reassemble the Vehicle:

    • Reinstall all trim panels, the threshold, storage covers, floor coverings, and other components removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.
