Reese Trailer Tow Hitch For 19‑24 KIA Forte Sedan w/ Draw Bar Kit Class 1 1‑1/4" Receiver

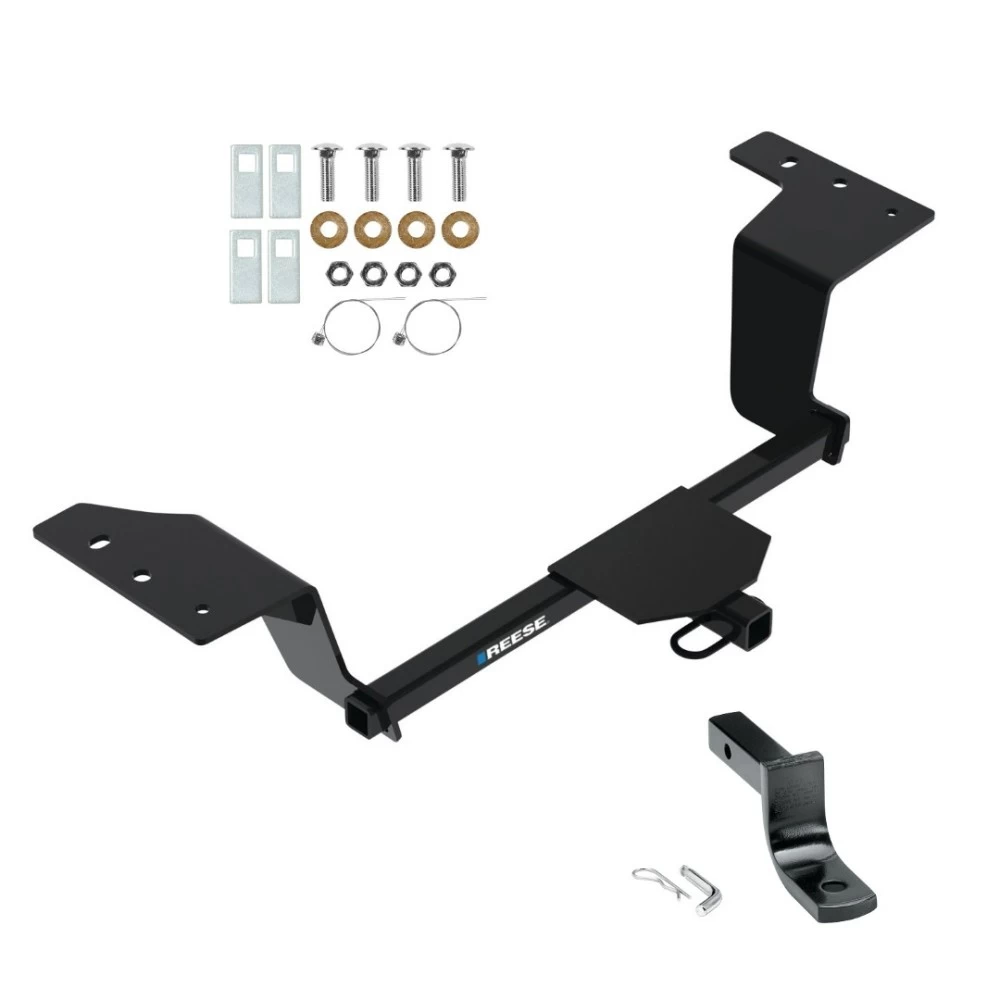

Model: 78293 3593Includes Everything Pictured:

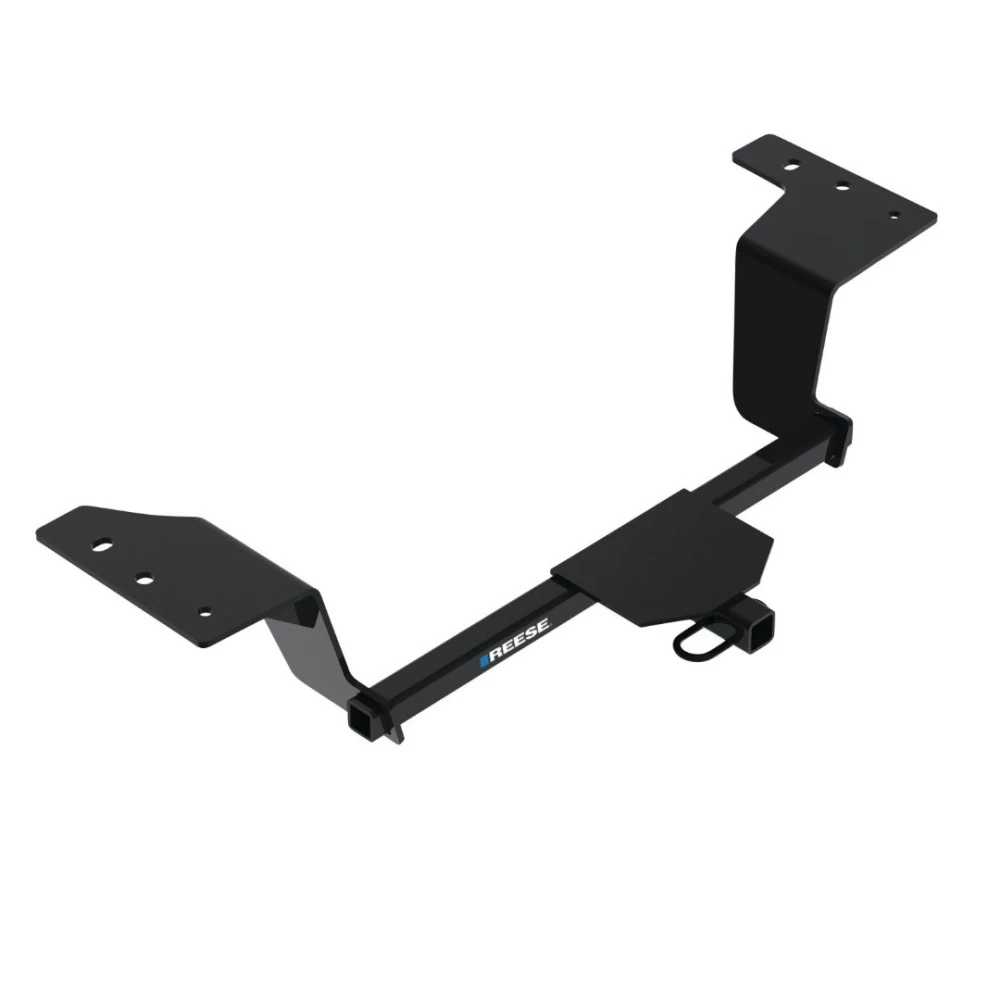

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
Trailer Hitch Specs:
| Part Number | 78293 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

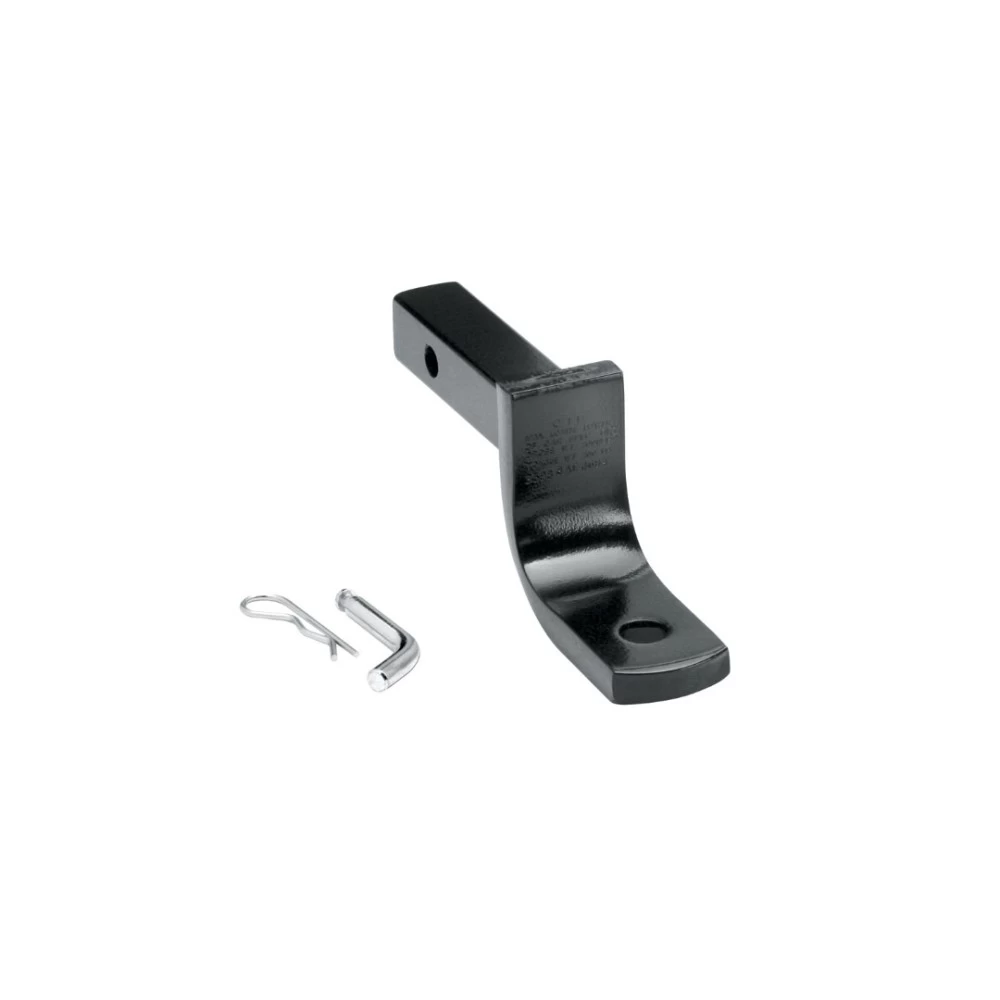

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
$212 55 $337.72 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$337.72 $212 55
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 78293 3593
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
Trailer Hitch Specs:
| Part Number | 78293 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (includes pin and clip)
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Get Expert Help
Reese Trailer Tow Hitch For 19-24 KIA Forte Sedan w/ Draw Bar Kit Class 1 1-1/4" Receiver Install Notes
Installation Instructions for Kia Forte (2019-Current)
Part Numbers:
- 25000
- 78293
- CQT25000
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 12mm, 11/16"
- Drill with 1/2" Drill Bit
- Exhaust Removal Pliers
- Tin Snips
- Flat Head Screwdriver
- Utility Knife
- Marker
- Tape Measure
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Using a flat head screwdriver, a 10mm socket, and a 12mm socket, remove (5) rivets, (2) nuts, and (1) nut from the driver-side underbody panel.
- Remove the panel and set it aside.
-
Lower Exhaust:
- Use exhaust removal pliers to detach (2) rubber hangers from the rearmost points of the muffler.
- Spray lubricant or soapy water on the hangers to ease removal.
- Ensure the exhaust is properly supported before removing the hangers.
-
Remove Heat Shield:
- Using a 10mm socket, remove (5) nuts securing the exhaust heat shield.
- Remove the heat shield.
-
Install Forward Fasteners:
- Using a flat head screwdriver, remove the plastic cover from the frame's access holes on both sides.
- Feed the 7/16" carriage bolts and spacers into the forward attachment holes through the access holes using pull wires. Leave the pull wires attached.
-
Drill Rearward Holes:
- Raise the hitch into position and align it with the forward attachment holes and carriage bolts.
- Use a marker to mark the drill points for the rearward hole centers on both sides.
- Lower the hitch and drill 1/2" holes at the marked points on both sides.
-
Trim Underbody Panel and Heat Shield:
- Measure, mark, and trim the underbody panel and heat shield using a tape measure, marker, tin snips, and utility knife as shown in the provided instructions.
-
Install Hitch:
- Feed the remaining carriage bolts and spacers into the drilled holes using the pull wires.
- Reinstall the heat shield with (4) nuts.
- Raise the hitch into position, guiding the pull wires through the bracket holes.
- Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts onto the hitch.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.
-
Reinstall Exhaust and Underbody Panel:
- Reattach the exhaust by reinstalling the rubber hangers.
- Reinstall the underbody panel. Note: The rearmost fasteners of the underbody panel will not be reinstalled after trimming.

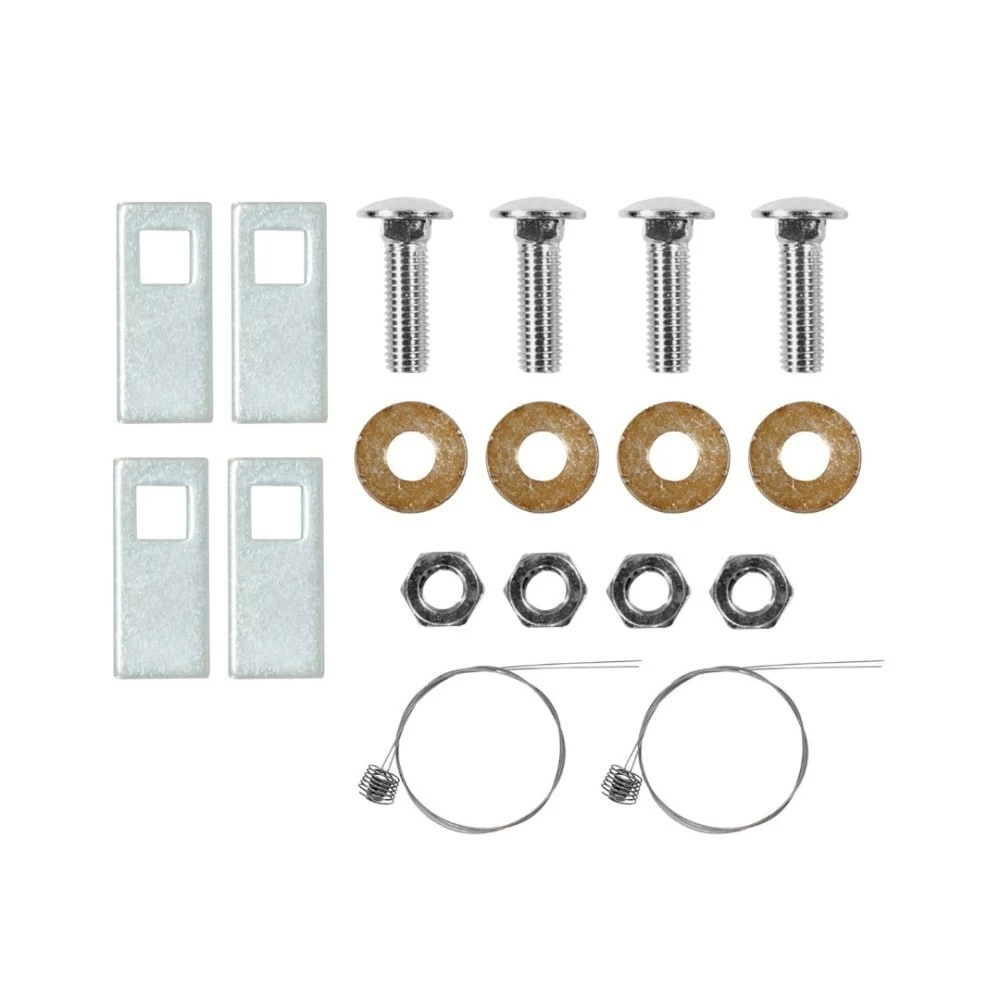

Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50 GR5
- (4) Spacer, 0.88 x 2.00 x 0.109 (Part No. 1204)
- (4) Conical Washer, 7/16" (Part No. 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16"-14 (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 60 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2019-Current)
Part Numbers:
- 25000
- 78293
- CQT25000
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 12mm, 11/16"
- Drill with 1/2" Drill Bit
- Exhaust Removal Pliers
- Tin Snips
- Flat Head Screwdriver
- Utility Knife
- Marker
- Tape Measure
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Using a flat head screwdriver, a 10mm socket, and a 12mm socket, remove (5) rivets, (2) nuts, and (1) nut from the driver-side underbody panel.
- Remove the panel and set it aside.
-
Lower Exhaust:
- Use exhaust removal pliers to detach (2) rubber hangers from the rearmost points of the muffler.
- Spray lubricant or soapy water on the hangers to ease removal.
- Ensure the exhaust is properly supported before removing the hangers.
-
Remove Heat Shield:
- Using a 10mm socket, remove (5) nuts securing the exhaust heat shield.
- Remove the heat shield.
-
Install Forward Fasteners:
- Using a flat head screwdriver, remove the plastic cover from the frame's access holes on both sides.
- Feed the 7/16" carriage bolts and spacers into the forward attachment holes through the access holes using pull wires. Leave the pull wires attached.
-
Drill Rearward Holes:
- Raise the hitch into position and align it with the forward attachment holes and carriage bolts.
- Use a marker to mark the drill points for the rearward hole centers on both sides.
- Lower the hitch and drill 1/2" holes at the marked points on both sides.
-
Trim Underbody Panel and Heat Shield:
- Measure, mark, and trim the underbody panel and heat shield using a tape measure, marker, tin snips, and utility knife as shown in the provided instructions.
-
Install Hitch:
- Feed the remaining carriage bolts and spacers into the drilled holes using the pull wires.
- Reinstall the heat shield with (4) nuts.
- Raise the hitch into position, guiding the pull wires through the bracket holes.
- Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts onto the hitch.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.
-
Reinstall Exhaust and Underbody Panel:
- Reattach the exhaust by reinstalling the rubber hangers.
- Reinstall the underbody panel. Note: The rearmost fasteners of the underbody panel will not be reinstalled after trimming.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.50 GR5
- (4) Spacer, 0.88 x 2.00 x 0.109 (Part No. 1204)
- (4) Conical Washer, 7/16" (Part No. 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16"-14 (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 60 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Warranty:
- This product is covered by a limited warranty.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
