Reese Trailer Tow Hitch Receiver For 02‑03 Dodge Ram 1500 w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 37084 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2002 - 2003 Dodge, Ram 1500, (Built Before 11/2002)

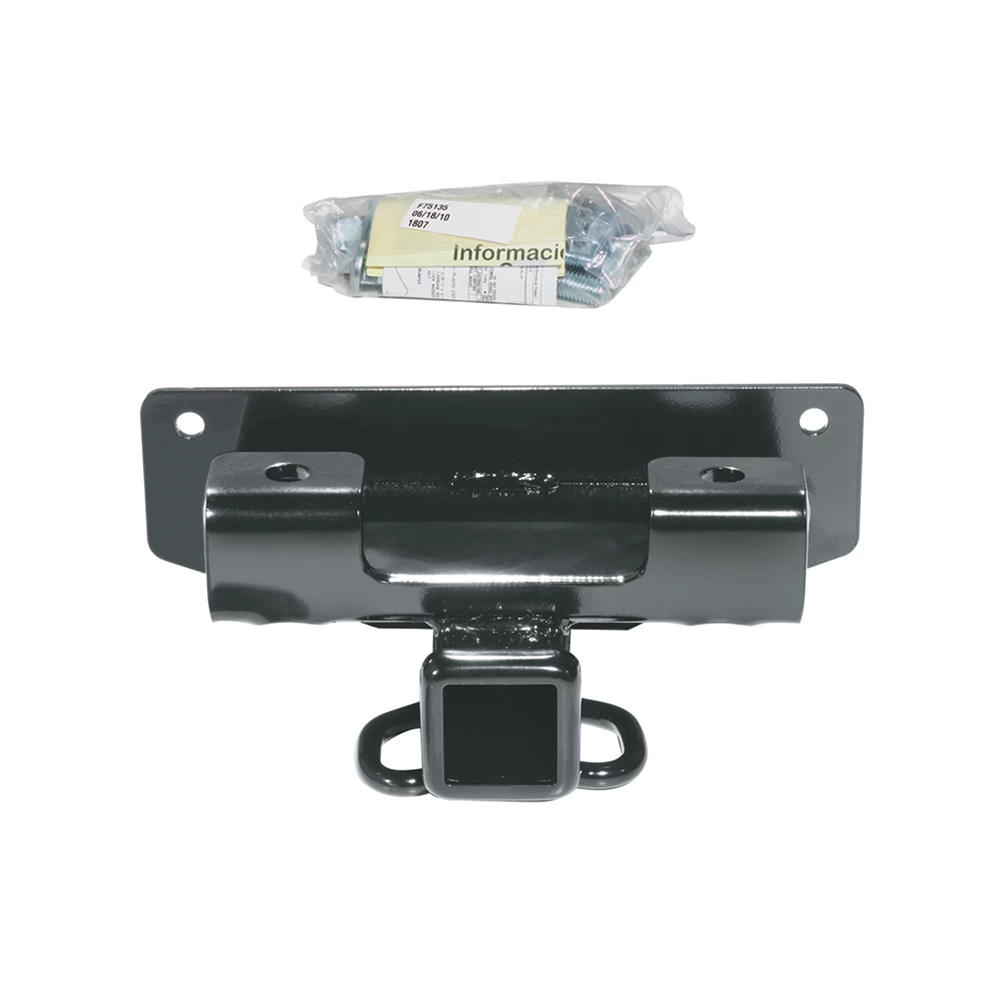

Trailer Hitch Specs:
| Part Number | 37084 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 500/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 2002 2003
$202 03 $327.13 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$327.13 $202 03
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $50.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 37084 7031400 63240

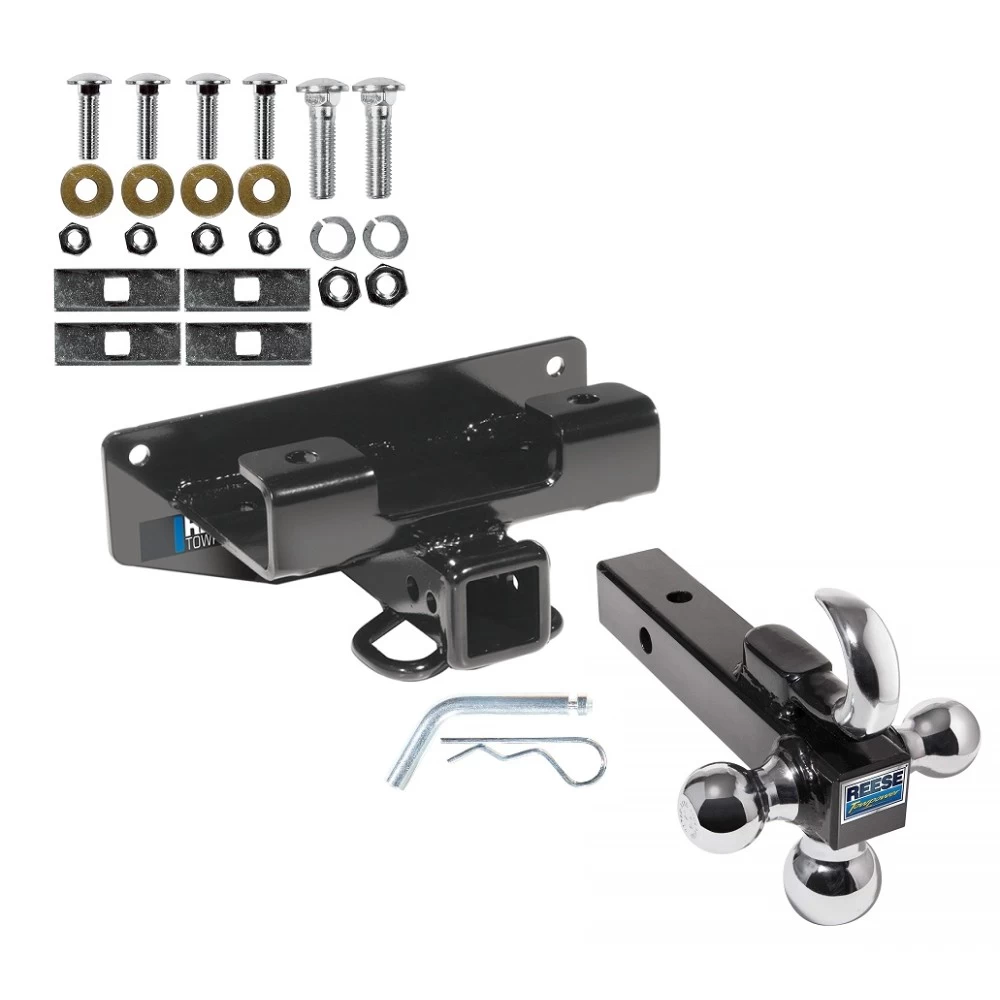

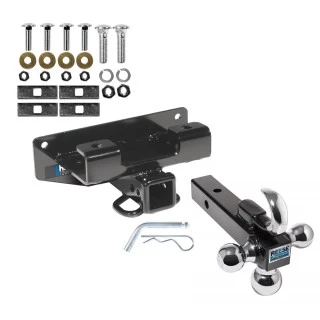

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2002 - 2003 Dodge, Ram 1500, (Built Before 11/2002)
Trailer Hitch Specs:
| Part Number | 37084 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 500/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 2002 2003
Get Expert Help
Reese Trailer Tow Hitch Receiver For 02-03 Dodge Ram 1500 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Dodge Ram 1500 Pickup
Part Numbers:
- 75135
- 37042
- 37052
Wiring Access Location:
- PU3
Tools Required:
- Utility Knife
- Wrenches/Sockets: 7/8", 15/16"
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 10,000 lb. (4,536 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 1,000 lb. (454 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Spare Tire:
- Remove the spare tire from the vehicle to gain access.
-
Remove Bumper Hardware:
- Detach the plastic step tread from the bumper using pliers. Remove two plastic push pins on the rearward portion of the step tread.
-
Position Hitch:
- Raise the hitch into position and lift the step tread slightly to fit.
-
Install Carriage Bolts:
- Fishwire the 1/2" carriage bolts and blocks through the frame rails to align them with the hitch slots.
-
Attach Fasteners:
- Secure the hitch using the conical toothed washers and hex nuts on the carriage bolts. Ensure all fasteners are loosely installed.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Reinstall Spare Tire:
- Raise the spare tire back into position after completing installation.
Hardware List:
- (6) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (6) Spacer Blocks: 1/4" x 1" x 3"
- (6) Conical Toothed Washers: 1/2"
- (6) Hex Nuts: 1/2"-13
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Optional Locking Stabilizing Pin (Sold Separately)
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Dodge Ram 1500 Pickup
Part Numbers:
- 75135
- 37042
- 37052
Wiring Access Location:
- PU3
Tools Required:
- Utility Knife
- Wrenches/Sockets: 7/8", 15/16"
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 10,000 lb. (4,536 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 1,000 lb. (454 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Spare Tire:
- Remove the spare tire from the vehicle to gain access.
-
Remove Bumper Hardware:
- Detach the plastic step tread from the bumper using pliers. Remove two plastic push pins on the rearward portion of the step tread.
-
Position Hitch:
- Raise the hitch into position and lift the step tread slightly to fit.
-
Install Carriage Bolts:
- Fishwire the 1/2" carriage bolts and blocks through the frame rails to align them with the hitch slots.
-
Attach Fasteners:
- Secure the hitch using the conical toothed washers and hex nuts on the carriage bolts. Ensure all fasteners are loosely installed.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Reinstall Spare Tire:
- Raise the spare tire back into position after completing installation.
Hardware List:
- (6) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (6) Spacer Blocks: 1/4" x 1" x 3"
- (6) Conical Toothed Washers: 1/2"
- (6) Hex Nuts: 1/2"-13
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Optional Locking Stabilizing Pin (Sold Separately)
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
