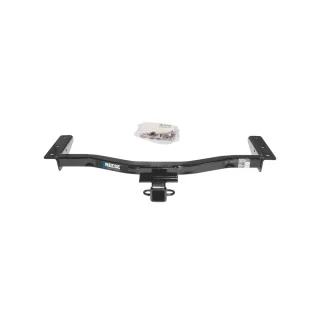

Reese Trailer Tow Hitch Receiver For 10‑15 Lexus RX350 RX450h w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 44633 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2010 - 2015 Lexus, RX350, Except F Sport
2010 - 2015 Lexus, RX450h, Hybrid
Trailer Hitch Specs:
| Part Number | 44633 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 400 / 500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 2010 2011 2012 2013 2014 2015
$263 67 $423.36 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$423.36 $263 67
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $65.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44633 7031400 63240

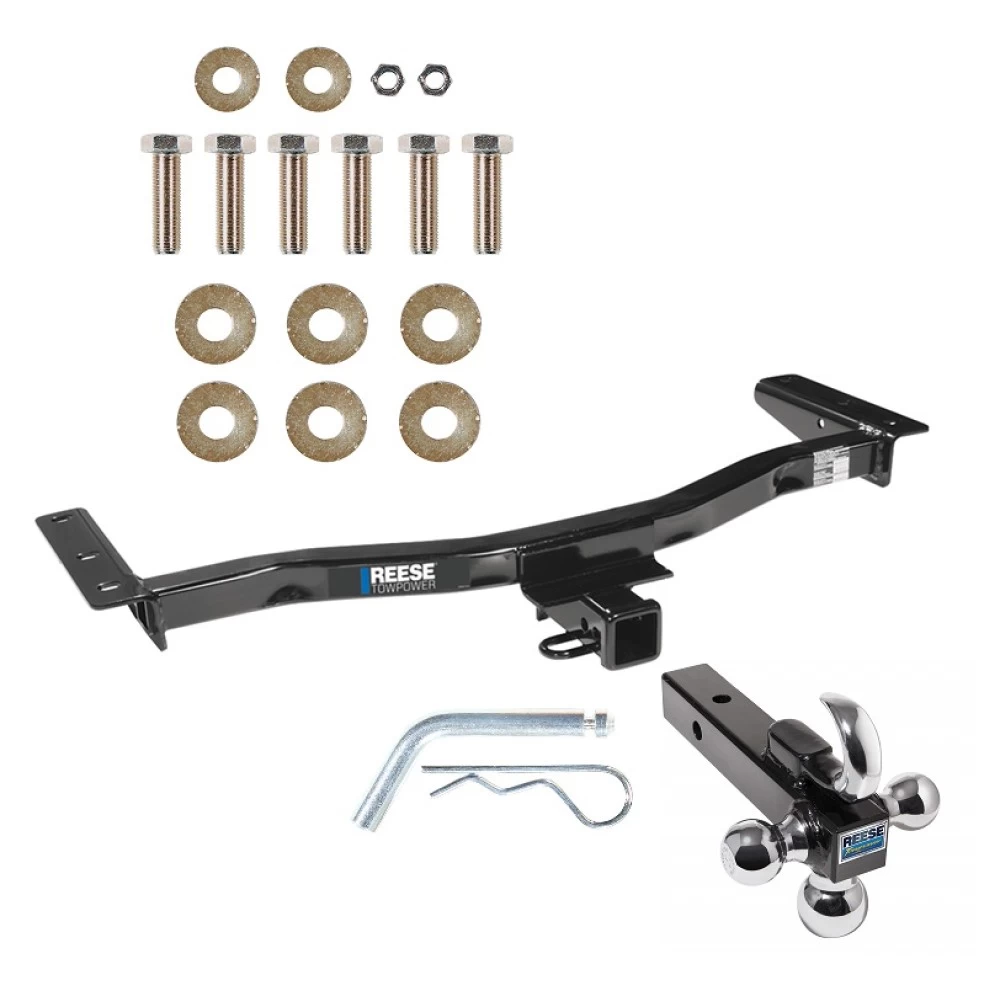

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2010 - 2015 Lexus, RX350, Except F Sport
2010 - 2015 Lexus, RX450h, Hybrid
Trailer Hitch Specs:
| Part Number | 44633 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 400 / 500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 2010 2011 2012 2013 2014 2015
Get Expert Help
Reese Trailer Tow Hitch Receiver For 10-15 Lexus RX350 RX450h w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Lexus RX 350, RX 450h (RX 350 F Sport Excluded)
Part Numbers:
- 75676
- 87569
- 44633
Tools Required:
- Tape Measure
- Utility Knife
- Wrenches: 10mm, 12mm, 14mm, 17mm, 19mm
- Small Screwdriver
- Large Screwdriver
Wiring Access Location:
- SUV 3 & 4
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the appearance panel covering the trunk pan by removing eight (8) fasteners using a 10mm socket.
- Remove three (3) plastic rivets securing the appearance panel. Use a small screwdriver to remove the center of the rivet.
- Detach the final rivet located behind the wheel well liner using a large screwdriver.
-
Reinstall Appearance Panel After Trimming:
- The appearance panel will be reinstalled after trimming. Ensure to obtain the vehicle owner's approval before cutting.
-
Remove Plugs and Tie-Downs:
- Remove the plastic plugs in the frame rails and any tie-downs, if present, on both frame rails. Return these components to the vehicle owner.
-
Detach Exhaust Hanger:
- Remove the two (2) M8 bolts (using a 12mm socket) holding the exhaust hanger in place. Retain the bolts for reinstallation.
-
Position the Hitch:
- Raise the hitch over the exhaust and align it with the existing weld nuts in the frame rail.
-
Install M12 Bolts:
- Attach the hitch using six (6) M12 x 1.25 x 40mm bolts and six (6) conical washers. Hand-tighten the bolts and ensure the hitch is centered on the vehicle.
-
Torque Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m).
-
Reattach Exhaust Hanger:
- Attach the exhaust hanger to the hitch bracket using the retained M8 bolts and the provided conical washers and nuts.
- Torque all M8 fasteners to 20 lb-ft (27 N·m).
-
Trim Appearance Panel:
- Trim the appearance panel in two places as shown in the instructions. Obtain the vehicle owner's approval before cutting.
-
Reinstall Appearance Panel:
- Reattach the trimmed appearance panel, sliding the rear of the panel in place first for easier installation.

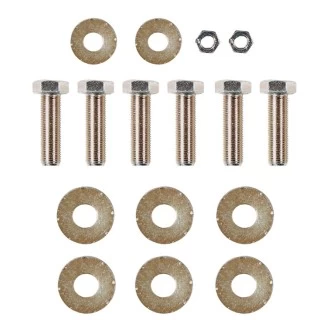

Hardware List:
- (6) Hex Bolts M12 x 1.25 x 40mm CL10.9
- (6) Conical Washers 1/2”
- (2) Hex Nuts M8 x 1.25
- (2) Conical Washers 3/8”
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75676
- 87569
- 44633
Tools Required:
- Tape Measure
- Utility Knife
- Wrenches: 10mm, 12mm, 14mm, 17mm, 19mm
- Small Screwdriver
- Large Screwdriver
Wiring Access Location:
- SUV 3 & 4
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the appearance panel covering the trunk pan by removing eight (8) fasteners using a 10mm socket.
- Remove three (3) plastic rivets securing the appearance panel. Use a small screwdriver to remove the center of the rivet.
- Detach the final rivet located behind the wheel well liner using a large screwdriver.
-
Reinstall Appearance Panel After Trimming:
- The appearance panel will be reinstalled after trimming. Ensure to obtain the vehicle owner's approval before cutting.
-
Remove Plugs and Tie-Downs:
- Remove the plastic plugs in the frame rails and any tie-downs, if present, on both frame rails. Return these components to the vehicle owner.
-
Detach Exhaust Hanger:
- Remove the two (2) M8 bolts (using a 12mm socket) holding the exhaust hanger in place. Retain the bolts for reinstallation.
-
Position the Hitch:
- Raise the hitch over the exhaust and align it with the existing weld nuts in the frame rail.
-
Install M12 Bolts:
- Attach the hitch using six (6) M12 x 1.25 x 40mm bolts and six (6) conical washers. Hand-tighten the bolts and ensure the hitch is centered on the vehicle.
-
Torque Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m).
-
Reattach Exhaust Hanger:
- Attach the exhaust hanger to the hitch bracket using the retained M8 bolts and the provided conical washers and nuts.
- Torque all M8 fasteners to 20 lb-ft (27 N·m).
-
Trim Appearance Panel:
- Trim the appearance panel in two places as shown in the instructions. Obtain the vehicle owner's approval before cutting.
-
Reinstall Appearance Panel:
- Reattach the trimmed appearance panel, sliding the rear of the panel in place first for easier installation.
Hardware List:
- (6) Hex Bolts M12 x 1.25 x 40mm CL10.9
- (6) Conical Washers 1/2”
- (2) Hex Nuts M8 x 1.25
- (2) Conical Washers 3/8”
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
