Rola Roof Rack Cross Bars For 15-22 Chevrolet Colorado GMC Canyon Extended Cab Aluminum Extreme Cross Bar DFE Series Install Notes
Installation Instructions for Part #R5053
Roof Rail Kit System with Cross Bars, AGAD Components, and RE53 Rails
Supported Vehicles:
- Chevrolet Colorado, 4-door Extended Cab, 2015–2018
- GMC Canyon, 4-door Crew Cab, 2015–2018
Part Numbers:
- RE53: Roof Rails
- 59970: Cross Bar System
- AGAD: Door Frame Fit Kit
Tools Required:
- Torque Wrench (adjustable to 4 Nm and 18 ft-lbs)
- Measuring Tape
- Marker or Pencil
- Cleaning Cloth

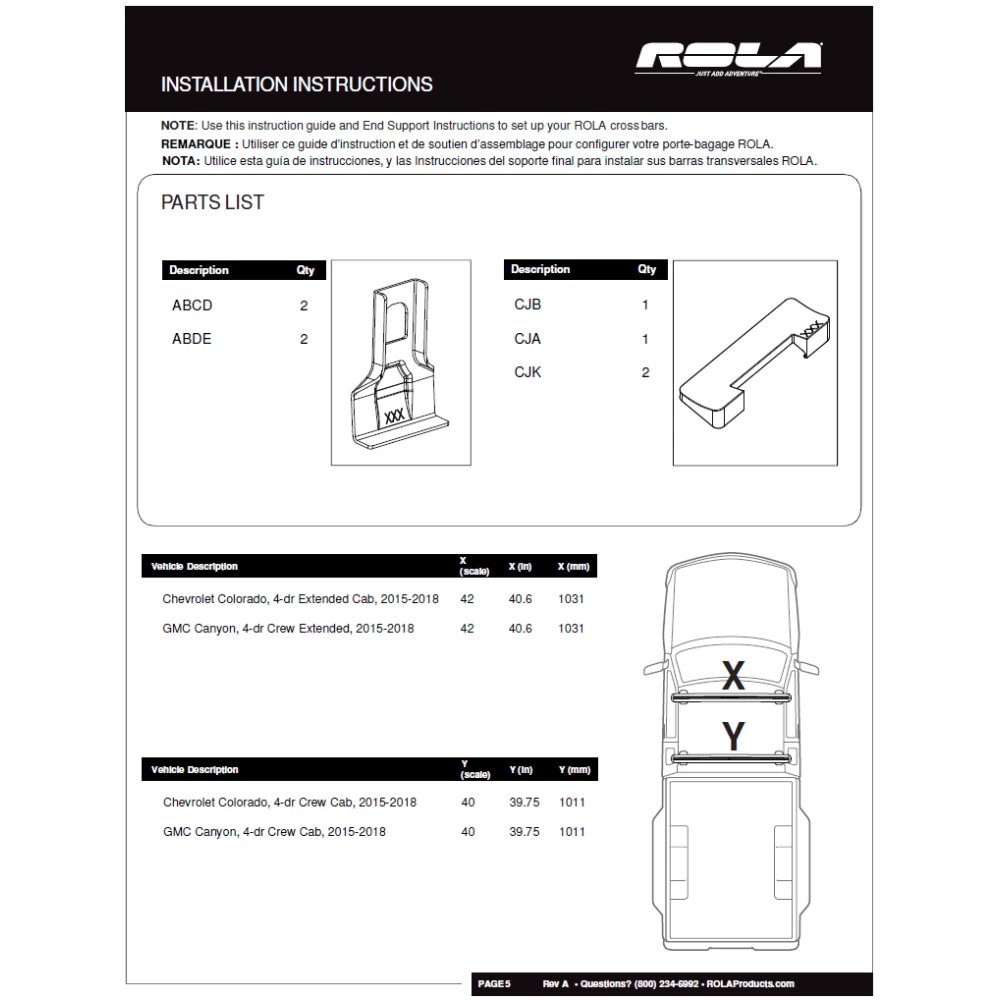

Hardware List:
RE53 Rails
- (2) Rails
- (4) Bar End Caps (Left and Right)
- (4) Quarter Turn Plugs
- (4) Position Sliders
AGAD Components
- (2) Door Frame Straps
- (4) Gasket Pads
59970 Cross Bar System
- (2) Cross Bars
- (4) Lock Cores (optional, sold separately for additional security)
Step-by-Step Instructions:
Step 1: Prepare Your Work Area
- Park your vehicle on a level surface.
- Clean the roof and door frame areas thoroughly.
Step 2: Assemble the Rails
- Attach the Bar End Caps to the ends of the RE53 Rails.
- Insert the Quarter Turn Plugs into the Position Sliders and adjust for your vehicle’s roof dimensions.

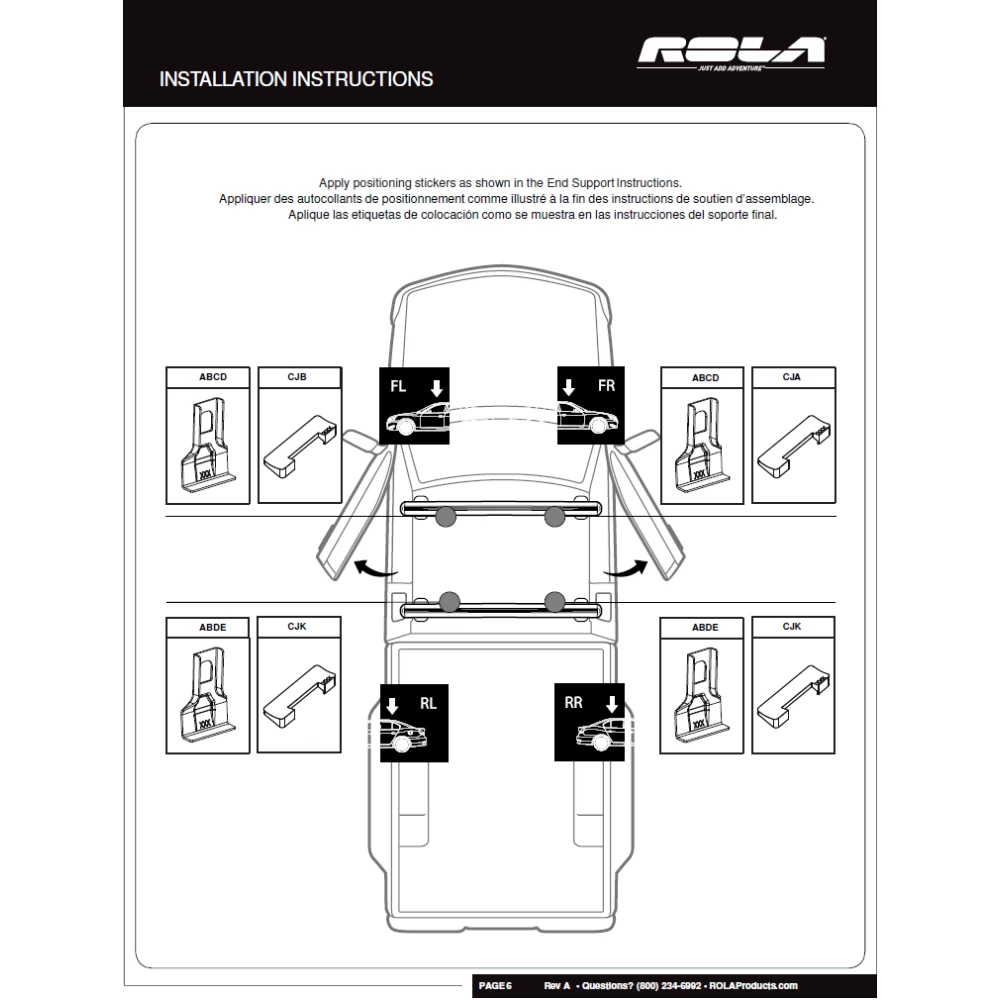

Step 3: Install the Rails on the Roof

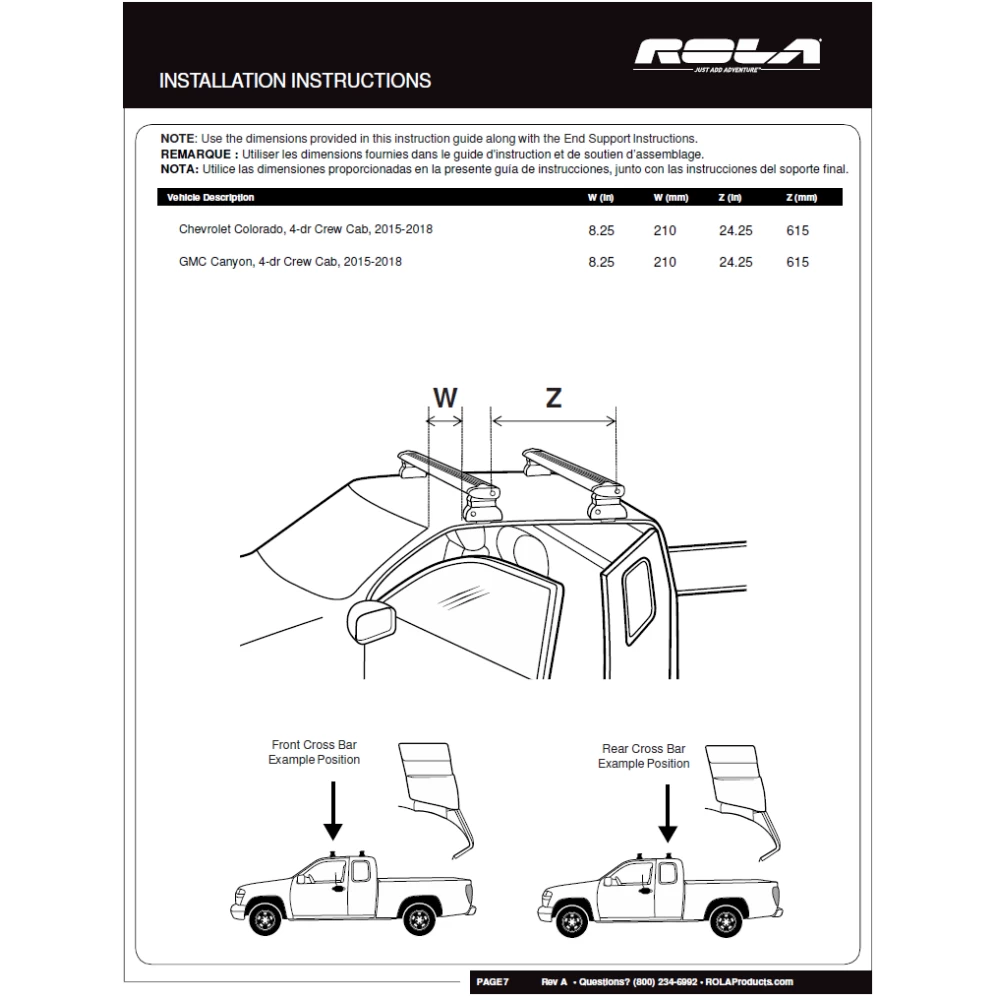

- Place the rails at the designated positions:
- Front Rail Position (W): 8.25 in (210 mm) from the windshield edge.
- Rear Rail Position (Z): 24.25 in (615 mm) from the windshield edge.
- Tighten the quarter turn plugs to 4 Nm using the torque wrench.

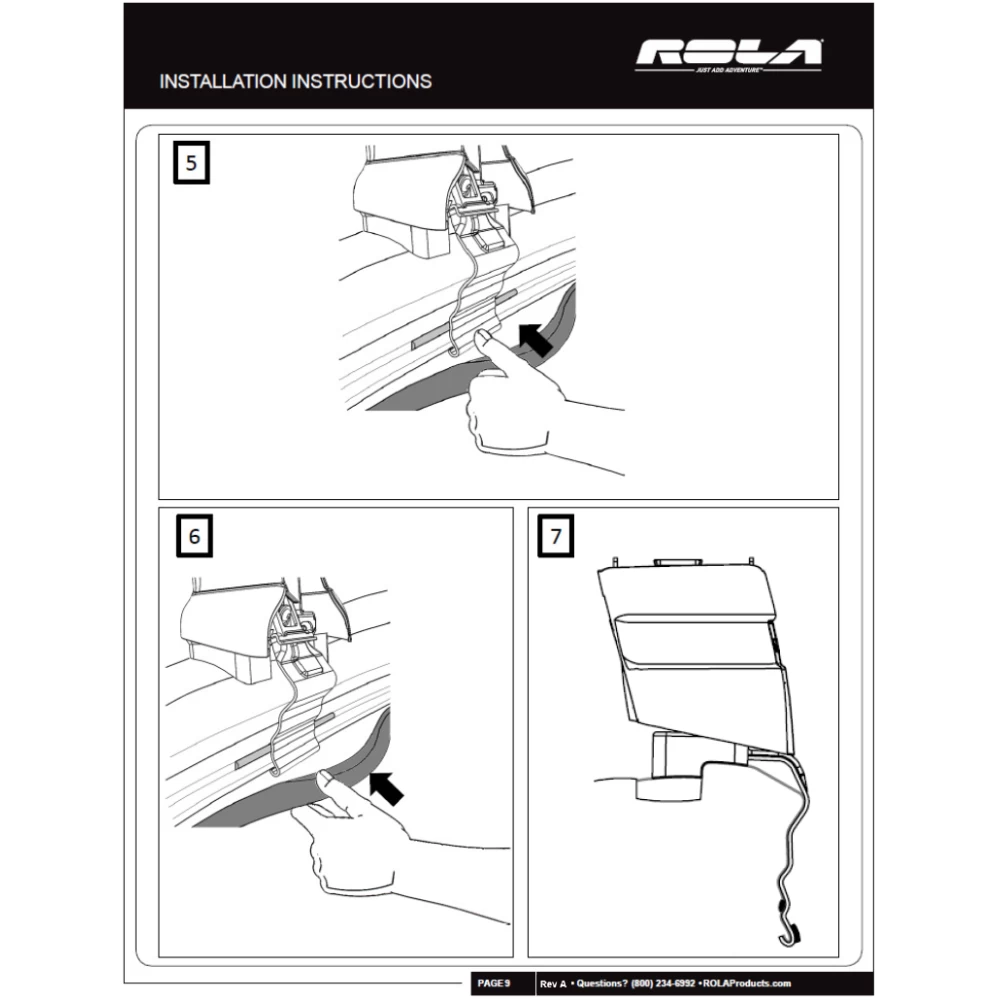

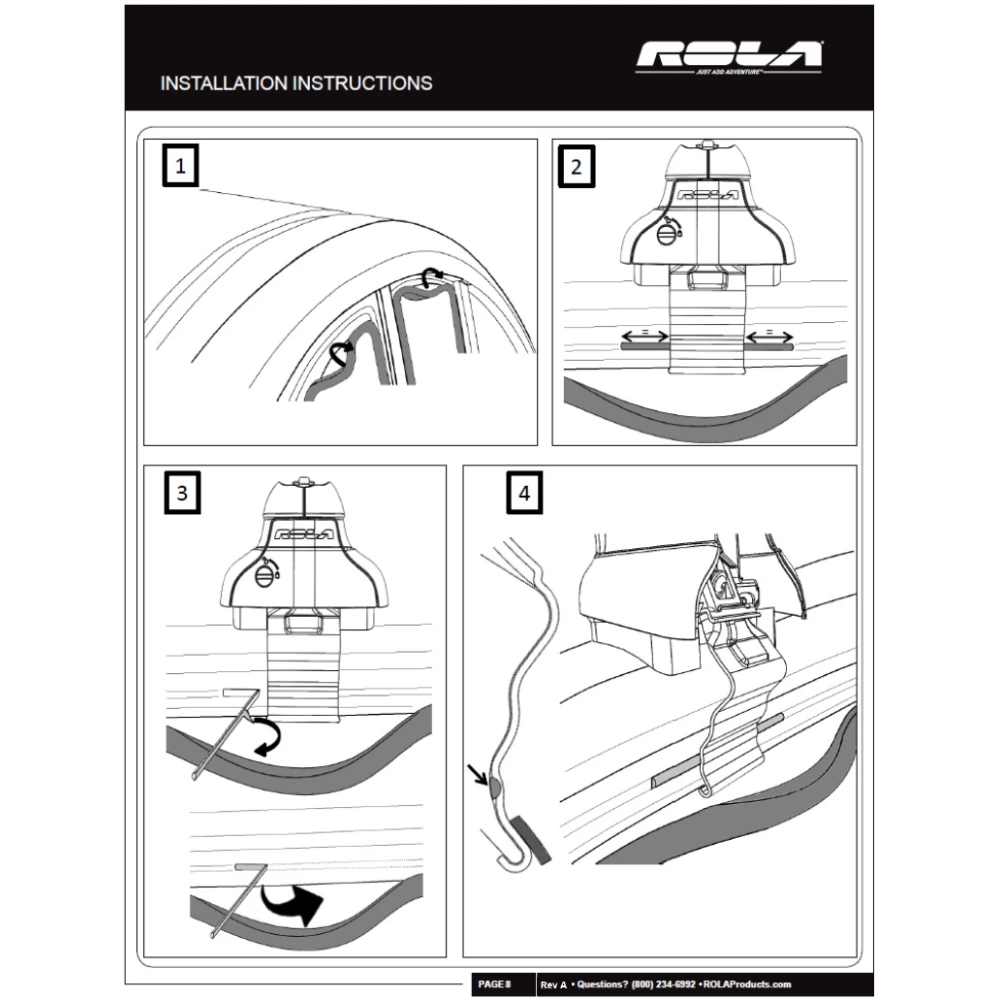

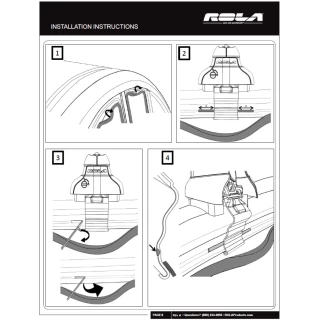

Step 4: Attach the Cross Bars
- Align the 59970 Cross Bars with the installed rails.
- Secure the cross bars using the AGAD Door Frame Straps and tighten all bolts to 18 ft-lbs.
Step 5: Secure the System
- Tighten all fasteners and straps.
- Push and pull on the installed system to ensure there is no movement.
Step 6: Load and Secure Cargo
- Ensure the combined weight of the rails, cross bars, and cargo does not exceed 110 lbs (50 kg).
- Use non-stretch straps to secure the cargo firmly.
- Tie down long items (e.g., kayaks, surfboards) to both front and rear bumpers.
Maintenance:
- Inspect all fasteners, straps, and supports before each use.
- Clean the system regularly to prevent dirt buildup.
- Lubricate locks and screws periodically to ensure smooth operation.
Safety Notes:
- Avoid speeds over 50 mph (80 km/h) with the system installed.
- Be mindful of height restrictions when driving with loads on the roof.
- Remove the system when not in use or before entering automatic car washes.
Warning: Failure to secure the system properly may result in damage or injury.
Specifications:
- Maximum Weight Capacity: 110 lbs (50 kg)
- Recommended Speed Limit: 50 mph (80 km/h)
Caution: Exceeding the weight or speed limits can lead to accidents or void the warranty.
Installation Instructions for Roof Rail Kit System with Cross Bars, AGAD Components, and RE53 Rails
Part Number:
- R5053
Vehicle Compatibility:
- Vehicle Model, 4-door Extended Cab, 2015–2018
- Vehicle Model, 4-door Crew Cab, 2015–2018
Tools Required:
- Torque Wrench (adjustable to 4 Nm and 18 ft-lbs)
- Measuring Tape
- Marker or Pencil
- Cleaning Cloth
Hardware List:
RE53 Rails
- (2) Rails
- (4) Bar End Caps (Left and Right)
- (4) Quarter Turn Plugs
- (4) Position Sliders
AGAD Components
- (2) Door Frame Straps
- (4) Gasket Pads
Cross Bar System
- (2) Cross Bars
- (4) Lock Cores (optional, sold separately for additional security)
Step-by-Step Instructions:
Step 1: Prepare Your Work Area
- Park your vehicle on a level surface.
- Clean the roof and door frame areas thoroughly.
Step 2: Assemble the Rails
- Attach the Bar End Caps to the ends of the RE53 Rails.
- Insert the Quarter Turn Plugs into the Position Sliders and adjust for your vehicle’s roof dimensions.
Step 3: Install the Rails on the Roof
- Place the rails at the designated positions:
- Front Rail Position (W): 8.25 in (210 mm) from the windshield edge.
- Rear Rail Position (Z): 24.25 in (615 mm) from the windshield edge.
- Tighten the quarter turn plugs to 4 Nm using the torque wrench.
Step 4: Attach the Cross Bars
- Align the Cross Bars with the installed rails.
- Secure the cross bars using the AGAD Door Frame Straps and tighten all bolts to 18 ft-lbs.
Step 5: Secure the System
- Tighten all fasteners and straps.
- Push and pull on the installed system to ensure there is no movement.
Step 6: Load and Secure Cargo
- Ensure the combined weight of the rails, cross bars, and cargo does not exceed 110 lbs (50 kg).
- Use non-stretch straps to secure the cargo firmly.
- Tie down long items (e.g., kayaks, surfboards) to both front and rear bumpers.
Maintenance:
- Inspect all fasteners, straps, and supports before each use.
- Clean the system regularly to prevent dirt buildup.
- Lubricate locks and screws periodically to ensure smooth operation.
Safety Notes:
- Avoid speeds over 50 mph (80 km/h) with the system installed.
- Be mindful of height restrictions when driving with loads on the roof.
- Remove the system when not in use or before entering automatic car washes.
Warning: Failure to secure the system properly may result in damage or injury.
Specifications:
- Maximum Weight Capacity: 110 lbs (50 kg)
- Recommended Speed Limit: 50 mph (80 km/h)
Caution: Exceeding the weight or speed limits can lead to accidents or void the warranty.
Important Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
- Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
