Product Details
- Brand: Tekonsha
- Model: 9030 3015-2

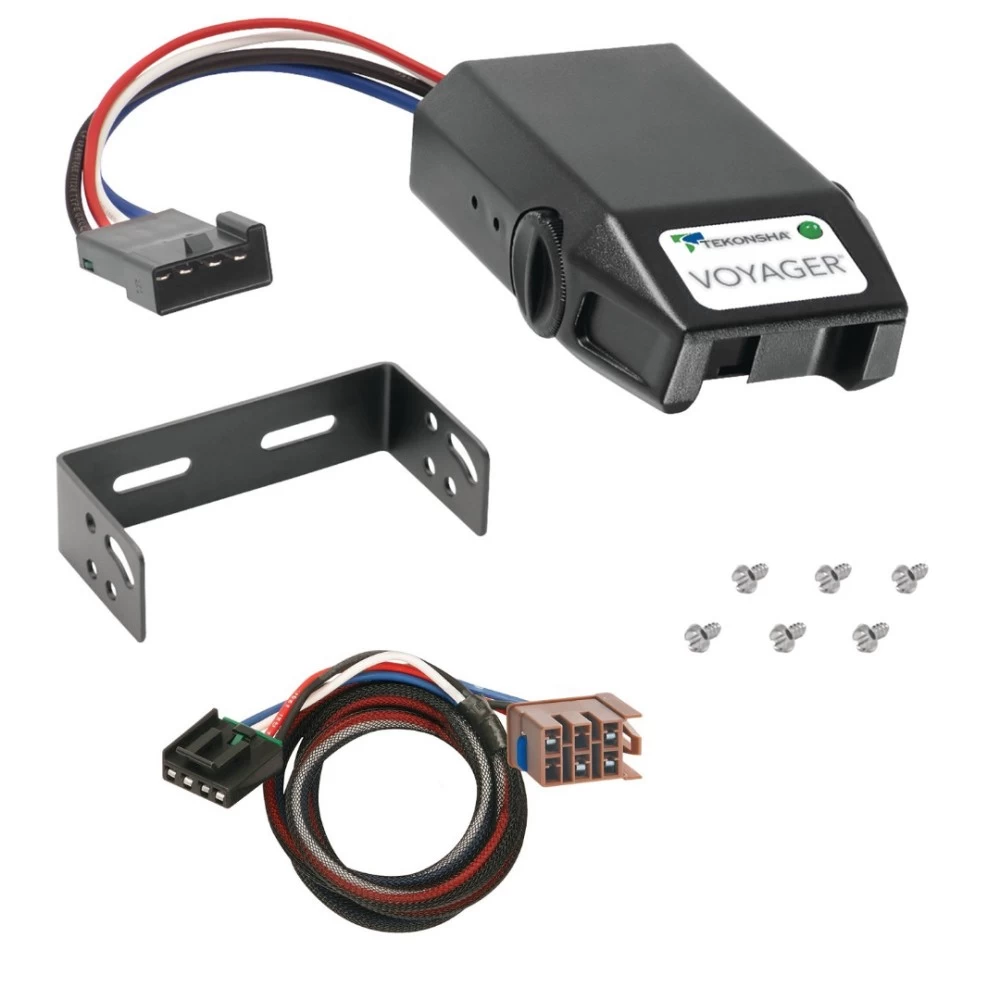

- Includes: Voyager Proportional Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Brake Control for 03-07 Chevy Silverado 1500 3500 03-04 Chevy Silverado 2500 w/ Plug Play Wiring Adapter Tekonsha Voyager Eletric Trailer Brakes Module Box Controller Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 301500
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Junction Box
- Find the black Electric Junction Box inside the vehicle:
- Under the dashboard, left of the steering column, just above the carpet.
- Remove the cover of the Electric Junction Box.
- Locate the connection point for the electric trailer brakes in the top row, second slot from the left.
Step 2: Plug the Brake Control Adapter into the Vehicle Connector
- Plug the brake control adapter into the mating connection point inside the Electric Junction Box.
- Use a circuit tester to verify that battery (+) power is supplied to the adapter.
NOTE:
- Not all vehicles are pre-wired with complete power connections to the battery and/or wiring for electric trailer brakes.
- If power is already supplied, skip to Step 4.
Step 3: Add Power Supply (If Required)
For vehicles with no power supply:
-
Use an Electric Brake Control Wiring Kit and route all wires as described in the wiring kit instructions or as follows:
A. Vehicle Brake Control Feed Wire (Blue):
- Open the vehicle’s hood and locate the black Electrical Center Box on the driver’s side.
- Remove the cover to access the blue brake control feed wire.
- This step may require temporarily removing the vehicle’s support brace.
B. Vehicle Battery (+) Power Supply Wire (Red):
- Locate the red battery (+) power supply wire in the Electrical Center Box.
- Connect the wiring and ensure an in-line fuse or circuit breaker is installed.
- Reinstall the Electrical Center Box cover, lid, and support brace.
Step 4: Connect the Brake Controller
- Plug the brake control adapter into the vehicle’s brake control harness connector.
- Follow the brake control manufacturer’s instructions for wiring and mounting the unit.
Warnings:
- Complete the installation following the brake control manufacturer’s instructions.
- Mount the brake controller securely as directed.
- Perform all test procedures outlined in the brake controller manual.
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps)
- Always follow the vehicle manufacturer’s towing and load limits.
Wiring Overview:
- Blue Wire: Brake control feed wire (output to trailer brakes)
- Red Wire: Battery (+) power supply
- Ground: Connects brake controller to vehicle ground
- Stop Lamp Switch (Input): Vehicle braking signal to the brake controller
Final Notes:
- Periodically inspect the connections for tightness and wear.
- Ensure all wires are properly routed away from sharp edges, heat sources, and pinch points.
- Consult the vehicle owner’s manual for additional information regarding towing and electrical connections.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 301500
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Junction Box
- Find the black Electric Junction Box inside the vehicle:
- Under the dashboard, left of the steering column, just above the carpet.
- Remove the cover of the Electric Junction Box.
- Locate the connection point for the electric trailer brakes in the top row, second slot from the left.
Step 2: Plug the Brake Control Adapter into the Vehicle Connector
- Plug the brake control adapter into the mating connection point inside the Electric Junction Box.
- Use a circuit tester to verify that battery (+) power is supplied to the adapter.
NOTE:
- Not all vehicles are pre-wired with complete power connections to the battery and/or wiring for electric trailer brakes.
- If power is already supplied, skip to Step 4.
Step 3: Add Power Supply (If Required)
For vehicles with no power supply:
-
Use an Electric Brake Control Wiring Kit and route all wires as described in the wiring kit instructions or as follows:
A. Vehicle Brake Control Feed Wire (Blue):
- Open the vehicle’s hood and locate the black Electrical Center Box on the driver’s side.
- Remove the cover to access the blue brake control feed wire.
- This step may require temporarily removing the vehicle’s support brace.
B. Vehicle Battery (+) Power Supply Wire (Red):
- Locate the red battery (+) power supply wire in the Electrical Center Box.
- Connect the wiring and ensure an in-line fuse or circuit breaker is installed.
- Reinstall the Electrical Center Box cover, lid, and support brace.
Step 4: Connect the Brake Controller
- Plug the brake control adapter into the vehicle’s brake control harness connector.
- Follow the brake control manufacturer’s instructions for wiring and mounting the unit.
Warnings:
- Complete the installation following the brake control manufacturer’s instructions.
- Mount the brake controller securely as directed.
- Perform all test procedures outlined in the brake controller manual.
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps)
- Always follow the vehicle manufacturer’s towing and load limits.
Wiring Overview:
- Blue Wire: Brake control feed wire (output to trailer brakes)
- Red Wire: Battery (+) power supply
- Ground: Connects brake controller to vehicle ground
- Stop Lamp Switch (Input): Vehicle braking signal to the brake controller
Final Notes:
- Periodically inspect the connections for tightness and wear.
- Ensure all wires are properly routed away from sharp edges, heat sources, and pinch points.
- Consult the vehicle owner’s manual for additional information regarding towing and electrical connections.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation and Operation Instructions for Voyager Electronic Brake Control
Specifications:
- Compatible with 2, 4, 6, and 8 brake applications.
- Uses an inertial sensor for proportional braking.
Tools Required:
- Drill with a 1/8” bit.
-
6 x 3/8” screws.
- Screwdriver or wrench.
Safety Notes:
- Avoid mounting or operating RF-generating devices (e.g., cell phones, two-way radios) closer than 12 inches to the brake control.
- Reversing the connection to a breakaway battery will damage the brake control.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
- The level adjustment is critical for proper braking response.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- This unit is designed for electric trailer brakes only.
Hardware List:
- Voyager brake control unit.
- Mounting bracket.
- Screws for mounting.
Installation Instructions:
Mounting the Brake Control:
- Select a Mounting Location:
- Ensure a flat, solid surface between -20° nose down and 70° nose up.
- Avoid any area with potential interference or unstable mounting.
- Attach the Mounting Bracket:
- Use the provided #6 x 3/8” screws to securely mount the bracket.
- Avoid over-tightening or using longer screws to prevent damage.
- Install the Brake Control:
- Attach the control to the bracket and adjust its position.
- Tighten the screws snugly to secure the unit.
Leveling the Sensor:
- Connect the trailer to the tow vehicle. The bi-colored light should glow green.
- Turn the Power Knob to maximum (clockwise).
- Press and hold the brake pedal.
- Adjust the Level Knob:
- Turn it counter-clockwise until the light changes from green to red.
- Slowly turn it clockwise until an orange light is visible.
- Light Settings:
- Dim orange: Normal setting.
- Bright orange: Aggressive braking.
- Dim red: More aggressive braking.
Adjusting Power to Trailer Brakes:
- Connect the trailer to the tow vehicle.
- Turn the Power Knob to the 12 o’clock position.
- Drive at 25 mph on a dry, level surface.
- Apply the Manual Slide Knob:
- If trailer brakes lock up, decrease power (turn counter-clockwise).
- If braking is insufficient, increase power (turn clockwise).
- Repeat until the braking is smooth and sufficient without wheel lock-up.
Fine-Tuning:
- Make several slow stops to assess braking response.
- If brakes grab too much, reduce aggressiveness by turning the Level Knob clockwise.
- If braking is delayed, increase aggressiveness by turning the Level Knob counter-clockwise.
Maintenance:
- Regularly inspect connections and ensure wires are secure.
- Adjust brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Keep the unit clean and free from debris.
Troubleshooting Guide:
Issue | Probable Cause | Solution |
---|---|---|
No green light when connected. | Corrosion or loose ground/power wires. | Inspect and clean connections. |
No red light with manual knob. | Low power or short on brake wire. | Increase power or inspect wiring. |
Brakes lock up. | Power set too high. | Reduce the power setting. |
Delayed braking. | Improper sensor leveling. | Re-level the sensor. |
Warranty Information:
- Limited Warranty:
- Covers defects in materials and workmanship.
- Excludes damage caused by improper installation, misuse, or external factors.
- Attention: This is a summary of the installation procedure. For complete installation instructions, including detailed diagrams and additional information, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
