Product Details
- Brand: Pro Series
- Model: 80500 3070

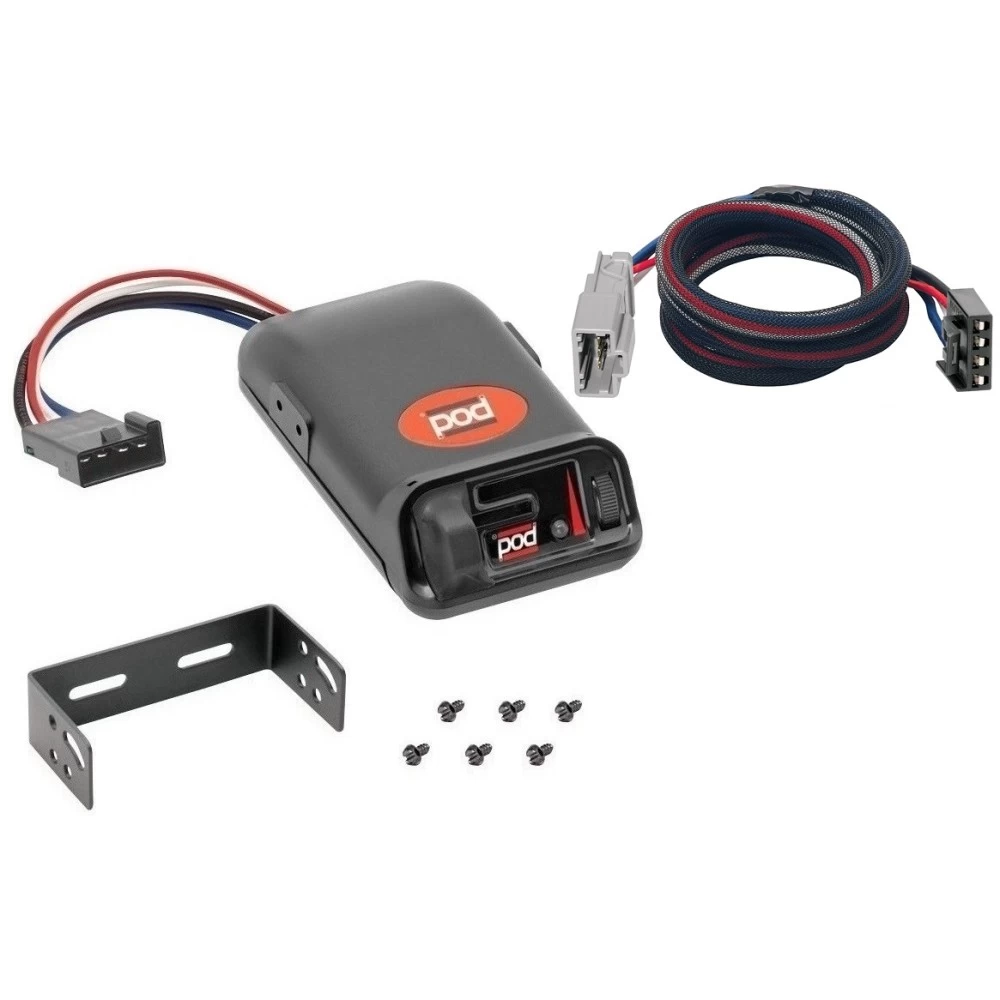

- Includes: POD Trailer Time-Delay Brake Controller for Trailers with 1-2 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Get Expert Help
Trailer Brake Control for 06-24 Honda Ridgeline w/ Plug Play Wiring Adapter Eletric Trailer Brakes Module Box Controller Pro Series POD Install Notes

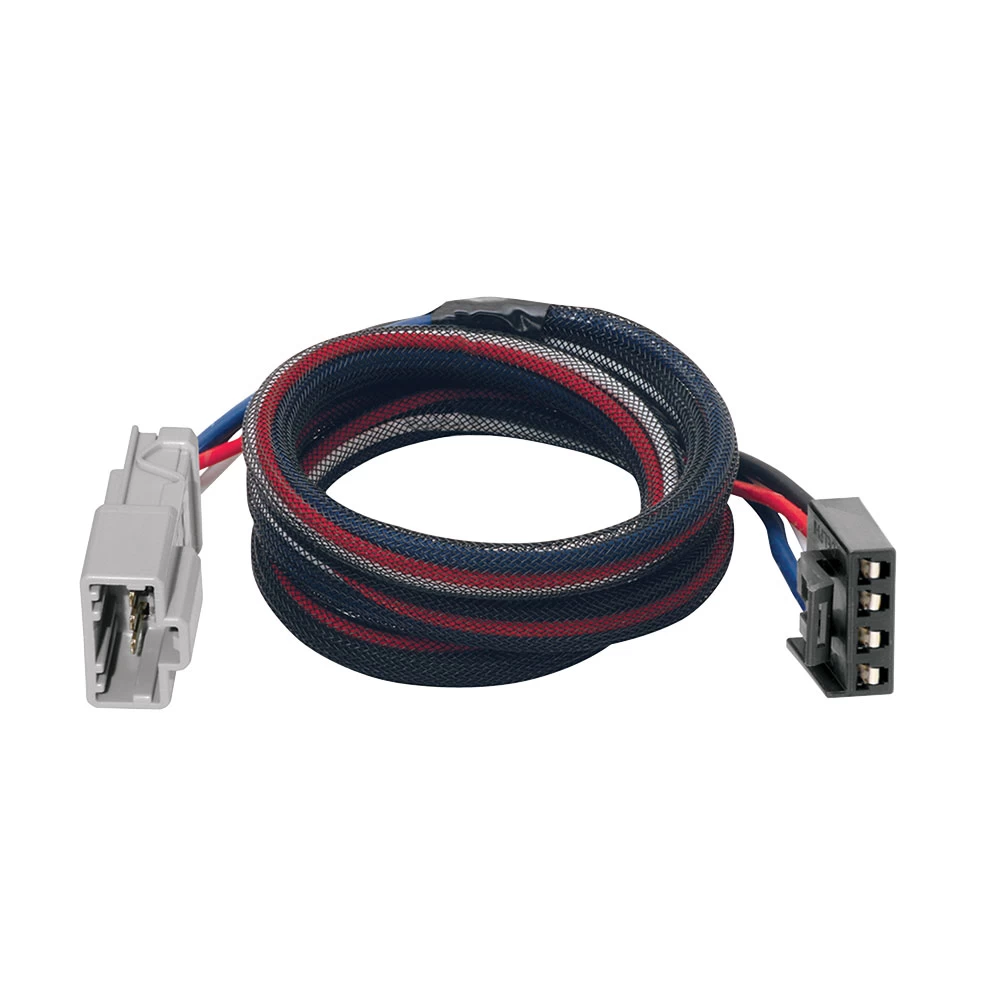

Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Numbers:
- 307000
Wiring Access Location:
- Under dash, left of the steering column, near the brake pedal
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the vehicle brake control harness connector
- Find the electric brake control harness under the dash, to the left of the steering column.

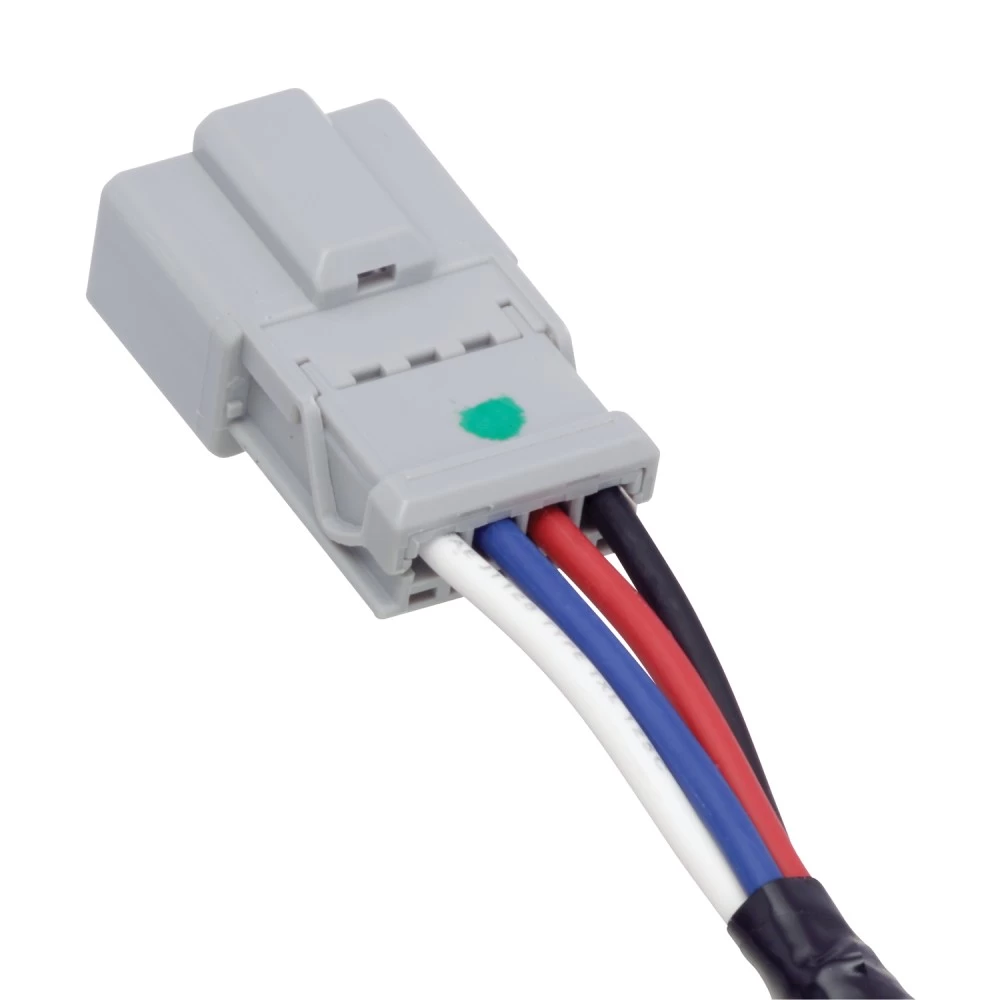

- The harness will be taped to another harness near the brake pedal and will have a 4-pin connector that mates with the adapter.
Step 2: Connect the brake control adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions.
Step 3: Complete installation and mount the brake control unit
- Complete the installation as directed in the brake control manufacturer’s instructions.
- Mount the brake control unit and perform the test procedures to ensure functionality.
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Consult the vehicle owner’s manual for fuse and relay locations.
- Do not exceed the lower of the towing manufacturer’s rating or the following limits:
- Maximum 3 axles: 6 brakes (18 amps).
- Overloading circuits can cause fires.
- Always wear safety glasses and follow all safety precautions during installation.
Additional Information:
- Always ensure the adapter is securely connected to the mating receptacle on the brake control before attaching to the vehicle harness.
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Numbers:
- 307000
Wiring Access Location:
- Under dash, left of the steering column, near the brake pedal
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the vehicle brake control harness connector
- Find the electric brake control harness under the dash, to the left of the steering column.
- The harness will be taped to another harness near the brake pedal and will have a 4-pin connector that mates with the adapter.
Step 2: Connect the brake control adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions.
Step 3: Complete installation and mount the brake control unit
- Complete the installation as directed in the brake control manufacturer’s instructions.
- Mount the brake control unit and perform the test procedures to ensure functionality.
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Consult the vehicle owner’s manual for fuse and relay locations.
- Do not exceed the lower of the towing manufacturer’s rating or the following limits:
- Maximum 3 axles: 6 brakes (18 amps).
- Overloading circuits can cause fires.
- Always wear safety glasses and follow all safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty Duration: 1 year from the date of purchase.
- Coverage: The product is warranted against defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Electronic Brake Control (2 to 4 Brake Systems)
Product Information:
- Part Number: N80500
- Application: Designed for 2 to 4 trailer brake systems
Tools Required:
- Drill with 1/8" drill bit
- Screwdriver
- Wire Cutter/Stripper
- Wire Crimping Tool
- Circuit Tester
Package Contents:
- Brake Control Unit
- Mounting Bracket
- Mounting Screws (#6 x 3/8") (Qty: 4)
Components Overview:
- A: Power Knob
- B: Manual Slide Knob
- C: Bracket Mounting Holes
- D: Bi-Colored Light
Important Notes:
- Avoid RF Interference: Do not mount RF-generating devices (cell phones, radios) within 12 inches of the unit.
- Breakaway Battery: Reverse wiring of a breakaway battery will destroy the Brake Control.
- Breakaway Switch Testing: Disconnect the trailer plug before testing; failure to do so may destroy the Brake Control.
- Light Indicators:
- Green Light: Trailer is connected.
- Red Light: Brakes are activated (manual control or brake pedal).
- Flashing Red/No Light: Trailer is not connected.
- The Green Light uses 10 milliamps; it would take over 5,000 hours to drain the vehicle battery.
- Weight Limit: Never exceed the Gross Combined Weight Rating (GCWR) recommended by the vehicle manufacturer.
Mounting Instructions:
-
Select a Suitable Mounting Location:
- Choose a solid surface within easy reach of the driver.
-
Mount the Bracket:
- Use the mounting bracket as a template and mark the holes.
- Drill two (2) 1/8" holes at the marked points.
- Secure the bracket with #6 x 3/8" screws provided.
-
Install the Brake Control:
- Slide the Brake Control into the bracket.
- Secure with screws; tighten snugly but do not overtighten.
Wiring Instructions:
-
Black Wire (Battery +):
- Connect to the positive terminal of the vehicle battery using a 20A circuit breaker.
-
White Wire (Ground -):
- Connect to a clean, bare metal surface on the vehicle chassis.
-
Red Wire (Stoplight Switch):
- Connect to the cold side of the stoplight switch (only active when the brake pedal is pressed).
-
Blue Wire (Trailer Brake):
- Connect to the trailer brake wire at the 7-way connector.
Adjusting Brake Power:
-
Initial Setup:
- Turn the Power Knob to minimum.
- Turn the Power Knob 1/4 turn in the + direction.
-
Testing Brakes:
- Connect the trailer and drive at 25 mph on a dry, level surface.
- Apply the Manual Slide Knob:
- If brakes lock up: Reduce power using the Power Knob.
- If braking is insufficient: Increase power using the Power Knob.
-
Fine-Tuning Power:
- Repeat the above step until braking is smooth, just below the point of wheel lock-up.
Troubleshooting Guide:
Condition | Possible Cause | Solution |
---|---|---|
No trailer brakes (Manual Slide) | Power set to minimum | Adjust Power Knob upward. |
No brakes with pedal activation | Incorrect Red Wire connection | Verify Red Wire at stoplight switch. |
Weak trailer braking | Power too low | Increase Power Knob setting. |
Intermittent braking | Poor ground connection | Check White Wire ground. |
Brakes too strong | Power too high | Reduce Power Knob setting. |
Flashing Red Light | Trailer not connected or open wire | Check trailer wiring and connections. |
Constant Green Light | Short in brake line to ground | Inspect Blue Wire for short circuit. |
Safety Notes:
- Warm trailer brakes before testing by driving 1/4 mile at 45 mph with light manual braking.
- Adjust power based on load weight and road conditions.
- Do not set power so high that trailer brakes lock up, as this can cause loss of control.
Maintenance:
- Inspect trailer brakes every 3,000 miles or as recommended.
- Adjust brakes as necessary for optimal performance.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Incorrect installation or failure to follow these instructions may result in loss of braking performance or damage to the Brake Control unit. Always test the brakes before towing.
