Trailer Brake Control for 10 Dodge RAM 1500 2500 3500 Electric Trailer Brakes Module Box Controller 1-4 Axle Install Notes

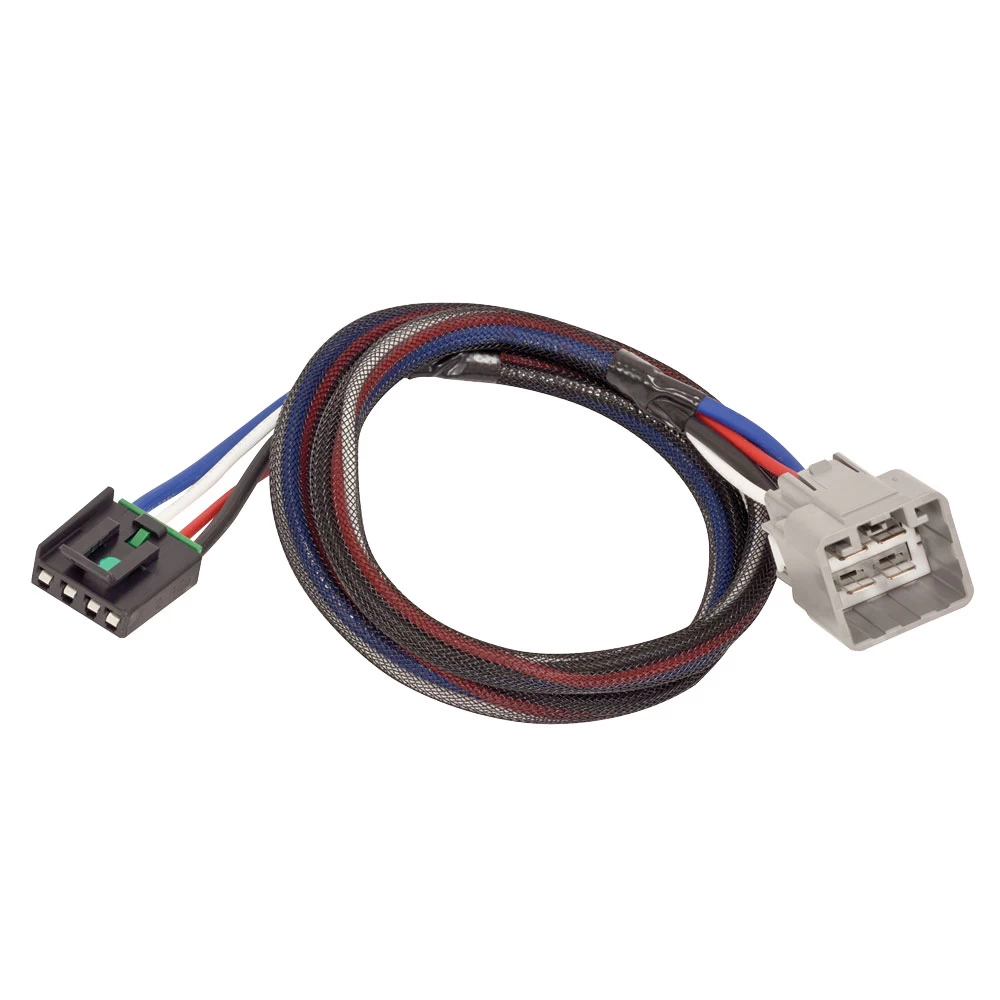

Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302100
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness connector under the dashboard:
- Positioned to the left of the steering column, near the emergency brake pedal.

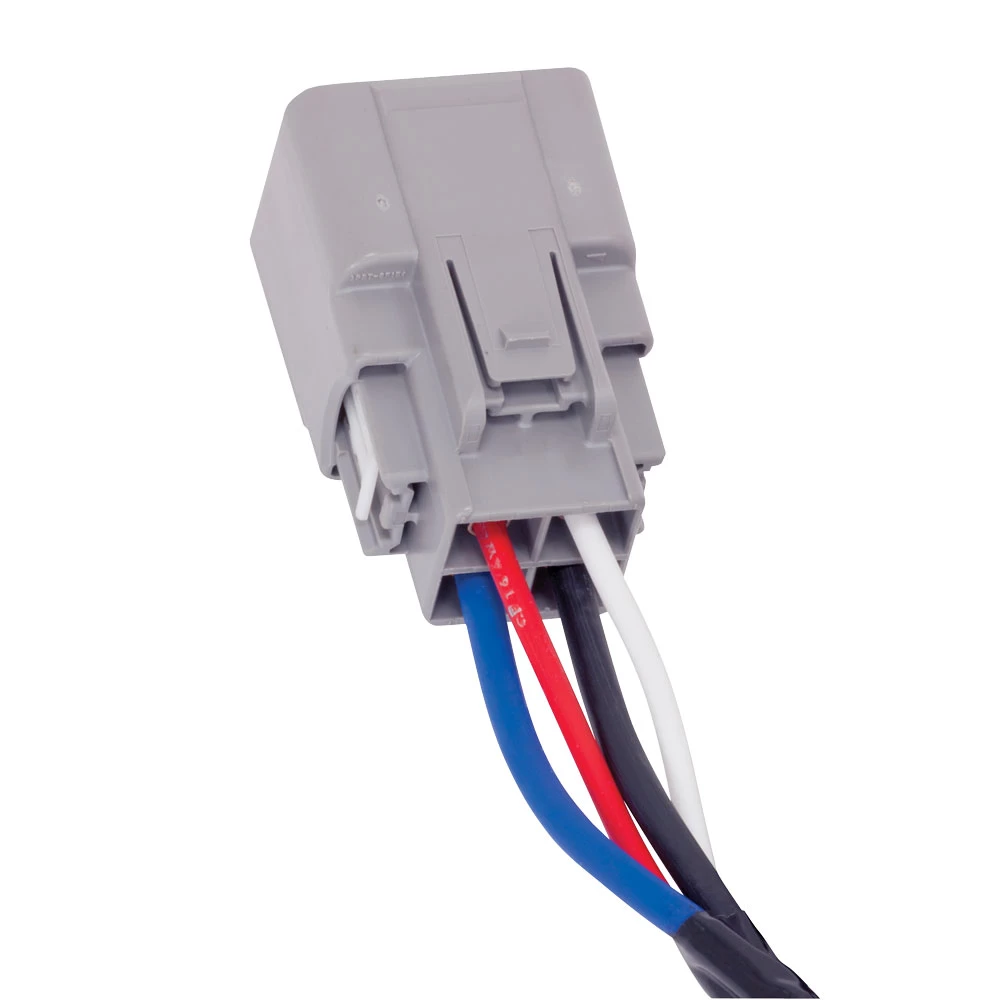

- The connector is taped to another harness and will match the 4-pin connector on the adapter.
Step 2: Connect the Adapter
- Plug the brake control adapter into the vehicle electric controller connector.
- Use butt connectors (not provided) to attach the adapter’s wires to the corresponding wires on the electric brake controller.
- Refer to the brake controller manufacturer’s instructions for proper wiring and mounting procedures.
Step 3: Finalize Installation and Testing
- Complete the installation by mounting the brake controller securely as directed by the manufacturer.
- Perform all test procedures recommended in the brake controller instructions to ensure proper operation.
Important Notes:
- If the vehicle is not equipped with an OEM trailer tow package, additional fuses and relays may be required to complete the output and battery feed circuits.
- These items are sold separately. Refer to the vehicle’s owner’s manual for fuse and relay locations.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- Exceeding this rating may cause fires or damage to the vehicle’s electrical system.
- Always follow the vehicle manufacturer’s towing capacity guidelines.
- Read the vehicle’s owner’s manual and the brake control manufacturer’s instructions for additional safety and installation details.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal from the vehicle to the brake controller.
- Battery Feed (Fused): Supplies power to the trailer brake controller.
- Trailer Brake Controller Output: Sends braking signal to the trailer brakes.
- Ground: Ensures proper grounding connection.
Final Notes:
- Periodically inspect all wiring and connections to ensure they remain secure and free from corrosion.
- Ensure wires are routed away from sharp edges, heat sources, or moving parts that could cause damage.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302100
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness connector under the dashboard:
- Positioned to the left of the steering column, near the emergency brake pedal.
- The connector is taped to another harness and will match the 4-pin connector on the adapter.
Step 2: Connect the Adapter
- Plug the brake control adapter into the vehicle electric controller connector.
- Use butt connectors (not provided) to attach the adapter’s wires to the corresponding wires on the electric brake controller.
- Refer to the brake controller manufacturer’s instructions for proper wiring and mounting procedures.
Step 3: Finalize Installation and Testing
- Complete the installation by mounting the brake controller securely as directed by the manufacturer.
- Perform all test procedures recommended in the brake controller instructions to ensure proper operation.
Important Notes:
- If the vehicle is not equipped with an OEM trailer tow package, additional fuses and relays may be required to complete the output and battery feed circuits.
- These items are sold separately. Refer to the vehicle’s owner’s manual for fuse and relay locations.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- Exceeding this rating may cause fires or damage to the vehicle’s electrical system.
- Always follow the vehicle manufacturer’s towing capacity guidelines.
- Read the vehicle’s owner’s manual and the brake control manufacturer’s instructions for additional safety and installation details.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal from the vehicle to the brake controller.
- Battery Feed (Fused): Supplies power to the trailer brake controller.
- Trailer Brake Controller Output: Sends braking signal to the trailer brakes.
- Ground: Ensures proper grounding connection.
Final Notes:
- Periodically inspect all wiring and connections to ensure they remain secure and free from corrosion.
- Ensure wires are routed away from sharp edges, heat sources, or moving parts that could cause damage.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Electronic Brake Control
Product Information:
- Model: Electronic Brake Control for 2, 4, 6, & 8 Brake Applications
- Part Number: N8508211
Components of the Brake Control:
- A. Output (Gain) Control
- B. Boost Control
- C. Manual Slide Control
- D. Bracket Mounting Holes
- E. LED Display

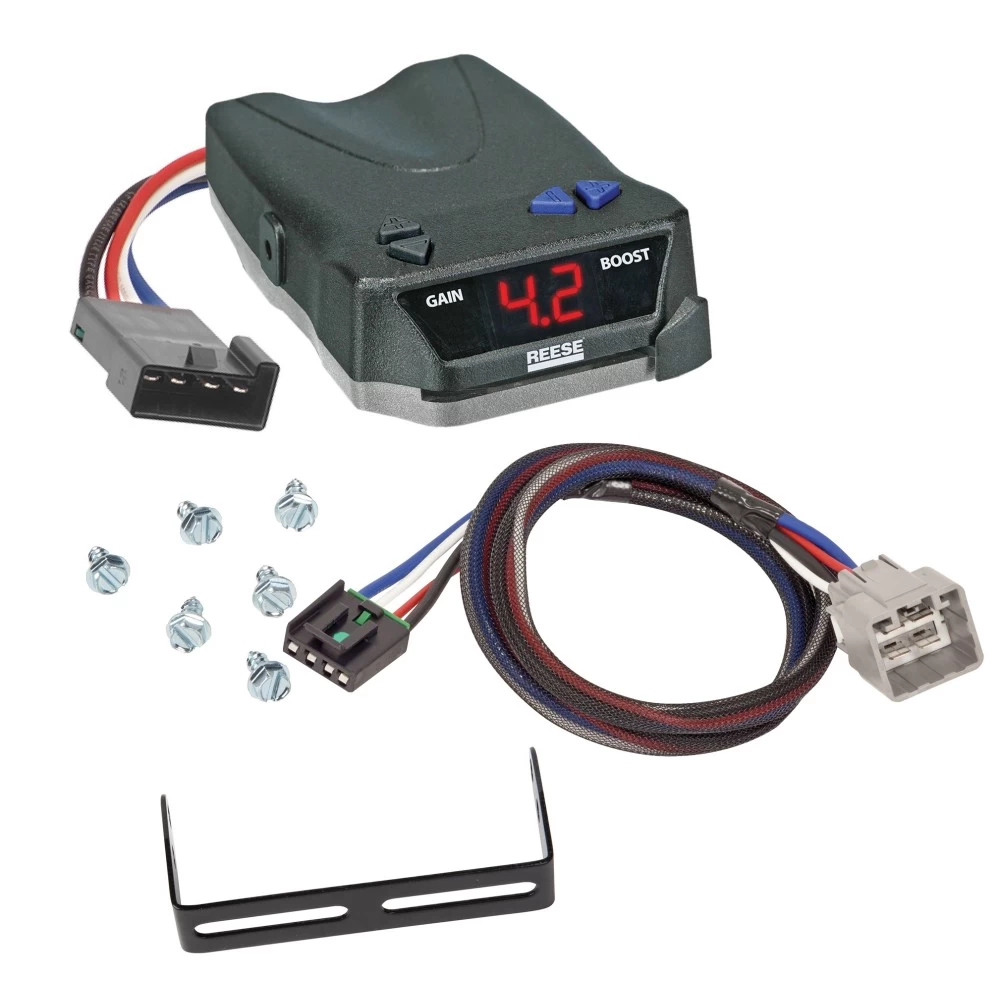

Package Includes:
- (1) Brake Control Unit
- (1) Mounting Bracket
- (4) Self-Tapping Mounting Screws (#6 x 3/8")
- (1) Warranty Card
Tools Required:
- Drill with 1/8” bit
- Wire Crimping Tool
- Probe-Type Circuit Tester
- Wire Cutter/Stripper
- Phillips Screwdriver or 1/4” Nut Driver
Wiring Connections:
- Black Wire: Vehicle Power
- White Wire: Vehicle Ground
- Red Wire: Stoplight Switch
- Blue Wire: Trailer Brakes
Step-by-Step Installation:
Step 1: Selecting a Mounting Location
-
Choose a location that is:
- Secure and solid for mounting.
- Easily accessible to the driver.
- Clear behind the surface to avoid damaging wiring or components when drilling.
-
Use the bracket as a template to mark hole locations.
Step 2: Mounting the Brake Control
- Drill holes at the marked locations using a 1/8” drill bit.
- Secure the bracket using (2) self-tapping screws.
- Mount the brake control unit to the bracket using the remaining screws.
Step 3: Wiring the Brake Control
-
Follow the wiring instructions:
- Black Wire: Connect to a constant 12V power source using a 30A auto-reset circuit breaker.
- White Wire: Connect to a solid vehicle ground.
- Red Wire: Connect to the stoplight switch wire.
- Blue Wire: Connect to the trailer brake output wire.
-
Ensure all connections are secure and properly insulated.
Adjusting Power to the Trailer Brakes:
-
Connect the trailer to the tow vehicle.
-
With the engine running, hold the Manual Slide Control to the left and set the Output/Gain Control to approximately 5.0.
-
Drive at 25 mph on a dry, level surface.
-
Fully apply the Manual Slide Control:
- If the brakes lock up: Reduce the Output/Gain.
- If braking is insufficient: Increase the Output/Gain.
-
Repeat until braking force is just below wheel lock-up.
Boost Settings:
The Boost feature increases brake sensitivity with three levels:
- b.1: Starts braking at 14% power.
- b.2: Starts braking at 28% power.
- b.3: Provides the most aggressive braking for heavy trailers.
To Adjust Boost Settings:
- Press the Boost Button to display the current setting.
- Use the + or - buttons to adjust.
Manual Control:
- Location: Right side of the brake control.
- The Manual Slide Control applies trailer brakes without activating vehicle brakes.
- Slide left to apply braking force manually.
- The power level can be monitored on the LED display.
LED Display Information:
Indicator | Meaning |
---|---|
Green | Trailer connected. |
Red | Brakes applied. |
Flashing | Wiring issues or short circuit detected. |
Troubleshooting:
Problem | Cause | Solution |
---|---|---|
No LED Display | No power or ground connection. | Check wiring connections. |
Brakes Too Aggressive | Boost or Output/Gain set too high. | Reduce settings. |
Trailer Brakes Not Responding | Insufficient power output. | Increase Gain setting. |
Flashing Display (2 per second) | Short circuit or overload detected. | Inspect trailer wiring and connections. |
Brake Adjustment Guide:
- Raise and secure the trailer with jack stands.
- Remove the brake backing plate cover.
- Adjust the brake shoes outward until the wheels are hard to turn.
- Back off slightly until the wheels spin freely with a slight drag.
Safety Notes:
- Always test trailer brakes at low speeds.
- Do not exceed the vehicle's Gross Combined Weight Rating (GCWR).
- Regularly inspect and adjust trailer brakes every 3,000 miles.
Technical Assistance:
For technical support and assistance, our team of experts is available to help.
You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Limited Warranty: Covers defects in materials and workmanship.
- Excludes misuse, improper installation, and normal wear and tear.
For complete warranty instructions, please download the full installation PDF.
