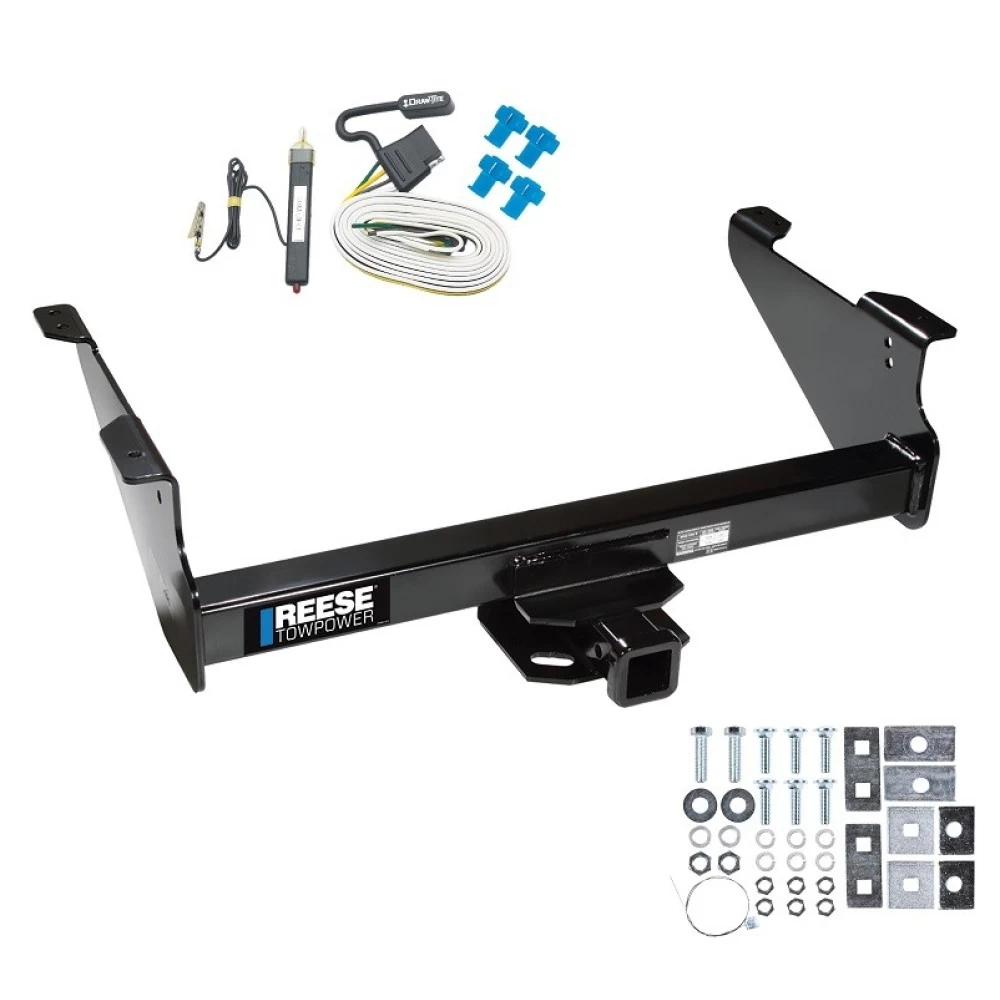

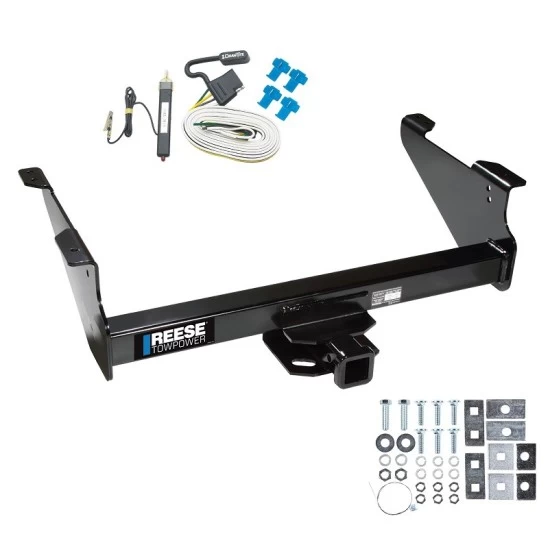

Installation Instructions for Dodge Ram Pickup with or without OEM Hitch

Part Numbers:

• 41929
• 96929

Wiring Access Location:

• PU3

Tools Required:

• Wrenches: 3/4", 13/16", 15/16"
• Drill Bits: 1/2"
• Hack Saw (for 1500 short bed models)

Step-by-Step Instructions:

1. Position Hitch:

   • Raise the hitch into position by moving it forward to clear the bumper mounting bolts, then slide the hitch rearward into position.
   • Align holes in the hitch with holes in the frame rail and slot in the vertical bumper bracket.

2. Adjust for 1500 Short Bed Models (2006–2008):

   • Cut the inner exhaust support rod and remove it from the rubber exhaust isolator.
   • Align the rearmost hole in the hitch with the rearmost hole in the vehicle frame. Forward holes will need to be drilled into the frame.

3. Install Fasteners:

   • Use a hex bolt and flat washer through the hitch side bracket hole into the bumper bracket slot.
   • Secure with:
     • (1) Spacer Block (0.25" x 1.5" x 2.0")
     • (1) Lock Washer
     • (1) Hex Nut
   • Tighten all 1/2"-13 fasteners to 75 lb-ft (102 N*m).

4. Drill Frame Holes:

   • Use the hitch as a template to drill forward holes into the frame rail on short bed models.
   • On long bed models, drill the forward-most hole into the frame as per Figure 1.

5. Install Rear Blocks and Bolts:

   • Slide or push spacer blocks (0.25" x 1.5" x 3.50" and 0.25" x 2.0" x 2.0") through the end of the frame between the frame spacer and vehicle crossmember.
   • Align blocks with holes in the hitch side bracket (see Figures 2 and 3).
   • Fishwire carriage bolts through slots in the frame rail and down through the blocks and side brackets.
   • Secure with lock washers and nuts.

6. Tighten All Fasteners:

   • Tighten all 9/16"-12 fasteners to 110 lb-ft (149 N*m).

Torque Specifications:

• 9/16"-12 GR5 bolts: 110 lb-ft (149 N*m)
• 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

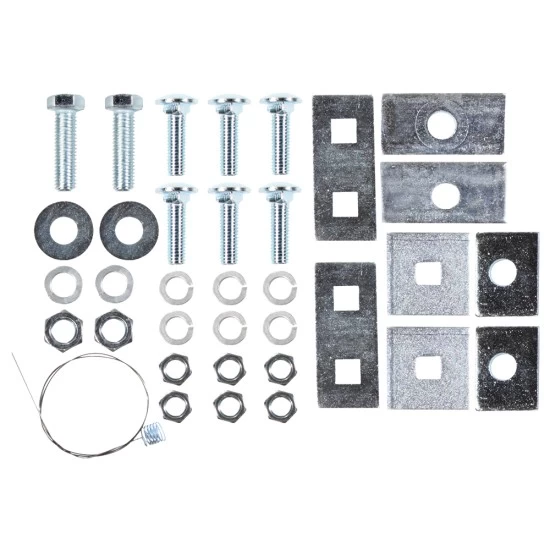

Hardware List:

• (2) Hex Bolts, 9/16"-12 x 2.0" GR5
• (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
• (2) Flat Washers, 9/16"
• (2) Blocks, 0.375" x 1.5" x 3.0"
• (2) Blocks, 0.25" x 1.5" x 2.0"
• (2) Blocks, 0.25" x 2.0" x 2.0"
• (2) Blocks, 0.25" x 1.5" x 3.5"
• (6) Lock Washers, 1/2"
• (2) Lock Washers, 9/16"
• (6) Hex Nuts, 1/2"
• (2) Hex Nuts, 9/16"-12

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the vehicle's frame or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 12,000 lb (5,448 kg)
  • Max Tongue Weight: 1,200 lb (545 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 15,000 lb (6,810 kg)
  • Max Tongue Weight: 1,500 lb (681 kg)

Additional Notes:

• For short bed models (2006–2008), ensure proper alignment of rearmost holes and drill as necessary.
• On some models, it may be possible to install the rearmost carriage bolt through the end of the vehicle crossmember.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Dodge Ram Pickup with or without OEM Hitch

Part Numbers:

• 41929
• 96929

Wiring Access Location:

• PU3

Tools Required:

• Wrenches: 3/4", 13/16", 15/16"
• Drill Bits: 1/2"
• Hack Saw (for 1500 short bed models)

Step-by-Step Instructions:

1. Position Hitch:

   • Raise the hitch into position by moving it forward to clear the bumper mounting bolts, then slide the hitch rearward into position.
   • Align holes in the hitch with holes in the frame rail and slot in the vertical bumper bracket.

2. Adjust for 1500 Short Bed Models (2006–2008):

   • Cut the inner exhaust support rod and remove it from the rubber exhaust isolator.
   • Align the rearmost hole in the hitch with the rearmost hole in the vehicle frame. Forward holes will need to be drilled into the frame.

3. Install Fasteners:

   • Use a hex bolt and flat washer through the hitch side bracket hole into the bumper bracket slot.
   • Secure with:
     • (1) Spacer Block (0.25" x 1.5" x 2.0")
     • (1) Lock Washer
     • (1) Hex Nut
   • Tighten all 1/2"-13 fasteners to 75 lb-ft (102 N*m).

4. Drill Frame Holes:

   • Use the hitch as a template to drill forward holes into the frame rail on short bed models.
   • On long bed models, drill the forward-most hole into the frame as per Figure 1.

5. Install Rear Blocks and Bolts:

   • Slide or push spacer blocks (0.25" x 1.5" x 3.50" and 0.25" x 2.0" x 2.0") through the end of the frame between the frame spacer and vehicle crossmember.
   • Align blocks with holes in the hitch side bracket (see Figures 2 and 3).
   • Fishwire carriage bolts through slots in the frame rail and down through the blocks and side brackets.
   • Secure with lock washers and nuts.

6. Tighten All Fasteners:

   • Tighten all 9/16"-12 fasteners to 110 lb-ft (149 N*m).

Torque Specifications:

• 9/16"-12 GR5 bolts: 110 lb-ft (149 N*m)
• 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

Hardware List:

• (2) Hex Bolts, 9/16"-12 x 2.0" GR5
• (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
• (2) Flat Washers, 9/16"
• (2) Blocks, 0.375" x 1.5" x 3.0"
• (2) Blocks, 0.25" x 1.5" x 2.0"
• (2) Blocks, 0.25" x 2.0" x 2.0"
• (2) Blocks, 0.25" x 1.5" x 3.5"
• (6) Lock Washers, 1/2"
• (2) Lock Washers, 9/16"
• (6) Hex Nuts, 1/2"
• (2) Hex Nuts, 9/16"-12

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the vehicle's frame or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 12,000 lb (5,448 kg)
  • Max Tongue Weight: 1,200 lb (545 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 15,000 lb (6,810 kg)
  • Max Tongue Weight: 1,500 lb (681 kg)

Additional Notes:

• For short bed models (2006–2008), ensure proper alignment of rearmost holes and drill as necessary.
• On some models, it may be possible to install the rearmost carriage bolt through the end of the vehicle crossmember.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

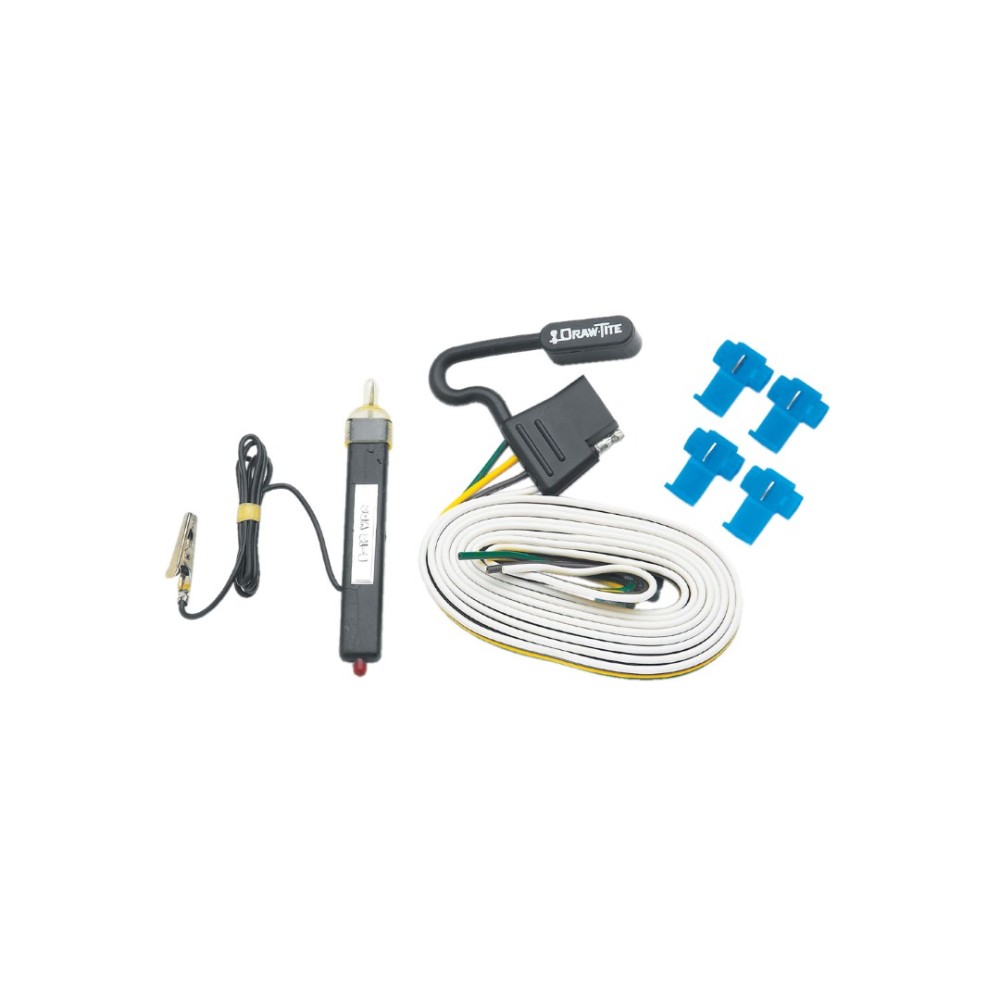

Installation Instructions for Trailer Light Wiring Kit
