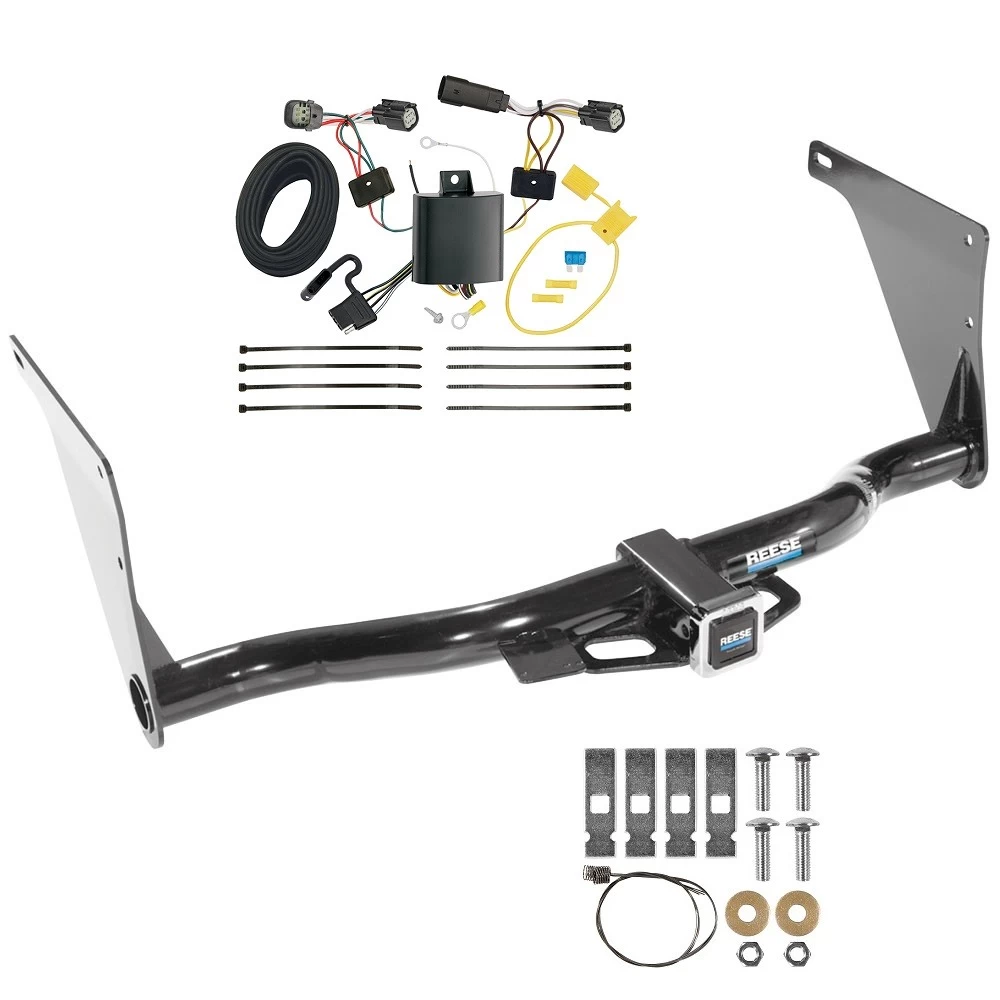

Installation Instructions for Ford Escape

Part Numbers:

• 75758
• 87627
• 44681

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 11/16"
• Other Tools: Pull Wires (provided)

Step-by-Step Instructions:

1. Prepare fasteners:
   • Feed spacers and carriage bolts into position using the provided pull wires on both frame rails. Leave the pull wires attached.
   • Note: It is easier to insert the bolts and spacers separately into the frame rail (see Figure 3).
2. Position fasteners:
   • Push the fasteners back into the frame rail, leaving the pull wires and extra wire protruding.
3. Raise hitch into position:
   • Position the hitch between the frame rails. Feed the pull wires through adjacent holes in the hitch.
   • On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail (not shown in diagram).
4. Secure fasteners:
   • Pull the fasteners back through the access holes and the hitch.
   • Remove the pull wires and attach conical washers and nuts. Be careful not to push the fasteners back into the frame rail.
5. Tighten fasteners:
   • Torque all fasteners to the specified value using a wrench.

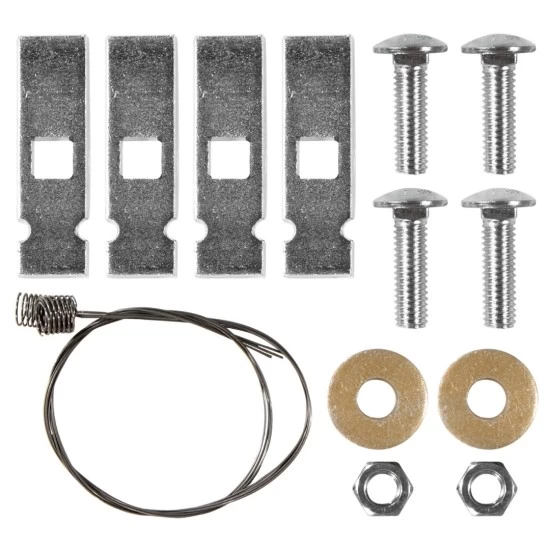

Hardware List:

• Qty (4): Carriage Bolt – 7/16-14 x 1.50 GR5
• Qty (4): Spacer – 1/4 x 7/8 x 3.00
• Qty (4): Conical Washer – 7/16"
• Qty (4): Hex Nut – 7/16-14 GR2
• Qty (4): Pull Wire – 7/16

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)

Manufacturer Notes:

• Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• For vehicles equipped with the “Hands-Free Lift Gate” option, the sensor will only work in a limited area (see Figure 2).
• If the spacer and bolt head do not fit through the access hole, modify the hole using a file or by prying it open as illustrated.

Installation Instructions

Part Numbers:

• 75758
• 87627
• 44681

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 11/16"
• Other Tools: Pull Wires (provided)

Step-by-Step Instructions:

1. Prepare fasteners:
   • Feed spacers and carriage bolts into position using the provided pull wires on both frame rails. Leave the pull wires attached.
   • Note: It is easier to insert the bolts and spacers separately into the frame rail (see Figure 3).
2. Position fasteners:
   • Push the fasteners back into the frame rail, leaving the pull wires and extra wire protruding.
3. Raise hitch into position:
   • Position the hitch between the frame rails. Feed the pull wires through adjacent holes in the hitch.
   • On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail (not shown in diagram).
4. Secure fasteners:
   • Pull the fasteners back through the access holes and the hitch.
   • Remove the pull wires and attach conical washers and nuts. Be careful not to push the fasteners back into the frame rail.
5. Tighten fasteners:
   • Torque all fasteners to the specified value using a wrench.

Hardware List:

• Qty (4): Carriage Bolt – 7/16-14 x 1.50 GR5
• Qty (4): Spacer – 1/4 x 7/8 x 3.00
• Qty (4): Conical Washer – 7/16"
• Qty (4): Hex Nut – 7/16-14 GR2
• Qty (4): Pull Wire – 7/16

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Distributing
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)

Manufacturer Notes:

• Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• For vehicles equipped with the “Hands-Free Lift Gate” option, the sensor will only work in a limited area (see Figure 2).
• If the spacer and bolt head do not fit through the access hole, modify the hole using a file or by prying it open as illustrated.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

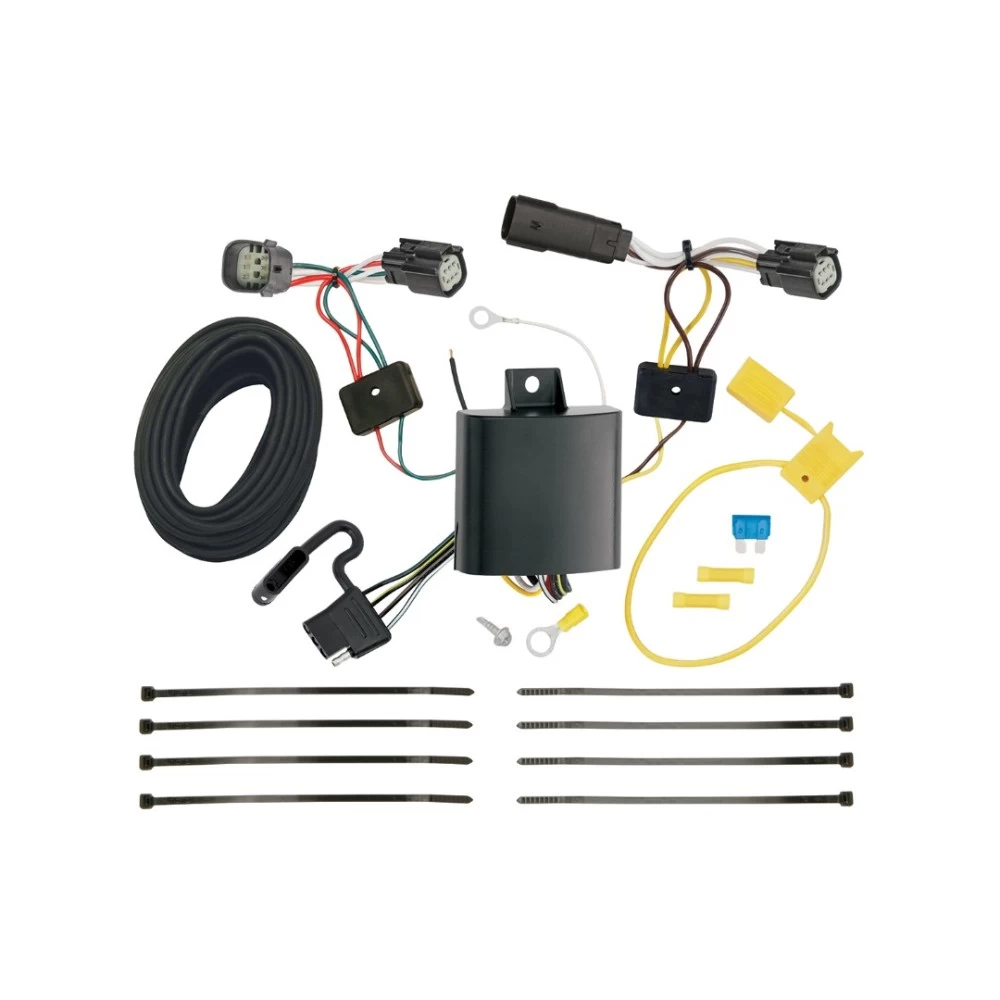

Installation Instructions for T-One® T-Connector for Ford Escape

Part Numbers:

• 118715

Tools Required:

• Trim Panel Remover
• 8mm Socket & Ratchet or 8mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillights:

   • Open the tailgate and remove the vehicle’s taillight assemblies by removing the two 8mm hex head bolts on each side.
   • Carefully pull the taillights away from the vehicle, avoiding damage to the alignment pins.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • Ensure all connectors are clean and free of dirt. Avoid damaging the locking tabs.

3. Remove Trim Panels:

   • Carefully remove the floor trim panels and access panels on each side of the vehicle.
   • Locate and remove the rubber grommet in the taillight pocket.

4. Connect the Driver-Side T-Connector:

   • Route the T-Connector end with the yellow wire out of the opening exposed in Step 3.
   • Insert the T-Connector end with the yellow wire between the driver-side taillight socket and the vehicle’s wiring harness.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire through the threshold plate and up through the passenger-side trim panel.
   • Insert the T-Connector with the green wire between the passenger-side taillight socket and the vehicle’s wiring harness.

6. Route and Store the 4-Flat Connector:

   • Route the 4-flat connector through the driver-side trim panel into the spare tire compartment and store it there when not in use.

7. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid damage or injury.

8. Connect the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire using the yellow butt connector.
   • Route the black wire through a grommet or along the existing wiring to the engine compartment, avoiding areas that may pinch, cut, or break the wire.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

10. Reconnect the Battery and Test:

    • Reconnect the vehicle’s Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder and test the installation using a test light or trailer.

11. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and other components removed during installation, ensuring no wires are pinched or damaged.

12. Secure the Wiring Harness:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Ford Escape

Part Numbers:

• 118715

Tools Required:

• Trim Panel Remover
• 8mm Socket & Ratchet or 8mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillights:

   • Open the tailgate and remove the vehicle’s taillight assemblies by removing the two 8mm hex head bolts on each side.
   • Carefully pull the taillights away from the vehicle, avoiding damage to the alignment pins.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • Ensure all connectors are clean and free of dirt. Avoid damaging the locking tabs.

3. Remove Trim Panels:

   • Carefully remove the floor trim panels and access panels on each side of the vehicle.
   • Locate and remove the rubber grommet in the taillight pocket.

4. Connect the Driver-Side T-Connector:

   • Route the T-Connector end with the yellow wire out of the opening exposed in Step 3.
   • Insert the T-Connector end with the yellow wire between the driver-side taillight socket and the vehicle’s wiring harness.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire through the threshold plate and up through the passenger-side trim panel.
   • Insert the T-Connector with the green wire between the passenger-side taillight socket and the vehicle’s wiring harness.

6. Route and Store the 4-Flat Connector:

   • Route the 4-flat connector through the driver-side trim panel into the spare tire compartment and store it there when not in use.

7. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid damage or injury.

8. Connect the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire using the yellow butt connector.
   • Route the black wire through a grommet or along the existing wiring to the engine compartment, avoiding areas that may pinch, cut, or break the wire.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

10. Reconnect the Battery and Test:

    • Reconnect the vehicle’s Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder and test the installation using a test light or trailer.

11. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and other components removed during installation, ensuring no wires are pinched or damaged.

12. Secure the Wiring Harness:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Note: Store the 4-flat connector in the spare tire compartment when not in use to prevent damage.
