Product Details
- Brand: Reese
- Model: 96913 20252

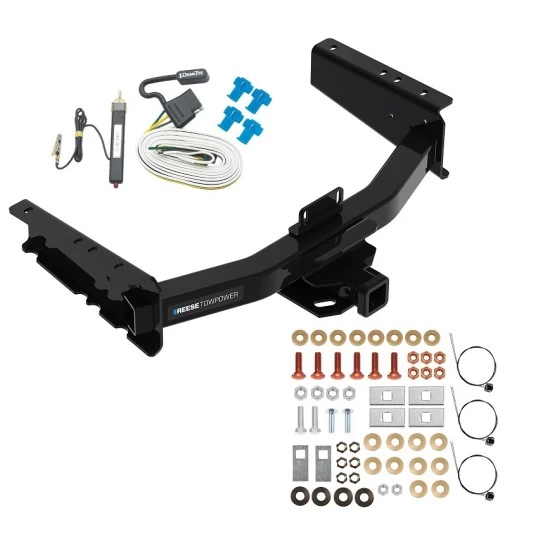

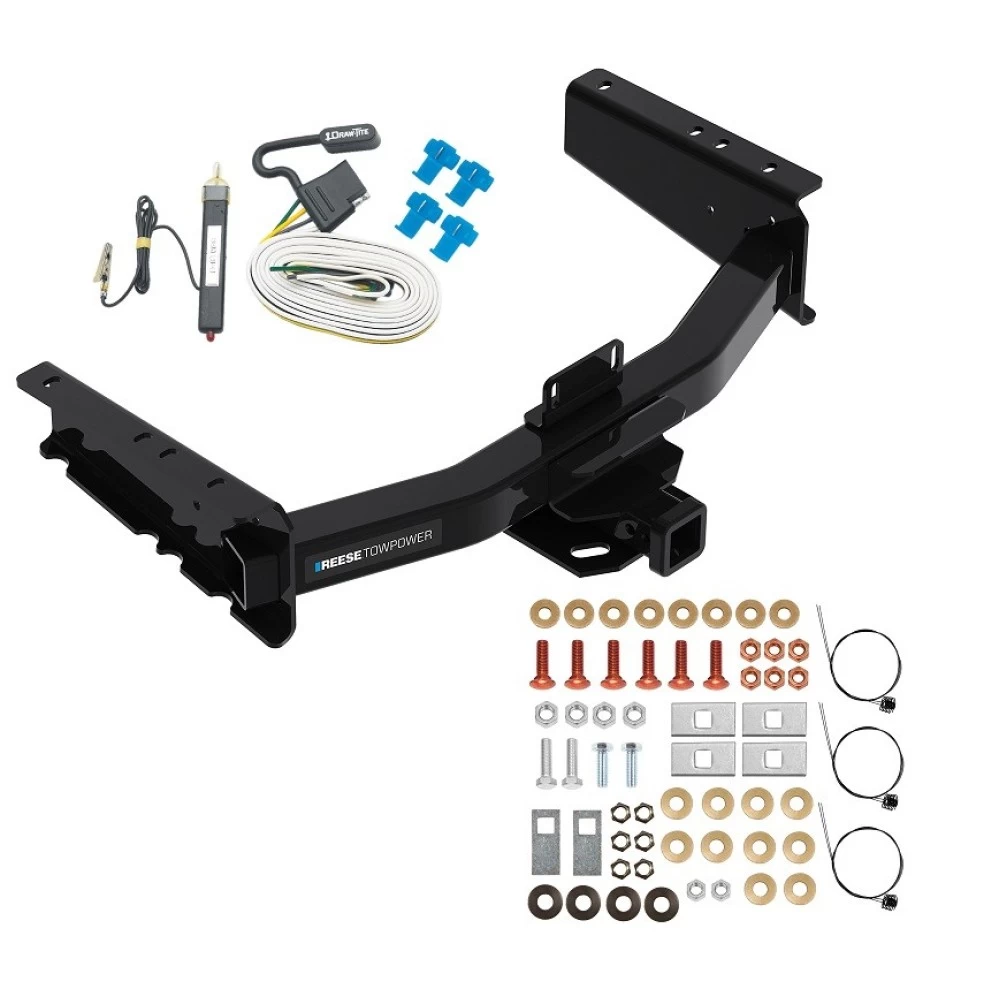

- Includes: Class 5 Trailer Tow Hitch, Wiring Connector
Compatibility Chart
Description
Get Expert Help

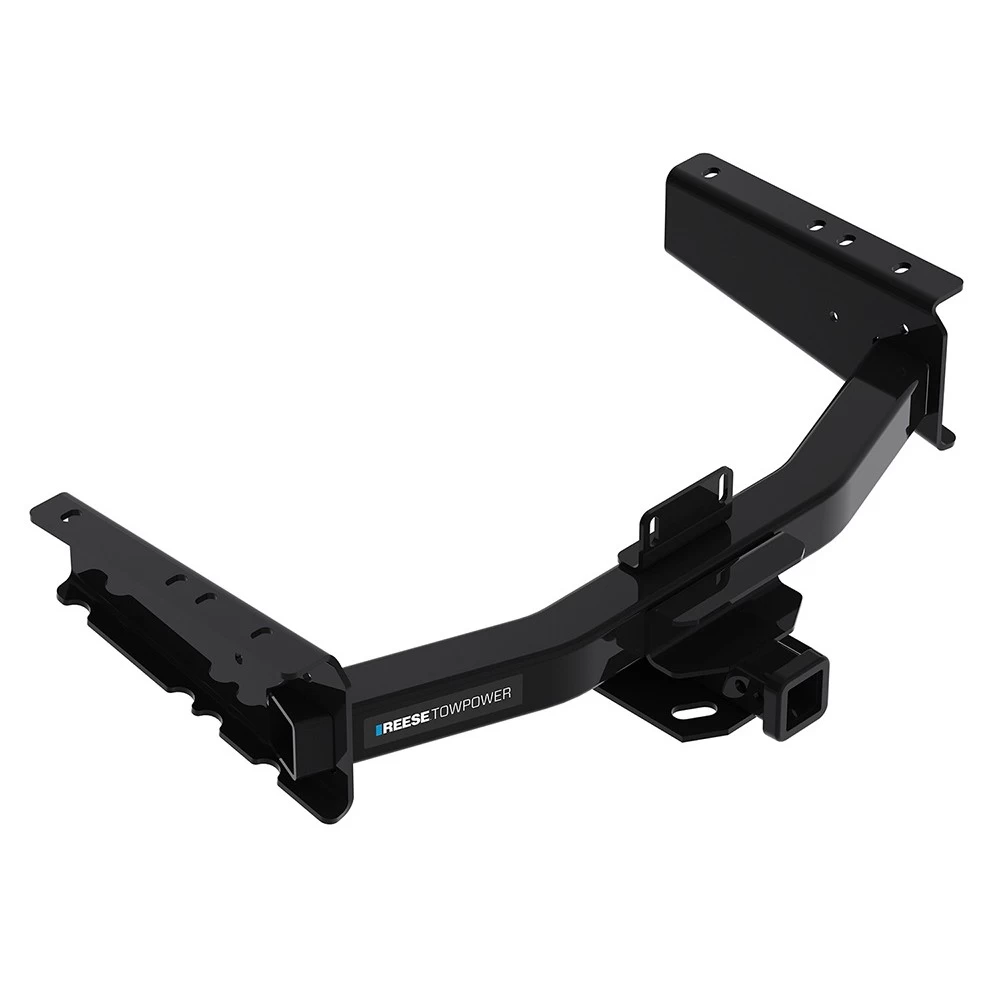

Trailer Hitch w/ Wiring For 19-25 RAM 1500 (New Body Style) Class 5 2" Tow Receiver Reese Tekonsha Install Notes
Installation Instructions for RAM 1500 (2019-Current)
Part Numbers:
- 41913
- 96913
- CQT41913
Wiring Access Location:
Not specified.
Tools Required:
- Ratchet
- Torque Wrench
- Pry Tool
- Hammer
- Safety Glasses
- Sockets: 10mm, 15mm, 16mm, 17mm, 21mm, 22mm, 3/4", 7/8"
- 6" Socket Extension
Installation Time:
- Approx. 60 minutes
Step-by-Step Instructions:
-
Lower Spare Tire:
- Locate spare tire lowering tools under the passenger-side seat.
- Lower the spare tire and set it aside for reinstallation later.
-
Remove Bumper:
- Unplug the electrical connector at the driver-side frame rail.
- Pry out plastic connectors holding the bumper wiring to the OEM hitch.
- Remove (2) M10 bolts from behind the license plate with a 15mm socket.
- Remove (4) M10 nuts (2 each side) attaching the bumper to the OEM hitch using a 16mm socket.
- Support the bumper during this step and remove it.
-
Remove OEM Hitch:
- Remove (8) M14 bolts from the OEM hitch (4 each side, 3 in the side of the frame rail, and 1 in the bottom) using a 21mm socket.
- Save the bolts for reinstallation later.
- Remove the OEM hitch.
-
Remove Heat Shield Bolts:
- Remove (3) M6 bolts from the exhaust heat shields using a 10mm socket (1 from the driver-side frame rail and 2 from the passenger-side frame rail).
- Flatten heat shield tabs against the truck frame using a metal hammer.
-
Install Hitch:
- Raise the hitch into position, aligning the 3rd slot from the rear with the weldnut in the bottom of the frame.
- Install the shorter M14 bolt (removed earlier) through the hitch into the existing weldnut in the truck frame. Repeat for the other side.
- Fishwire the carriage bolts and spacers (offset holes) into the forward-most slot on the hitch.
- Fishwire carriage bolts and spacers into the remaining slots on the hitch.
- Install conical tooth washers (teeth toward hitch) and heavy hex nuts onto the carriage bolts. Repeat for both sides.
-
Install Bumper Brackets:
- Place bumper brackets into position.
- Install (2) long M14 fasteners (removed earlier) through the bumper bracket and truck frame.
- Install the 5/8” conical tooth washer (teeth toward hitch) and M14 nut.
- Install the 1/2” hex bolt and 1/2” conical tooth washer (teeth toward hitch) through the bumper bracket and hitch side bracket.
- Install another 1/2” conical washer (teeth toward hitch) and 1/2” hex nut onto the hex bolt. Repeat for both sides.
-
Install Bumper:
- Align studs in the bumper with holes in the hitch bumper bracket.
- Install 7/16” conical tooth washers (teeth toward bumper bracket) and M10 hex nuts onto the bumper studs.
- Install M10 bolts with 7/16” conical tooth washers (teeth toward bumper) through the holes in the bumper near the license plate area.
- Install 7/16” conical washers (teeth toward hitch) and M10 hex nuts onto the M10 bolts.
- Adjust the bumper position for proper alignment.
-
Reattach Electrical Connector:
- Plug in the electrical connector and secure it in position with zip ties.
-
Torque Fasteners:
- M14 fasteners: 100 lb-ft (136 N*m)
- 1/2”-13 GR8 fasteners: 110 lb-ft (149 N*m)
- 1/2”-13 GR5 fasteners: 75 lb-ft (102 N*m)
- M10 fasteners: 42 lb-ft (57 N*m)
-
Reinstall Spare Tire:
- Raise the spare tire back into position.
- Return the OEM hitch and remaining fasteners to the vehicle owner.
Torque Specifications:
- M14 bolts: 100 lb-ft (136 N*m)
- 1/2”-13 GR8 bolts: 110 lb-ft (149 N*m)
- 1/2”-13 GR5 bolts: 75 lb-ft (102 N*m)
- M10 bolts: 42 lb-ft (57 N*m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75 GR8
- (6) Heavy Hex Nuts, 1/2"-13 GR2H
- (2) Spacers, .25 x 1.50 x 2.00 (Part No. 3719)
- (4) Spacers, .25 x 1.50 x 2.00 (Part No. 1540)
- (10) Conical Tooth Washers, 1/2” (Part No. 012920008)
- (4) Conical Tooth Washers, 5/8” (Part No. 012920010)
- (4) Hex Nuts, M14 x 2.0 CL 9/8
- (2) Hex Bolts, 1/2"-13 x 1.75 GR5
- (2) Hex Nuts, 1/2"-13 GR5
- (2) Hex Bolts, M10 x 1.5 x 35 CL8.8
- (8) Conical Tooth Washers, 7/16” (Part No. 01292007)
- (6) Hex Nuts, M10 x 1.5 CL10
- (6) Pull Wires, 1/2" (Part No. 5482)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Replace damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fume entry.
- Always wear eye protection when working under a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 17,000 lb (7,718 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Warranty Information:
This product is covered under a limited lifetime warranty. Contact Horizon Global Americas Inc. for claims.
Additional Notes:
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for RAM 1500 (2019-Current)
Part Numbers:
- 41913
- 96913
- CQT41913
Wiring Access Location:
Not specified.
Tools Required:
- Ratchet
- Torque Wrench
- Pry Tool
- Hammer
- Safety Glasses
- Sockets: 10mm, 15mm, 16mm, 17mm, 21mm, 22mm, 3/4", 7/8"
- 6" Socket Extension
Installation Time:
- Approx. 60 minutes
Step-by-Step Instructions:
-
Lower Spare Tire:
- Locate spare tire lowering tools under the passenger-side seat.
- Lower the spare tire and set it aside for reinstallation later.
-
Remove Bumper:
- Unplug the electrical connector at the driver-side frame rail.
- Pry out plastic connectors holding the bumper wiring to the OEM hitch.
- Remove (2) M10 bolts from behind the license plate with a 15mm socket.
- Remove (4) M10 nuts (2 each side) attaching the bumper to the OEM hitch using a 16mm socket.
- Support the bumper during this step and remove it.
-
Remove OEM Hitch:
- Remove (8) M14 bolts from the OEM hitch (4 each side, 3 in the side of the frame rail, and 1 in the bottom) using a 21mm socket.
- Save the bolts for reinstallation later.
- Remove the OEM hitch.
-
Remove Heat Shield Bolts:
- Remove (3) M6 bolts from the exhaust heat shields using a 10mm socket (1 from the driver-side frame rail and 2 from the passenger-side frame rail).
- Flatten heat shield tabs against the truck frame using a metal hammer.
-
Install Hitch:
- Raise the hitch into position, aligning the 3rd slot from the rear with the weldnut in the bottom of the frame.
- Install the shorter M14 bolt (removed earlier) through the hitch into the existing weldnut in the truck frame. Repeat for the other side.
- Fishwire the carriage bolts and spacers (offset holes) into the forward-most slot on the hitch.
- Fishwire carriage bolts and spacers into the remaining slots on the hitch.
- Install conical tooth washers (teeth toward hitch) and heavy hex nuts onto the carriage bolts. Repeat for both sides.
-
Install Bumper Brackets:
- Place bumper brackets into position.
- Install (2) long M14 fasteners (removed earlier) through the bumper bracket and truck frame.
- Install the 5/8” conical tooth washer (teeth toward hitch) and M14 nut.
- Install the 1/2” hex bolt and 1/2” conical tooth washer (teeth toward hitch) through the bumper bracket and hitch side bracket.
- Install another 1/2” conical washer (teeth toward hitch) and 1/2” hex nut onto the hex bolt. Repeat for both sides.
-
Install Bumper:
- Align studs in the bumper with holes in the hitch bumper bracket.
- Install 7/16” conical tooth washers (teeth toward bumper bracket) and M10 hex nuts onto the bumper studs.
- Install M10 bolts with 7/16” conical tooth washers (teeth toward bumper) through the holes in the bumper near the license plate area.
- Install 7/16” conical washers (teeth toward hitch) and M10 hex nuts onto the M10 bolts.
- Adjust the bumper position for proper alignment.
-
Reattach Electrical Connector:
- Plug in the electrical connector and secure it in position with zip ties.
-
Torque Fasteners:
- M14 fasteners: 100 lb-ft (136 N*m)
- 1/2”-13 GR8 fasteners: 110 lb-ft (149 N*m)
- 1/2”-13 GR5 fasteners: 75 lb-ft (102 N*m)
- M10 fasteners: 42 lb-ft (57 N*m)
-
Reinstall Spare Tire:
- Raise the spare tire back into position.
- Return the OEM hitch and remaining fasteners to the vehicle owner.
Torque Specifications:
- M14 bolts: 100 lb-ft (136 N*m)
- 1/2”-13 GR8 bolts: 110 lb-ft (149 N*m)
- 1/2”-13 GR5 bolts: 75 lb-ft (102 N*m)
- M10 bolts: 42 lb-ft (57 N*m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75 GR8
- (6) Heavy Hex Nuts, 1/2"-13 GR2H
- (2) Spacers, .25 x 1.50 x 2.00 (Part No. 3719)
- (4) Spacers, .25 x 1.50 x 2.00 (Part No. 1540)
- (10) Conical Tooth Washers, 1/2” (Part No. 012920008)
- (4) Conical Tooth Washers, 5/8” (Part No. 012920010)
- (4) Hex Nuts, M14 x 2.0 CL 9/8
- (2) Hex Bolts, 1/2"-13 x 1.75 GR5
- (2) Hex Nuts, 1/2"-13 GR5
- (2) Hex Bolts, M10 x 1.5 x 35 CL8.8
- (8) Conical Tooth Washers, 7/16” (Part No. 01292007)
- (6) Hex Nuts, M10 x 1.5 CL10
- (6) Pull Wires, 1/2" (Part No. 5482)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Replace damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fume entry.
- Always wear eye protection when working under a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 17,000 lb (7,718 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Warranty Information:
This product is covered under a limited lifetime warranty. For complete warranty instructions, please download the full installation PDF.
Additional Notes:
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Trailer Light Wiring Kit
Part Number:
- 20252
Tools Required:
- Hot Air Gun or Appropriate Heat Source
- Wire Crimpers
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Taillight Wiring Harness
- Access the vehicle's taillight wiring harness.
- Using the provided instructions, identify the appropriate wires for connection:
- Green Wire: Right Turn & Stop
- Yellow Wire: Left Turn & Stop
- Brown Wire: Taillights
- White Wire: Ground
Step 2: Make the Electrical Connections
-
Match the color-coded wires from the wiring kit to the corresponding vehicle wires.
- Use a circuit tester to verify each wire's function before connecting.
- CAUTION: Test one wire at a time to prevent damage to electronic components.
-
Connect the wires using the provided insulated butt connectors:
- Strip the ends of each wire and seat them properly in the connector.
- Use a crimping tool designed for insulated splices to secure the connections.
-
Heat the connectors:
- Apply heat directly to the center of each splice using a hot air gun.
- Work from the center outward until the tubing recovers and adhesive flows.
- Allow the connections to cool before inspecting for integrity.
Step 3: Ground the System
- Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
- Do not drill into the vehicle floor or bed.
- Clean the area to remove dirt, rust, or undercoating.
- Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.
Step 4: Verify the Installation
- Test all connections using a circuit tester or trailer:
- Verify the functionality of taillights, turn signals, and brake lights.
- Ensure all connections are complete and secure.
- If issues are identified, double-check the wiring and connections for errors.
Step 5: Store the 4-Flat Connector
- Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.
Warnings and Notes:
- WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
- NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
- NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.
Maintenance:
- Inspect the wiring harness periodically for damage, corrosion, or loose connections.
- Reapply heat to connectors if the adhesive seal weakens.
Specifications:
- Maximum Load:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- Recommended Grounding Hole Size: 3/32 inches
Installation Instructions for Trailer Light Wiring Kit
Part Number:
- 20252
Tools Required:
- Hot Air Gun or Appropriate Heat Source
- Wire Crimpers
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Taillight Wiring Harness
- Access the vehicle's taillight wiring harness.
- Using the provided instructions, identify the appropriate wires for connection:
- Green Wire: Right Turn & Stop
- Yellow Wire: Left Turn & Stop
- Brown Wire: Taillights
- White Wire: Ground
Step 2: Make the Electrical Connections
-
Match the color-coded wires from the wiring kit to the corresponding vehicle wires.
- Use a circuit tester to verify each wire's function before connecting.
- CAUTION: Test one wire at a time to prevent damage to electronic components.
-
Connect the wires using the provided insulated butt connectors:
- Strip the ends of each wire and seat them properly in the connector.
- Use a crimping tool designed for insulated splices to secure the connections.
-
Heat the connectors:
- Apply heat directly to the center of each splice using a hot air gun.
- Work from the center outward until the tubing recovers and adhesive flows.
- Allow the connections to cool before inspecting for integrity.
Step 3: Ground the System
- Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
- Do not drill into the vehicle floor or bed.
- Clean the area to remove dirt, rust, or undercoating.
- Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.
Step 4: Verify the Installation
- Test all connections using a circuit tester or trailer:
- Verify the functionality of taillights, turn signals, and brake lights.
- Ensure all connections are complete and secure.
- If issues are identified, double-check the wiring and connections for errors.
Step 5: Store the 4-Flat Connector
- Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.
Warnings and Notes:
- WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
- NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
- NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.
Maintenance:
- Inspect the wiring harness periodically for damage, corrosion, or loose connections.
- Reapply heat to connectors if the adhesive seal weakens.
Specifications:
- Maximum Load:
- Stop/Turn Lights: 7.5 amps (1 per side)
- Tail Lights: 7.5 amps
- Recommended Grounding Hole Size: 3/32 inches
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
20252 Rev. A 2-6-07
