Product Details
- Brand: Reese
- Model: 77997 118582
- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help

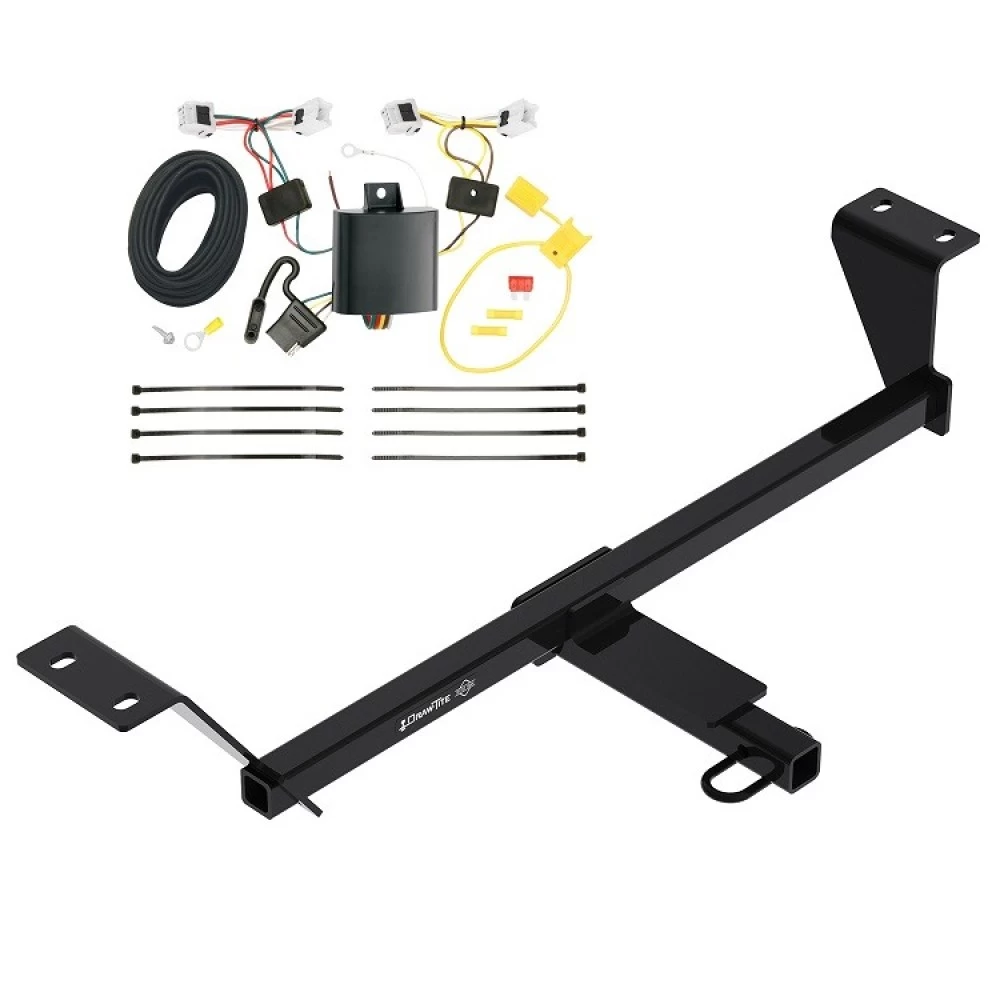

Trailer Hitch w/ Wiring For 20-23 Nissan Sentra Excluding S, SR, SR Turbo and Nismo Class I 1-1/4" Tow Receiver Reese Tekonsha Install Notes
Installation Instructions for Nissan Sentra SR/SV (2020-Current)
Part Numbers:
- 24997
- 77997
- CQT24997
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Drill with 1/2" Drill Bit
- Marker
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- Using an 18mm socket, remove the four factory bolts from the passenger-side tie-down bracket.
- Return the bracket and two bolts to the vehicle owner.
-
Drill Holes:
- Raise the hitch into position and align the passenger-side bracket holes with the weldnut locations.
- Mark the drill points for the driver-side bracket holes:
- Rearward hole center: approximately 2.125" from the back of the end panel.
- Forward hole center: approximately 5.125" from the back of the end panel.
- Lower the hitch and drill 1/2" holes at the marked locations.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole in the frame, ensuring it is large enough to fit a 7/16" carriage bolt and spacer.
-
Install Hitch:
- Feed the 7/16" carriage bolts and spacers through the access hole using the provided pull wires, leaving the pull wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slots.
- Loosely install two factory M12 bolts into the existing weldnuts on the passenger side.
- Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts on the driver side.
-
Tighten Fasteners:
- Torque all 7/16"-14 fasteners to 50 ft-lb (68 N*m).
- Torque all M12 fasteners to 68 ft-lb (92 N*m).
Hardware List:
- (2) Carriage Bolt, 7/16"-14 x 1.75 GR5
- (2) Spacer, 0.875" x 2.00" x 0.109" (Part No. 1204)
- (2) Conical Washer, 7/16" (Part No. 01292007)
- (2) Hex Nut, 7/16"-14 GR2
- (2) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 50 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2020-Current)
Part Numbers:
- 24997
- 77997
- CQT24997
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Drill with 1/2" Drill Bit
- Marker
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- Using an 18mm socket, remove the four factory bolts from the passenger-side tie-down bracket.
- Return the bracket and two bolts to the vehicle owner.
-
Drill Holes:
- Raise the hitch into position and align the passenger-side bracket holes with the weldnut locations.
- Mark the drill points for the driver-side bracket holes:
- Rearward hole center: approximately 2.125" from the back of the end panel.
- Forward hole center: approximately 5.125" from the back of the end panel.
- Lower the hitch and drill 1/2" holes at the marked locations.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole in the frame, ensuring it is large enough to fit a 7/16" carriage bolt and spacer.
-
Install Hitch:
- Feed the 7/16" carriage bolts and spacers through the access hole using the provided pull wires, leaving the pull wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slots.
- Loosely install two factory M12 bolts into the existing weldnuts on the passenger side.
- Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts on the driver side.
-
Tighten Fasteners:
- Torque all 7/16"-14 fasteners to 50 ft-lb (68 N*m).
- Torque all M12 fasteners to 68 ft-lb (92 N*m).
Hardware List:
- (2) Carriage Bolt, 7/16"-14 x 1.75 GR5
- (2) Spacer, 0.875" x 2.00" x 0.109" (Part No. 1204)
- (2) Conical Washer, 7/16" (Part No. 01292007)
- (2) Hex Nut, 7/16"-14 GR2
- (2) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 50 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.

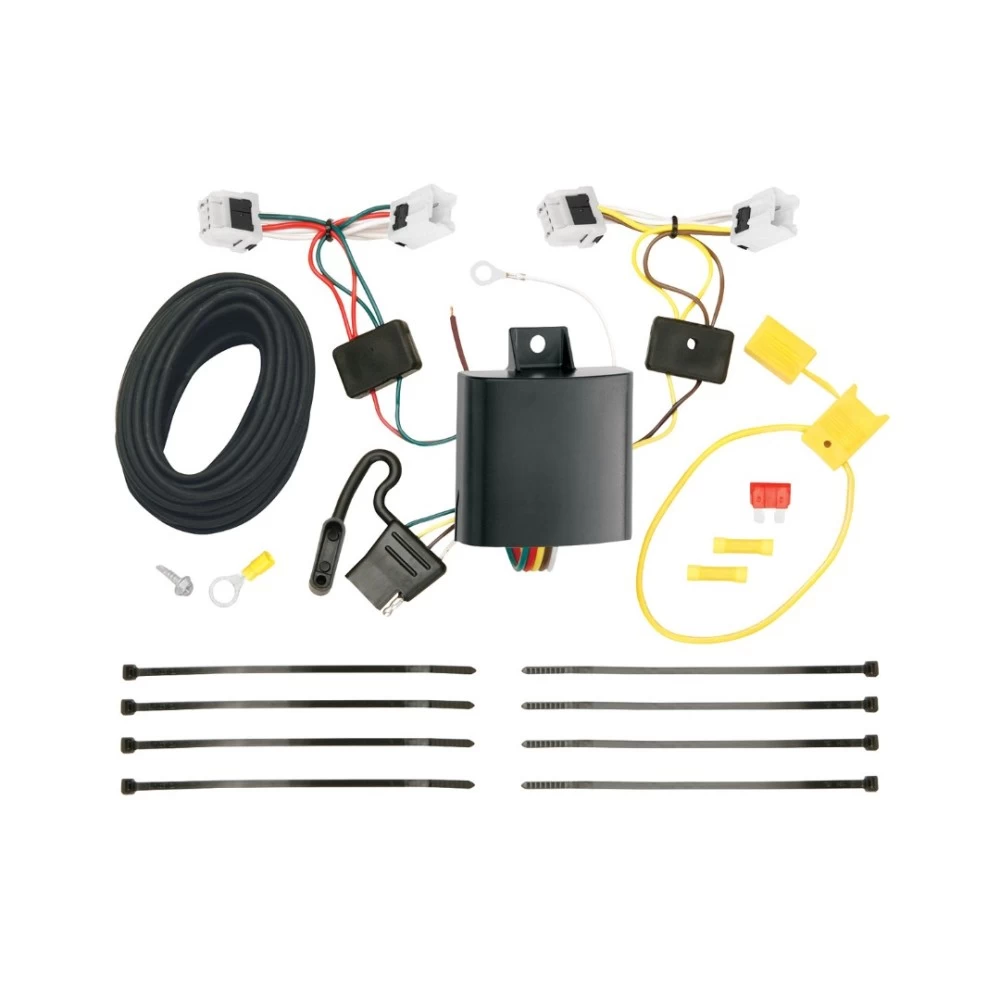

Installation Instructions for T-Connector Adapter for Nissan Sentra
Part Numbers:
- 118582
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the trunk.
- Temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
- Disconnect the connectors carefully to avoid damaging the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver-side wiring connectors.
- Ensure the connectors are fully inserted with locking tabs secured.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector with the green wire behind the panels and along the threshold to the passenger-side taillight wiring harness.
- Repeat Step 3 using the green wire T-Connector.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- From inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds to the engine compartment.
Warning:
- Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the provided yellow fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
Warning:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Mount the Black Box:
- Locate a flat surface in an out-of-the-way place to mount the T-Connector’s black box using the provided double-sided tape.
-
Secure the Wiring:
- Use the provided cable ties to secure the remainder of the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.
-
Reassemble the Vehicle:
- Replace the carpet, clips, and panels that were removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Specifications:
- Max. stop/turn light: 2.1 amps per side
- Max. tail lights: 5.6 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for T-Connector Adapter for Nissan Sentra
Part Numbers:
- 118582
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the trunk.
- Temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
- Disconnect the connectors carefully to avoid damaging the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver-side wiring connectors.
- Ensure the connectors are fully inserted with locking tabs secured.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector with the green wire behind the panels and along the threshold to the passenger-side taillight wiring harness.
- Repeat Step 3 using the green wire T-Connector.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- From inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds to the engine compartment.
Warning:
- Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the provided yellow fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
Warning:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Mount the Black Box:
- Locate a flat surface in an out-of-the-way place to mount the T-Connector’s black box using the provided double-sided tape.
-
Secure the Wiring:
- Use the provided cable ties to secure the remainder of the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.
-
Reassemble the Vehicle:
- Replace the carpet, clips, and panels that were removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Specifications:
- Max. stop/turn light: 2.1 amps per side
- Max. tail lights: 5.6 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
