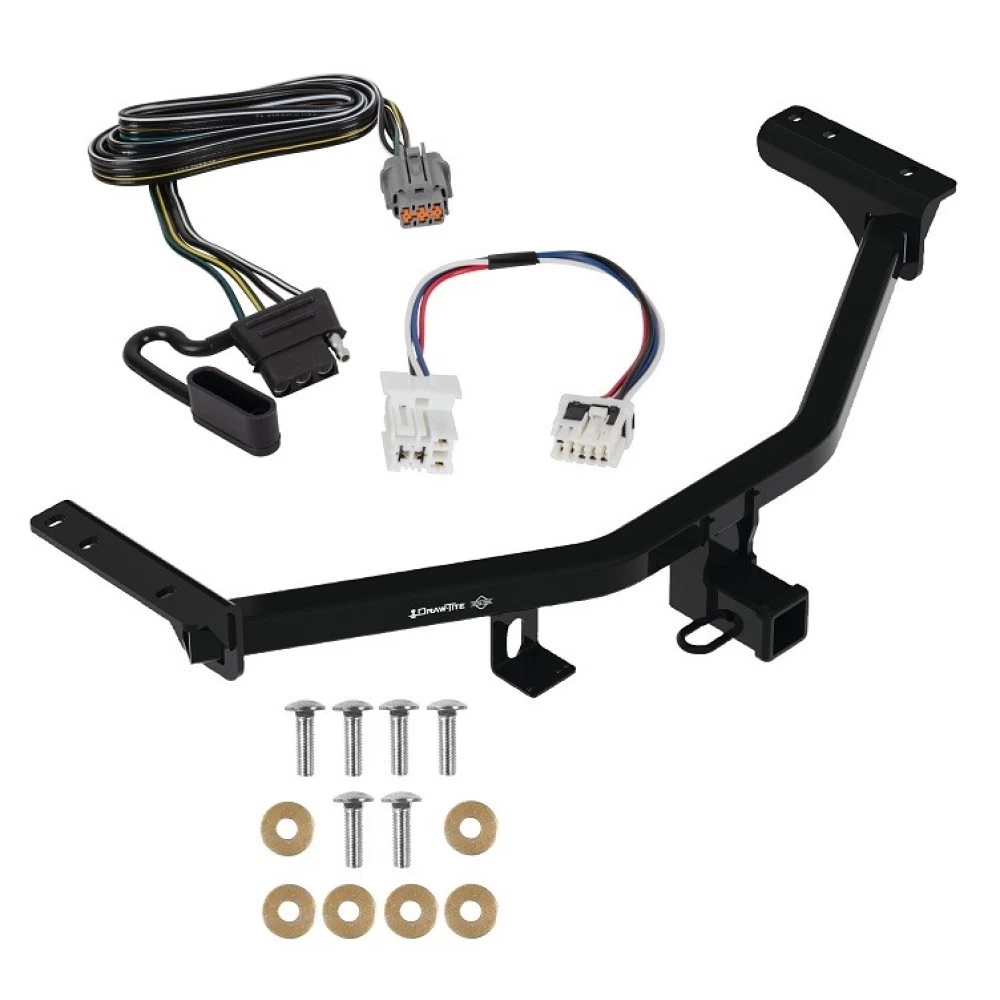

Installation Instructions for 2022-Current Nissan Pathfinder and Infiniti QX60

Part Numbers:

• 76531
• 84531
• CQT76531

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 19 mm, 21 mm
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Utility Knife
• Marker
• Tape Measure
• Soapy Water
• Wire Brush

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Open the rear hatch to access the spare tire winch.
   • Using a 21 mm socket, lower the spare tire and set it aside for later.

2. Lower Exhaust:

   • Use exhaust removal pliers and soapy water to remove three rubber exhaust hangers.
     • One hanger is located at the end of the exhaust.
     • Two hangers are located near the middle of the vehicle.
   • Support the exhaust to prevent damage before removing the hangers.

3. Trim Fascia:

   • Using a tape measure, marker, and utility knife, measure, mark, and trim the lower fascia as shown in Figure 2.

4. Install Hitch:

   • Use a wire brush to clean the weldnuts if necessary.
   • Raise the hitch into position and align the bracket holes with the weldnuts in the frame rail.
   • Loosely install M12 bolts and conical washers (teeth side toward hitch) into the hitch (see Figures 1 and 3).

5. Tighten Fasteners:

   • Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 N*m).

6. Reinstall Exhaust and Spare Tire:

   • Reattach the exhaust using the rubber hangers removed earlier.
   • Raise the spare tire back into position. Push the spare tire forward while raising it to provide additional clearance from the hitch.

Hardware List:

• (6) Bolt M12 x 1.25 x 35 CL 8.8
• (6) Conical Washer 1/2" (teeth side toward hitch)

Safety Notes:

• Always wear safety glasses during installation.
• Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent the entry of water or exhaust fumes.
• Observe all safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 6,000 lbs (2,721 kg) trailer weight, 900 lbs (408 kg) tongue weight.
• Weight Distributing Capacity: 6,000 lbs (2,721 kg) trailer weight, 900 lbs (408 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 30 minutes.
• For step-by-step photo instructions, scan the QR code provided in the manual or visit the website.

Installation Instructions for Vehicle (2022-Current)

Part Numbers:

• 76531
• 84531
• CQT76531

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 19 mm, 21 mm
• 6-inch Socket Extension
• Exhaust Removal Pliers
• Utility Knife
• Marker
• Tape Measure
• Soapy Water
• Wire Brush

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Open the rear hatch to access the spare tire winch.
   • Using a 21 mm socket, lower the spare tire and set it aside for later.

2. Lower Exhaust:

   • Use exhaust removal pliers and soapy water to remove three rubber exhaust hangers.
     • One hanger is located at the end of the exhaust.
     • Two hangers are located near the middle of the vehicle.
   • Support the exhaust to prevent damage before removing the hangers.

3. Trim Fascia:

   • Using a tape measure, marker, and utility knife, measure, mark, and trim the lower fascia as shown in Figure 2.

4. Install Hitch:

   • Use a wire brush to clean the weldnuts if necessary.
   • Raise the hitch into position and align the bracket holes with the weldnuts in the frame rail.
   • Loosely install M12 bolts and conical washers (teeth side toward hitch) into the hitch (see Figures 1 and 3).

5. Tighten Fasteners:

   • Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 N*m).

6. Reinstall Exhaust and Spare Tire:

   • Reattach the exhaust using the rubber hangers removed earlier.
   • Raise the spare tire back into position. Push the spare tire forward while raising it to provide additional clearance from the hitch.

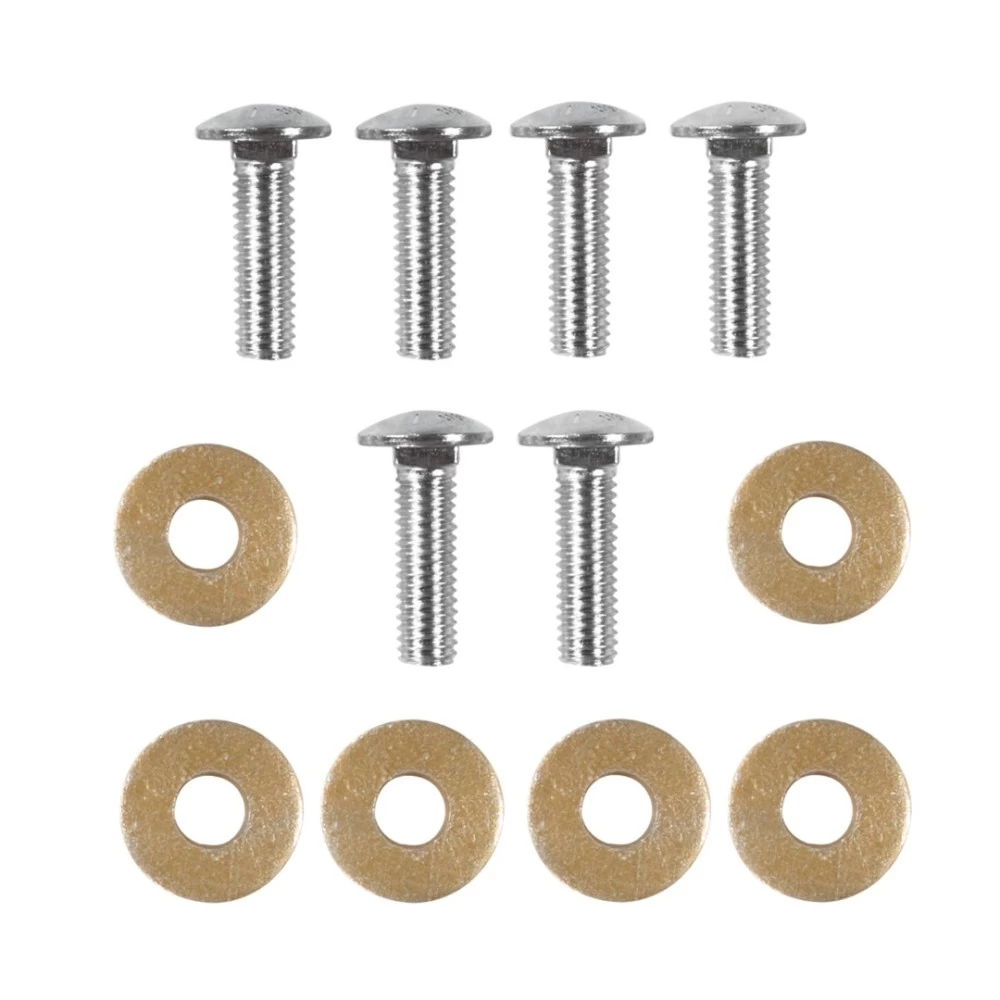

Hardware List:

• (6) Bolt M12 x 1.25 x 35 CL 8.8
• (6) Conical Washer 1/2" (teeth side toward hitch)

Safety Notes:

• Always wear safety glasses during installation.
• Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent the entry of water or exhaust fumes.
• Observe all safety precautions when working beneath the vehicle.

Specifications:

• Weight Carrying Capacity: 6,000 lbs (2,721 kg) trailer weight, 900 lbs (408 kg) tongue weight.
• Weight Distributing Capacity: 6,000 lbs (2,721 kg) trailer weight, 900 lbs (408 kg).
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product comes with a standard warranty period of [X] years.
• Coverage includes [details on coverage].
• For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

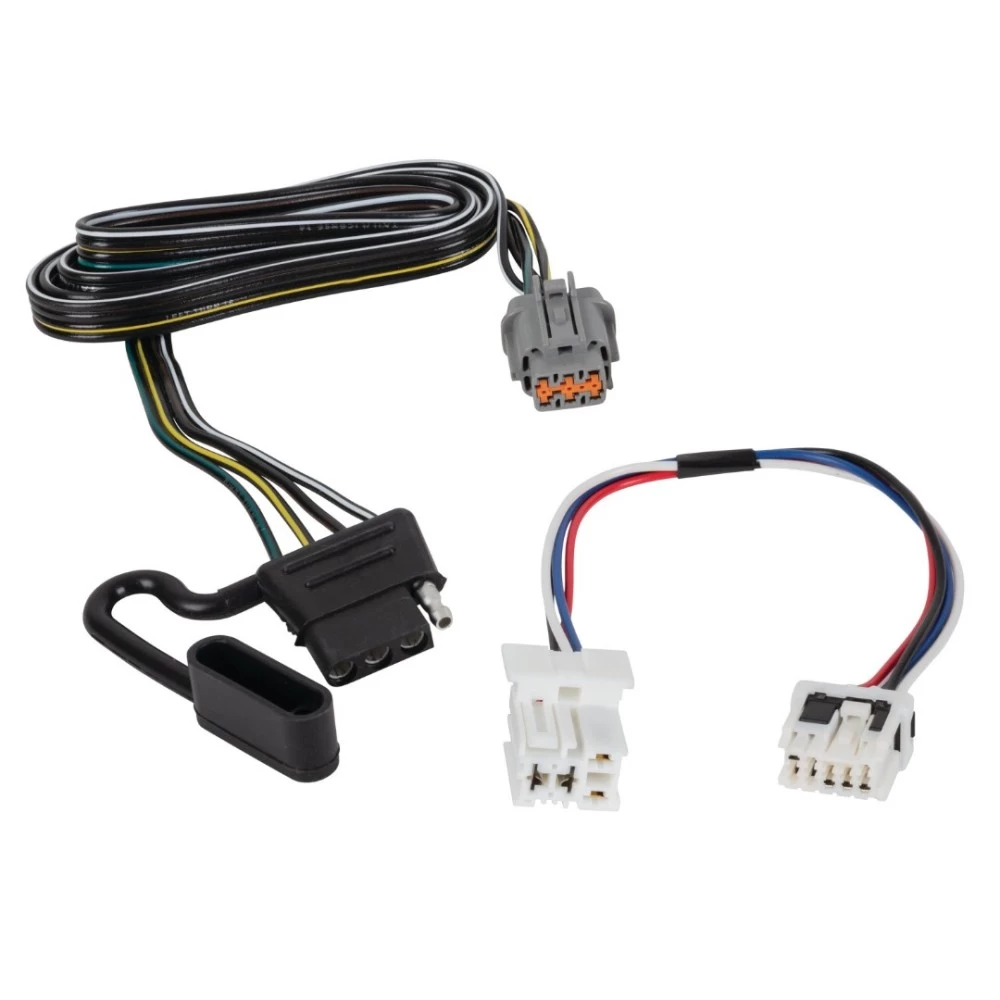

Installation Instructions for T-One® Connector for Nissan Pathfinder and Infiniti QX60
