Trailer Tow Hitch For 00‑06 Chevy Suburban 2500 & 00‑06 GMC Yukon XL 2500
Model: 455152000 - 2006 Chevrolet, Suburban 2500, w/Amber Turn Signals
2000 - 2006 GMC, Yukon XL 2500, All Styles
Trailer Hitch Specs:
| Part Number | 45515 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 2000 2001 2002 2003 2004 2005 2006
$299 99 $468.45 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$468.45 $299 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $74.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 45515
- UPC: 742512455151

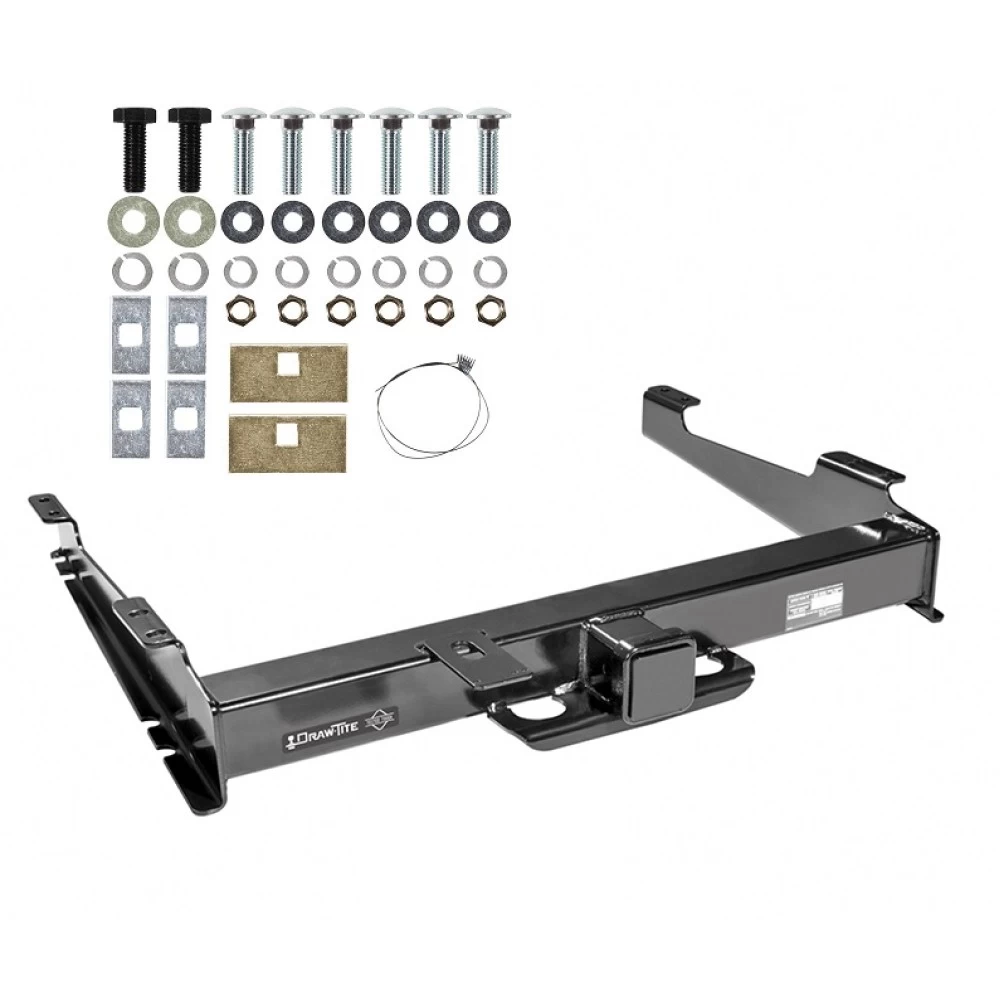

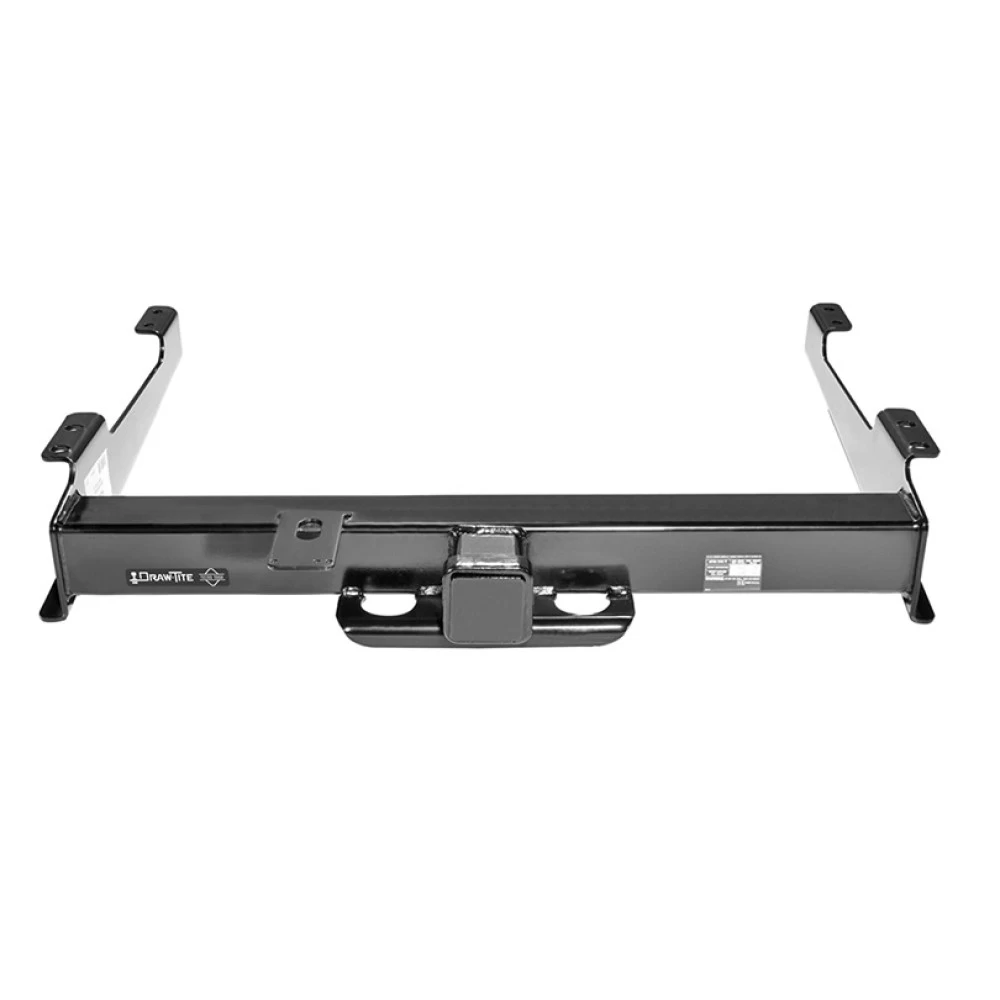

- Includes: Titan Class 5 Trailer Tow Hitch
Compatibility Chart
2000 - 2006 Chevrolet, Suburban 2500, w/Amber Turn Signals
2000 - 2006 GMC, Yukon XL 2500, All Styles
Trailer Hitch Specs:
| Part Number | 45515 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 2000 2001 2002 2003 2004 2005 2006
Get Expert Help
Trailer Tow Hitch For 00-06 Chevy Suburban 2500 & 00-06 GMC Yukon XL 2500 Install Notes
Installation Instructions for Chevrolet Suburban 2500 and GMC Yukon XL 2500
Part Numbers:
- 45515
- 45715
- CQT45515
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4", 22mm
- Drill and Bit: 1/2"
- Pull Wire
Installation Time:
- Approximately 50 minutes for professional installers
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove one (1) existing M14 bolt from the rear of each frame and return them to the owner.
-
Install Hitch:
- Raise the hitch into position.
- Use one (1) M14 bolt, one (1) 5/8" lock washer, and one (1) 5/8" flat washer to secure the hitch to the weldnuts where the M14 bolts were removed.
-
Install Second Fastener Set:
- Using the pull wire technique, feed one (1) 1/2" carriage bolt and one (1) bolt plate through the access hole in each frame and into the second rear-most hole in the hitch.
- Secure each bolt with one (1) 1/2" flat washer, one (1) 1/2" lock washer, and one (1) 1/2"-13 nut.
-
Drill Additional Holes:
- Using the remaining four (4) holes in the hitch bracket as a guide, drill 1/2" holes into the frame.
-
Install Remaining Fasteners:
- Use the pull wire technique to install the remaining fasteners by pulling one (1) 1/2" carriage bolt and one (1) spacer through the access holes into each of the newly drilled holes.
- Secure each bolt with one (1) 1/2" flat washer, one (1) 1/2" lock washer, and one (1) 1/2"-13 nut.
-
Tighten All Fasteners:
- Torque all 1/2"-13 fasteners to 75 lb-ft (102 N*m).
- Torque all M14 fasteners to 80 lb-ft (108 N*m).
Torque Specifications:
- 1/2"-13 fasteners: 75 lb-ft (102 N*m)
- M14 fasteners: 80 lb-ft (108 N*m)

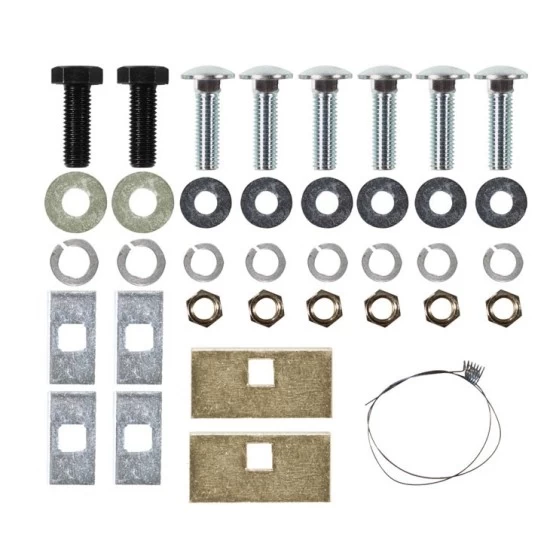

Hardware List:
- (6) Lock Washers, 1/2"
- (2) Lock Washers, 5/8"
- (6) Carriage Bolts, 1/2"-13 x 2.00" GR5
- (2) Hex Bolts, M14 x 2.00 x 45mm CL10.9
- (2) Bolt Plates, 0.25" x 1.50" x 3.00"
- (4) Spacers, 0.25" x 1.00" x 2.00"
- (6) Flat Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR5
- (6) Pull Wires, 1/2"-13
- (2) Flat Washers, 5/8"
Safety Notes:
- Frequently inspect the hitch to ensure all fasteners and the ball are secure.
- If the hitch is removed, plug all holes in the vehicle's body to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,443 kg)
- Max Tongue Weight: 1,200 lb (544 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb (6,350 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Refer to the manufacturer's QR code or website for photo instructions.
Installation Instructions for Gooseneck Mounting Kit
Part Numbers:
- 45515
- 45715
- CQT45515
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4", 22mm
- Drill and Bit: 1/2"
- Pull Wire
Installation Time:
- Approximately 50 minutes for professional installers
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove one (1) existing M14 bolt from the rear of each frame and return them to the owner.
-
Install Hitch:
- Raise the hitch into position.
- Use one (1) M14 bolt, one (1) 5/8" lock washer, and one (1) 5/8" flat washer to secure the hitch to the weldnuts where the M14 bolts were removed.
-
Install Second Fastener Set:
- Using the pull wire technique, feed one (1) 1/2" carriage bolt and one (1) bolt plate through the access hole in each frame and into the second rear-most hole in the hitch.
- Secure each bolt with one (1) 1/2" flat washer, one (1) 1/2" lock washer, and one (1) 1/2"-13 nut.
-
Drill Additional Holes:
- Using the remaining four (4) holes in the hitch bracket as a guide, drill 1/2" holes into the frame.
-
Install Remaining Fasteners:
- Use the pull wire technique to install the remaining fasteners by pulling one (1) 1/2" carriage bolt and one (1) spacer through the access holes into each of the newly drilled holes.
- Secure each bolt with one (1) 1/2" flat washer, one (1) 1/2" lock washer, and one (1) 1/2"-13 nut.
-
Tighten All Fasteners:
- Torque all 1/2"-13 fasteners to 75 lb-ft (102 N*m).
- Torque all M14 fasteners to 80 lb-ft (108 N*m).
Torque Specifications:
- 1/2"-13 fasteners: 75 lb-ft (102 N*m)
- M14 fasteners: 80 lb-ft (108 N*m)
Hardware List:
- (6) Lock Washers, 1/2"
- (2) Lock Washers, 5/8"
- (6) Carriage Bolts, 1/2"-13 x 2.00" GR5
- (2) Hex Bolts, M14 x 2.00 x 45mm CL10.9
- (2) Bolt Plates, 0.25" x 1.50" x 3.00"
- (4) Spacers, 0.25" x 1.00" x 2.00"
- (6) Flat Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR5
- (6) Pull Wires, 1/2"-13
- (2) Flat Washers, 5/8"
Safety Notes:
- Frequently inspect the hitch to ensure all fasteners and the ball are secure.
- If the hitch is removed, plug all holes in the vehicle's body to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,443 kg)
- Max Tongue Weight: 1,200 lb (544 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb (6,350 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Refer to the manufacturer's QR code or website for photo instructions.
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
