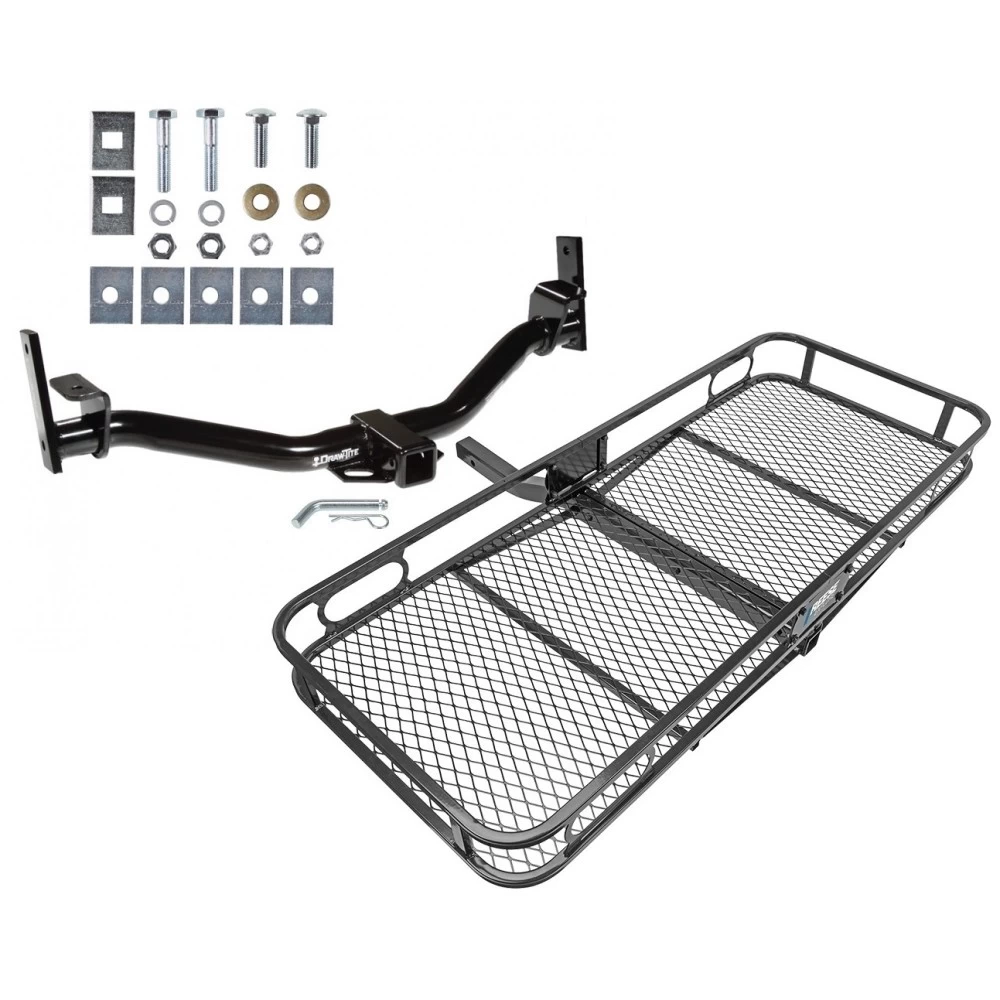

Trailer Tow Hitch For 01‑05 Ford Explorer Sport Trac Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75112 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2005 Ford, Explorer Sport Trac, All Styles
Trailer Hitch Specs:
| Part Number | 75112 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005
$538 46 $862.57 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$862.57 $538 46
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $134.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75112 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2005 Ford, Explorer Sport Trac, All Styles
Trailer Hitch Specs:
| Part Number | 75112 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 2001 2002 2003 2004 2005
Get Expert Help
Trailer Tow Hitch For 01-05 Ford Explorer Sport Trac Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Ford Explorer Sport Trac
Part Numbers:
- 51141
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
-
Position Receiver:
- Raise the hitch receiver into position, aligning it with the attachment points on the vehicle frame.
-
Secure Fasteners:
- Install the fasteners as shown in the provided diagram.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all 9/16"-12 GR5 fasteners to 110 Lb.-Ft. (149 N*M).
Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2” GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4” GR5
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2”
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2”
- (2) Lock Washers: 9/16”
- (2) Conical Toothed Washers
- (2) Hex Nuts: 9/16"-12
- (2) Hex Nuts: 1/2"-13
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions when working beneath a vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Max Tongue Weight: 500 lb. (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb. (2,724 kg)
- Max Tongue Weight: 600 lb. (272 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 requirements for towing systems.
Installation Instructions for Full-Size SUV (All Models)
Part Numbers:
- 51141
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 13/16", 7/8", 15/16"
- Drill Bits: None
Step-by-Step Instructions:
-
Position Receiver:
- Raise the hitch receiver into position, aligning it with the attachment points on the vehicle frame.
-
Secure Fasteners:
- Install the fasteners as shown in the provided diagram.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all 9/16"-12 GR5 fasteners to 110 Lb.-Ft. (149 N*M).
Hardware List:
- (2) Hex Bolts: 9/16"-12 x 2-1/2” GR5
- (2) Carriage Bolts: 1/2"-13 x 1-3/4” GR5
- (2) Spacer Blocks: 3/8" x 1-1/2" x 2”
- (2) Spacer Blocks: 1/4" x 1-1/2" x 2”
- (2) Lock Washers: 9/16”
- (2) Conical Toothed Washers
- (2) Hex Nuts: 9/16"-12
- (2) Hex Nuts: 1/2"-13
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions when working beneath a vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb. (2,270 kg)
- Max Tongue Weight: 500 lb. (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb. (2,724 kg)
- Max Tongue Weight: 600 lb. (272 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 requirements for towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
