Trailer Tow Hitch For 03-11 Honda Element Basket Cargo Carrier Platform w/ Hitch Pin

Trailer Tow Hitch For 03‑11 Honda Element Basket Cargo Carrier Platform w/ Hitch Pin

Model: 75659 63153 63240

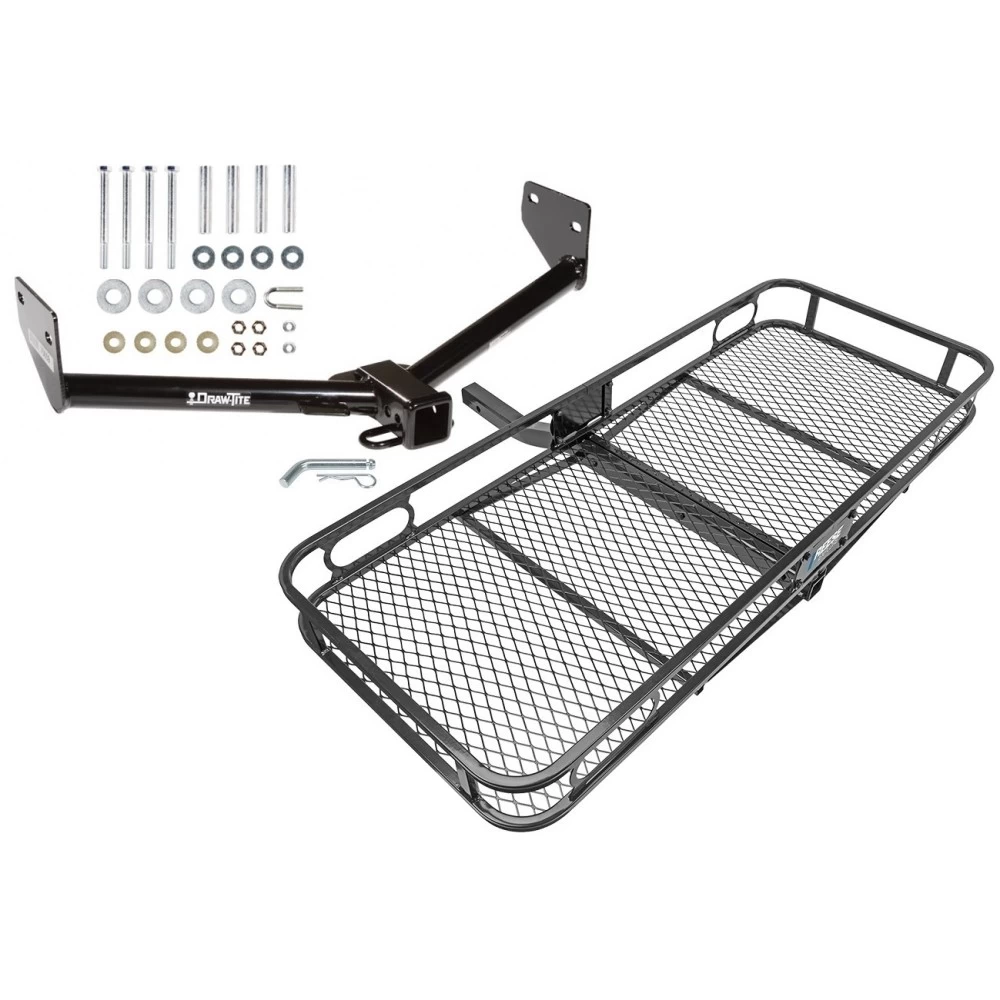

Includes Everything Pictured:

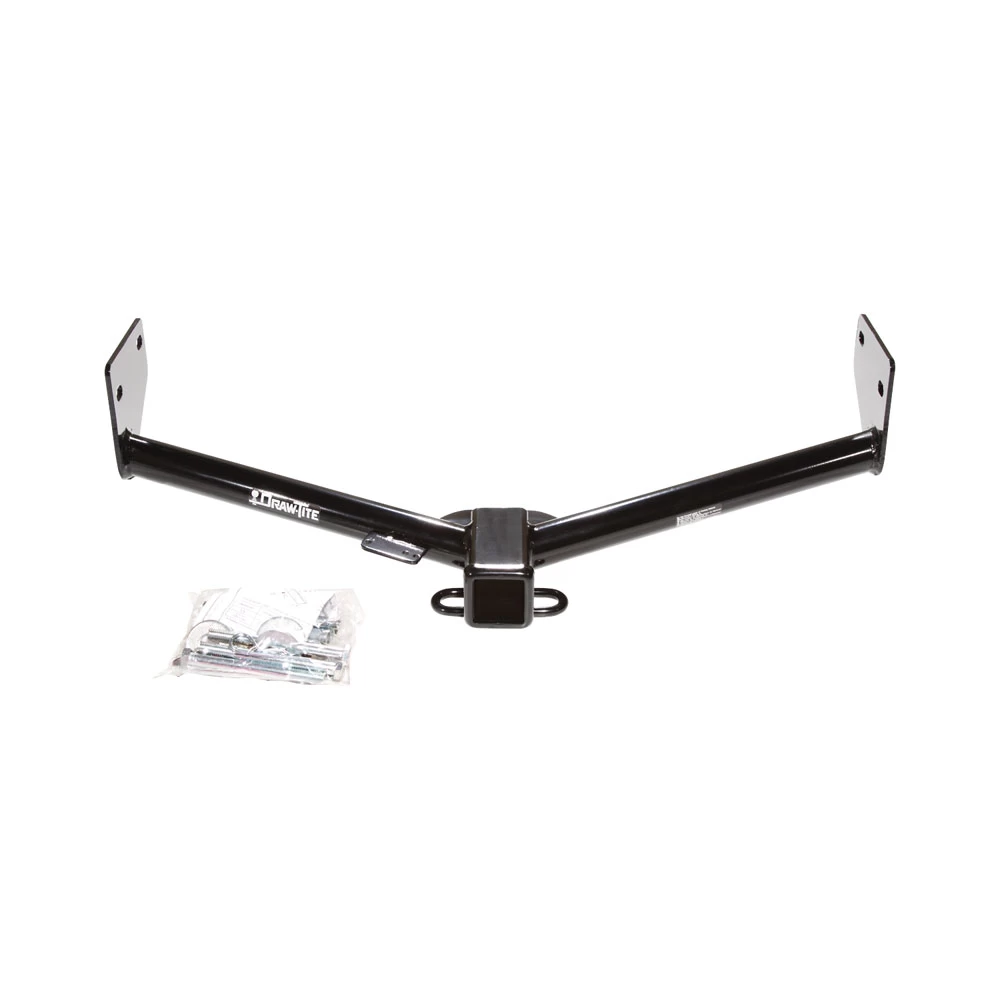

Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2003 - 2011 Honda, Element, All Styles, Including SC

Trailer Hitch Specs:

Part Number	75659
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 03 04 05 06 07 08 09 10 11 2003 2004 2005 2006 2007 2008 2009 2010 2011

See Full Description

$553 ⁹⁷ $886.83 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$886.83 $553 ⁹⁷

Pay in 4 interest-free installments of $138.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $138.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75659 63153 63240
Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Description

Part Number	75659
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	350 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 75659 , 63153 , 63240 , Draw-Tite , Trailer , Tow , Hitch , 03-11 , Honda , Element , Basket , Cargo , Carrier , Platform , Hitch , Pin , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 10 , 11 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011

Get Expert Help

Trailer Tow Hitch For 03-11 Honda Element Basket Cargo Carrier Platform w/ Hitch Pin Install Notes

Installation Instructions for Honda Element (2003-2008, including SC model)

Part Numbers:

75659
87506
44612

Tools Required:

Wrenches: 3/4", 7/8"
Drill Bits: None

Wiring Access Location:

2003-2004: SUV2
2005 and later: SUV1-2

Step-by-Step Instructions:

Install 1/2" Bolts and Washers:
- Insert 1/2"-13 x 5-1/2" Grade 5 hex bolts and 1/2" flat washers from the outside of the vehicle frame.
- Place tube spacers and 3/4" flat washers inside the frame.
- Ensure bolts barely stick through; repeat on both sides of the vehicle.
Raise the Hitch:
- Carefully lift the hitch into position without dislodging washers installed in Step 1.
- Alternatively, slide the 3/4" flat washers into place after raising the hitch. Washers should go over tube spacers between the vehicle frame and hitch brackets.
Secure Hitch Bolts:
- Push 1/2" bolts through the hitch brackets on both sides.
- Ensure 3/4" flat washers are correctly positioned over the tube spacers and between the inside of the frame and outside of the hitch bracket.
- Install 1/2" conical toothed washers and hex nuts. Loosely tighten.
Install U-Bolt:
- Place the 3/8" U-bolt over the vehicle trunk pan tie-down hook and through the center hitch bracket.
- Install 3/8" flanged hex locknuts on the U-bolt, ensuring even tightening.
Torque Fasteners:
- Tighten the U-bolt first to 30 lb-ft (41 N·m).
- Torque all 1/2"-13 Grade 5 bolts to 75 lb-ft (102 N·m).

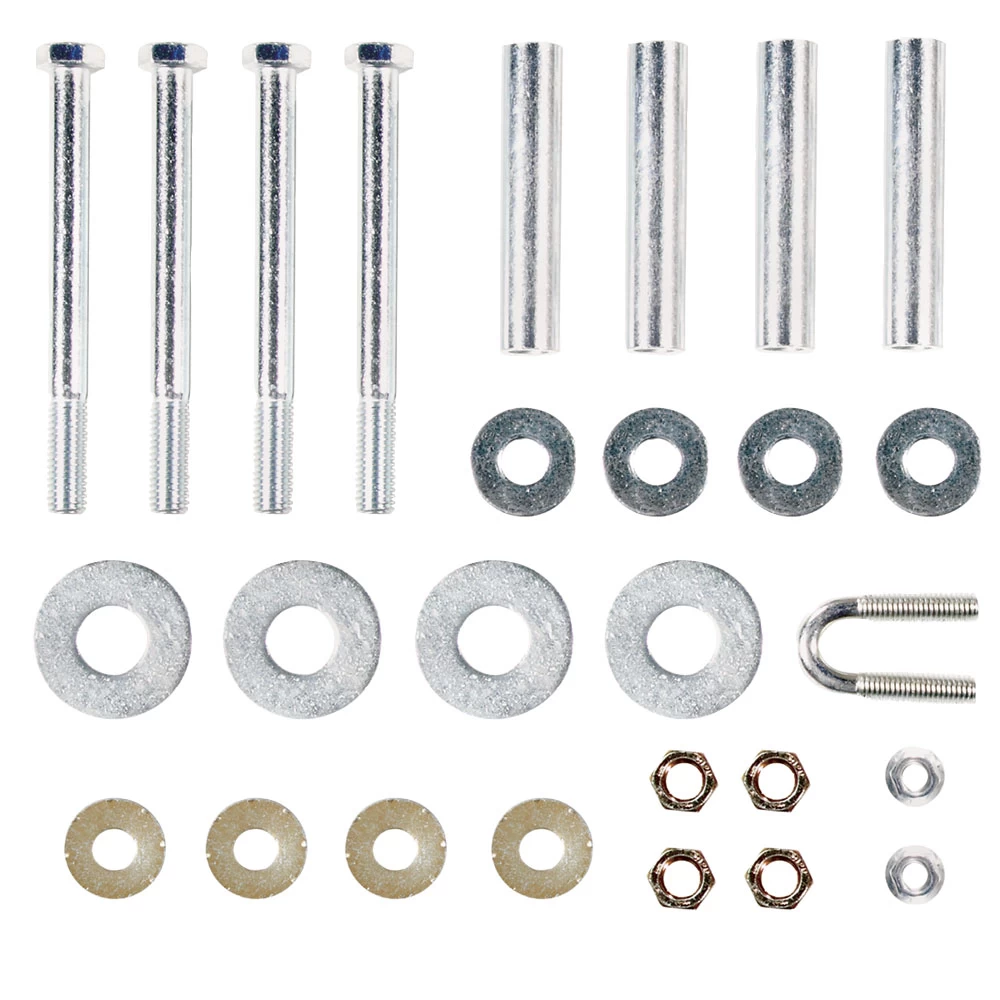

Hardware List:

(4) 1/2"-13 x 5-1/2" Grade 5 Hex Bolts
(4) Tube Spacers
(4) 1/2" Flat Washers
(4) 1/2" Conical Toothed Washers
(4) 1/2" Hex Nuts
(1) 3/8" U-Bolt
(2) 3/8" Flanged Hex Locknuts
(4) 3/4" Flat Washers

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

SC model requires trimming of the plastic bumper fascia.

Installation Instructions for Honda Element (2003-2008, including SC model)

Part Numbers:

75659
87506
44612

Tools Required:

Wrenches: 3/4", 7/8"
Drill Bits: None

Wiring Access Location:

2003-2004: SUV2
2005 and later: SUV1-2

Step-by-Step Instructions:

Install 1/2" Bolts and Washers:
- Insert 1/2"-13 x 5-1/2" Grade 5 hex bolts and 1/2" flat washers from the outside of the vehicle frame.
- Place tube spacers and 3/4" flat washers inside the frame.
- Ensure bolts barely stick through; repeat on both sides of the vehicle.
Raise the Hitch:
- Carefully lift the hitch into position without dislodging washers installed in Step 1.
- Alternatively, slide the 3/4" flat washers into place after raising the hitch. Washers should go over tube spacers between the vehicle frame and hitch brackets.
Secure Hitch Bolts:
- Push 1/2" bolts through the hitch brackets on both sides.
- Ensure 3/4" flat washers are correctly positioned over the tube spacers and between the inside of the frame and outside of the hitch bracket.
- Install 1/2" conical toothed washers and hex nuts. Loosely tighten.
Install U-Bolt:
- Place the 3/8" U-bolt over the vehicle trunk pan tie-down hook and through the center hitch bracket.
- Install 3/8" flanged hex locknuts on the U-bolt, ensuring even tightening.
Torque Fasteners:
- Tighten the U-bolt first to 30 lb-ft (41 N·m).
- Torque all 1/2"-13 Grade 5 bolts to 75 lb-ft (102 N·m).

Hardware List:

(4) 1/2"-13 x 5-1/2" Grade 5 Hex Bolts
(4) Tube Spacers
(4) 1/2" Flat Washers
(4) 1/2" Conical Toothed Washers
(4) 1/2" Hex Nuts
(1) 3/8" U-Bolt
(2) 3/8" Flanged Hex Locknuts
(4) 3/4" Flat Washers

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Specifications:

Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
Complies with safety specifications and requirements for connecting devices and towing systems.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
