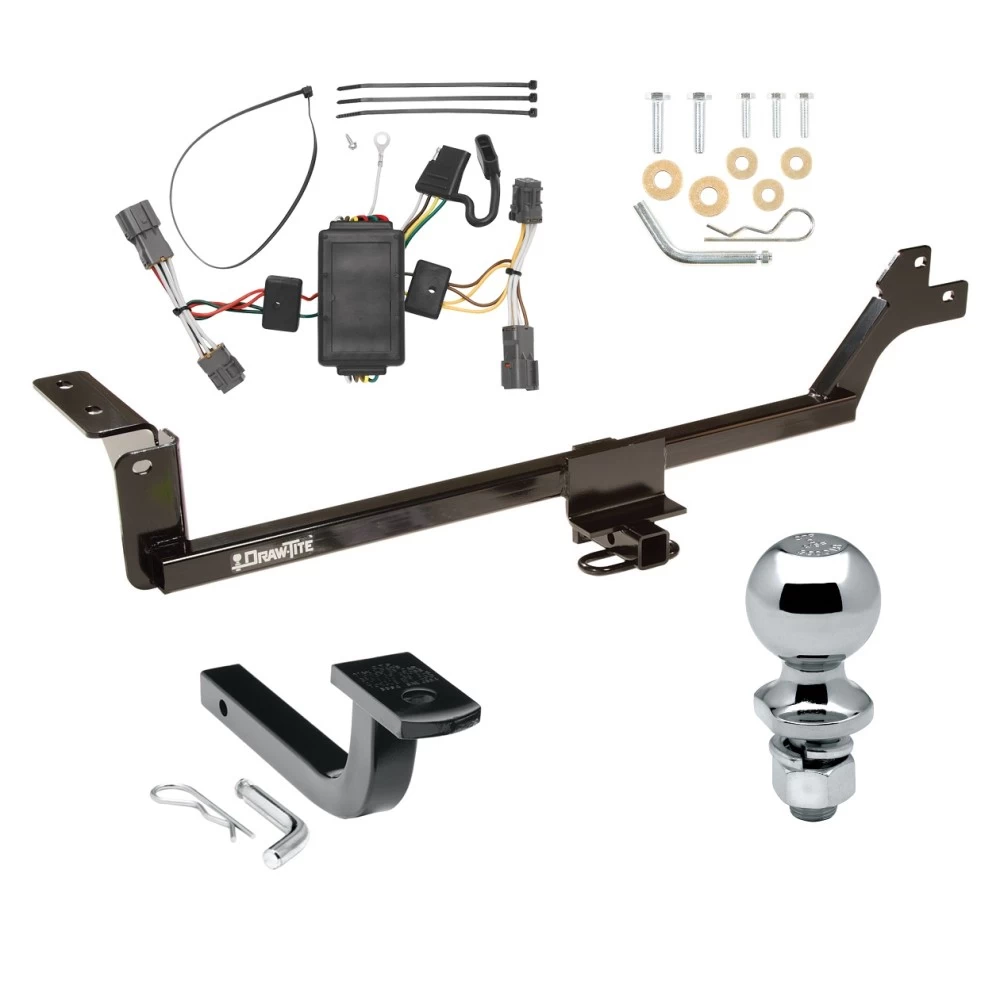

- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 07-12 KIA Rondo Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes
Installation Instructions for Kia Rondo
Part Numbers:
- 60874
- 24797
- 77169
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 10 mm, 12 mm, 13 mm, 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect the muffler from the rubber exhaust hangers in three locations.
-
Remove Heat Shield:
- Temporarily remove the exhaust heat shield.
- Retain the heat shield and fasteners for reinstallation after the hitch is installed.
-
Remove Tie-Down Hook:
- On the driver's side, remove the tie-down hook.
- Return the tie-down hook and fasteners to the vehicle owner.
-
Prepare Frame Rail:
- Remove the fasteners at the end of the frame rail as shown in the illustration. Discard these fasteners.
-
Install Hitch:
- Raise the hitch into position and secure it using the provided fasteners into the existing weldnuts on the frame rail.
- Tighten all M8 CL8.8 fasteners to 20 lb-ft (27 N*m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N*m).
-
Reinstall Heat Shield:
- Reattach the exhaust heat shield using the retained fasteners.
-
Raise Exhaust:
- Reconnect the muffler to the rubber exhaust hangers.
Hardware List:
- (2) Hex Bolt M10 x 1.25 x 40 mm CL8.8
- (3) Hex Bolt M8 x 1.25 x 30 mm CL8.8
- (2) Conical Washer 7/16"
- (3) Conical Washer 3/8"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 200 lbs (91 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For further details, refer to the QR code or website provided in the full manual.
Installation Instructions
Part Numbers:
- 60874
- 24797
- 77169
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 10 mm, 12 mm, 13 mm, 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect the muffler from the rubber exhaust hangers in three locations.
-
Remove Heat Shield:
- Temporarily remove the exhaust heat shield.
- Retain the heat shield and fasteners for reinstallation after the hitch is installed.
-
Remove Tie-Down Hook:
- On the driver's side, remove the tie-down hook.
- Return the tie-down hook and fasteners to the vehicle owner.
-
Prepare Frame Rail:
- Remove the fasteners at the end of the frame rail as shown in the illustration. Discard these fasteners.
-
Install Hitch:
- Raise the hitch into position and secure it using the provided fasteners into the existing weldnuts on the frame rail.
- Tighten all M8 CL8.8 fasteners to 20 lb-ft (27 N*m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N*m).
-
Reinstall Heat Shield:
- Reattach the exhaust heat shield using the retained fasteners.
-
Raise Exhaust:
- Reconnect the muffler to the rubber exhaust hangers.
Hardware List:
- (2) Hex Bolt M10 x 1.25 x 40 mm CL8.8
- (3) Hex Bolt M8 x 1.25 x 30 mm CL8.8
- (2) Conical Washer 7/16"
- (3) Conical Washer 3/8"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 200 lbs (91 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Kia Rondo and Kia Soul
Part Numbers:
- 118431
Tools Required:
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear liftgate.
- On both the driver and passenger sides, remove three screws securing the taillight assemblies.
- Carefully pull the taillight away from the vehicle, ensuring not to damage the alignment pins.
-
Disconnect the Vehicle Wiring Harness:
- Locate the vehicle's taillight wiring harness on both sides.
- Separate the connectors, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Ensure the connectors are fully inserted with locking tabs engaged.
-
Route the T-Connector Wiring:
- Route the harness containing the green wire and the 4-flat connector down through the opening behind the driver’s side taillight.
- Continue routing the green wire under the vehicle to the passenger’s side taillight opening.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 on the passenger’s side, using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member.
- Clean dirt and rustproofing from the grounding area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or any exposed surfaces.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector’s black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may cut or pinch the wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight housing assemblies, ensuring the vehicle wiring harness is positioned between the housing and the vehicle body.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).
-
Test the Installation:
- Test and verify the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional information.
Installation Instructions for T-Connector Adapter for Kia Rondo and Kia Soul
Part Numbers:
- 118431
Tools Required:
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear liftgate.
- On both the driver and passenger sides, remove three screws securing the taillight assemblies.
- Carefully pull the taillight away from the vehicle, ensuring not to damage the alignment pins.
-
Disconnect the Vehicle Wiring Harness:
- Locate the vehicle's taillight wiring harness on both sides.
- Separate the connectors, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Ensure the connectors are fully inserted with locking tabs engaged.
-
Route the T-Connector Wiring:
- Route the harness containing the green wire and the 4-flat connector down through the opening behind the driver’s side taillight.
- Continue routing the green wire under the vehicle to the passenger’s side taillight opening.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 on the passenger’s side, using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member.
- Clean dirt and rustproofing from the grounding area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or any exposed surfaces.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector’s black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may cut or pinch the wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight housing assemblies, ensuring the vehicle wiring harness is positioned between the housing and the vehicle body.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).
-
Test the Installation:
- Test and verify the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional information.
- For detailed diagrams and step-by-step visuals, download the complete installation PDF.
