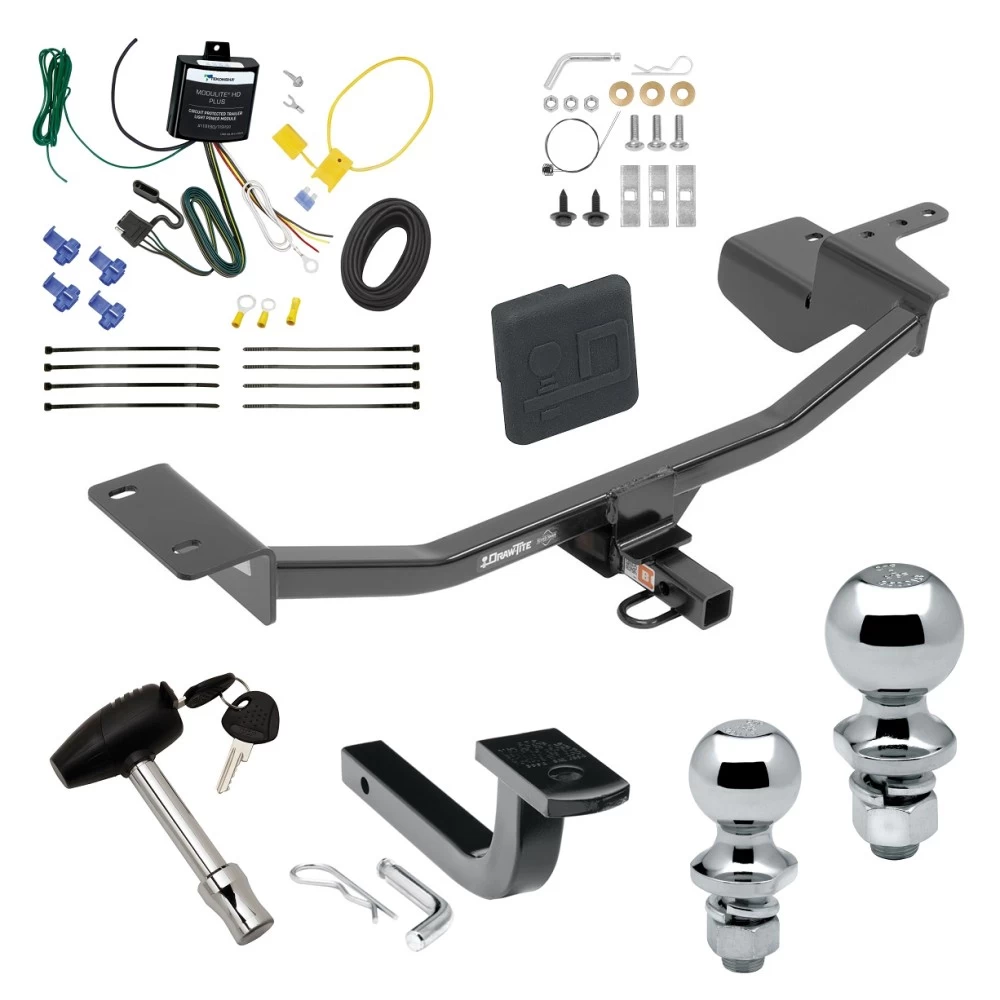

Trailer Tow Hitch For 10‑14 Volkswagen GTI Hatchback Deluxe Package Wiring 2" and 1‑7/8" Ball and Lock
Model: 249040 119191 63820 63810 580407 2211Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Requires Splicing)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2014 Volkswagen, GTI, Hatchback
Trailer Hitch Specs:
| Part Number | 249040 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 119191 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 10 11 12 13 14 2010 2011 2012 2013 2014
$344 99 $547.69 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$547.69 $344 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $86.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 249040 119191 63820 63810 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, ModuLite HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Requires Splicing)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2014 Volkswagen, GTI, Hatchback
Trailer Hitch Specs:
| Part Number | 249040 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 119191 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 10 11 12 13 14 2010 2011 2012 2013 2014
Get Expert Help
Trailer Tow Hitch For 10-14 Volkswagen GTI Hatchback Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes
Installation Instructions for Volkswagen GTI and Volkswagen Golf GTI (Canada Only)
Part Numbers:
- 24904
- 60330
- 77291
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches/Sockets: 13mm, 18mm, 3/4"
- Drill Bits: None
- Lubricating Spray (recommended)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- On the driver’s side, disconnect the rubber exhaust hanger forward of the muffler using lubricating spray.
- On the passenger side, remove the exhaust hanger bracket by detaching the two M8 fasteners. Discard the M8 fasteners.
-
Modify Heat Shield:
- On the driver’s side, bend or cut the heat shield to expose the hole in the frame rail.
-
Fishwire Carriage Bolts and Spacer Blocks:
- Use the provided pull wire to fish the carriage bolts and spacer blocks through the large access holes in the frame rails and into the attachment holes.
- Follow the reverse fishwire procedure (Figure 2) to guide the bolt and block through the large slot and back down through the same slot.
-
Remove Existing Bolt:
- On the driver’s side, remove the existing M12 bolt at the forward-most attachment point. Retain this bolt for hitch installation. Do not clean threads.
-
Position Hitch:
- Raise the hitch into position, ensuring that the bolts remain in place. Loosely attach the hitch using conical toothed washers and nuts.
-
Install Remaining Fasteners:
- Align the holes in the hitch with the holes in the vehicle. Install the remaining fasteners as shown and tighten them.
-
Tighten Fasteners:
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all M8 x 1.25 CL9.8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque all M12 x 1.50 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M).
Hardware List:
- (3) Carriage Bolts: 1/2”-13 x 1.75” GR5
- (3) Spacer Blocks: 1/4” x 1.00” x 3.00”
- (3) Conical Toothed Washers: 1/2”
- (3) Hex Nuts: 1/2”-13
- (2) Hex Bolts: M8 x 1.25 x 35mm CL9.8
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Observe all torque specifications during installation.
Installation Instructions for Vehicle (Canada Only)
Part Numbers:
- 24904
- 60330
- 77291
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches/Sockets: 13mm, 18mm, 3/4"
- Drill Bits: None
- Lubricating Spray (recommended)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- On the driver’s side, disconnect the rubber exhaust hanger forward of the muffler using lubricating spray.
- On the passenger side, remove the exhaust hanger bracket by detaching the two M8 fasteners. Discard the M8 fasteners.
-
Modify Heat Shield:
- On the driver’s side, bend or cut the heat shield to expose the hole in the frame rail.
-
Fishwire Carriage Bolts and Spacer Blocks:
- Use the provided pull wire to fish the carriage bolts and spacer blocks through the large access holes in the frame rails and into the attachment holes.
- Follow the reverse fishwire procedure (Figure 2) to guide the bolt and block through the large slot and back down through the same slot.
-
Remove Existing Bolt:
- On the driver’s side, remove the existing M12 bolt at the forward-most attachment point. Retain this bolt for hitch installation. Do not clean threads.
-
Position Hitch:
- Raise the hitch into position, ensuring that the bolts remain in place. Loosely attach the hitch using conical toothed washers and nuts.
-
Install Remaining Fasteners:
- Align the holes in the hitch with the holes in the vehicle. Install the remaining fasteners as shown and tighten them.
-
Tighten Fasteners:
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Torque all M8 x 1.25 CL9.8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque all M12 x 1.50 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M).
Hardware List:
- (3) Carriage Bolts: 1/2”-13 x 1.75” GR5
- (3) Spacer Blocks: 1/4” x 1.00” x 3.00”
- (3) Conical Toothed Washers: 1/2”
- (3) Hex Nuts: 1/2”-13
- (2) Hex Bolts: M8 x 1.25 x 35mm CL9.8
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Observe all torque specifications during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 119191
Wiring Access Location:
- Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.
Tools Required:
- Drill with a 3/32" drill bit.
- Phillips head #2 screwdriver.
- Wire cutters, wire strippers/crimpers.
- Tester or volt meter.
- Socket and ratchet set.
- Double-sided tape (provided).
Step-by-Step Instructions:
Installation of the Module:
-
Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
-
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
-
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Routing Power to the Battery:
-
Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.
Finalizing Installation:
-
Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
-
Reconnect the vehicle’s negative (-) battery cable.
-
Insert the 15-amp fuse into the fuse holder and close the cap.
-
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).
Hardware List:
- T-Connector adapter.
- 15-amp fuse.
- Fuse holder.
- Eyelet and self-tapping screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Handle all components with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Read and follow all vehicle warnings and installation instructions.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 119191
Wiring Access Location:
- Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.
Tools Required:
- Drill with a 3/32" drill bit.
- Phillips head #2 screwdriver.
- Wire cutters, wire strippers/crimpers.
- Tester or volt meter.
- Socket and ratchet set.
- Double-sided tape (provided).
Step-by-Step Instructions:
Installation of the Module:
-
Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
-
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
-
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Routing Power to the Battery:
-
Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.
Finalizing Installation:
-
Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
-
Reconnect the vehicle’s negative (-) battery cable.
-
Insert the 15-amp fuse into the fuse holder and close the cap.
-
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).
Hardware List:
- T-Connector adapter.
- 15-amp fuse.
- Fuse holder.
- Eyelet and self-tapping screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Handle all components with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Read and follow all vehicle warnings and installation instructions.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
