Installation Instructions for Acura RDX

Part Numbers:

• 75784
• 87642
• 44695

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 3/4", 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare the Hitch:

   • For 2010–2012 models, item 5 is not required (see Figure 1).
   • For 2013 and later models, tape item 5 into position at the top of the hitch near the rear-most hole before proceeding (see Figure 2).

2. Raise the Hitch:

   • Lift the hitch into position and align its slots with the existing weldnuts in the vehicle frame rails.

3. Install M12 Fasteners:

   • Secure the hitch using the M12 x 1.25 x 40mm bolts and conical toothed washers through the hitch and into the frame weldnuts.

4. Insert Handle Nuts:

   • Insert the handle nuts into the large holes in the frame rails as shown in Figures 1 and 2.

5. Install 1/2" Fasteners:

   • Attach the hitch using 1/2"-13 x 1.75 bolts and conical toothed washers. Tighten all fasteners to the specified torque values.

6. Final Adjustments:

   • Gently pull down and rearward at the fascia attachment bracket if additional clearance is needed around the hitch cross tube. Be careful not to distort the fascia.

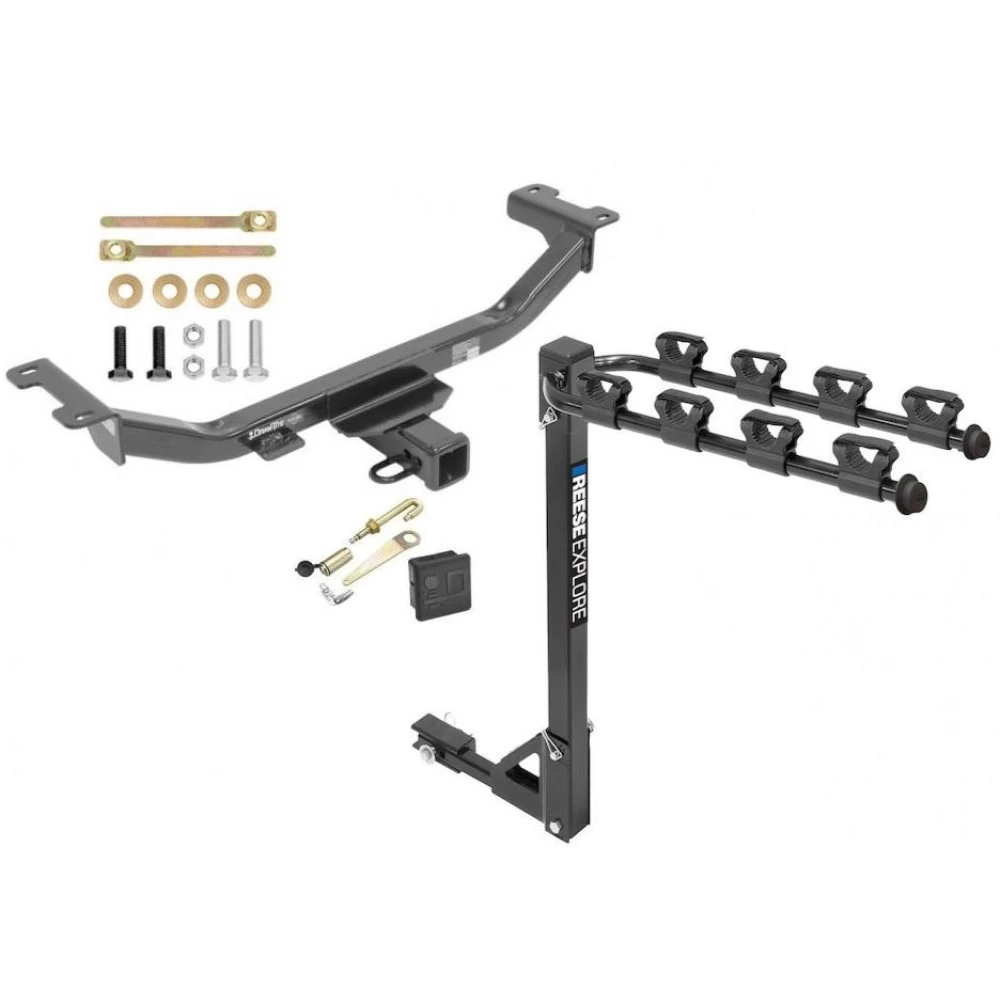

Hardware List:

• Qty (2): Hex Bolt – 1/2"-13 x 1.75 GR5
• Qty (2): Hex Bolt – M12 x 1.25 x 40mm CL8.8
• Qty (4): Conical Toothed Washer – 1/2"
• Qty (2): Handle Nut – 1/2"
• Qty (2): Block – 3/8" x 1.50" x 2.00"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 400 lbs (182 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Tighten all M12 x 1.25 CL8.8 fasteners to 76 lb-ft (103 N*m).
• Tighten all 1/2"-13 GR5 fasteners to 50 lb-ft (68 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75784
• 87642
• 44695

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 3/4", 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare the Hitch:

   • For 2010–2012 models, item 5 is not required (see Figure 1).
   • For 2013 and later models, tape item 5 into position at the top of the hitch near the rear-most hole before proceeding (see Figure 2).

2. Raise the Hitch:

   • Lift the hitch into position and align its slots with the existing weldnuts in the vehicle frame rails.

3. Install M12 Fasteners:

   • Secure the hitch using the M12 x 1.25 x 40mm bolts and conical toothed washers through the hitch and into the frame weldnuts.

4. Insert Handle Nuts:

   • Insert the handle nuts into the large holes in the frame rails as shown in Figures 1 and 2.

5. Install 1/2" Fasteners:

   • Attach the hitch using 1/2"-13 x 1.75 bolts and conical toothed washers. Tighten all fasteners to the specified torque values.

6. Final Adjustments:

   • Gently pull down and rearward at the fascia attachment bracket if additional clearance is needed around the hitch cross tube. Be careful not to distort the fascia.

Hardware List:

• Qty (2): Hex Bolt – 1/2"-13 x 1.75 GR5
• Qty (2): Hex Bolt – M12 x 1.25 x 40mm CL8.8
• Qty (4): Conical Toothed Washer – 1/2"
• Qty (2): Handle Nut – 1/2"
• Qty (2): Block – 3/8" x 1.50" x 2.00"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 400 lbs (182 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Tighten all M12 x 1.25 CL8.8 fasteners to 76 lb-ft (103 N·m).
• Tighten all 1/2"-13 GR5 fasteners to 50 lb-ft (68 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
