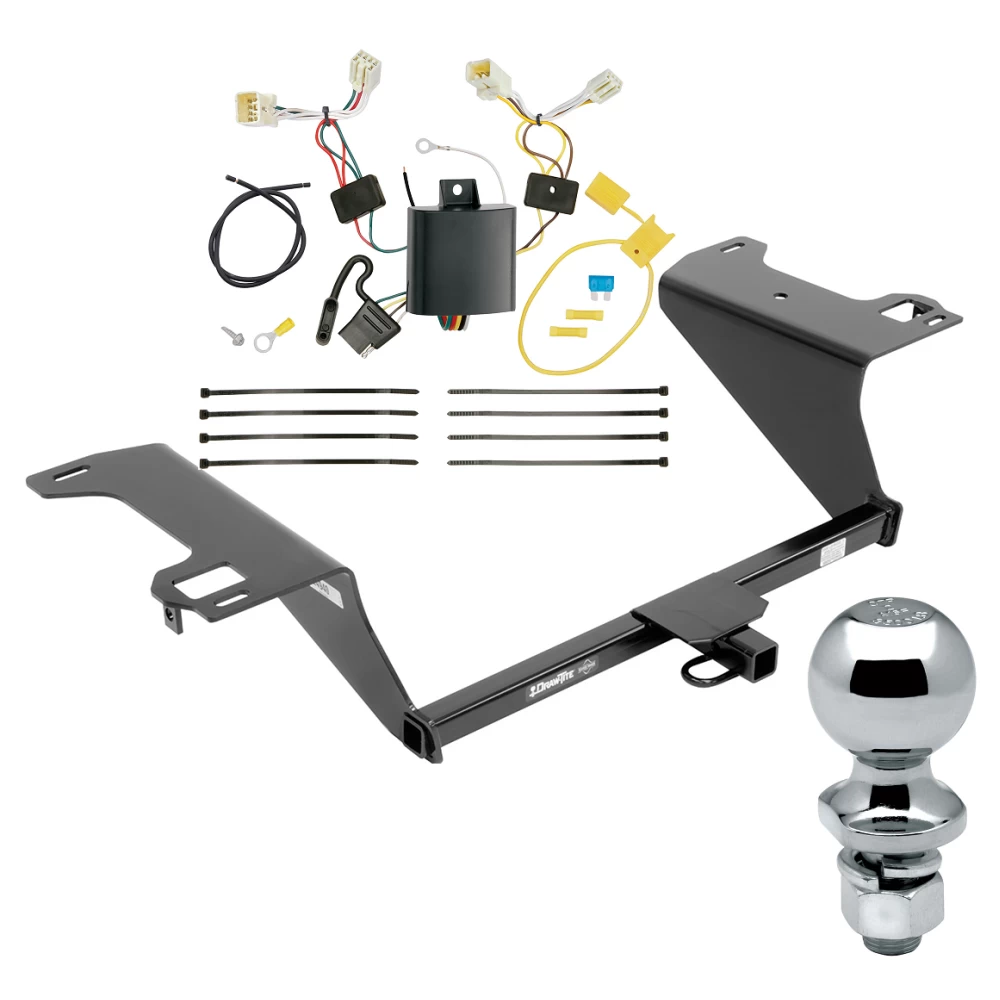

Trailer Tow Hitch For 11‑19 Hyundai Sonata Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball
Model: 249650 118663 63820Custom Fit Trailer Hitch

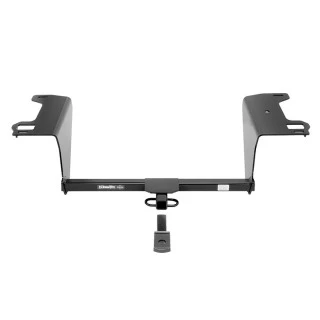

Draw-Bar w/ Pin/Clip

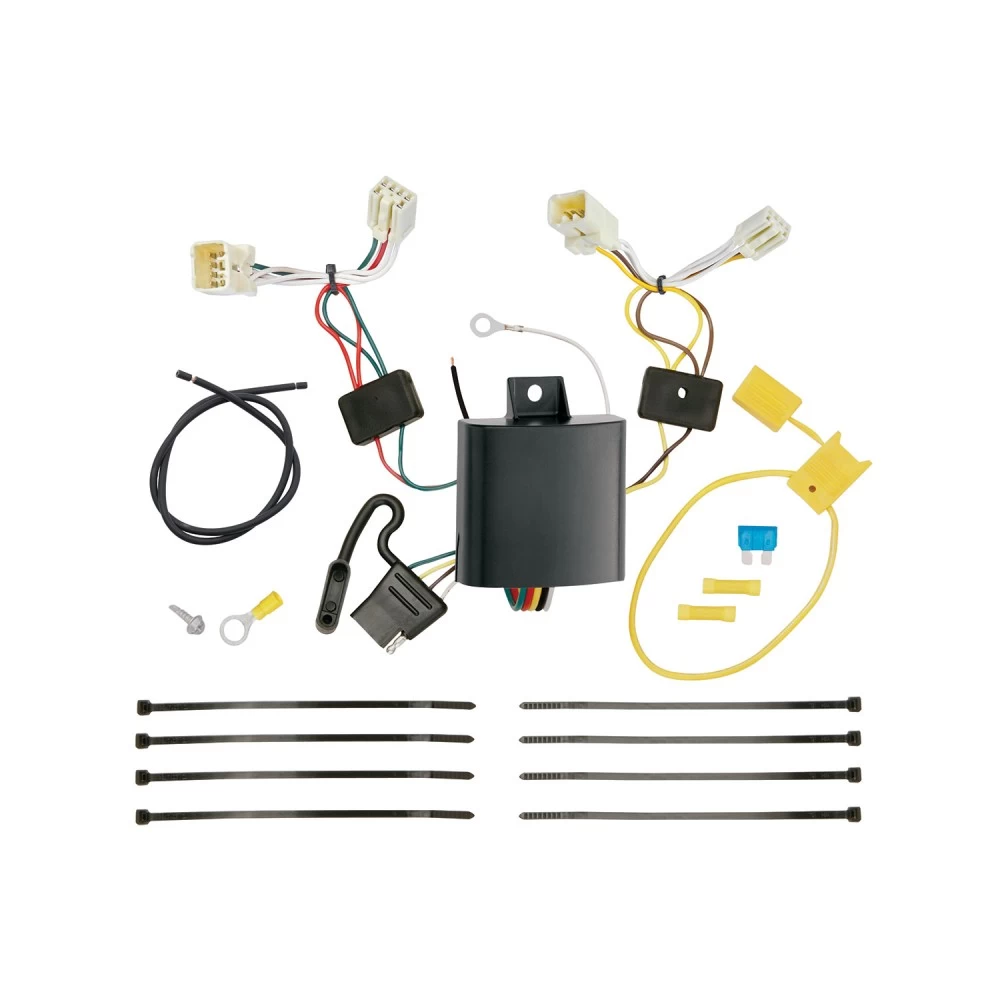

Wiring Harness (Plug & Play)
2" Chrome Ball

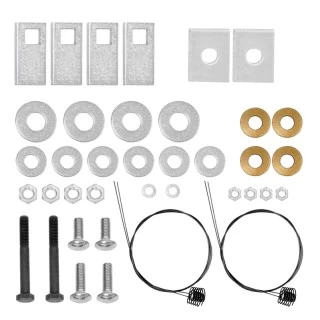

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2019 Hyundai, Sonata, Hybrid
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118663 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Hitch Ball Specs:
Part Number | 63820 |
Brand | Draw-Tite |
Size | 2" x 3/4" x 1-1/2" |
Towing Capacity | 3,500 lbs. GTW |
Material | Chrome |
Torque | Torque to 160 ft. lbs |
Shank Diameter | 3/4" |
Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
$276 10 $468.04 41% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$468.04 $276 10
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $69.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 249650 118663 63820
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2019 Hyundai, Sonata, Hybrid
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118663 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
Hitch Ball Specs:
Part Number | 63820 |
Brand | Draw-Tite |
Size | 2" x 3/4" x 1-1/2" |
Towing Capacity | 3,500 lbs. GTW |
Material | Chrome |
Torque | Torque to 160 ft. lbs |
Shank Diameter | 3/4" |
Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 2011 2012 2013 2014 2015 2016 2017 2018 2019
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | Yes |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch For 11-19 Hyundai Sonata Hybrid Complete Package w/ Wiring Draw Bar and 2" Ball Install Notes
Installation Instructions for Hyundai Sonata (2011-Current) and Kia Optima (2011-Current)
Part Numbers:
- 24965
- 77965
- CQT24965
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 11/16", 12mm, 13mm
- 6” Socket Extension
- Phillips Screwdriver
- Flat Head Screwdriver
- Exhaust Removal Pliers
- Tape Measure
- Tin Snips
- Utility Knife
- Ratchet Strap or Bungee Cord
- Soapy Water or Lubricant
Step-by-Step Instructions:
-
Lower Mufflers:
- Remove the rearmost rubber hangers and the rubber hanger near the rear axle using exhaust removal pliers.
- Spray lubricant on hangers to ease removal.
- Support the exhaust before removing hangers.
-
Remove Factory Muffler Hanger Brackets:
- Remove two hex nuts per hanger bracket and return brackets and fasteners to the vehicle owner.
-
Remove Driver-Side Plastic Panel:
- Remove and return the panel to the vehicle owner or trim it as specified in Figure 10.
-
Remove Rear Plastic Panel:
- Remove the panel covering the space between the bumper fascia and trunk pan and return it to the vehicle owner.
-
Remove Heat Shields:
- Remove 3–5 hex nuts per shield to detach.
- Trim heat shields as required (see Figures 7–9) and reinstall them later.
-
Install Rear Fasteners:
- Use the pull wires provided to install 7/16 x 1.50" carriage bolts and special washers through 7/8" holes in the frame, pulling them through 3/4" rearward holes.
-
Install Forward Fasteners:
- Use the pull wires provided to install 7/16 x 1.25" carriage bolts and spacer blocks through the same 7/8" holes.
-
Reinstall Heat Shields:
- Attach the trimmed heat shields using the original fasteners.
-
Raise Hitch into Position:
- Attach 7/16" conical toothed washers and hex nuts to the forward bolts.
- Use spacer blocks and flat washers if necessary to level the hitch with the vehicle frame.
- Tighten all 7/16-14 fasteners to 50 lb-ft (68 N*m).
-
Trim Fascia:
- Trim a small notch in the fascia at the rear edge of the hitch bracket as needed.
-
Raise Mufflers:
- Reattach all rubber hangers removed earlier.
-
Reinstall Plastic Panels:
- Reinstall the driver-side and rear panels if trimming was done.
Hardware List:
- (2) Carriage Bolt, 7/16-14 x 1.25" GR5
- (2) Carriage Bolt, 7/16-14 x 1.50" GR5
- (2) Special Washer, .109 x .88 x 2.0 (Part No. 1204)
- (2) Spacer Block, 3/16 x 1.50 x 2.00 (Part No. 04833001)
- (4) Conical Washer, 7/16 (Part No. 01292007)
- (4) Hex Nut, 7/16-14 GR2
- (4) Flat Washer, 7/16 (used as spacers on some models)
- (4) Pull Wire, 7/16
Safety Notes:
- Always wear safety glasses during installation.
- Check hitch and fasteners frequently to ensure they remain securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all removed holes to prevent water or exhaust fume entry.
- Do not exceed the vehicle manufacturer’s towing ratings:
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
Specifications:
- Installation Time: 40 minutes
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2011-Current)
Part Numbers:
- 24965
- 77965
- CQT24965
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 11/16", 12mm, 13mm
- 6” Socket Extension
- Phillips Screwdriver
- Flat Head Screwdriver
- Exhaust Removal Pliers
- Tape Measure
- Tin Snips
- Utility Knife
- Ratchet Strap or Bungee Cord
- Soapy Water or Lubricant
Step-by-Step Instructions:
-
Lower Mufflers:
- Remove the rearmost rubber hangers and the rubber hanger near the rear axle using exhaust removal pliers.
- Spray lubricant on hangers to ease removal.
- Support the exhaust before removing hangers.
-
Remove Factory Muffler Hanger Brackets:
- Remove two hex nuts per hanger bracket and return brackets and fasteners to the vehicle owner.
-
Remove Driver-Side Plastic Panel:
- Remove and return the panel to the vehicle owner or trim it as specified in Figure 10.
-
Remove Rear Plastic Panel:
- Remove the panel covering the space between the bumper fascia and trunk pan and return it to the vehicle owner.
-
Remove Heat Shields:
- Remove 3–5 hex nuts per shield to detach.
- Trim heat shields as required (see Figures 7–9) and reinstall them later.
-
Install Rear Fasteners:
- Use the pull wires provided to install 7/16 x 1.50" carriage bolts and special washers through 7/8" holes in the frame, pulling them through 3/4" rearward holes.
-
Install Forward Fasteners:
- Use the pull wires provided to install 7/16 x 1.25" carriage bolts and spacer blocks through the same 7/8" holes.
-
Reinstall Heat Shields:
- Attach the trimmed heat shields using the original fasteners.
-
Raise Hitch into Position:
- Attach 7/16" conical toothed washers and hex nuts to the forward bolts.
- Use spacer blocks and flat washers if necessary to level the hitch with the vehicle frame.
- Tighten all 7/16-14 fasteners to 50 lb-ft (68 N*m).
-
Trim Fascia:
- Trim a small notch in the fascia at the rear edge of the hitch bracket as needed.
-
Raise Mufflers:
- Reattach all rubber hangers removed earlier.
-
Reinstall Plastic Panels:
- Reinstall the driver-side and rear panels if trimming was done.
Hardware List:
- (2) Carriage Bolt, 7/16-14 x 1.25" GR5
- (2) Carriage Bolt, 7/16-14 x 1.50" GR5
- (2) Special Washer, .109 x .88 x 2.0 (Part No. 1204)
- (2) Spacer Block, 3/16 x 1.50 x 2.00 (Part No. 04833001)
- (4) Conical Washer, 7/16 (Part No. 01292007)
- (4) Hex Nut, 7/16-14 GR2
- (4) Flat Washer, 7/16 (used as spacers on some models)
- (4) Pull Wire, 7/16
Safety Notes:
- Always wear safety glasses during installation.
- Check hitch and fasteners frequently to ensure they remain securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all removed holes to prevent water or exhaust fume entry.
- Do not exceed the vehicle manufacturer’s towing ratings:
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
Specifications:
- Installation Time: 40 minutes
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
