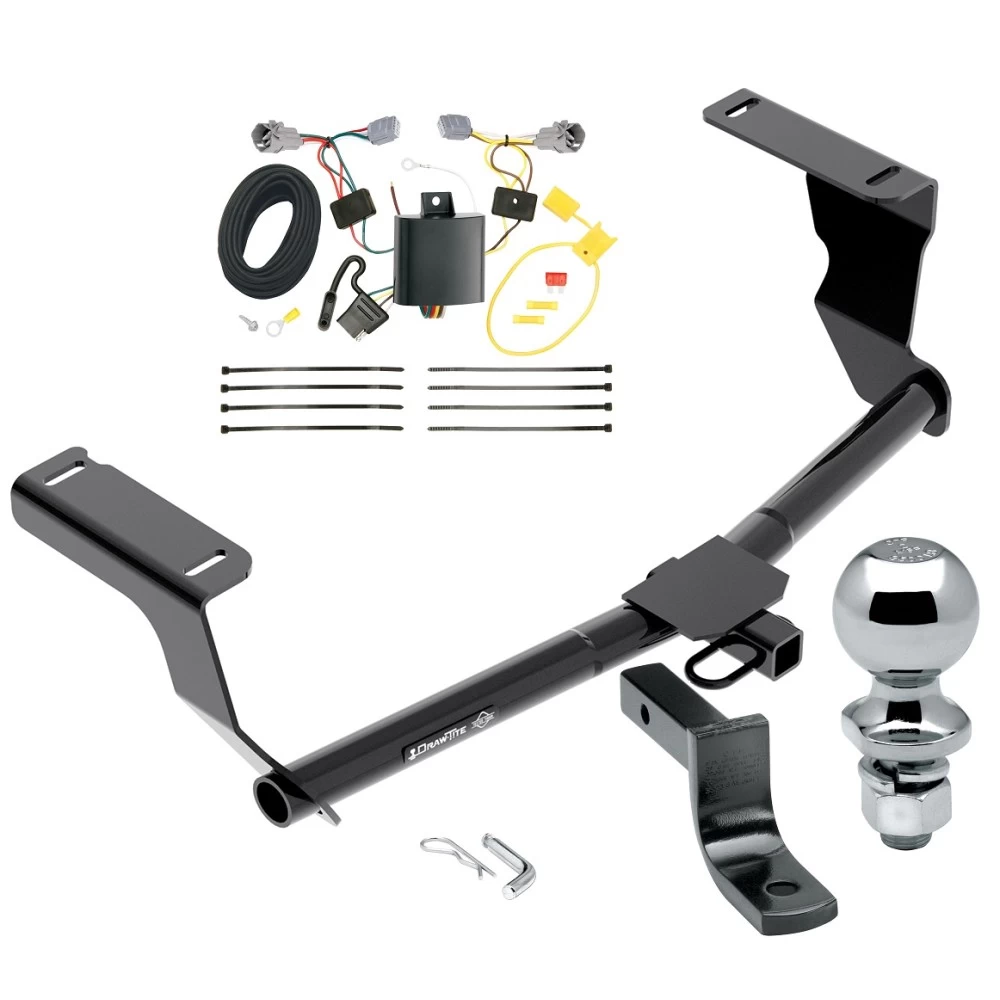

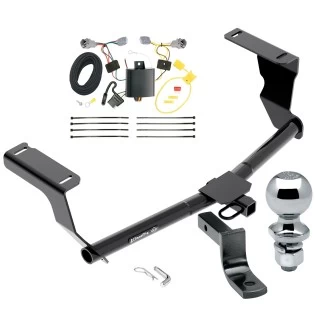

Installation Instructions for Subaru Impreza (2008-Current) and Subaru Crosstrek XV (2013-Current)

Part Numbers:

• 24959
• 77959
• CQT24959

Wiring Access Location:

• Not specified

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 11/16"
• Exhaust Removal Pliers
• 6" Socket Extension
• Drill with 1/2" and 1/4" Drill Bits
• File
• Lubricant or Soapy Water

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 30 minutes (Professional Installer)

Step-by-Step Instructions:

1. Lower Muffler:

   • Use exhaust removal pliers to remove the rubber hangers (4 or 5 depending on the vehicle year) holding the muffler.
   • Apply lubricant or soapy water to ease the removal process.
   • Support the muffler to prevent damage.

2. Remove Rubber Plugs:

   • Remove the rubber plugs from the existing holes in the vehicle frame (2 or 3 depending on the vehicle year) on each side.

3. Enlarge Holes (If Necessary):

   • Drill the rear-most hole with a 1/2" bit and the forward-most hole with a 1/4" bit. Use a file to smooth the edges.

4. Install Fasteners:

   • Use the pull wire to guide the carriage bolts and spacer blocks through the rear-most hole and out the forward-most hole in the frame.
   • For the rear-most holes, use a reverse fish wire method to pull the fasteners into position.

5. Position Hitch:

   • Carefully raise the hitch into position, ensuring that the fasteners remain in place.
   • Install the flat washers, lock washers, and nuts onto the fasteners, ensuring that spacer blocks are positioned between the vehicle frame and the hitch at the forward-most holes.

6. Torque Fasteners:

   • Tighten all 7/16"-14 fasteners to 50 Lb.-Ft. (68 N*M).

7. Raise Muffler:

   • Reattach the muffler to its original position using the rubber hangers.

Hardware List:

• (4) Carriage Bolts: 7/16"-14 x 1.5" GR5
• (4) Spacer Blocks: 1/4" x 7/8" x 3"
• (4) Flat Washers: 7/16"
• (4) Lock Washers: 7/16"
• (4) Hex Nuts: 7/16"-14 GR2
• (2) Spacer Blocks: 1/4" x 1" x 2"
• (4) Pull Wires: 7/16"-14

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Frequently check the hitch to ensure all fasteners remain tight.

Installation Instructions for Subaru Impreza (2008-Current) and Subaru Crosstrek XV (2013-Current)

Part Numbers:

• 24959
• 77959
• CQT24959

Wiring Access Location:

• Not specified

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 11/16"
• Exhaust Removal Pliers
• 6" Socket Extension
• Drill with 1/2" and 1/4" Drill Bits
• File
• Lubricant or Soapy Water

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 30 minutes (Professional Installer)

Step-by-Step Instructions:

1. Lower Muffler:

   • Use exhaust removal pliers to remove the rubber hangers (4 or 5 depending on the vehicle year) holding the muffler.
   • Apply lubricant or soapy water to ease the removal process.
   • Support the muffler to prevent damage.

2. Remove Rubber Plugs:

   • Remove the rubber plugs from the existing holes in the vehicle frame (2 or 3 depending on the vehicle year) on each side.

3. Enlarge Holes (If Necessary):

   • Drill the rear-most hole with a 1/2" bit and the forward-most hole with a 1/4" bit. Use a file to smooth the edges.

4. Install Fasteners:

   • Use the pull wire to guide the carriage bolts and spacer blocks through the rear-most hole and out the forward-most hole in the frame.
   • For the rear-most holes, use a reverse fish wire method to pull the fasteners into position.

5. Position Hitch:

   • Carefully raise the hitch into position, ensuring that the fasteners remain in place.
   • Install the flat washers, lock washers, and nuts onto the fasteners, ensuring that spacer blocks are positioned between the vehicle frame and the hitch at the forward-most holes.

6. Torque Fasteners:

   • Tighten all 7/16"-14 fasteners to 50 Lb.-Ft. (68 N*M).

7. Raise Muffler:

   • Reattach the muffler to its original position using the rubber hangers.

Hardware List:

• (4) Carriage Bolts: 7/16"-14 x 1.5" GR5
• (4) Spacer Blocks: 1/4" x 7/8" x 3"
• (4) Flat Washers: 7/16"
• (4) Lock Washers: 7/16"
• (4) Hex Nuts: 7/16"-14 GR2
• (2) Spacer Blocks: 1/4" x 1" x 2"
• (4) Pull Wires: 7/16"-14

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Frequently check the hitch to ensure all fasteners remain tight.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

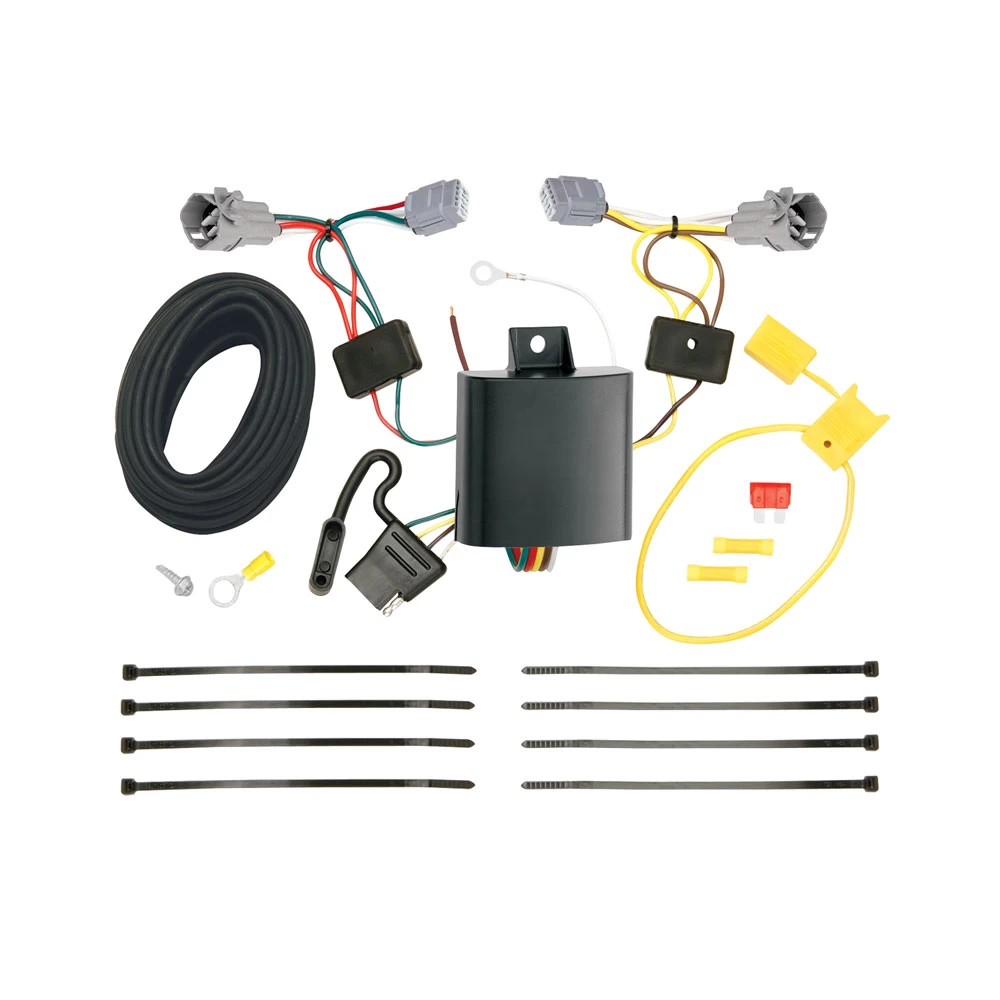

Installation Instructions for T-Connector Adapter for Impreza Sport

Part Numbers:

• 118573

Tools Required:

• 10mm Socket & Ratchet or Wrench
• Trim Panel Remover
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear tailgate to access the bolts holding the taillights in place.
   • Remove the taillights on both the driver and passenger sides of the vehicle.

2. Connect the Driver-Side T-Connector:

   • Behind the driver’s side taillight, separate the vehicle’s wiring connectors.
   • Insert the T-Connector with the yellow and brown wires between the connectors.
   • Ensure all connections are fully inserted and the locking tabs are secure.

3. Route the Passenger-Side T-Connector:

   • Route the green wire and the 4-flat connector through the opening between the vehicle’s bumper and body.
   • Route the green wire to the passenger side taillight pocket.
   • Connect the green wire T-Connector to the passenger-side wiring connectors.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connectors on the driver’s side.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame to the engine compartment, avoiding areas that may pinch or break the wire.

   Warning:

   • Avoid routing the wire near hot pipes, heat shields, fuel tanks, or other areas where it may be damaged.

6. Connect to the Vehicle Battery:

   • Disconnect the negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the fuse into the fuse holder.

7. Mount the Black Box:

   • Mount the black converter box in a suitable location on the driver’s side using the provided double-sided tape.

8. Secure the Wiring:

   • Secure the T-Connector harness using the provided cable ties, avoiding areas that may pinch, cut, or melt the wires.

9. Reinstall the Vehicle Components:

   • Reinstall the taillight assemblies and any other components removed during the installation, ensuring no wires are pinched or cut.

10. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps
• Max. tail lights: 5.6 amps

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the specified circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.

Installation Instructions for T-Connector Adapter for Impreza Sport

Part Numbers:

• 118573

Tools Required:

• 10mm Socket & Ratchet or Wrench
• Trim Panel Remover
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear tailgate to access the bolts holding the taillights in place.
   • Remove the taillights on both the driver and passenger sides of the vehicle.

2. Connect the Driver-Side T-Connector:

   • Behind the driver’s side taillight, separate the vehicle’s wiring connectors.
   • Insert the T-Connector with the yellow and brown wires between the connectors.
   • Ensure all connections are fully inserted and the locking tabs are secure.

3. Route the Passenger-Side T-Connector:

   • Route the green wire and the 4-flat connector through the opening between the vehicle’s bumper and body.
   • Route the green wire to the passenger side taillight pocket.
   • Connect the green wire T-Connector to the passenger-side wiring connectors.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connectors on the driver’s side.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame to the engine compartment, avoiding areas that may pinch or break the wire.

   Warning:

   • Avoid routing the wire near hot pipes, heat shields, fuel tanks, or other areas where it may be damaged.

6. Connect to the Vehicle Battery:

   • Disconnect the negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the fuse into the fuse holder.

7. Mount the Black Box:

   • Mount the black converter box in a suitable location on the driver’s side using the provided double-sided tape.

8. Secure the Wiring:

   • Secure the T-Connector harness using the provided cable ties, avoiding areas that may pinch, cut, or melt the wires.

9. Reinstall the Vehicle Components:

   • Reinstall the taillight assemblies and any other components removed during the installation, ensuring no wires are pinched or cut.

10. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps
• Max. tail lights: 5.6 amps

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the specified circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
