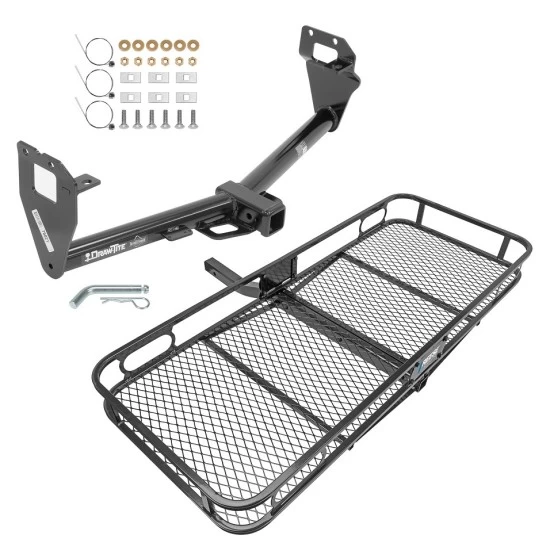

Trailer Tow Hitch For 15‑23 Jeep Renegade Basket Cargo Carrier Platform w/ Hitch Pin
Model: 76021 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2023 Jeep, Renegade, All Styles

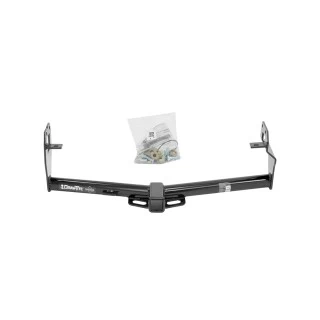

Trailer Hitch Specs:
| Part Number | 76021 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 2015 2016 2017 2018 2019 2020 2021 2022 2023
$492 98 $791.59 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$791.59 $492 98
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $123.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76021 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2023 Jeep, Renegade, All Styles
Trailer Hitch Specs:
| Part Number | 76021 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 2015 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch For 15-23 Jeep Renegade Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Jeep Renegade (2015-Current)
Part Numbers:
- 76021
- 84021
- CQT76021
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 13mm, 21mm, 3/4"
- Flat Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Drill with 1” Holesaw
- 6” Socket Extension
Wiring Access Location:
- [Information not provided]
Step-by-Step Instructions:
-
Loosen Wheel Well Fender:
- Use a Phillips screwdriver and a 10mm socket to remove (4) bolts and (1) plastic flange nut from the wheel well fender on the passenger side.
-
Remove Rubber Plugs:
- Use a flat head screwdriver to remove (1) plug from the bottom frame rail and (2) plugs from the outside frame rail on each side.
Note: For models with a factory tow hook, use a 21mm socket to remove the M14 bolts in these locations. Retain bolts for reinstallation and skip Step 3.
-
Drill Access Holes for Fasteners:
- Locate the area between the exhaust hanger bracket and the suspension mount on the frame rail.
- Use a 1” holesaw to drill an access hole on each side.
- Use pliers to bend the heat shield edge down, if necessary.
-
Lower Exhaust and Clear Caulk:
- Use a 13mm socket to remove (1) bolt from the exhaust hanger on each side and lower the muffler temporarily.
- Support the muffler to prevent damage.
- Use a utility knife to remove caulk near mounting holes and slightly bend the heat shield edge down on each side.
-
Install Hitch:
- Fishwire the carriage bolts and spacers into the frame through the drilled holes. Leave pull wires attached.
- Raise the hitch into position and carefully slide it over the exhaust hanger.
- Feed pull wires through bracket holes, remove pull wires, and loosely install conical washers and hex nuts.
- For models with a factory tow hook, loosely secure the factory M14 bolts to the hitch attachment holes.
-
Tighten Fasteners:
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
- Torque all M14 fasteners to 115 lb-ft (156 N·m).
-
Reinstall Components:
- Reinstall the exhaust hanger and all fasteners removed from the wheel well fender in Steps 1 and 4.

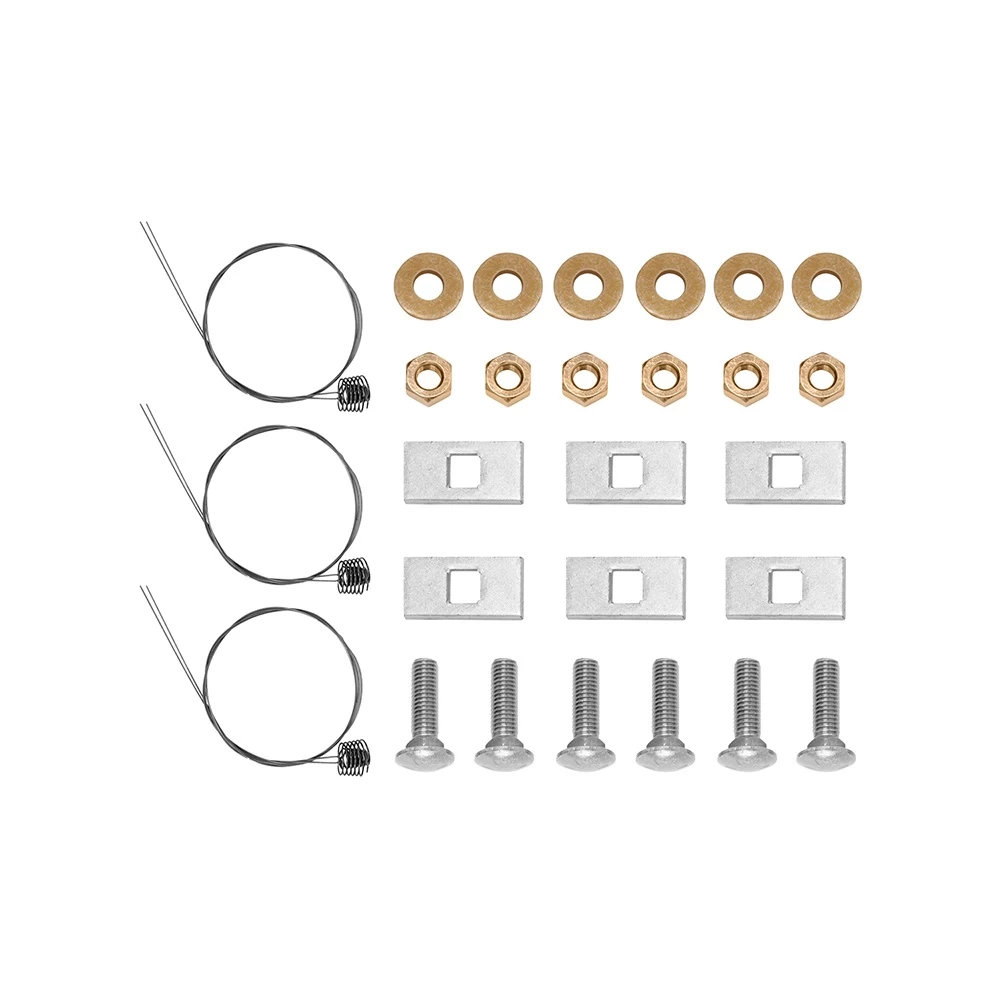

Hardware List:
- (6) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (6) .250 x 1.0 x 2.0 Spacer Blocks
- (6) 1/2" Conical Washers
- (6) 1/2”-13 Grade 5 Hex Nuts
- (6) 1/2”-13 Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: [Information not provided].
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are not comfortable performing the installation.
Installation Instructions for Vehicle (2015-Current)
Part Numbers:
- 76021
- 84021
- CQT76021
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 13mm, 21mm, 3/4"
- Flat Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Drill with 1” Holesaw
- 6” Socket Extension
Wiring Access Location:
- [Information not provided]
Step-by-Step Instructions:
-
Loosen Wheel Well Fender:
- Use a Phillips screwdriver and a 10mm socket to remove (4) bolts and (1) plastic flange nut from the wheel well fender on the passenger side.
-
Remove Rubber Plugs:
- Use a flat head screwdriver to remove (1) plug from the bottom frame rail and (2) plugs from the outside frame rail on each side.
Note: For models with a factory tow hook, use a 21mm socket to remove the M14 bolts in these locations. Retain bolts for reinstallation and skip Step 3.
-
Drill Access Holes for Fasteners:
- Locate the area between the exhaust hanger bracket and the suspension mount on the frame rail.
- Use a 1” holesaw to drill an access hole on each side.
- Use pliers to bend the heat shield edge down, if necessary.
-
Lower Exhaust and Clear Caulk:
- Use a 13mm socket to remove (1) bolt from the exhaust hanger on each side and lower the muffler temporarily.
- Support the muffler to prevent damage.
- Use a utility knife to remove caulk near mounting holes and slightly bend the heat shield edge down on each side.
-
Install Hitch:
- Fishwire the carriage bolts and spacers into the frame through the drilled holes. Leave pull wires attached.
- Raise the hitch into position and carefully slide it over the exhaust hanger.
- Feed pull wires through bracket holes, remove pull wires, and loosely install conical washers and hex nuts.
- For models with a factory tow hook, loosely secure the factory M14 bolts to the hitch attachment holes.
-
Tighten Fasteners:
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
- Torque all M14 fasteners to 115 lb-ft (156 N·m).
-
Reinstall Components:
- Reinstall the exhaust hanger and all fasteners removed from the wheel well fender in Steps 1 and 4.
Hardware List:
- (6) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (6) .250 x 1.0 x 2.0 Spacer Blocks
- (6) 1/2" Conical Washers
- (6) 1/2”-13 Grade 5 Hex Nuts
- (6) 1/2”-13 Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: [Information not provided].
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are not comfortable performing the installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
