Towing Trailer Hitch Hitch with 4-Flat Plug
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha
Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha

Trailer Hitch w/ Wiring For 15-24 Ford F-150 Class 5 2" Tow Receiver Reese Tekonsha

Model: 96954 20252

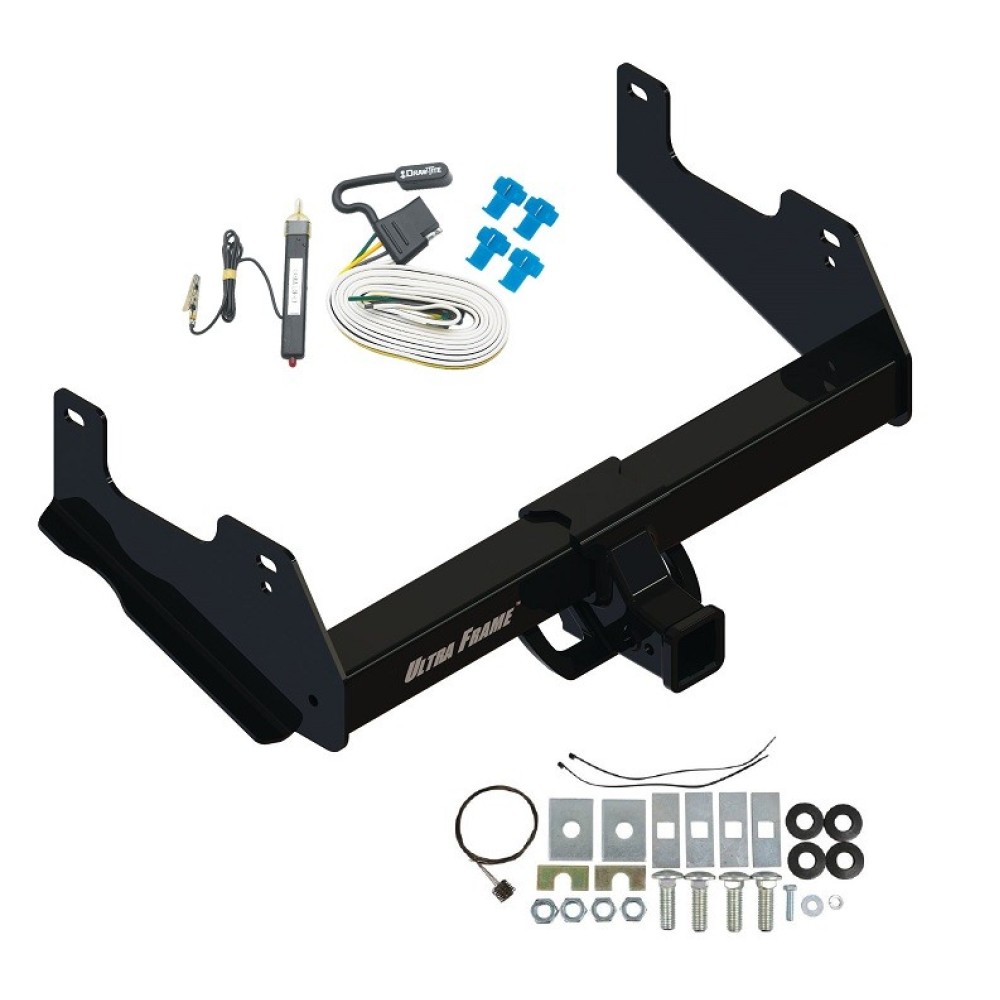

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)

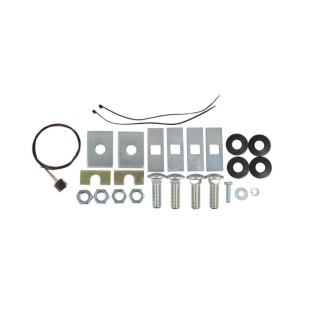

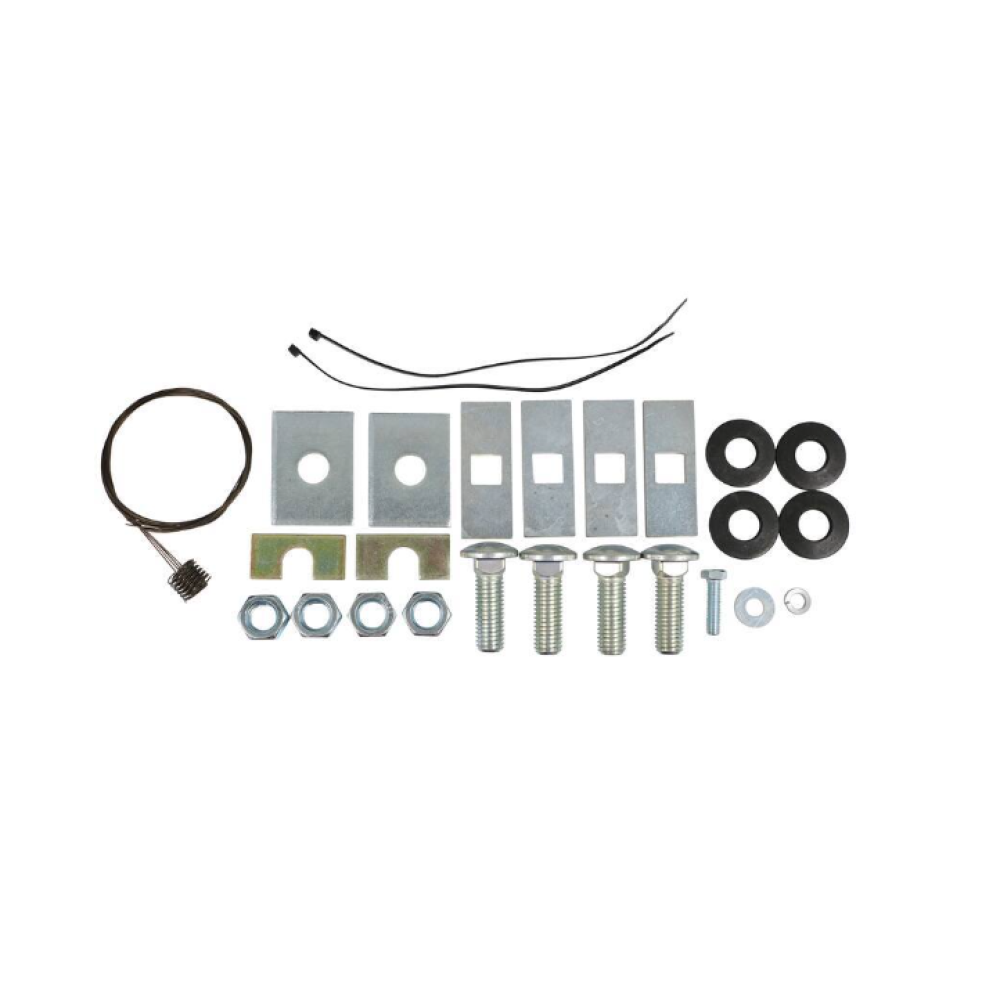

Installation Hardware
Installation Instructions

Fits The Following Vehicles:

2015 - 2024  Ford, F-150, All Styles



Trailer Hitch Specs:
Part Number 96954
Brand Reese
Finish Black Powdercoat
Class V
Receiver size opening 2"
Max gross trailer weight 11,000 lbs
Max GTW w/ weight distribution 14,000 lbs
Max Tongue Weight 1,100/1,400 lbs
Warranty Lifetime
Installation Instructions


Wiring Kit Specs:

Part Number 20252
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
See Full Description

$283 61 $444.42 36% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • Pre-Order
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only
Estimate

Verify Fitment

Add to Wish List

$444.42 $283 61

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Installments in partnership with . Affirm and its offerings are supported in English only. Translations are not provided by Affirm.

Fits Vehicle Styles

Product Details

  • Brand: Reese
  • Model: 96954 20252
  • Includes: Class 5 Trailer Tow Hitch,  Wiring Connector
Compatibility Chart
Year Range Make Model Style

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Installation Hardware
Installation Instructions

Fits The Following Vehicles:

2015 - 2024  Ford, F-150, All Styles



Trailer Hitch Specs:
Part Number 96954
Brand Reese
Finish Black Powdercoat
Class V
Receiver size opening 2"
Max gross trailer weight 11,000 lbs
Max GTW w/ weight distribution 14,000 lbs
Max Tongue Weight 1,100/1,400 lbs
Warranty Lifetime
Installation Instructions


Wiring Kit Specs:

Part Number 20252
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 11,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 14,000 lbs.
Hitch Class V
Material Steel
Maximum Tongue Weight 1,100 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,400 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
