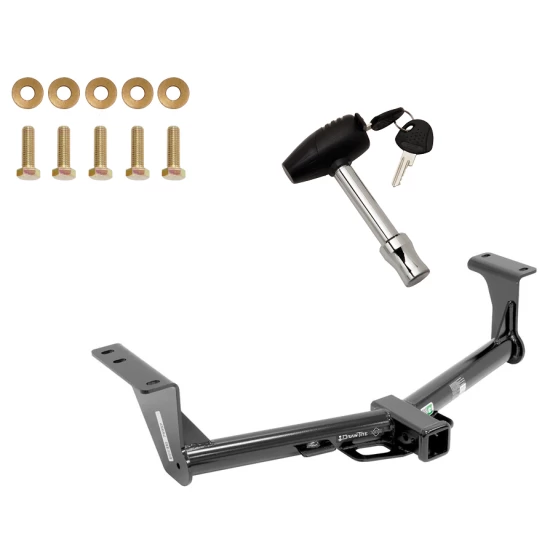

Trailer Tow Hitch For 15‑24 Nissan Murano w/ Security Lock Pin Key
Model: 75952 580407 *Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2024 Nissan, Murano, All Styles
Trailer Hitch Specs:
| Part Number | 75952 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$222 91 $350.70 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$350.70 $222 91
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $55.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75952 580407 *
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2024 Nissan, Murano, All Styles
Trailer Hitch Specs:
| Part Number | 75952 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 15-24 Nissan Murano w/ Security Lock Pin Key Install Notes
Installation Instructions for Nissan Murano (2015-Current)
Part Numbers:
- 75952
- 87679
- 44761
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 19mm
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Scrape the frame rails to remove any undercoating or debris.
- Run the M12 bolts into the existing weldnuts in the frame rail to remove any debris, then remove the bolts.
-
Position the Hitch:
- Raise the hitch into position, aligning the slots in the hitch side brackets with the existing weldnuts in the vehicle frame rail.
-
Install Fasteners:
- Secure the hitch using five (5) M12 x 1.25 x 40mm CL10.9 bolts and five (5) conical toothed washers.
- Ensure the toothed side of the washers faces the hitch.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N·m).
-
Verify Installation:
- Check the hitch to ensure it is securely mounted to the vehicle and all fasteners are properly tightened.
- Recheck periodically during use.
Hardware List:
- (5) M12 x 1.25 x 40mm CL10.9 Hex Bolts
- (5) 1/2” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 15 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Installation Instructions for Vehicle (2015-Current)
Part Numbers:
- 75952
- 87679
- 44761
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 19mm
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Prepare Frame Rails:
- Scrape the frame rails to remove any undercoating or debris.
- Run the M12 bolts into the existing weldnuts in the frame rail to remove any debris, then remove the bolts.
-
Position the Hitch:
- Raise the hitch into position, aligning the slots in the hitch side brackets with the existing weldnuts in the vehicle frame rail.
-
Install Fasteners:
- Secure the hitch using five (5) M12 x 1.25 x 40mm CL10.9 bolts and five (5) conical toothed washers.
- Ensure the toothed side of the washers faces the hitch.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N·m).
-
Verify Installation:
- Check the hitch to ensure it is securely mounted to the vehicle and all fasteners are properly tightened.
- Recheck periodically during use.
Hardware List:
- (5) M12 x 1.25 x 40mm CL10.9 Hex Bolts
- (5) 1/2” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 15 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
