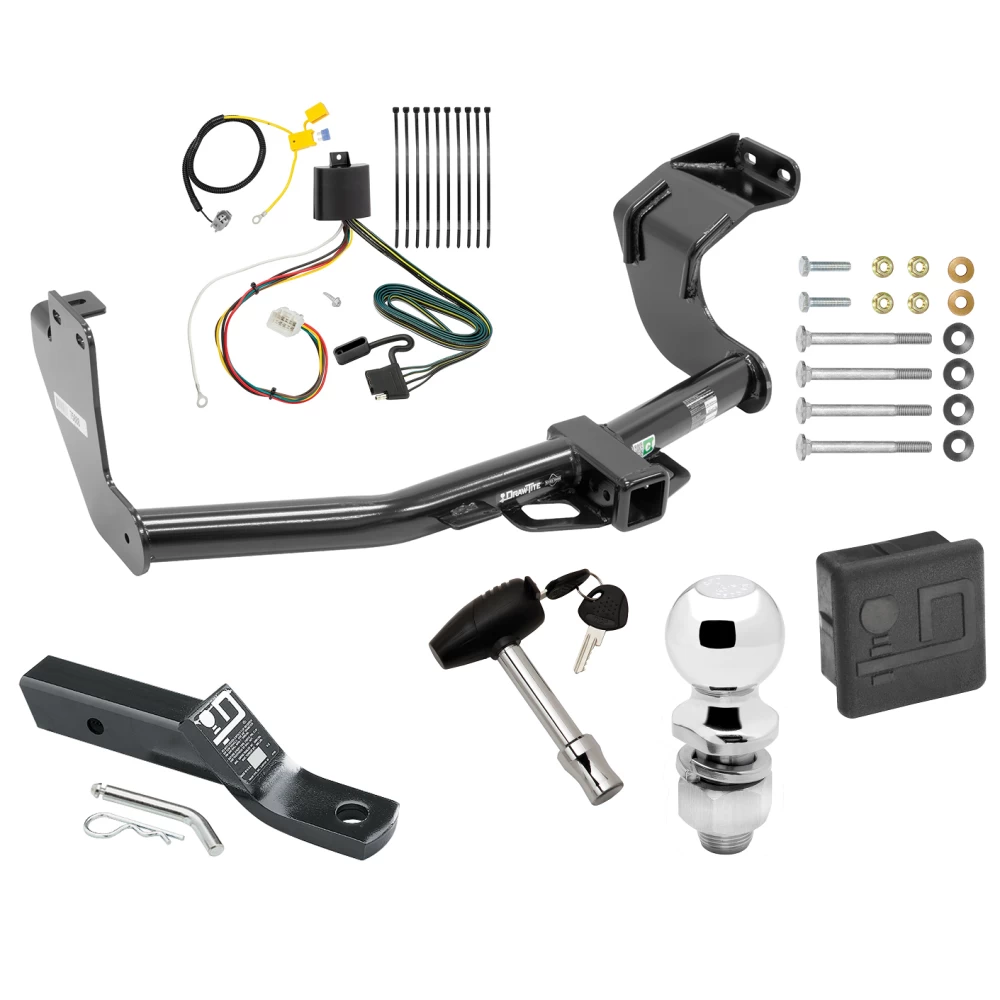

Trailer Tow Hitch For 16‑18 Mitsubishi Outlander Except Sport or PHEV Deluxe Package Wiring 2" Ball and Lock
Model: 75888 118277 23 63845 580407 7010Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2018 Mitsubishi, Outlander, Except Sport or PHEV
Trailer Hitch Specs:
| Part Number | 75888 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118277 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 16 17 18 2016 2017 2018
$324 71 $497.02 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$497.02 $324 71
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $81.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75888 118277 23 63845 580407 7010
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2018 Mitsubishi, Outlander, Except Sport or PHEV
Trailer Hitch Specs:
| Part Number | 75888 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118277 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 16 17 18 2016 2017 2018
Get Expert Help
Trailer Tow Hitch For 16-18 Mitsubishi Outlander Except Sport or PHEV Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Mitsubishi Outlander (Except Sport)
Part Numbers:
- 75888
- 87656
- 44707
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 14mm, 17mm, 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect three (3) rubber exhaust hangers from the muffler to lower the exhaust system.
-
Remove Tow Hook:
- Detach the tow hook from the driver-side vehicle frame. Return the tow hook and fasteners to the vehicle owner.
-
Install Hitch:
- Raise the hitch into position and align it with the existing weld nuts on the frame. Install all fasteners as shown in the instructions.
-
Raise Exhaust:
- Reconnect the rubber exhaust hangers to return the exhaust system to its original position. Reattach the muffler to the exhaust pipe if removed earlier.
-
Torque All Fasteners:
- Tighten all M10 x 1.25 CL8.8 fasteners to 42 lb-ft (57 Nm) and all 1/2"-13 GR5 fasteners to 75 lb-ft (102 Nm) using a torque wrench.
Hardware List:
- Qty (2): Hex Bolt – M10 x 1.25 x 40mm CL8.8
- Qty (2): Conical Toothed Washer – 3/8”
- Qty (4): Carriage Bolt – 1/2"-13 x 4.5" GR5
- Qty (4): Flanged Lock Nut – 1/2"-13
- Qty (4): Hardened Flat Washer – 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Tighten all fasteners to the specified torque values.
- Removal of the spare tire may make the installation process easier.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicle (Except Sport)
Part Numbers:
- 75888
- 87656
- 44707
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 14mm, 17mm, 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect three (3) rubber exhaust hangers from the muffler to lower the exhaust system.
-
Remove Tow Hook:
- Detach the tow hook from the driver-side vehicle frame. Return the tow hook and fasteners to the vehicle owner.
-
Install Hitch:
- Raise the hitch into position and align it with the existing weld nuts on the frame. Install all fasteners as shown in the instructions.
-
Raise Exhaust:
- Reconnect the rubber exhaust hangers to return the exhaust system to its original position. Reattach the muffler to the exhaust pipe if removed earlier.
-
Torque All Fasteners:
- Tighten all M10 x 1.25 CL8.8 fasteners to 42 lb-ft (57 Nm) and all 1/2"-13 GR5 fasteners to 75 lb-ft (102 Nm) using a torque wrench.
Hardware List:
- Qty (2): Hex Bolt – M10 x 1.25 x 40mm CL8.8
- Qty (2): Conical Toothed Washer – 3/8”
- Qty (4): Carriage Bolt – 1/2"-13 x 4.5" GR5
- Qty (4): Flanged Lock Nut – 1/2"-13
- Qty (4): Hardened Flat Washer – 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Tighten all fasteners to the specified torque values.
- Removal of the spare tire may make the installation process easier.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Tow Harness for Mitsubishi Outlander
Part Numbers:
- 118277
Tools Required:
- Trim Panel Remover
- 12mm Socket & Ratchet
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Disconnect the Battery:
- Disconnect and isolate the vehicle’s Negative (-) battery terminal.
-
Remove Interior Panels:
- Open the vehicle’s rear tailgate.
- On the driver’s side, remove access panels, threshold, trunk floor panels, and trays. Set all items aside carefully to avoid damage.
-
Locate Factory Tow Harness Connector:
- On the driver’s side, locate the factory tow harness connector taped to the vehicle body harness.
-
Connect the Tow Harness:
- Insert the tow harness into the factory connector and lock it in place.
- Ensure all connectors are fully inserted with locking tabs secured.
-
Mount the Black Box:
- Locate a flat surface in an out-of-the-way place to mount the tow harness black box-module. This prevents damage or rattling.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Reinstall Interior Panels:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Ensure wires are not pinched or cut.
-
Connect to Fuse Block:
- Locate the black plug under the fuse block behind the driver’s side headlight.
- Remove the black plug and connect the grey connector into the factory harness.
- Connect the ring terminal to the positive side of the battery terminal.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
-
Test the Installation:
- Ensure all connections are complete for proper tow harness functionality.
- Reset the vehicle’s electrical system by temporarily removing the ignition key.
- Test the installation with a test light or trailer.
Warning: Overloading circuits can cause fires. Do not exceed stated product ratings. Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and take precautions during installation.
- Avoid routing wires near hot pipes, heat shields, or areas where they may be pinched or damaged.
- Follow all vehicle warnings and installation instructions.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for Tow Harness
Part Numbers:
- 118277
Tools Required:
- Trim Panel Remover
- 12mm Socket & Ratchet
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Disconnect the Battery:
- Disconnect and isolate the vehicle’s Negative (-) battery terminal.
-
Remove Interior Panels:
- Open the vehicle’s rear tailgate.
- On the driver’s side, remove access panels, threshold, trunk floor panels, and trays. Set all items aside carefully to avoid damage.
-
Locate Factory Tow Harness Connector:
- On the driver’s side, locate the factory tow harness connector taped to the vehicle body harness.
-
Connect the Tow Harness:
- Insert the tow harness into the factory connector and lock it in place.
- Ensure all connectors are fully inserted with locking tabs secured.
-
Mount the Black Box:
- Locate a flat surface in an out-of-the-way place to mount the tow harness black box-module. This prevents damage or rattling.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Reinstall Interior Panels:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Ensure wires are not pinched or cut.
-
Connect to Fuse Block:
- Locate the black plug under the fuse block behind the driver’s side headlight.
- Remove the black plug and connect the grey connector into the factory harness.
- Connect the ring terminal to the positive side of the battery terminal.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
-
Test the Installation:
- Ensure all connections are complete for proper tow harness functionality.
- Reset the vehicle’s electrical system by temporarily removing the ignition key.
- Test the installation with a test light or trailer.
Warning: Overloading circuits can cause fires. Do not exceed stated product ratings. Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and take precautions during installation.
- Avoid routing wires near hot pipes, heat shields, or areas where they may be pinched or damaged.
- Follow all vehicle warnings and installation instructions.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
Related Products
