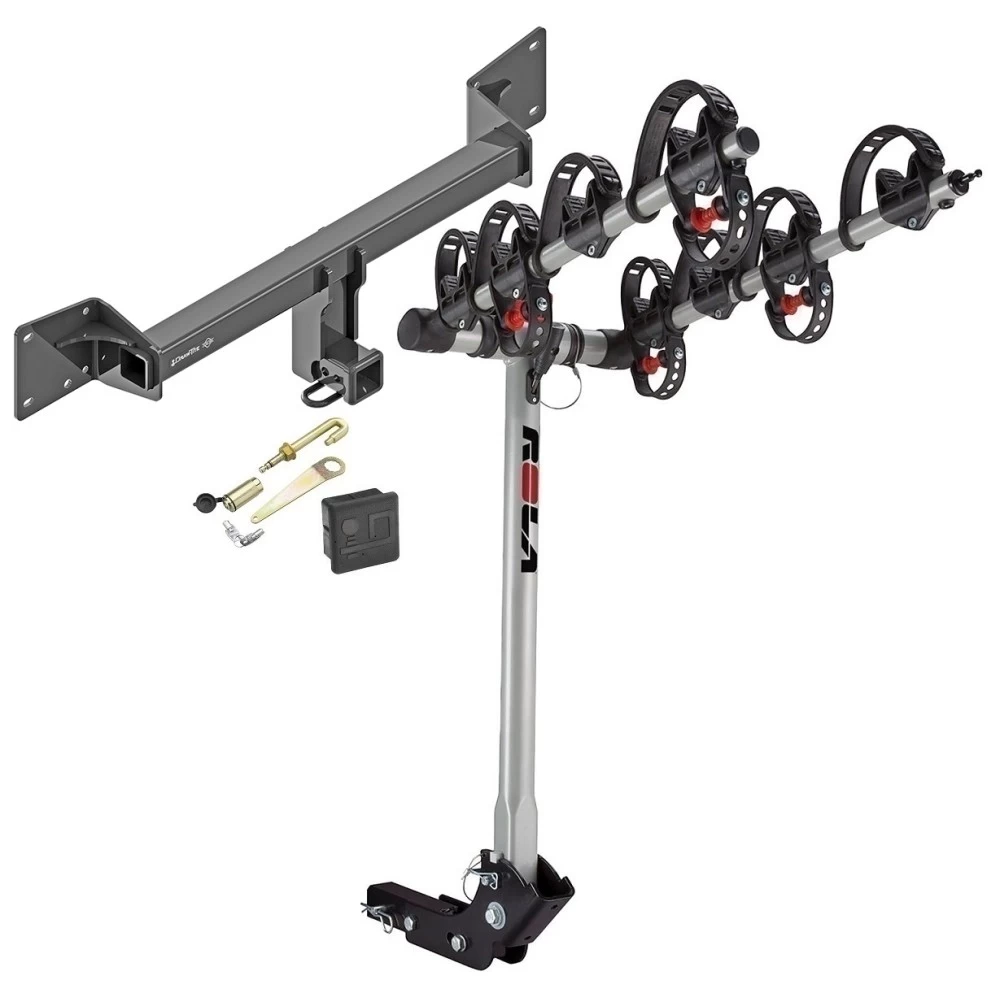

Installation Instructions for Audi Q5/SQ5

Part Numbers:

• 76183
• 84183
• CQT76183

Applicable Models:

• Audi Q5/SQ5 (2018-Present)

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Panel Removal Tool
• Tape
• Utility Knife
• Plastic Trim Tools
• Silicone Sealant
• Sockets: 10mm, 16mm
• T25 Torx Bit Socket

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 750 lbs (340 kg)
• Weight Distributing:
  • Not Applicable

Step-by-Step Instructions:

1. Remove Fascia:

   • Using a T25 Torx bit, remove (4) screws from the rear bottom fascia.
   • Remove (1) screw and (1) plastic flange nut from the wheel well liner on both sides using a T25 Torx bit and a 10mm socket.
   • Using plastic trim tools, remove the lower part of the wheel well trim by unclipping the tabs and gently pulling outward on both sides.
   • Remove (3) screws located vertically behind the wheel well liner and (1) screw behind the wheel well trim using a T25 Torx bit. Repeat on both sides.
   • Open the liftgate. Remove (2) round plastic screws near the trunk weather seal using a T25 Torx bit. Remove the rear cargo flooring.
   • Using a panel removal tool, remove the scuff plate by unclipping the tabs and pulling upward. Remove (2) flange nuts from recessed bumper fascia studs beneath the scuff plate using a 10mm socket.
   • Remove the driver-side interior panel. If present, unclip (2) wiring harnesses. Remove (1) flange nut from the bumper fascia stud behind insulation using a 10mm socket. Repeat for the passenger side without removing any wiring harness.
   • Using a plastic trim panel tool, remove the fascia starting from the wheel wells and gently pulling outward.

2. Remove Bumper Beam:

   • Using a 16mm socket, remove (8) M10 factory bolts securing the bumper beam and crossbar above the bumper beam.
   • Return the bumper beam and crossbar to the owner.

3. Install Hitch:

   • Apply silicone sealant around the openings on the end panels on both sides.
   • Raise the hitch into position and loosely install (8) existing factory M10 bolts through the hitch.

4. Tighten Fasteners:

   • Tighten all M10 fasteners to 53 lb-ft (72 N·m) using a torque wrench.

5. Trim Fascia:

   • Using tape and a utility knife, cut a notch in the lower fascia as shown in the provided diagram. Avoid cutting any wiring behind the center lower fascia.

6. Reinstall Components:

   • Reverse the steps in Step 1 to reinstall all fasteners, wiring harnesses, panels, rubber plugs, scuff plate, wheel well trim, and fascia.

Safety Notes:

• Regularly inspect the hitch and ensure all fasteners are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Wear safety glasses and observe all precautions when working under a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the lowest capacity of any component in the towing system (e.g., vehicle, hitch, or trailer).

Installation Instructions for Vehicle Models (2018-Present)

Part Numbers:

• 76183
• 84183
• CQT76183

Applicable Models:

• Audi Q5/SQ5 (2018-Present)

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Panel Removal Tool
• Tape
• Utility Knife
• Plastic Trim Tools
• Silicone Sealant
• Sockets: 10mm, 16mm
• T25 Torx Bit Socket

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 750 lbs (340 kg)
• Weight Distributing:
  • Not Applicable

Step-by-Step Instructions:

1. Remove Fascia:

   • Using a T25 Torx bit, remove (4) screws from the rear bottom fascia.
   • Remove (1) screw and (1) plastic flange nut from the wheel well liner on both sides using a T25 Torx bit and a 10mm socket.
   • Using plastic trim tools, remove the lower part of the wheel well trim by unclipping the tabs and gently pulling outward on both sides.
   • Remove (3) screws located vertically behind the wheel well liner and (1) screw behind the wheel well trim using a T25 Torx bit. Repeat on both sides.
   • Open the liftgate. Remove (2) round plastic screws near the trunk weather seal using a T25 Torx bit. Remove the rear cargo flooring.
   • Using a panel removal tool, remove the scuff plate by unclipping the tabs and pulling upward. Remove (2) flange nuts from recessed bumper fascia studs beneath the scuff plate using a 10mm socket.
   • Remove the driver-side interior panel. If present, unclip (2) wiring harnesses. Remove (1) flange nut from the bumper fascia stud behind insulation using a 10mm socket. Repeat for the passenger side without removing any wiring harness.
   • Using a plastic trim panel tool, remove the fascia starting from the wheel wells and gently pulling outward.

2. Remove Bumper Beam:

   • Using a 16mm socket, remove (8) M10 factory bolts securing the bumper beam and crossbar above the bumper beam.
   • Return the bumper beam and crossbar to the owner.

3. Install Hitch:

   • Apply silicone sealant around the openings on the end panels on both sides.
   • Raise the hitch into position and loosely install (8) existing factory M10 bolts through the hitch.

4. Tighten Fasteners:

   • Tighten all M10 fasteners to 53 lb-ft (72 N·m) using a torque wrench.

5. Trim Fascia:

   • Using tape and a utility knife, cut a notch in the lower fascia as shown in the provided diagram. Avoid cutting any wiring behind the center lower fascia.

6. Reinstall Components:

   • Reverse the steps in Step 1 to reinstall all fasteners, wiring harnesses, panels, rubber plugs, scuff plate, wheel well trim, and fascia.

Safety Notes:

• Regularly inspect the hitch and ensure all fasteners are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Wear safety glasses and observe all precautions when working under a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• Duration: 1-year limited warranty from the date of purchase.
• Coverage: Covers defects in materials and workmanship under normal use conditions.

For complete warranty instructions, please download the full installation PDF.
