Trailer Tow Hitch For 18‑23 BMW X2 w/ 4 Bike Carrier Rack
Model: 76200 59401Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 – 2023 BMW, X2, All Styles

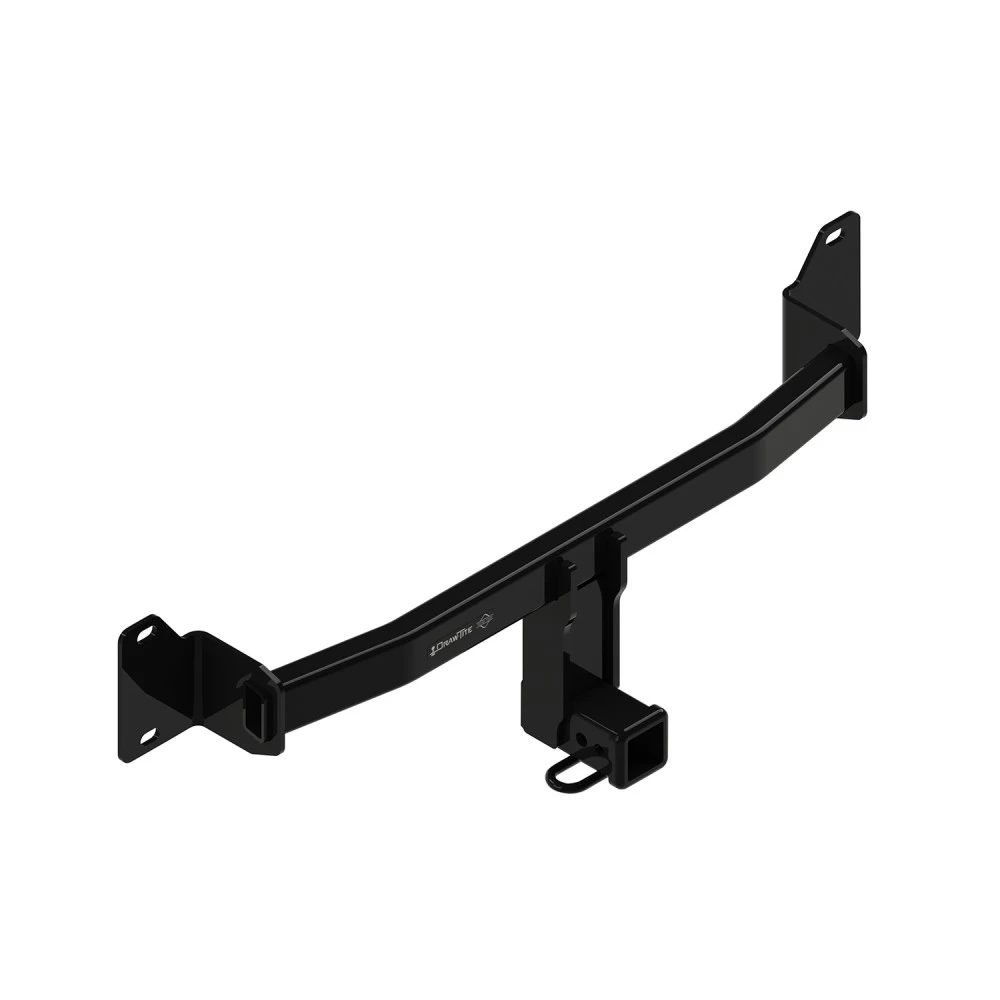

Trailer Hitch Specs:
| Part Number | 76200 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$361 43 $734.43 51% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$734.43 $361 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $90.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76200 59401

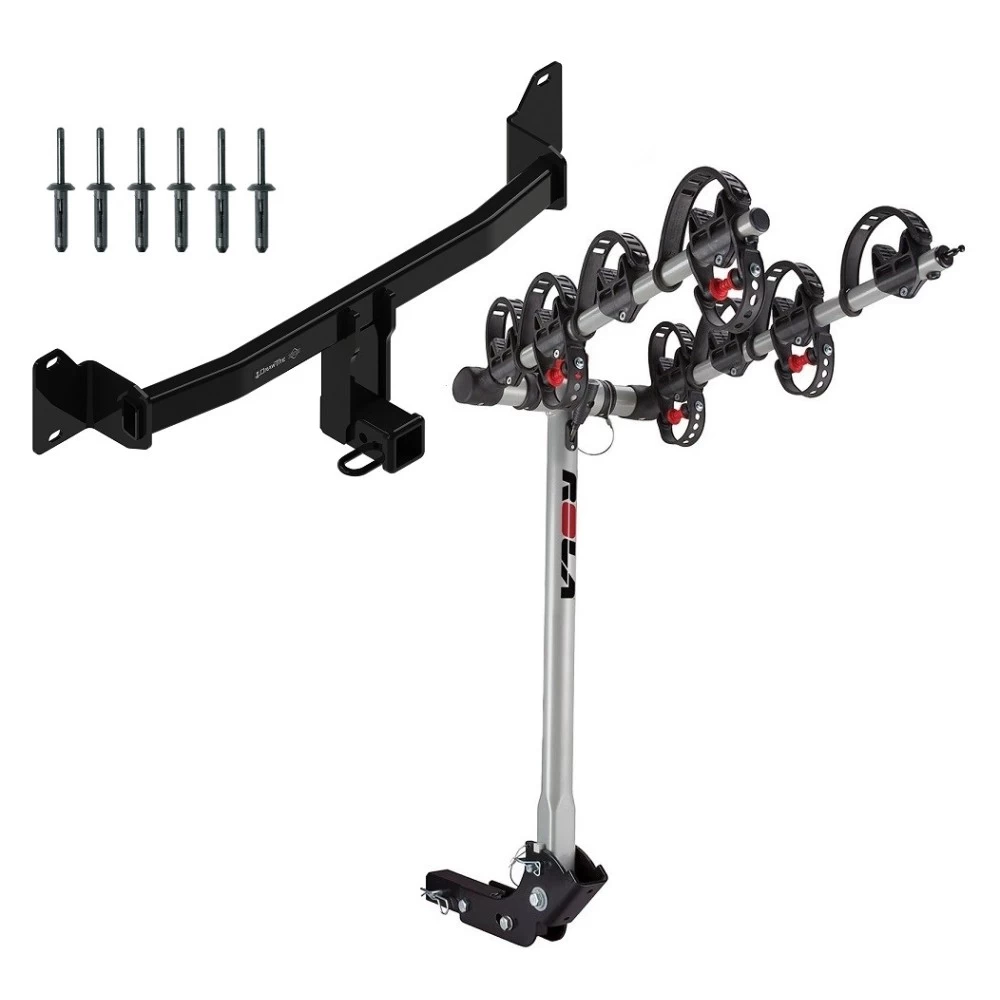

- Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2018 – 2023 BMW, X2, All Styles
Trailer Hitch Specs:
| Part Number | 76200 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3/4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 59401 |
| Brand | Rola |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 100 lbs |
| Application | Fits 2" receivers |
| Weight | 33 lbs. |
| Warranty | 5 Year Warranty |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch For 18-23 BMW X2 w/ 4 Bike Carrier Rack Install Notes
Installation Instructions for Trailer Hitch #76200, #84200, and #CQT76200
Part Numbers:
- 76200
- 84200
- CQT76200
Applications:
- Years: 2018–Current
- Make and Models: BMW X2
For the most up-to-date information on application years and trim levels, consult the manufacturer’s website.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8 mm, 10 mm, 18 mm
- 6" Socket Extension
- Panel Removal Tool
- Plastic Trim Tools
- Drill with 1/8" Drill Bit
- Flat Head Screwdriver
- Plastic Rivet Gun
- Silicone Sealant
Step-by-Step Instructions:
1. Remove Taillights:
- Open the tailgate and remove the plastic cover near the taillight by removing (1) plastic rivet with a flat head screwdriver, on both sides.
- Using a 10 mm socket, remove (2) hex nuts holding the taillights on both sides.
- Slide the taillights rearward and unplug the wiring.
2. Remove Fascia:
- Use an 8 mm socket to remove (1) screw holding the fascia below the taillight area, on both sides.
- Remove (8) screws from the bottom fascia with an 8 mm socket.
- Drill out the center of the (3) rearmost plastic rivets holding the wheel well trim on both sides using a 1/8" drill bit. Remove the remaining rivet heads with a panel removal tool.
- Use plastic trim tools to gently remove the lower part of the wheel well trim and expose (2) screws holding the fascia. Remove these screws using an 8 mm socket on both sides.
- Starting at the outer edges near the wheel wells, carefully remove the fascia using plastic trim tools. Disconnect the wiring harness from the fascia and set it aside.
3. Remove Bumper Beam:
- Use an 18 mm deep well socket with a 6" extension to remove (4) hex flange nuts holding the bumper beam to the end panel, (2) per side.
4. Remove Plastic Panel Below Bumper Beam:
- Using an 8 mm socket, remove (1) screw from the bottom panel on both sides.
- Unclip the tab with a flat head screwdriver, (1) per side. Disconnect the wiring harness if needed.
- Apply silicone sealant to the hitch if the factory seal is torn.
5. Install Hitch and Bumper Beam:
- Raise the hitch and bumper beam into position, aligning the holes with the studs on the end panel.
- Loosely reinstall the (4) existing M12 hex flange nuts onto the studs in the end panel.
6. Tighten Fasteners:
- Torque all M12 hex flange nuts to 92 lb-ft (125 N·m).
7. Reinstall Components:
- Reinstall all fasteners, the plastic panel, wiring harness, fascia, wheel well trim, taillights, and plastic cover.
- Install (6) supplied plastic rivets, (3) per side.
Hardware List:
- 6 × Plastic Rivets
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch periodically to ensure all fasteners and the hitch ball are securely tightened.
- Plug any exposed holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering the vehicle.
- Replace any damaged hitch or hitch ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
- Max Tongue Weight (Weight Carrying): 525 lbs (238 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 80 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.
