Product Details
- Brand: Draw-Tite
- Model: 75078 59401

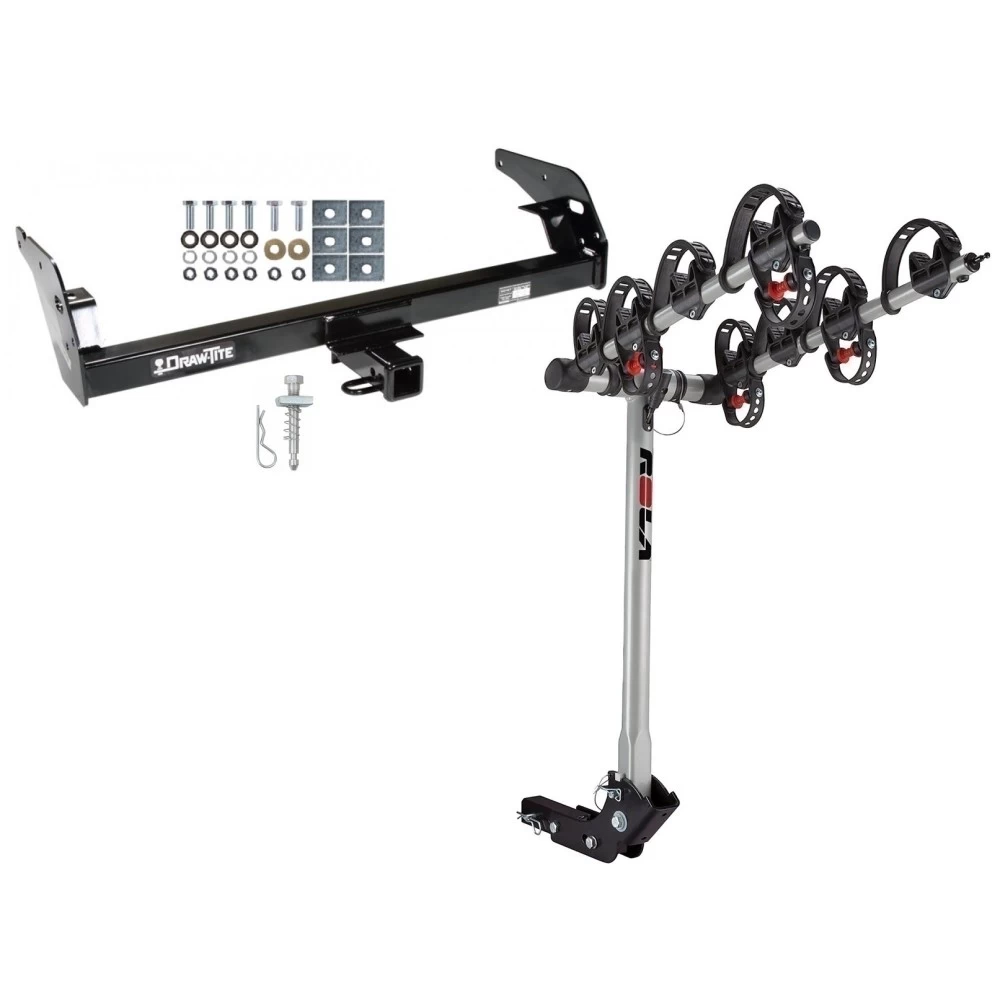

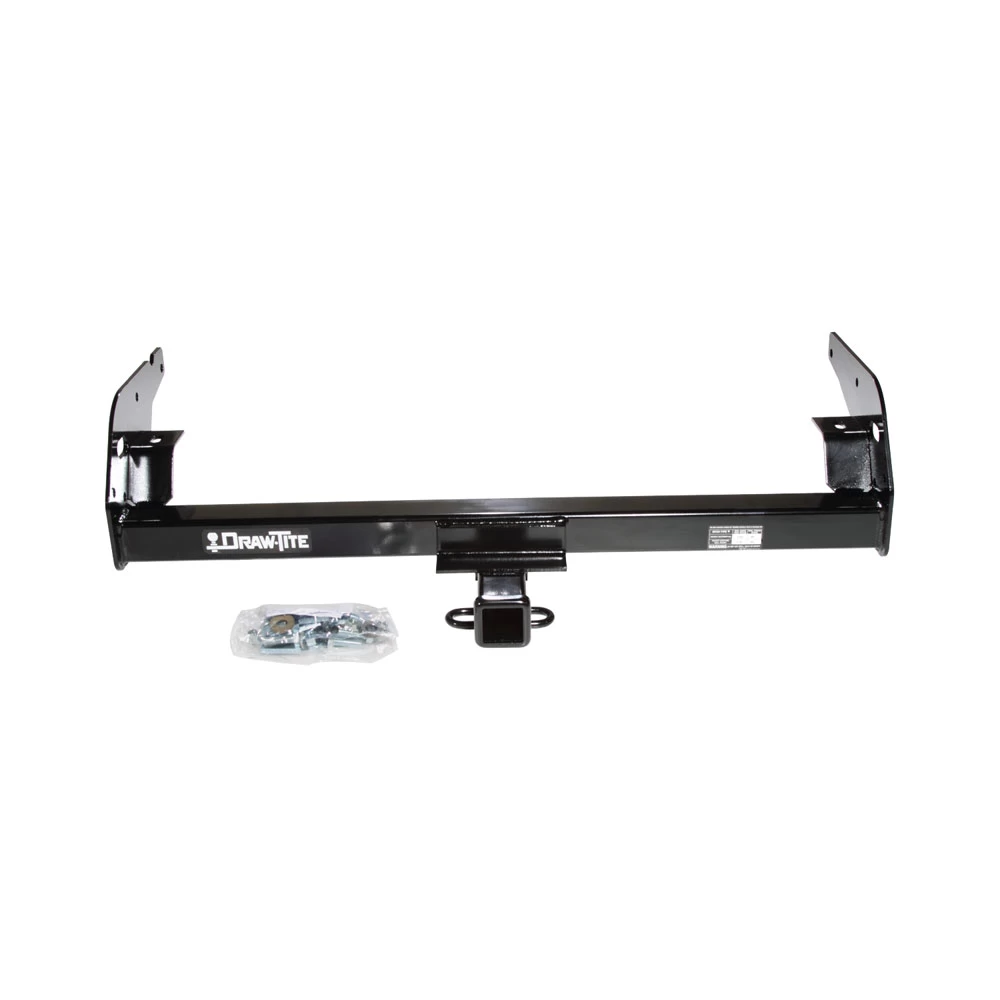

- Includes: Class 3 Trailer Tow Hitch, TX Bike Carrier - 4 bike
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 1995-2004 Toyota Tacoma w/ 4 Bike Carrier Rack Install Notes
Installation Instructions for Toyota Tacoma
Part Numbers:
- 75078
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
- Torque Wrench
Step-by-Step Instructions:
-
Disconnect License Plate Light Wiring:
- Disconnect the wiring connection from the bumper to prepare for removal.
-
Remove Bumper:
- Remove the two bolts mounting the bumper to the bumper brackets on each side and remove the bumper.
-
Remove Bumper Brackets:
- Remove the bumper brackets from the frame rails by removing the two bolts on each side.
-
Install Receiver:
- Position the receiver on the frame and install the 1/2" bolt and block through the rear-most hole in the frame rail into the angle bracket, as shown in the diagram.
-
Reinstall Bumper Brackets:
- Place the bumper brackets over the receiver side bracket, ensuring the tab fits into the hole provided in the side bracket.
-
Reinstall Bumper:
- Place blocks between the bumper mounts and bumper brackets. Use the fasteners removed in Step 2 to reinstall the bumper. Reconnect the license plate wiring connection.
-
Tighten Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- M12 CL8.8: 68 lb-ft (92 N*m)
- 1/2"-13 GR5: 75 lb-ft (102 N*m)

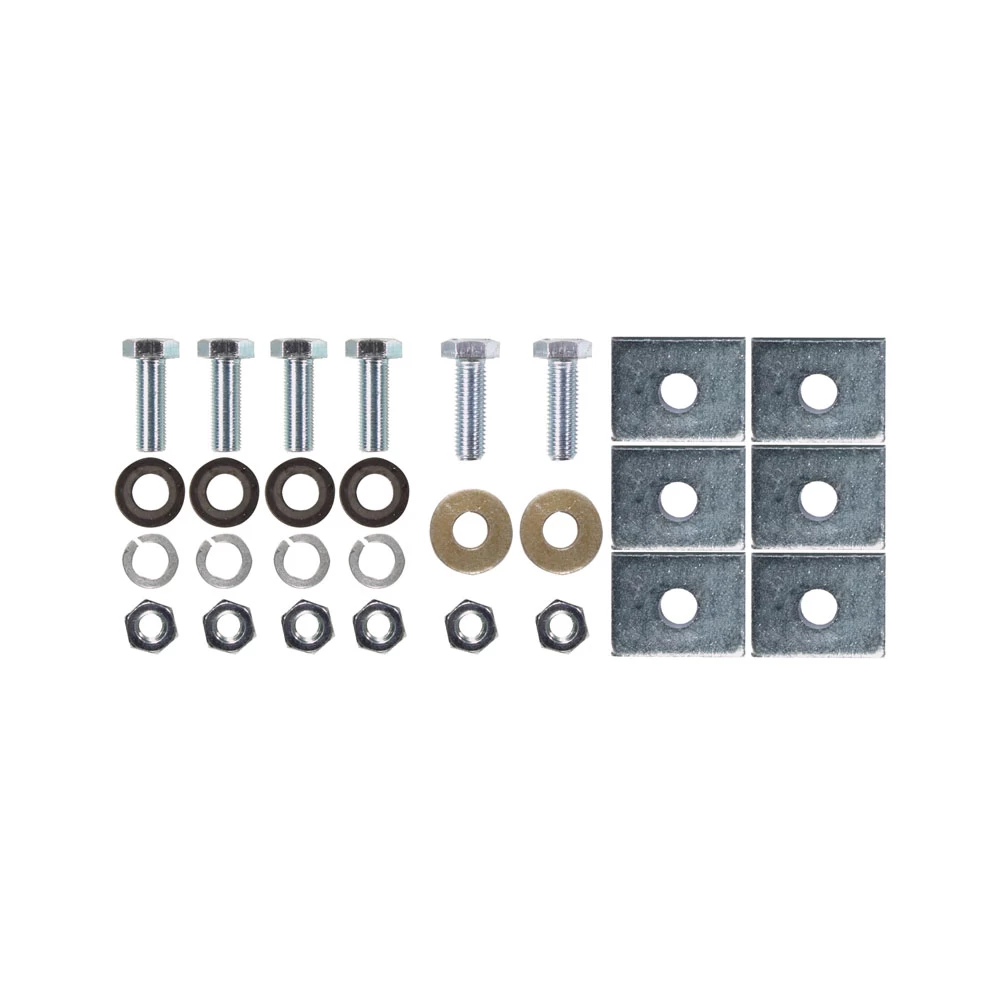

Hardware List:
- (8) M12 x 1.25 x 35mm CL8.8 Bolts
- (8) Lock Washers, M12
- (8) Flat Washers (Hardened), M12
- (2) 1/2"-13 x 1-1/2" GR5 Bolts
- (2) Blocks (1097-002)
- (2) Conical Toothed Washers
- (2) Heavy Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,495 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Toyota Tacoma
Part Numbers:
- 75078
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
- Torque Wrench
Step-by-Step Instructions:
-
Disconnect License Plate Light Wiring:
- Disconnect the wiring connection from the bumper to prepare for removal.
-
Remove Bumper:
- Remove the two bolts mounting the bumper to the bumper brackets on each side and remove the bumper.
-
Remove Bumper Brackets:
- Remove the bumper brackets from the frame rails by removing the two bolts on each side.
-
Install Receiver:
- Position the receiver on the frame and install the 1/2" bolt and block through the rear-most hole in the frame rail into the angle bracket, as shown in the diagram.
-
Reinstall Bumper Brackets:
- Place the bumper brackets over the receiver side bracket, ensuring the tab fits into the hole provided in the side bracket.
-
Reinstall Bumper:
- Place blocks between the bumper mounts and bumper brackets. Use the fasteners removed in Step 2 to reinstall the bumper. Reconnect the license plate wiring connection.
-
Tighten Fasteners:
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- M12 CL8.8: 68 lb-ft (92 N*m)
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.25 x 35mm CL8.8 Bolts
- (8) Lock Washers, M12
- (8) Flat Washers (Hardened), M12
- (2) 1/2"-13 x 1-1/2" GR5 Bolts
- (2) Blocks (1097-002)
- (2) Conical Toothed Washers
- (2) Heavy Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,495 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
