Installation Instructions for Land Rover Range Rover Evoque (2020-Present)

Part Numbers:

• 76339
• 84339
• CQT76339

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Tape Measure
• Marker
• Utility Knife
• Phillips Screwdriver
• Plastic Trim Tools
• Silicone Sealant
• Sockets: 8mm, 10mm, 21mm
• T15 and T25 Torx Bits

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 4,000 lbs (1,814 kg)
  • Max Tongue Weight: 400 lbs (181 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 60 minutes

Step-by-Step Instructions:

1. Remove Lower Fascia Screws:

• Use a T25 Torx bit to remove (4) screws from the lower black plastic fascia panel.

2. Remove Outer Bolts:

• Use a 10mm socket to remove (2) bolts securing the lower black plastic panel on both sides.

3. Remove Wheel Well Liners:

• Use a Phillips screwdriver to remove (3) screws from each wheel well liner.

4. Remove Additional Screws:

• Remove (2) screws securing the fascia and mud flaps from behind the wheel well liners on both sides.

5. Remove Mud Flaps:

• Use a T15 Torx bit to remove (2) screws from each mud flap behind the wheel well liners. Save the mud flaps for reinstallation.

6. Remove Plastic Trim Panels:

• Use plastic trim removal tools to remove (1) plastic panel near each taillight.

7. Remove Taillight Bolts:

• Use an 8mm socket to remove (1) bolt near the taillight on both sides.

8. Remove Fascia:

• Carefully remove the fascia starting from the wheel wells. Unclip the fascia and disconnect any electrical connections on the passenger side.

9. Remove Metal Panel:

• Use a 10mm socket to remove (1) bolt and (1) nut from the metal panel above the bumper beam on both sides.

10. Remove Bumper Beam:

• Use a 21mm socket to remove (4) factory bolts from the bumper beam on both sides. Save the bolts for reinstallation. Return the bumper beam to the owner.

11. Apply Silicone Sealant:

• Apply sealant to both hitch side bracket mounting surfaces.

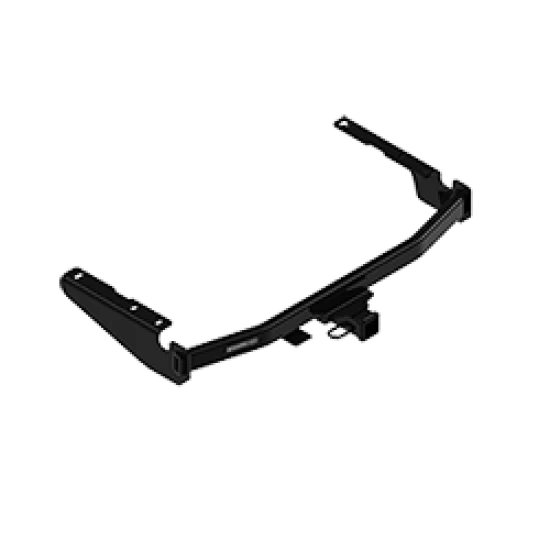

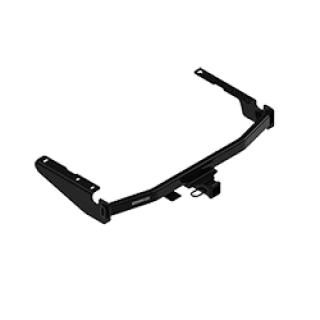

12. Install Hitch:

• Raise the hitch into position and align its holes with the vehicle’s end panel.
• Loosely install (8) factory M14 bolts.

13. Tighten Fasteners:

• Use a torque wrench to tighten all M14 CL10.9 fasteners to 148 lb-ft (200 N·m).

14. Trim Lower Fascia:

• Use a tape measure, marker, and utility knife to trim the lower fascia as shown in the included diagram.

15. Reinstall Components:

• Reinstall the metal panels, wiring harness, fascia, mud flaps, wheel well liners, plastic panels, and all fasteners.

Safety Notes:

• Regularly inspect the hitch and all fasteners for proper tightness.
• If the hitch is removed, plug all holes to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Vehicle Models (2020-Present)

Part Numbers:

• 76339
• 84339
• CQT76339

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Tape Measure
• Marker
• Utility Knife
• Phillips Screwdriver
• Plastic Trim Tools
• Silicone Sealant
• Sockets: 8mm, 10mm, 21mm
• T15 and T25 Torx Bits

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 4,000 lbs (1,814 kg)
  • Max Tongue Weight: 400 lbs (181 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 60 minutes

Step-by-Step Instructions:

1. Remove Lower Fascia Screws:

• Use a T25 Torx bit to remove (4) screws from the lower black plastic fascia panel.

2. Remove Outer Bolts:

• Use a 10mm socket to remove (2) bolts securing the lower black plastic panel on both sides.

3. Remove Wheel Well Liners:

• Use a Phillips screwdriver to remove (3) screws from each wheel well liner.

4. Remove Additional Screws:

• Remove (2) screws securing the fascia and mud flaps from behind the wheel well liners on both sides.

5. Remove Mud Flaps:

• Use a T15 Torx bit to remove (2) screws from each mud flap behind the wheel well liners. Save the mud flaps for reinstallation.

6. Remove Plastic Trim Panels:

• Use plastic trim removal tools to remove (1) plastic panel near each taillight.

7. Remove Taillight Bolts:

• Use an 8mm socket to remove (1) bolt near the taillight on both sides.

8. Remove Fascia:

• Carefully remove the fascia starting from the wheel wells. Unclip the fascia and disconnect any electrical connections on the passenger side.

9. Remove Metal Panel:

• Use a 10mm socket to remove (1) bolt and (1) nut from the metal panel above the bumper beam on both sides.

10. Remove Bumper Beam:

• Use a 21mm socket to remove (4) factory bolts from the bumper beam on both sides. Save the bolts for reinstallation. Return the bumper beam to the owner.

11. Apply Silicone Sealant:

• Apply sealant to both hitch side bracket mounting surfaces.

12. Install Hitch:

• Raise the hitch into position and align its holes with the vehicle’s end panel.
• Loosely install (8) factory M14 bolts.

13. Tighten Fasteners:

• Use a torque wrench to tighten all M14 CL10.9 fasteners to 148 lb-ft (200 N·m).

14. Trim Lower Fascia:

• Use a tape measure, marker, and utility knife to trim the lower fascia as shown in the included diagram.

15. Reinstall Components:

• Reinstall the metal panels, wiring harness, fascia, mud flaps, wheel well liners, plastic panels, and all fasteners.

Safety Notes:

• Regularly inspect the hitch and all fasteners for proper tightness.
• If the hitch is removed, plug all holes to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• Duration: 1-year limited warranty from the date of purchase.
• Coverage: Covers defects in materials and workmanship under normal use conditions.

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
