Trailer Tow Hitch For 96‑02 Toyota 4Runner Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75091 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2002 Toyota, 4Runner, All Styles
Trailer Hitch Specs:
| Part Number | 75091 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 1996 1997 1998 1999 2000 2001 2002
$553 94 $886.83 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$886.83 $553 94
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $138.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75091 63153 63240

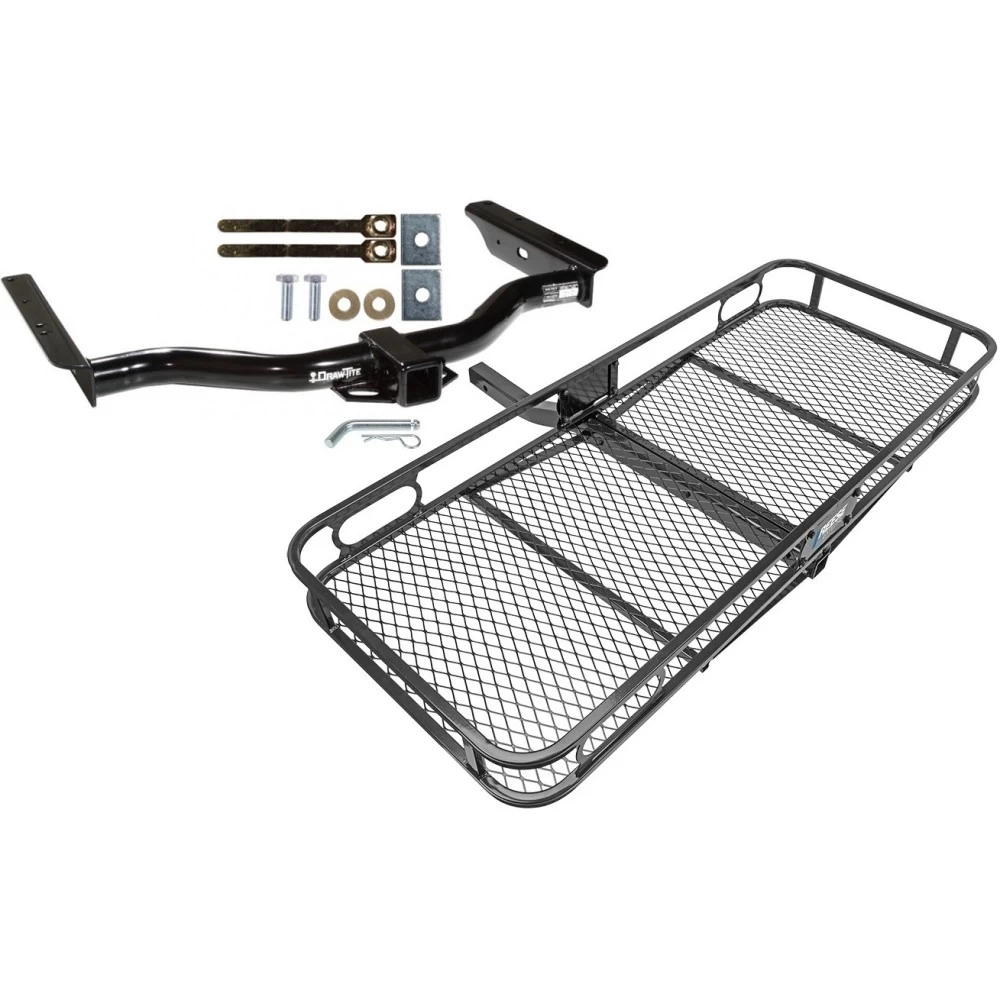

- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1996 - 2002 Toyota, 4Runner, All Styles
Trailer Hitch Specs:
| Part Number | 75091 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 1996 1997 1998 1999 2000 2001 2002
Get Expert Help
Trailer Tow Hitch For 96-02 Toyota 4Runner Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Toyota 4Runner (Pre-2003 Models)
Part Numbers:
- N78142
- UHAUL 44752N
- N75091
- N87747
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 18mm
- Drill Bits: None required
Step-by-Step Instructions:
- Remove two hooks from the vehicle frame and return them to the owner for reinstallation of the hitch after removing the tow hook.
- Raise the hitch into position and align side brackets with existing M12 bolt holes. Install M12 bolts into frame rails. Reinstall existing bolts that were removed in Step 1.
- Forward Attachment:
- Insert a 1/2" x 1-1/2" x 2" block (1097-002) from the end of the frame. Install the hex bolt and conical tooth washer with handle nut (1333) as shown above.
- Tighten all M12 fasteners to 58 lb-ft.
- Tighten all 1/2" hex bolts to 50 lb-ft.
Hardware List:
- 1/2"-13 x 1.50" GR5 Hex Bolt
- Conical Tooth Washer
- Handle Nut
- 1/2" x 1-1/2" x 2" Block (1097-002)
Safety Notes:
- Spare tire may need to be repositioned slightly forward to avoid contact with the receiver tube.
- Hitch complies with safety specifications for connecting devices and towing systems (SAE J684 and V-5 regulations).
Specifications:
- Maximum Load:
- Tongue Weight: 500 lbs
- Gross Trailer Weight: 5,000 lbs
- Weight Distributing Tongue Weight: 750 lbs
- Weight Distributing Gross Trailer Weight: 7,500 lbs
- Hitch Type: Class III
Note: This product complies with federal regulations and safety standards for towing systems.
Installation Instructions for Toyota 4Runner (Pre-2003 Models)
Part Numbers:
- N78142
- UHAUL 44752N
- N75091
- N87747
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 18mm
- Drill Bits: None required
Step-by-Step Instructions:
-
Remove Existing Hooks
- Remove two hooks from the vehicle frame and set them aside for reinstallation.
- Ensure the tow hook is removed to allow proper hitch installation.
-
Position the Hitch
- Raise the hitch into position, aligning the side brackets with the existing M12 bolt holes on the frame rails.
- Install the M12 bolts into the frame rails and reinstall the existing bolts removed in Step 1.
-
Install Forward Attachment
- Insert a 1/2" x 1-1/2" x 2" block into the end of the frame.
- Install the 1/2" hex bolt, conical tooth washer, and handle nut as per the provided diagram.
-
Tighten Fasteners
- Torque all M12 fasteners to 58 lb-ft.
- Torque all 1/2" hex bolts to 50 lb-ft.
Hardware List:
- (1) 1/2"-13 x 1.50" GR5 Hex Bolt
- (1) Conical Tooth Washer
- (1) Handle Nut
- (1) 1/2" x 1-1/2" x 2" Block
Safety Notes:
- The spare tire may need to be repositioned slightly forward to avoid contact with the receiver tube.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components remain secure.
- Always wear safety glasses when working beneath the vehicle.
Specifications:
- Maximum Load:
- Tongue Weight: 500 lbs
- Gross Trailer Weight: 5,000 lbs
- Weight Distributing Tongue Weight: 750 lbs
- Weight Distributing Gross Trailer Weight: 7,500 lbs
- Hitch Type: Class III
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
