Product Details
- Brand: Draw-Tite
- Model: 41931 63153 63240

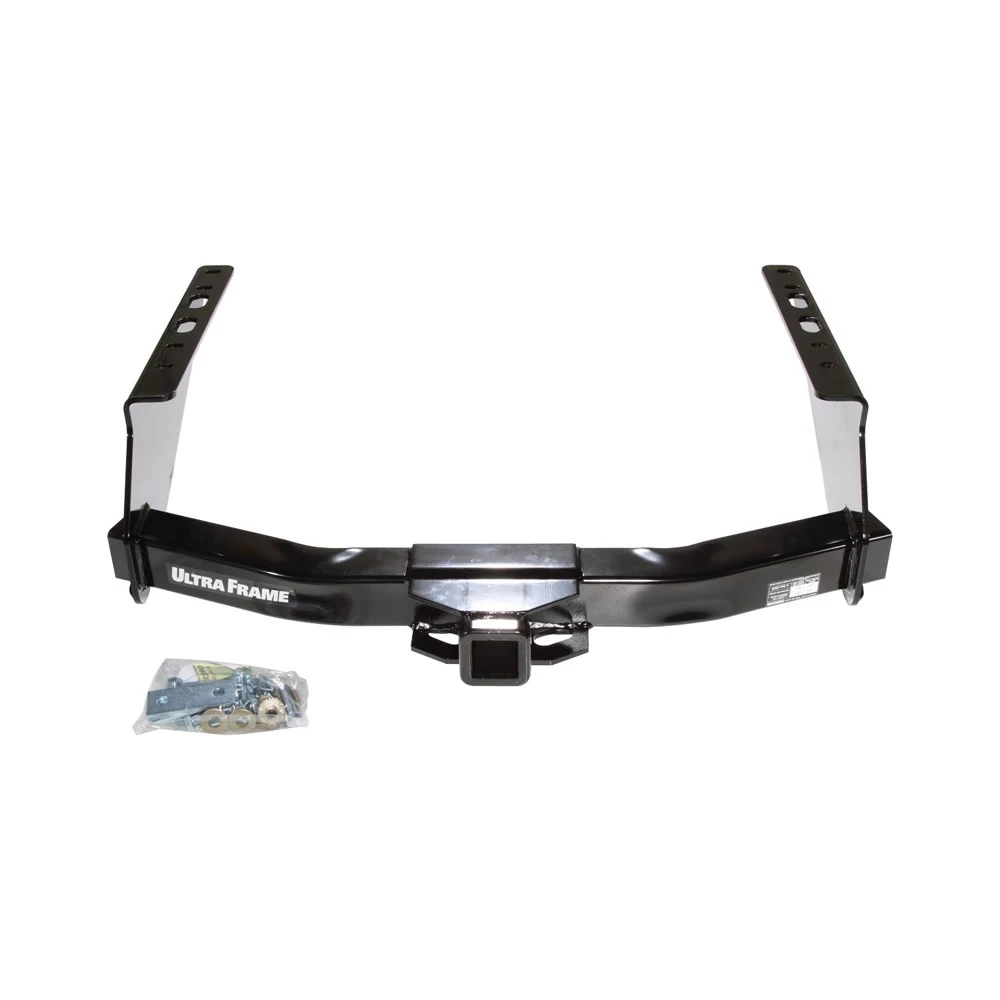

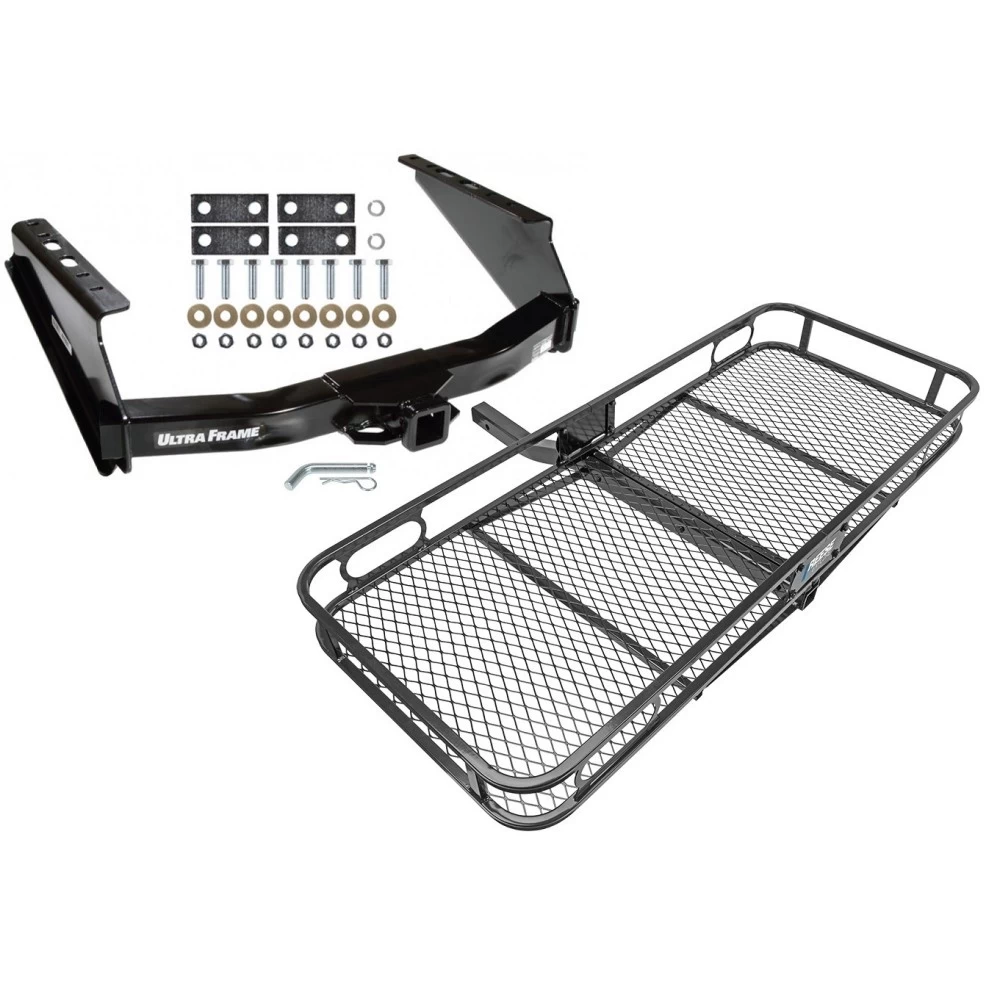

- Includes: Ultra Frame Class 5 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 99-16 Ford F-250 F-350 Super Duty Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Ford Super Duty F-Series Trucks
Part Numbers:
- 41931
- 96931
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire to provide access to existing slots in the vehicle frame rails.
-
Remove Electrical Bracket:
- If an electrical bracket is present, remove it from the vehicle and relocate it as necessary to allow for hitch installation.
-
Position Hitch:
- Raise the hitch into position, aligning it with the slots in the frame rails.
-
Install Fasteners:

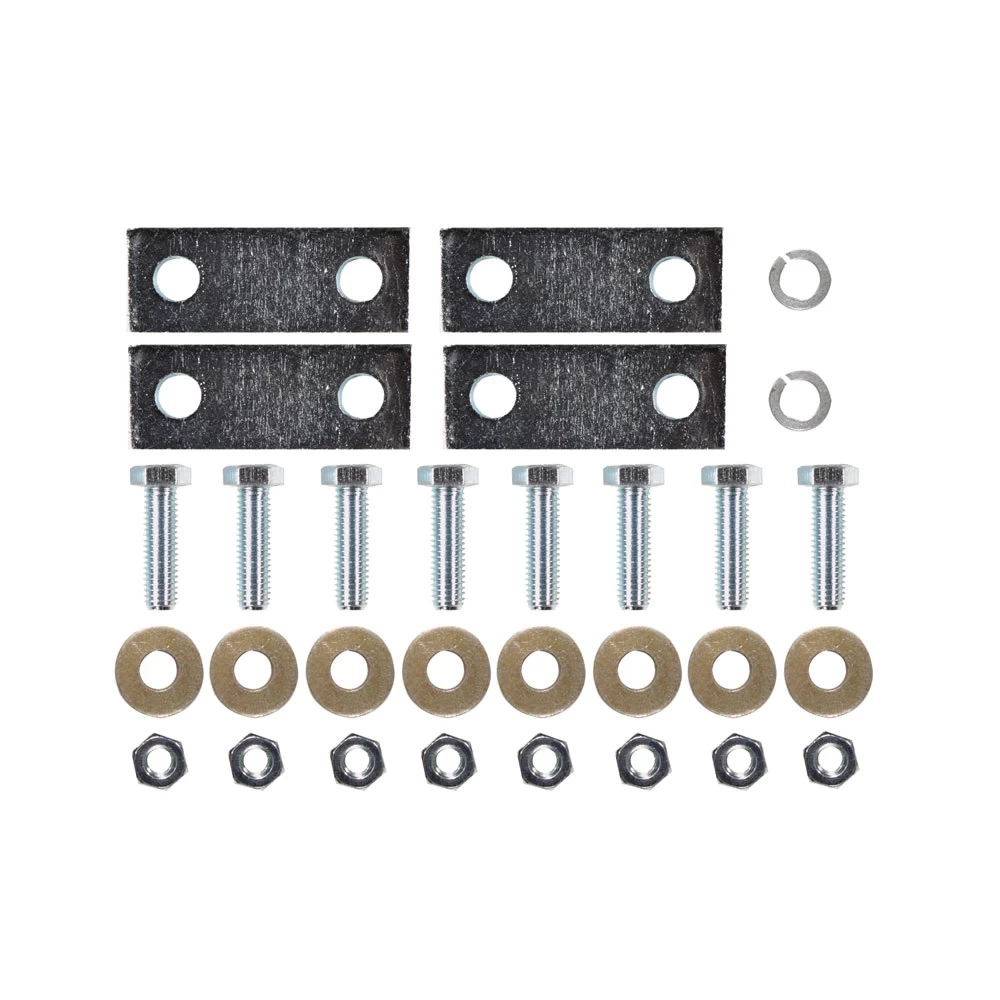

- Secure the hitch using the following hardware:
- (8) Hex Bolts, 1/2"-13 x 1.75" GR5
- (8) Conical Washers
- (4) Spacer Blocks
- (2) Lock Washers
- (8) Hex Nuts, 1/2"-13
- Secure the hitch using the following hardware:
-
Raise Spare Tire:
- Reposition the spare tire to ensure clearance between the receiver tube and the hex bolts coming through the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (8) Hex Bolts, 1/2"-13 x 1.75" GR5
- (8) Conical Washers
- (4) Spacer Blocks
- (2) Lock Washers
- (8) Hex Nuts, 1/2"-13
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
Additional Notes:
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Observe the manufacturer's towing capacity limits for your vehicle.
Installation Instructions for Super Duty F-Series Trucks
Part Numbers:
- 41931
- 96931
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire to provide access to existing slots in the vehicle frame rails.
-
Remove Electrical Bracket:
- If an electrical bracket is present, remove it from the vehicle and relocate it as necessary to allow for hitch installation.
-
Position Hitch:
- Raise the hitch into position, aligning it with the slots in the frame rails.
-
Install Fasteners:
- Secure the hitch using the following hardware:
- (8) Hex Bolts, 1/2"-13 x 1.75" GR5
- (8) Conical Washers
- (4) Spacer Blocks
- (2) Lock Washers
- (8) Hex Nuts, 1/2"-13
- Secure the hitch using the following hardware:
-
Raise Spare Tire:
- Reposition the spare tire to ensure clearance between the receiver tube and the hex bolts coming through the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (8) Hex Bolts, 1/2"-13 x 1.75" GR5
- (8) Conical Washers
- (4) Spacer Blocks
- (2) Lock Washers
- (8) Hex Nuts, 1/2"-13
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
Additional Notes:
- Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Observe the manufacturer's towing capacity limits for your vehicle.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
