Trailer Tow Hitch Hardware Fastener Kit For 19‑24ord F‑350 F‑450 F‑550 Super Duty Cab and Chassis Class V
Model: HWKIT3(45520F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2019 - 2024 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 45520 45720 45520
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(45520F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2019 - 2024 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
2019 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 45520 45720 45520
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 19-24ord F-350 F-450 F-550 Super Duty Cab and Chassis Class V Install Notes
Installation Instructions for Ford F350/450/550 (2019–Current)
Part Numbers:
- 45520
- 45720
- CQT45520
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 24mm
- 6" Socket Extension
- Clamp
- Crowfoot Wrench
Installation Time:
- Approximately 30 minutes (for professional installers)
Step-by-Step Instructions:
-
Position and Secure Hitch:
- Use a clamp to align and secure the side brackets of the hitch to the frame rails.
- Loosely install six (6) M16 bolts and six (6) M16 flange nuts on each side using a 24mm socket.
-
Torque Fasteners:
- Tighten all M16 fasteners to 210 lb-ft (285 N*m) using a torque wrench.
-
Inspection and Maintenance:
- Ensure all fasteners and the hitch ball are properly tightened.
- If the hitch is removed, plug any holes in the body panels or frame to prevent water and exhaust fumes from entering the vehicle.
Torque Specifications:
- M16 fasteners: 210 lb-ft (285 N*m)

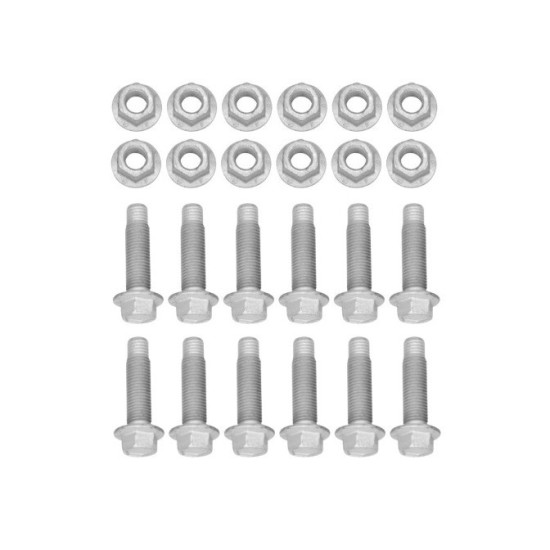

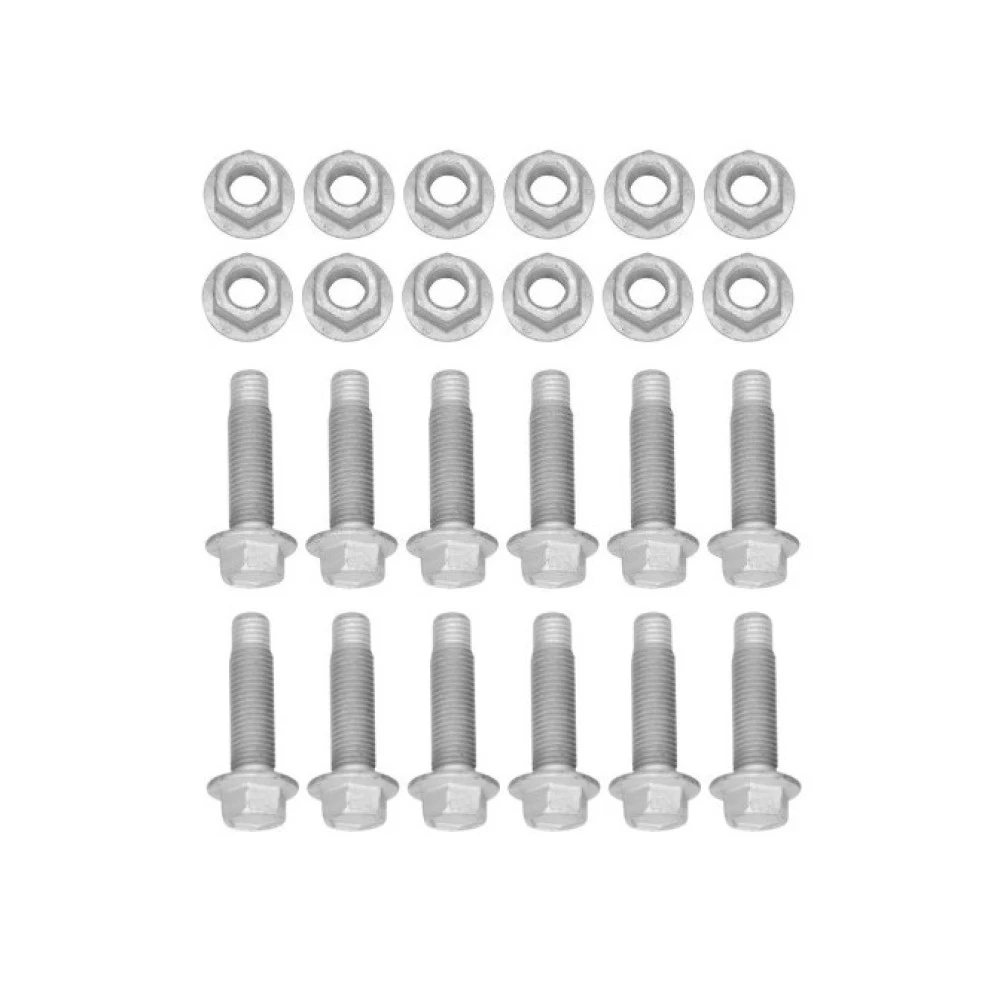

Hardware List:
- (12) M16 x 2.00 x 50mm Bolts
- (12) M16 x 2.00 CL10 Flanged Lock Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners are secure.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 20,000 lb (9,071 kg)
- Max Tongue Weight: 3,000 lb (1,360 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 20,000 lb (9,071 kg)
- Max Tongue Weight: 2,000 lb (907 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Do not exceed the vehicle manufacturer’s towing capacity. Improper installation may result in personal injury or property damage.
