Trailer Tow Hitch Hardware Fastener Kit For 20‑23 Nissan Sentra Except S 1‑1/4" Receiver Class 1
Model: HWKIT1(24997F)2020 - 2023 Nissan, Sentra, Except S
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24997 77997
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24997F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
2020 - 2023 Nissan, Sentra, Except S
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24997 77997
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 20-23 Nissan Sentra Except S 1-1/4" Receiver Class 1 Install Notes
Installation Instructions for Nissan Sentra SR/SV (2020-Current)
Part Numbers:
- 24997
- 77997
- CQT24997
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Drill with 1/2" Drill Bit
- Marker
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- Using an 18mm socket, remove the four factory bolts from the passenger-side tie-down bracket.
- Return the bracket and two bolts to the vehicle owner.
-
Drill Holes:
- Raise the hitch into position and align the passenger-side bracket holes with the weldnut locations.
- Mark the drill points for the driver-side bracket holes:
- Rearward hole center: approximately 2.125" from the back of the end panel.
- Forward hole center: approximately 5.125" from the back of the end panel.
- Lower the hitch and drill 1/2" holes at the marked locations.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole in the frame, ensuring it is large enough to fit a 7/16" carriage bolt and spacer.
-
Install Hitch:
- Feed the 7/16" carriage bolts and spacers through the access hole using the provided pull wires, leaving the pull wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slots.
- Loosely install two factory M12 bolts into the existing weldnuts on the passenger side.
- Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts on the driver side.
-
Tighten Fasteners:
- Torque all 7/16"-14 fasteners to 50 ft-lb (68 N*m).
- Torque all M12 fasteners to 68 ft-lb (92 N*m).

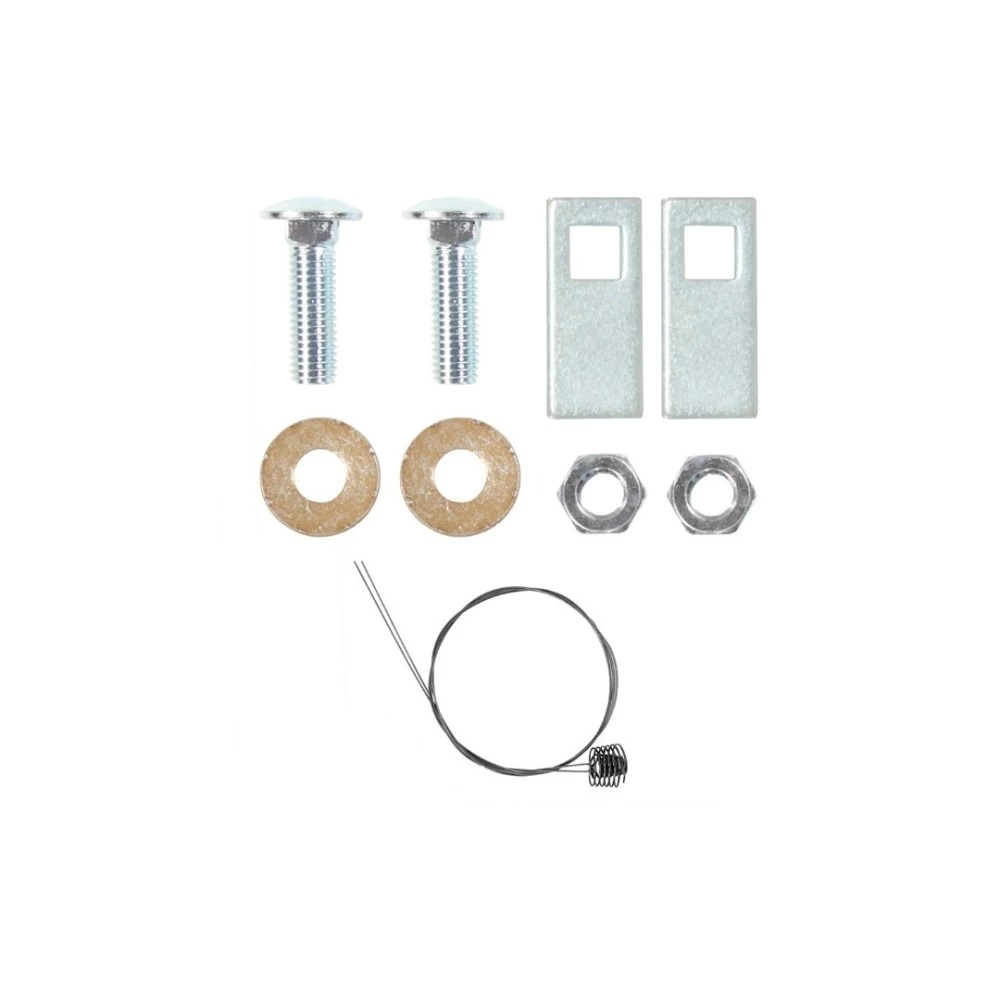

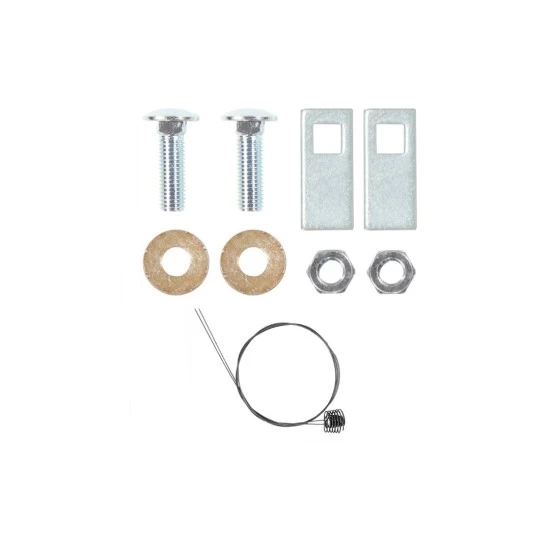

Hardware List:
- (2) Carriage Bolt, 7/16"-14 x 1.75 GR5
- (2) Spacer, 0.875" x 2.00" x 0.109" (Part No. 1204)
- (2) Conical Washer, 7/16" (Part No. 01292007)
- (2) Hex Nut, 7/16"-14 GR2
- (2) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 50 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2020-Current)
Part Numbers:
- 24997
- 77997
- CQT24997
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 11/16"
- 6" Socket Extension
- Die Grinder
- Drill with 1/2" Drill Bit
- Marker
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- Using an 18mm socket, remove the four factory bolts from the passenger-side tie-down bracket.
- Return the bracket and two bolts to the vehicle owner.
-
Drill Holes:
- Raise the hitch into position and align the passenger-side bracket holes with the weldnut locations.
- Mark the drill points for the driver-side bracket holes:
- Rearward hole center: approximately 2.125" from the back of the end panel.
- Forward hole center: approximately 5.125" from the back of the end panel.
- Lower the hitch and drill 1/2" holes at the marked locations.
-
Enlarge Access Hole:
- Use a die grinder to enlarge the access hole in the frame, ensuring it is large enough to fit a 7/16" carriage bolt and spacer.
-
Install Hitch:
- Feed the 7/16" carriage bolts and spacers through the access hole using the provided pull wires, leaving the pull wires attached.
- Raise the hitch into position and feed the pull wires through the hitch bracket slots.
- Loosely install two factory M12 bolts into the existing weldnuts on the passenger side.
- Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts on the driver side.
-
Tighten Fasteners:
- Torque all 7/16"-14 fasteners to 50 ft-lb (68 N*m).
- Torque all M12 fasteners to 68 ft-lb (92 N*m).
Hardware List:
- (2) Carriage Bolt, 7/16"-14 x 1.75 GR5
- (2) Spacer, 0.875" x 2.00" x 0.109" (Part No. 1204)
- (2) Conical Washer, 7/16" (Part No. 01292007)
- (2) Hex Nut, 7/16"-14 GR2
- (2) Pull Wire, 7/16" (Part No. 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 50 minutes
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (90.7 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
