Installation Instructions for T-One® T-Connector for Honda Passport

Part Numbers:

• 118809

Tools Required:

• Trim Panel Remover
• 10mm & 8mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Tailgate:

   • Open the rear tailgate to access the vehicle’s rear cargo area.

2. Remove Interior Panels and Covers:

   • Temporarily remove all floor coverings, cargo trays, and side panels in the rear cargo area to expose the necessary wiring and components.

3. Locate the Vehicle’s Tow-Plug Connector:

   • On the driver’s side, locate the tow-plug connector by removing the cargo bin and cargo hooks using an 8mm socket and a Phillips screwdriver.

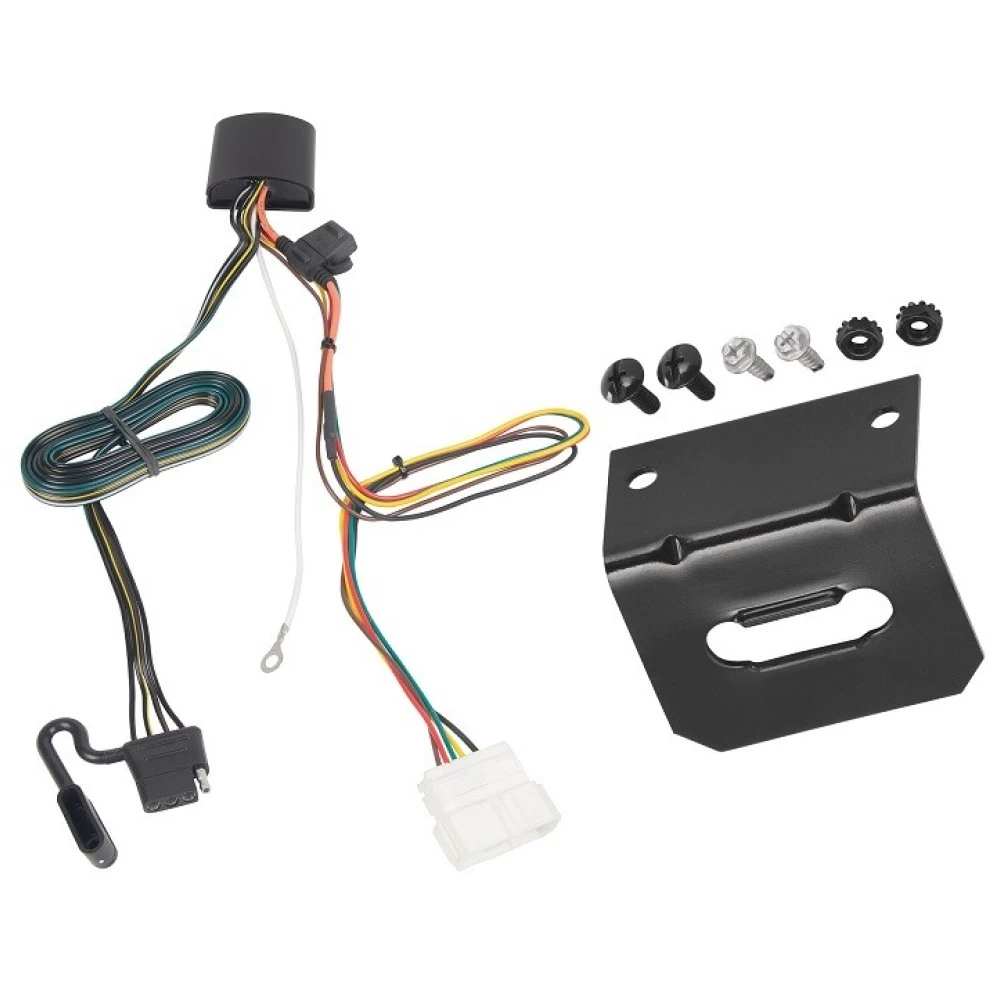

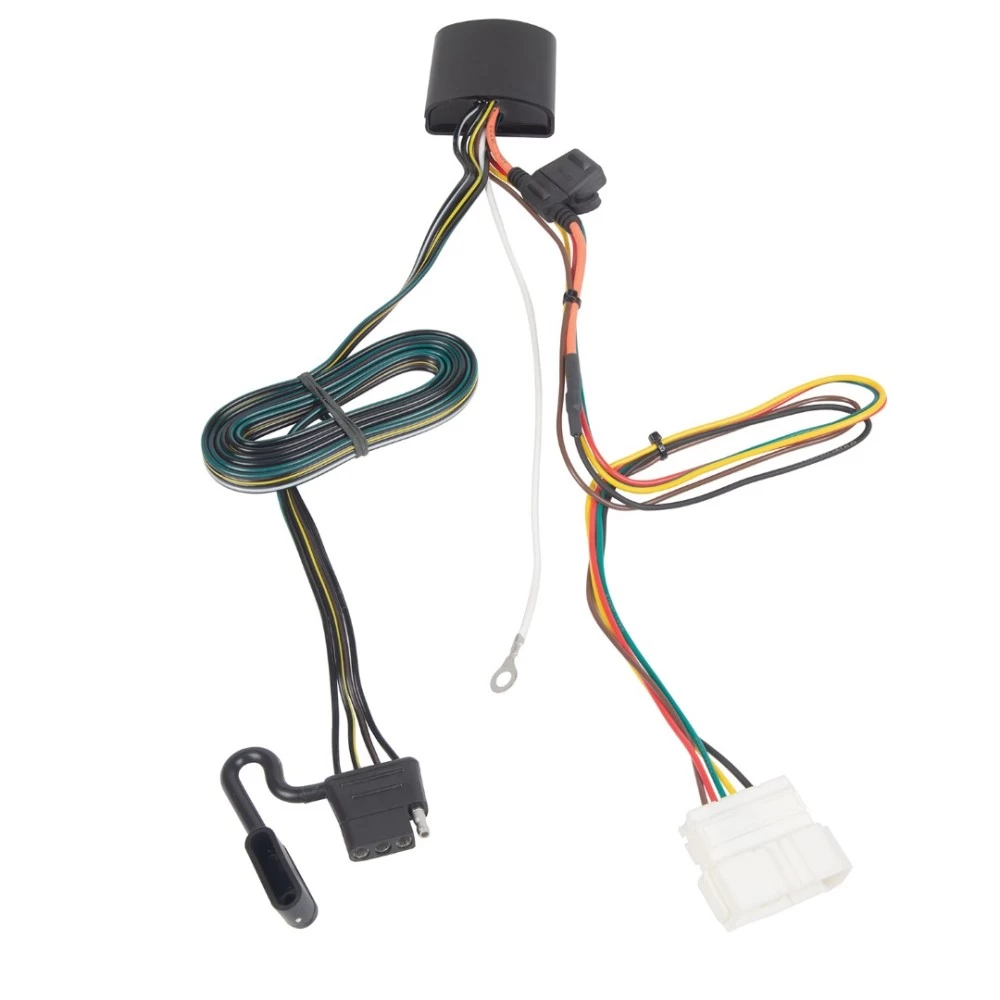

4. Connect the T-One® Harness:

   • Insert the T-One® Connector harness into the vehicle’s tow-plug connector.
   • Ensure the connectors are clean, free of dirt, and securely locked in place without damaging the locking tabs.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • If no existing ground point is available, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify the area behind any surface before drilling to avoid damage or injury.

6. Mount the Black Box Module:

   • Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape to prevent damage or rattling.

7. Secure the T-One® Harness:

   • Use the provided cable ties to secure the remainder of the T-One® Connector harness, ensuring it avoids any areas where it could pinch, cut, or melt.

8. Route the 4-Flat Connector:

   • Route the 4-flat connector from below the driver’s side trim panel into the rear storage compartment for easy access when in use.

9. Install the Fuse:

   • Open the vehicle’s hood and locate the fuse box on the driver’s side near the rear of the firewall.
   • Insert the provided 20-amp fuse into position #11 labeled “Trl Charge” and close the fuse box securely.

10. Reinstall Removed Panels and Covers:

    • Reinstall all plastic trim panels, the threshold, storage covers, floor coverings, and any other items removed during the installation process, ensuring no wires are pinched or cut.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Manufacturer Notes:

• Always read and follow all warnings and instructions included with the product.
• Store these instructions for future reference.
• Never exceed the lower of the towing manufacturer rating or the amperage rating specified on the product.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

• 118809

Tools Required:

• Trim Panel Remover
• 10mm & 8mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Tailgate:

   • Open the rear tailgate to access the vehicle’s rear cargo area.

2. Remove Interior Panels and Covers:

   • Temporarily remove all floor coverings, cargo trays, and side panels in the rear cargo area to expose the necessary wiring and components.

3. Locate the Vehicle’s Tow-Plug Connector:

   • On the driver’s side, locate the tow-plug connector by removing the cargo bin and cargo hooks using an 8mm socket and a Phillips screwdriver.

4. Connect the T-One® Harness:

   • Insert the T-One® Connector harness into the vehicle’s tow-plug connector.
   • Ensure the connectors are clean, free of dirt, and securely locked in place without damaging the locking tabs.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • If no existing ground point is available, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify the area behind any surface before drilling to avoid damage or injury.

6. Mount the Black Box Module:

   • Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape to prevent damage or rattling.

7. Secure the T-One® Harness:

   • Use the provided cable ties to secure the remainder of the T-One® Connector harness, ensuring it avoids any areas where it could pinch, cut, or melt.

8. Route the 4-Flat Connector:

   • Route the 4-flat connector from below the driver’s side trim panel into the rear storage compartment for easy access when in use.

9. Install the Fuse:

   • Open the vehicle’s hood and locate the fuse box on the driver’s side near the rear of the firewall.
   • Insert the provided 20-amp fuse into position #11 labeled “Trl Charge” and close the fuse box securely.

10. Reinstall Removed Panels and Covers:

    • Reinstall all plastic trim panels, the threshold, storage covers, floor coverings, and any other items removed during the installation process, ensuring no wires are pinched or cut.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow all safety precautions during installation.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Always read and follow all warnings and instructions included with the product.
• Store these instructions for future reference.
• Never exceed the lower of the towing manufacturer rating or the amperage rating specified on the product.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
