Trailer Wiring Harness Kit and Bracket For 20‑24 Hyundai Venue Plug & Play
Model: 118818 118144Wiring Harness (Plug & Play)
Installation Instructions
Fits The Following Vehicles
2020 - 2024 Hyundai, Venue, All Styles
Direct Plug & Play Wiring Kit
| Part Number | 118818 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
$101 21 $117.77 14% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$117.77 $101 21
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $25.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118818 118144

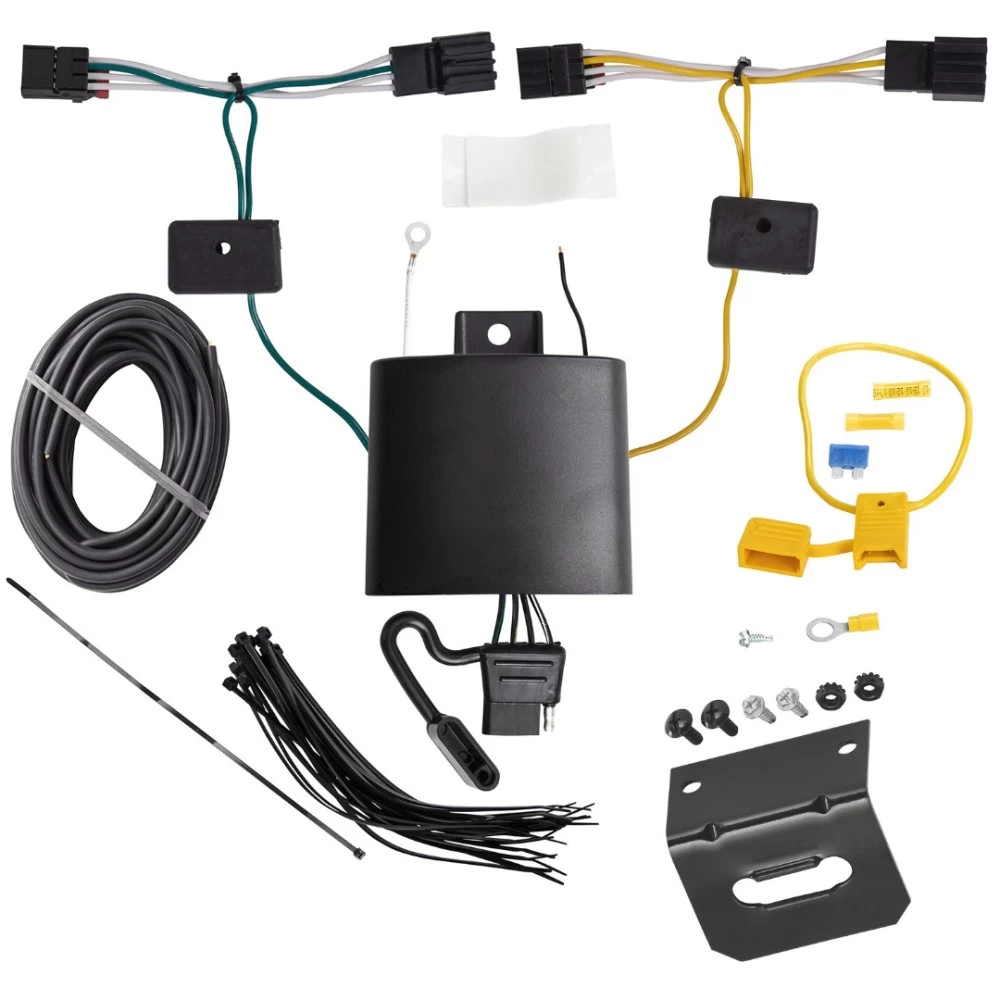

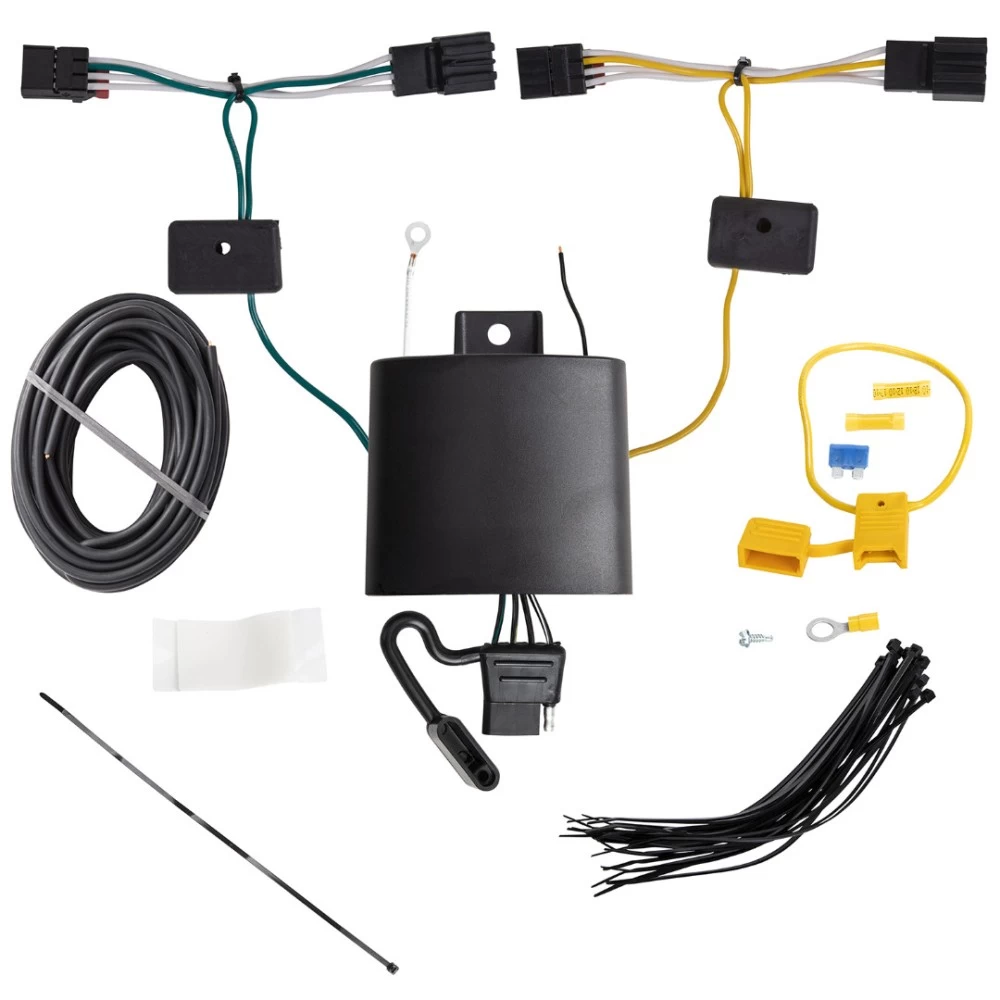

- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
Wiring Harness (Plug & Play)
Installation Instructions
Fits The Following Vehicles
2020 - 2024 Hyundai, Venue, All Styles
Direct Plug & Play Wiring Kit
| Part Number | 118818 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Get Expert Help
Trailer Wiring Harness Kit and Bracket For 20-24 Hyundai Venue Plug & Play Install Notes
Installation Instructions for T-One® T-Connector for Hyundai Venue
Part Numbers:
- 118818
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Hatch:
- Temporarily remove the floor covering.
- Remove the two clips holding the threshold in place.
- Carefully pry up and remove the threshold.
- Open the side door and fold the rear seats forward.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver and passenger sides.
- Remove the necessary trim panel fasteners to access the taillight wiring harness.
- Set aside all items removed, ensuring no damage to parts.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both sides of the vehicle, locate the vehicle’s taillight wiring harness.
- Disconnect the harness connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle’s wiring connectors.
- Lock the connectors securely into place.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire along the threshold to the passenger side of the vehicle.
- Insert the T-One® Connector end with the green wire between the vehicle’s wiring connectors.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to avoid damage or injury.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-One® T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding areas that may pinch, cut, or damage the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
Warning: Follow all warnings printed on the tow vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape.
-
Secure the Harness:
- Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas where it could pinch, cut, or melt.
-
Reassemble the Vehicle:
- Replace all panels, clips, and floor coverings removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
- When in use, pull the 4-flat connector through the door and close carefully, avoiding pinching the harness in the door latch.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Various Vehicles
Part Numbers:
- 118818
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Hatch:
- Temporarily remove the floor covering.
- Remove the two clips holding the threshold in place.
- Carefully pry up and remove the threshold.
- Open the side door and fold the rear seats forward.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver and passenger sides.
- Remove the necessary trim panel fasteners to access the taillight wiring harness.
- Set aside all items removed, ensuring no damage to parts.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both sides of the vehicle, locate the vehicle’s taillight wiring harness.
- Disconnect the harness connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle’s wiring connectors.
- Lock the connectors securely into place.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire along the threshold to the passenger side of the vehicle.
- Insert the T-One® Connector end with the green wire between the vehicle’s wiring connectors.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to avoid damage or injury.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-One® T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding areas that may pinch, cut, or damage the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
Warning: Follow all warnings printed on the tow vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape.
-
Secure the Harness:
- Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas where it could pinch, cut, or melt.
-
Reassemble the Vehicle:
- Replace all panels, clips, and floor coverings removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
- When in use, pull the 4-flat connector through the door and close carefully, avoiding pinching the harness in the door latch.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
