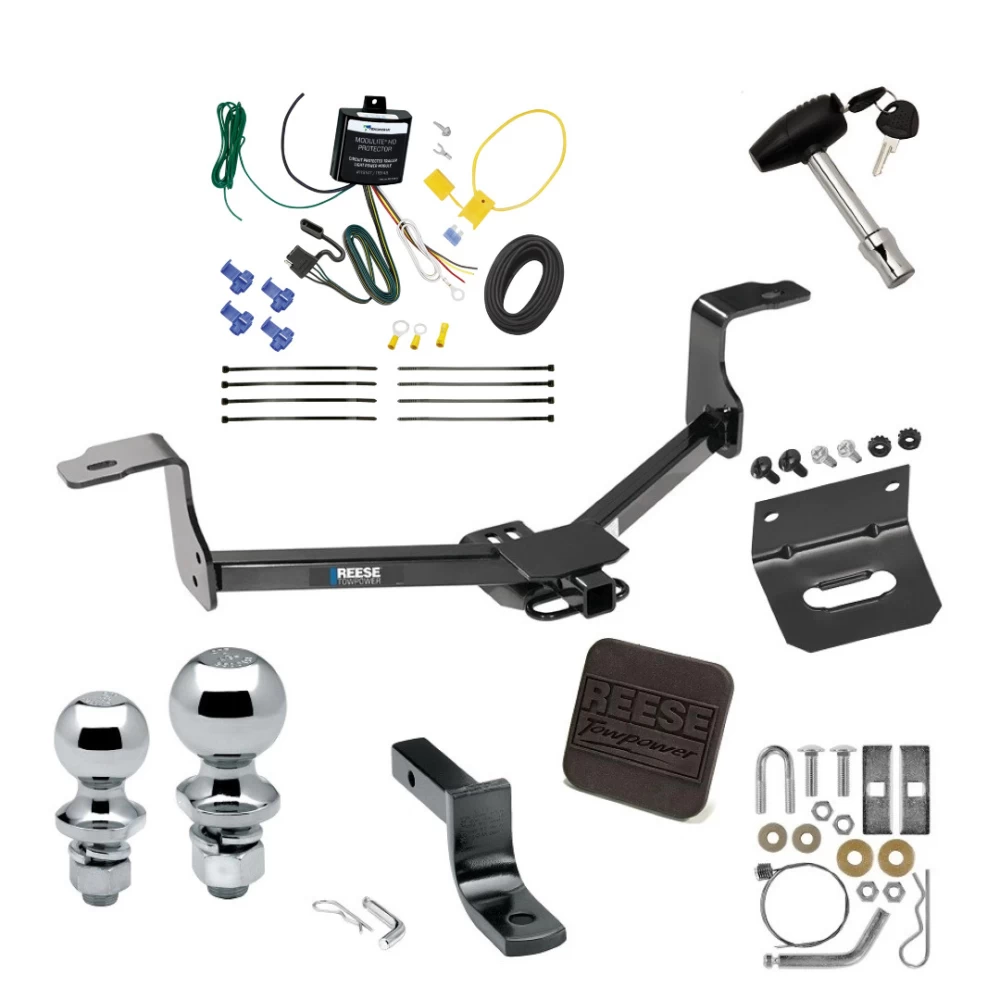

Installation Instructions for Honda Accord, Acura TL, and Acura TSX

Part Numbers:

• 24899
• 60325
• 77287
• 24913 (U-Haul, sold separately)

Wiring Access Location:

• PC3, PC4

Tools Required:

• Metal Shears
• Lubricant or Soapy Water
• Die Grinder
• Wrenches: 10mm, 11/16"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove two (2) rubber isolators on single exhaust models and four (4) rubber isolators on dual exhaust models.
   • Use lubricant or soapy water on the metal hanger rods and rubber isolators for easier removal.

2. Remove Heat Shield and Underbody Panel:

   • Detach heat shield(s) and underbody panel (if present). Save the panel and fasteners for reinstallation.

3. Prepare Access Hole:

   • Verify if the spacer and carriage bolt fit through the access hole. If not, enlarge the hole using a file or by prying with a wrench.
   • Enlarge only enough to accommodate the hardware.

4. Feed Bolts and Spacers:

   • Using the provided pull wires, guide spacers and carriage bolts into position through the access hole.
   • Leave the pull wire attached. For easier insertion, do not engage the bolt and spacer while feeding them into the frame.

5. Install U-Bolt on Tow Hook:

   • Hang the U-bolt onto the tow hook in one of the two designated positions.

6. Position Hitch:

   • Raise the hitch into position with the U-bolt in place and feed the pull wires through the side arm holes.

7. Attach Fasteners:

   • Secure the hitch using conical washers and hex nuts. Avoid pushing the fasteners back into the frame rails.

8. Tighten Fasteners:

   • Torque all 3/8” GR5 fasteners to 30 Lb.-Ft. (41 N*M).
   • Torque all 7/16” GR5 fasteners to 50 Lb.-Ft. (68 N*M).

9. Trim Underbody Panel (if needed):

   • Obtain vehicle owner’s approval before trimming the panel. Follow the dimensions shown in the diagram for trimming.
   • Slide the hitch bracket through the cut-out region of the panel.

10. Reinstall Components:

    • Raise the underbody panel into position and reinstall fasteners.
    • Reattach heat shield(s) and trim minimally around new fasteners if necessary.
    • Reattach exhaust. For additional clearance, bend the exhaust hanger bracket downward.

Hardware List:

• (2) Carriage Bolts: 7/16”-14 x 1.50” GR5
• (2) Conical Washers: 7/16”
• (2) Hex Nuts: 7/16”-14
• (1) U-Bolt: 3/8” GR5
• (2) Conical Washers: 3/8”
• (2) Hex Nuts: 3/8”
• (2) Spacers
• (2) Pull Wires: 7/16”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Vehicle (All Models)

Part Numbers:

• 24899
• 60325
• 77287
• 24913 (sold separately)

Wiring Access Location:

• PC3, PC4

Tools Required:

• Metal Shears
• Lubricant or Soapy Water
• Die Grinder
• Wrenches: 10mm, 11/16"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove two (2) rubber isolators on single exhaust models and four (4) rubber isolators on dual exhaust models.
   • Use lubricant or soapy water on the metal hanger rods and rubber isolators for easier removal.

2. Remove Heat Shield and Underbody Panel:

   • Detach heat shield(s) and underbody panel (if present). Save the panel and fasteners for reinstallation.

3. Prepare Access Hole:

   • Verify if the spacer and carriage bolt fit through the access hole. If not, enlarge the hole using a file or by prying with a wrench.
   • Enlarge only enough to accommodate the hardware.

4. Feed Bolts and Spacers:

   • Using the provided pull wires, guide spacers and carriage bolts into position through the access hole.
   • Leave the pull wire attached. For easier insertion, do not engage the bolt and spacer while feeding them into the frame.

5. Install U-Bolt on Tow Hook:

   • Hang the U-bolt onto the tow hook in one of the two designated positions.

6. Position Hitch:

   • Raise the hitch into position with the U-bolt in place and feed the pull wires through the side arm holes.

7. Attach Fasteners:

   • Secure the hitch using conical washers and hex nuts. Avoid pushing the fasteners back into the frame rails.

8. Tighten Fasteners:

   • Torque all 3/8” GR5 fasteners to 30 Lb.-Ft. (41 N*M).
   • Torque all 7/16” GR5 fasteners to 50 Lb.-Ft. (68 N*M).

9. Trim Underbody Panel (if needed):

   • Obtain vehicle owner’s approval before trimming the panel. Follow the dimensions shown in the diagram for trimming.
   • Slide the hitch bracket through the cut-out region of the panel.

10. Reinstall Components:

    • Raise the underbody panel into position and reinstall fasteners.
    • Reattach heat shield(s) and trim minimally around new fasteners if necessary.
    • Reattach exhaust. For additional clearance, bend the exhaust hanger bracket downward.

Hardware List:

• (2) Carriage Bolts: 7/16”-14 x 1.50” GR5
• (2) Conical Washers: 7/16”
• (2) Hex Nuts: 7/16”-14
• (1) U-Bolt: 3/8” GR5
• (2) Conical Washers: 3/8”
• (2) Hex Nuts: 3/8”
• (2) Spacers
• (2) Pull Wires: 7/16”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-Connector Adapter for Accord w/LED Taillights

Part Numbers:

• 118586

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Test Probe
• Phillips Head Screwdriver

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • On both the driver and passenger sides, partially remove the corner felt trunk liner to expose the vehicle’s taillight wiring harness.

2. Locate the Taillight Wiring Harness:

   • On the driver’s side, locate the taillight wiring harness.
   • Disconnect the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Attach the T-Connector containing the yellow and brown wires between the vehicle’s wiring connectors.
   • Lock the connectors securely in place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire below the threshold cover to the passenger’s side taillight housing.
   • Repeat Step 3 for the passenger side using the green and red wires.

5. Mount the Black Box:

   • On the driver’s side, locate a flat surface in an out-of-the-way place and mount the T-Connector’s black converter box using the provided double-sided tape.

6. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

7. Connect the Power Wire:

   • Locate the red 12-gauge power wire from the T-Connector black box.
   • Attach the provided black 12-gauge wire to the red wire using the yellow butt connector.

8. Route the Black Wire:

   • Route the black wire through a grommet and along the exterior frame or thresholds to the engine compartment, avoiding areas that may pinch or damage the wire.

   Warning:

   • Avoid routing near hot pipes, heat shields, or fuel tanks.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

10. Reconnect the Battery:

    • Reconnect the vehicle’s negative (-) battery cable.
    • Test the installation with a test light or trailer.

    Warning:

    • Ensure all connections are complete before testing. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

11. Secure the Wiring:

    • Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.

12. Reassemble the Vehicle:

    • Reinstall all removed panels, thresholds, storage covers, and floor coverings, ensuring no wires are pinched or damaged.

Specifications:

• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s ratings or specified circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Store the 4-flat connector in the driver-side storage compartment when not in use.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Installation Instructions for T-Connector Adapter for Accord w/LED Taillights

Part Numbers:

• 118586

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Test Probe
• Phillips Head Screwdriver

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the threshold panel.
   • On both the driver and passenger sides, partially remove the corner felt trunk liner to expose the vehicle’s taillight wiring harness.

2. Locate the Taillight Wiring Harness:

   • On the driver’s side, locate the taillight wiring harness.
   • Disconnect the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Attach the T-Connector containing the yellow and brown wires between the vehicle’s wiring connectors.
   • Lock the connectors securely in place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green wire below the threshold cover to the passenger’s side taillight housing.
   • Repeat Step 3 for the passenger side using the green and red wires.

5. Mount the Black Box:

   • On the driver’s side, locate a flat surface in an out-of-the-way place and mount the T-Connector’s black converter box using the provided double-sided tape.

6. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side near the connectors.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

7. Connect the Power Wire:

   • Locate the red 12-gauge power wire from the T-Connector black box.
   • Attach the provided black 12-gauge wire to the red wire using the yellow butt connector.

8. Route the Black Wire:

   • Route the black wire through a grommet and along the exterior frame or thresholds to the engine compartment, avoiding areas that may pinch or damage the wire.

   Warning:

   • Avoid routing near hot pipes, heat shields, or fuel tanks.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

10. Reconnect the Battery:

    • Reconnect the vehicle’s negative (-) battery cable.
    • Test the installation with a test light or trailer.

    Warning:

    • Ensure all connections are complete before testing. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

11. Secure the Wiring:

    • Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.

12. Reassemble the Vehicle:

    • Reinstall all removed panels, thresholds, storage covers, and floor coverings, ensuring no wires are pinched or damaged.

Specifications:

• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s ratings or specified circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Store the 4-flat connector in the driver-side storage compartment when not in use.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.
