Product Details
- Brand: Reese

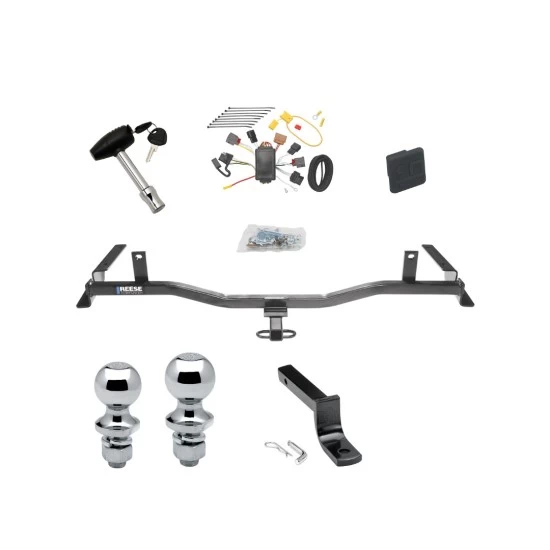

- Model: 77205 3592 118483 63810 63820 580407 2211
- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help

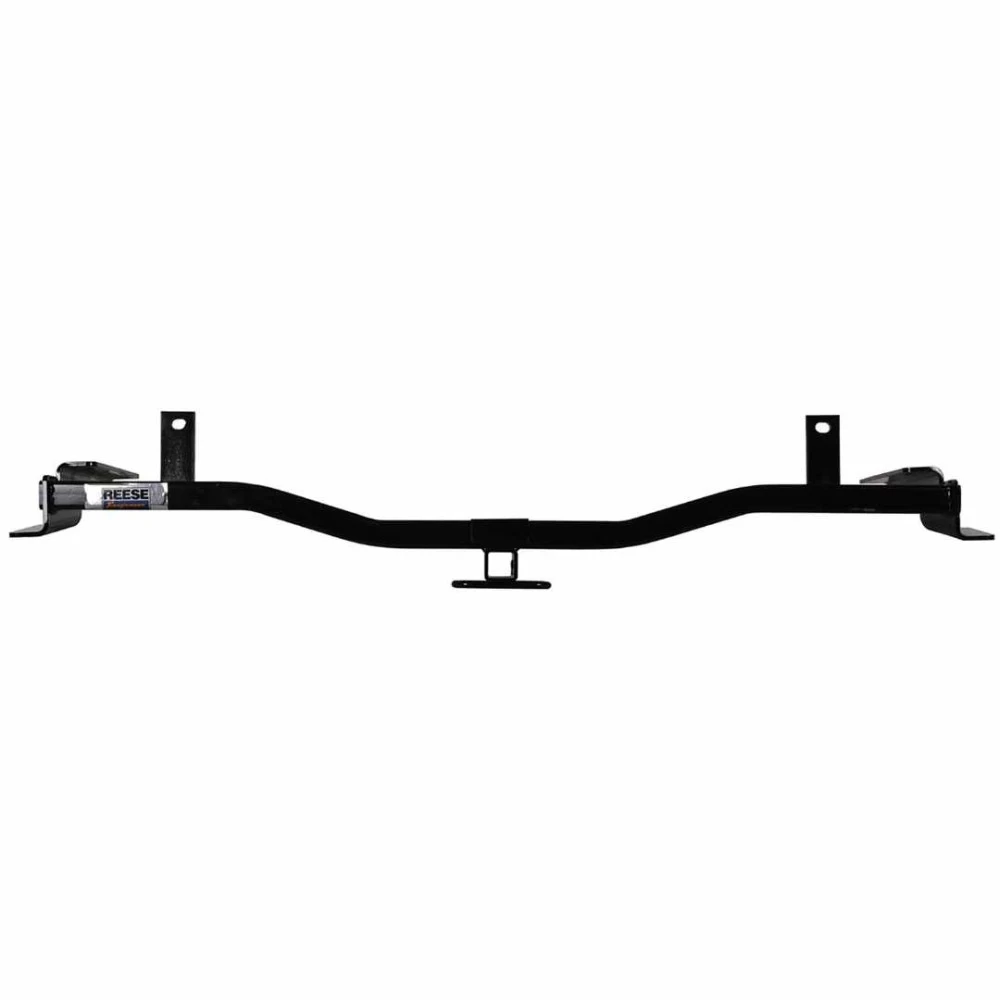

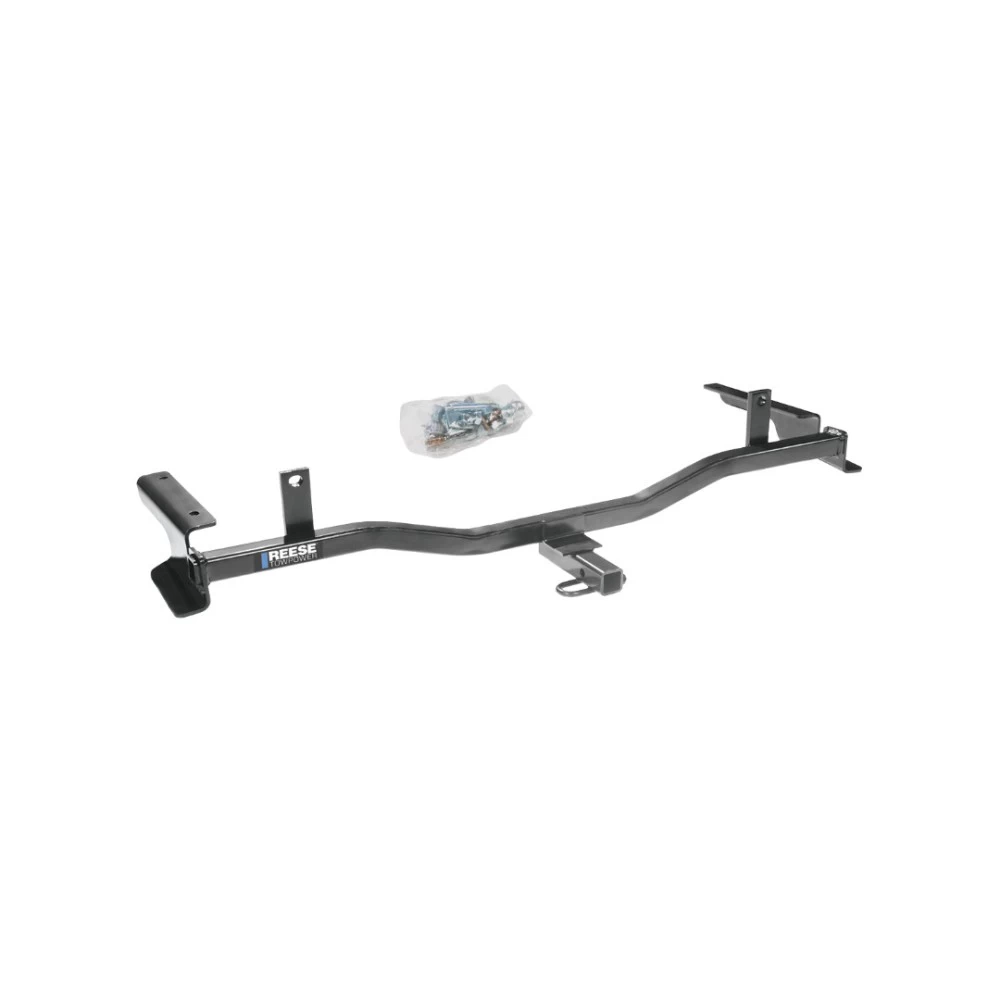

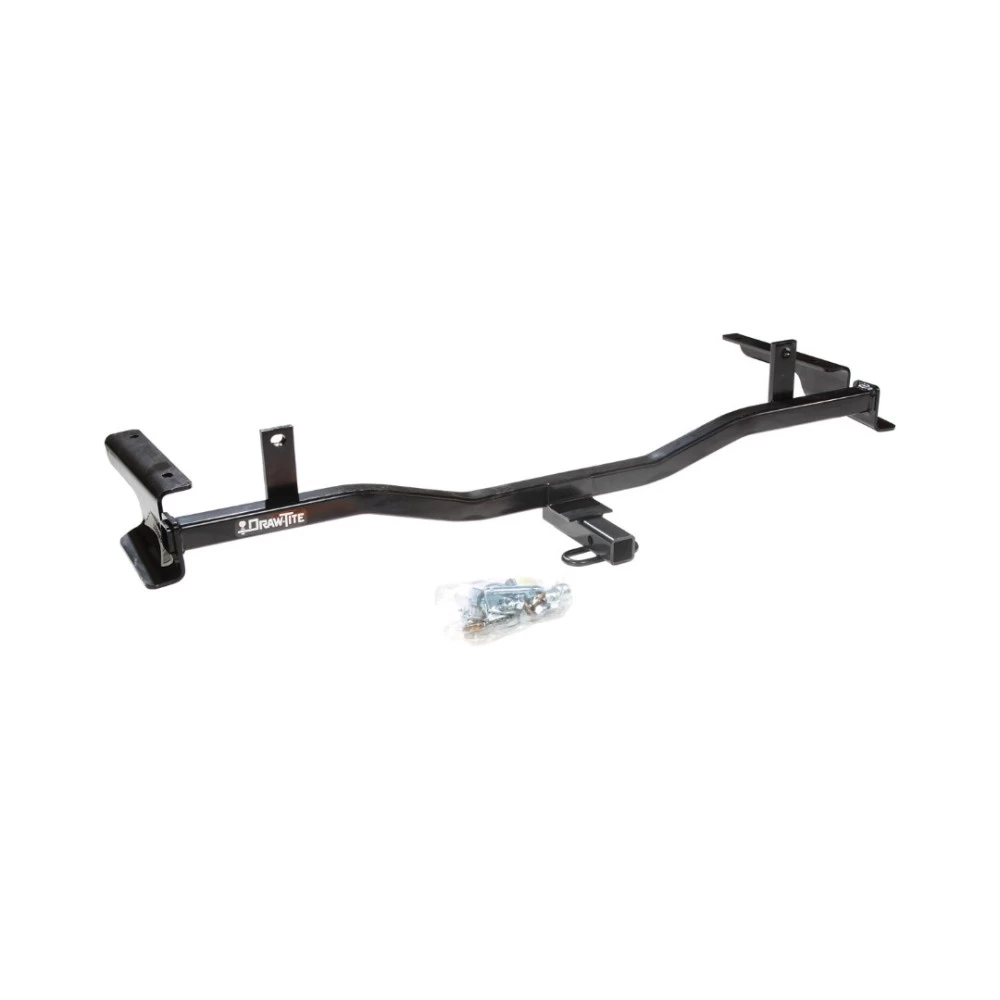

Reese Trailer Tow Hitch For 09-13 Mazda 6 4 Dr. Sedan Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes
Installation Instructions for Mazda 6
Part Numbers:
- 77205
- 60222
- 24832
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16”
- Hole Saw: 1-1/8”
- Fish Wire (Provided)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Vehicle:
- Use ramps or a hoist to safely raise the vehicle.
-
Lower Exhaust System:
- Remove the rubber isolators at the muffler(s) and one isolator near the rear suspension.
- Support the exhaust to prevent damage.
-
Remove Fascia Fasteners (for 6-cylinder models):
- If equipped with rear fascia exhaust trim, remove the two black plastic fasteners near the center of the rear panel to allow the fascia to be gently pulled back.
-
Position and Mark Hitch:
- Raise the hitch into position and temporarily install fasteners in the rear panel to locate the hitch.
- Mark the forward-most hole on the frame.
-
Drill Access Hole:
- Lower the hitch and drill a 1-1/8” access hole in the frame at the marked location.
- Paint all bare metal to prevent corrosion.
-
Install Fasteners:
- Fishwire the frame rail fasteners (carriage bolts and blocks) into place through the access hole.
- Leave the fish wires attached.
-
Raise Hitch:
- Lift the hitch into position, routing the fish wires through the hitch mounting holes.
- Carefully remove the fish wires, install the remaining fasteners, and tighten to specifications.
-
Reattach Exhaust:
- Raise the exhaust back into position and reconnect the rubber isolators.
-
Reinstall Fascia Fasteners (if removed):
- Reinstall the black plastic fascia fasteners removed in Step 3.
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1-1/4” GR5
- (2) Hex Head Bolts: 7/16”-14 x 1-1/2” GR5
- (4) Blocks: 1” x 2” x 3/16”
- (6) Conical Washers: 7/16”
- (2) Flat Washers: 7/16”
- (6) Hex Nuts: 7/16”-14
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or other body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:

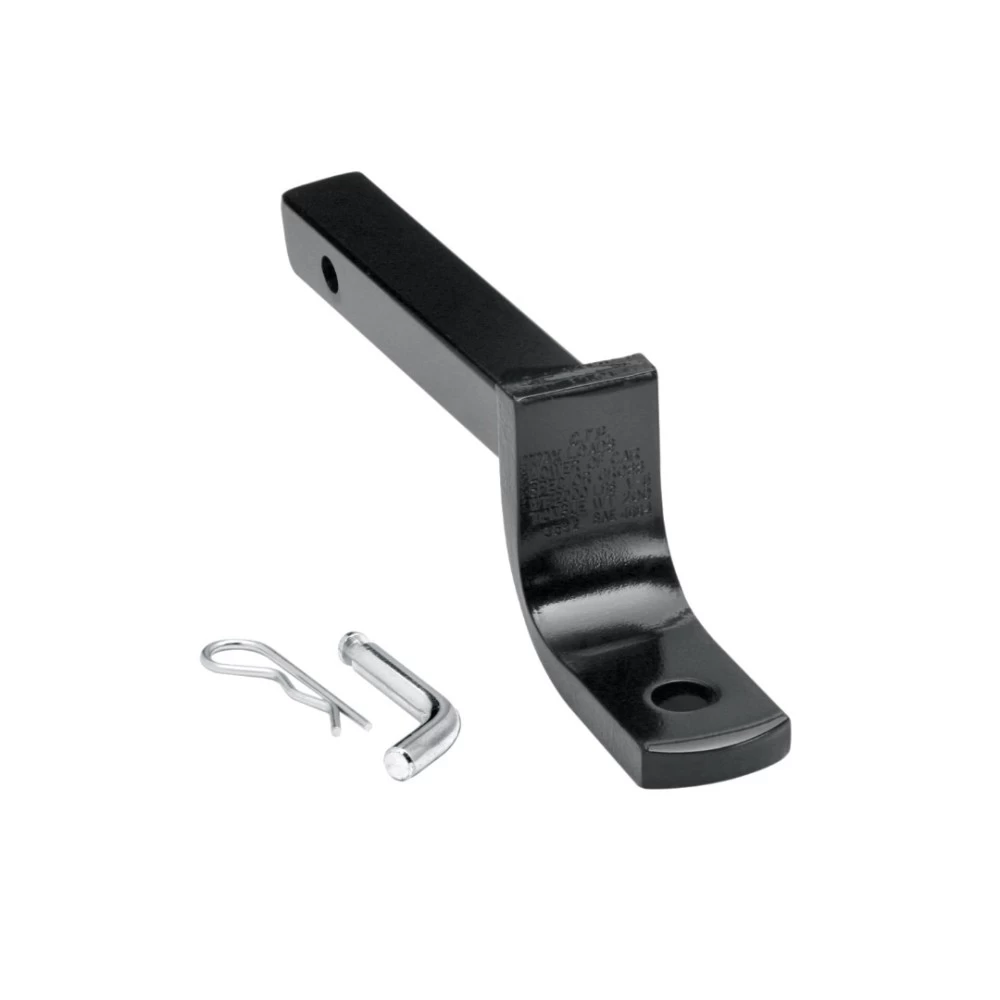

- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 77205
- 60222
- 24832
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16”
- Hole Saw: 1-1/8”
- Fish Wire (Provided)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Vehicle:
- Use ramps or a hoist to safely raise the vehicle.
-
Lower Exhaust System:
- Remove the rubber isolators at the muffler(s) and one isolator near the rear suspension.
- Support the exhaust to prevent damage.
-
Remove Fascia Fasteners (for 6-cylinder models):
- If equipped with rear fascia exhaust trim, remove the two black plastic fasteners near the center of the rear panel to allow the fascia to be gently pulled back.
-
Position and Mark Hitch:
- Raise the hitch into position and temporarily install fasteners in the rear panel to locate the hitch.
- Mark the forward-most hole on the frame.
-
Drill Access Hole:
- Lower the hitch and drill a 1-1/8” access hole in the frame at the marked location.
- Paint all bare metal to prevent corrosion.
-
Install Fasteners:
- Fishwire the frame rail fasteners (carriage bolts and blocks) into place through the access hole.
- Leave the fish wires attached.
-
Raise Hitch:
- Lift the hitch into position, routing the fish wires through the hitch mounting holes.
- Carefully remove the fish wires, install the remaining fasteners, and tighten to specifications.
-
Reattach Exhaust:
- Raise the exhaust back into position and reconnect the rubber isolators.
-
Reinstall Fascia Fasteners (if removed):
- Reinstall the black plastic fascia fasteners removed in Step 3.
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1-1/4” GR5
- (2) Hex Head Bolts: 7/16”-14 x 1-1/2” GR5
- (4) Blocks: 1” x 2” x 3/16”
- (6) Conical Washers: 7/16”
- (2) Flat Washers: 7/16”
- (6) Hex Nuts: 7/16”-14
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or other body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3592
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.

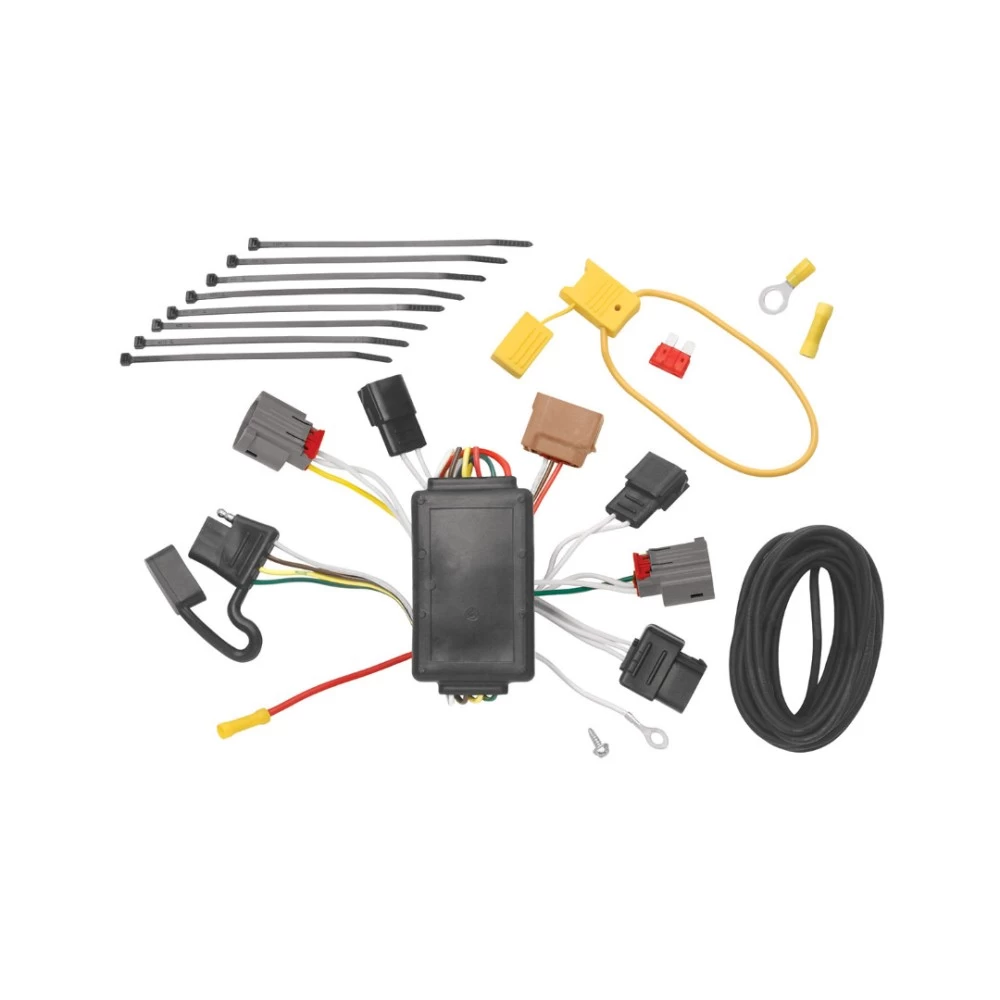

Installation Instructions for T-Connector Adapter for Mazda 6
Part Numbers:
- 118483
Tools Required:
- Wire Cutters
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Test Probe
- Wire Crimpers
Step-by-Step Instructions:
-
Prepare the Trunk Area:
- Open the trunk and remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
- Disconnect the connectors carefully, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors and lock it into place.
- Additionally, insert the T-Connector end with the brown and red wires between the vehicle wiring connectors and lock it into place.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire down through the threshold to the passenger side of the vehicle.
- Repeat step 3 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member.
- Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or exposed surfaces.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
- Route the black power wire to the rear driver’s side and connect it to the red wire on the T-Connector’s black box using the yellow butt connector.
Warning:
- Avoid routing wires near hot pipes, heat shields, or the fuel tank.
-
Reconnect the Battery and Install the Fuse:
- Reconnect the vehicle’s negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
Warning:
- All connections must be complete for the T-Connector to function properly.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling.
-
Reassemble the Vehicle:
- Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body.
- Mount the 4-flat connector in an accessible location with a bracket or electrical box (not included).
-
Test the Installation:
- Test and verify the T-Connector installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional guidance.
Installation Instructions for T-Connector Adapter for Vehicle
Part Numbers:
- 118483
Tools Required:
- Wire Cutters
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Test Probe
- Wire Crimpers
Step-by-Step Instructions:
-
Prepare the Trunk Area:
- Open the trunk and remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
- Disconnect the connectors carefully, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side wiring connectors and lock it into place.
- Additionally, insert the T-Connector end with the brown and red wires between the vehicle wiring connectors and lock it into place.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green wire down through the threshold to the passenger side of the vehicle.
- Repeat step 3 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member.
- Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or exposed surfaces.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
- Route the black power wire to the rear driver’s side and connect it to the red wire on the T-Connector’s black box using the yellow butt connector.
Warning:
- Avoid routing wires near hot pipes, heat shields, or the fuel tank.
-
Reconnect the Battery and Install the Fuse:
- Reconnect the vehicle’s negative (-) battery cable.
- Install the 10-amp fuse into the fuse holder.
Warning:
- All connections must be complete for the T-Connector to function properly.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties to prevent damage or rattling.
-
Reassemble the Vehicle:
- Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body.
- Mount the 4-flat connector in an accessible location with a bracket or electrical box (not included).
-
Test the Installation:
- Test and verify the T-Connector installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Always wear safety glasses and follow safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional guidance.
