Product Details
- Brand: Curt
- Model: 12005 58044 57187 58303-CH3152

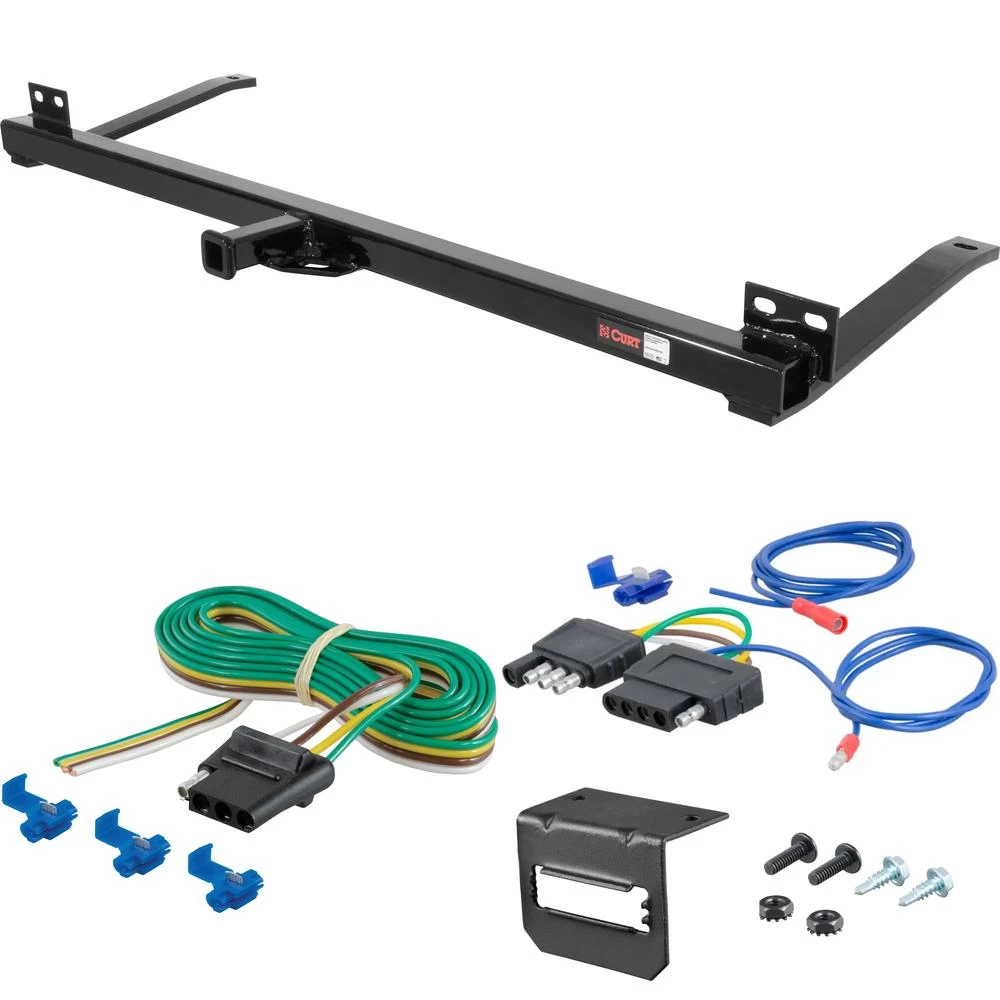

- Includes: Class 2 Trailer Tow Hitch, 4-Way Flat Connector Socket with 60" Wires, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Description
Get Expert Help
For 1978-1987 Oldsmobile Cutlass Supreme Trailer Hitch + Wiring 5 Pin Fits All Models Curt 12005 1-1/4 Tow Receiver Install Notes

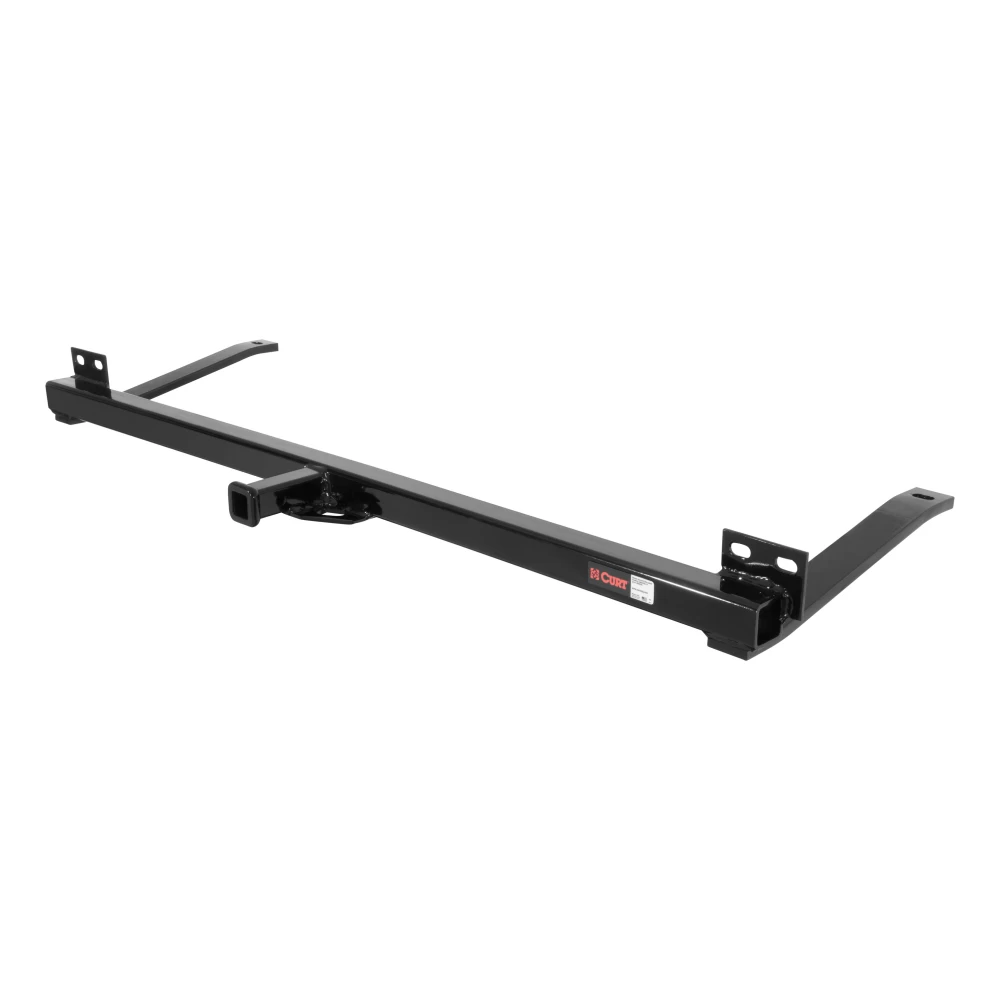

Installation Instructions for 78-87 Buick Regal RWD, 78-81 Century Sedan and Wagon, 77-88 Chevrolet Monte Carlo, 78-88 El Camino, 78-83 Oldsmobile Cutlass Ciera Cruiser, 78-88 Cutlass Supreme, 82-86 Pontiac Bonneville, 78-87 Grand Prix, and 78-81 Montana
Part Numbers:
- 12005
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Drill (for enlarging holes)
Step-by-Step Instructions:
- Remove three lower bolts attaching the E/A unit to the frame. Two bolts are on the passenger side, and one is on the driver side.
Note: On station wagon models, remove the center-most bolt from the bottom of the bumper. - Enlarge E/A bolt holes using a 3/8" drill bit.
- Position the hitch on the vehicle. Install 3/8" bolts and washers through the hitch and enlarged E/A attachment holes. Loosely install flat washers and locknuts as shown.
- Fishwire 1/2" carriage bolts and spacer blocks through frame access holes and down through tie-down slots in each frame rail.
Note: For El Camino and Caballero models, remove the bumper with the E/A assembly to fishwire bolts from the rear frame opening. Install remaining fasteners as shown. - Torque 1/2" fasteners to 110 lb-ft and 3/8" fasteners to 45 lb-ft.
Hardware List:
- Bolt, Carriage, 1/2-13 UNC, 2-1/4, Grade 8, YZ: Qty 2 (Part No. 10-10304)
- Washer, Flat, 1/2, YZ: Qty 2 (Part No. 30-00133)
- Washer, Lock, 1/2, YZ: Qty 2 (Part No. 30-00153)
- HHCS, 3/8-16 UNC, 1-1/4, Grade 8, YZ: Qty 4 (Part No. 10-10339)
- Washer, Flat, 3/8, YZ: Qty 4 (Part No. 30-00186)
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2 (Part No. CM-SP332)
- Nut, Hex, 1/2-13 UNC, Grade 8, YZ: Qty 2 (Part No. 20-00171)
- Nut, Nyl Lock, 3/8-16 UNC, Grade 8, YZ: Qty 4 (Part No. 20-00146)
- 1/2" Fishwire: Qty 1
Safety Notes:
- Gross Load Capacity: 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads applied to this product must be supported by 18050 stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 44 minutes
- Novice (DIY): 45 minutes
- Hole enlargement is required.
Manufacturer Notes:
- Designed for use with ball mount #D-20 / 45520.
- Warranty covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support, call Curt Manufacturing at 877-287-8634.
Installation Instructions for Compatible Vehicles
Part Numbers:
- 12005
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Drill (for enlarging holes)
Step-by-Step Instructions:
- Remove three lower bolts attaching the E/A unit to the frame. Two bolts are on the passenger side, and one is on the driver side.
Note: On station wagon models, remove the center-most bolt from the bottom of the bumper. - Enlarge E/A bolt holes using a 3/8" drill bit.
- Position the hitch on the vehicle. Install 3/8" bolts and washers through the hitch and enlarged E/A attachment holes. Loosely install flat washers and locknuts as shown.
- Fishwire 1/2" carriage bolts and spacer blocks through frame access holes and down through tie-down slots in each frame rail.
Note: For El Camino and Caballero models, remove the bumper with the E/A assembly to fishwire bolts from the rear frame opening. Install remaining fasteners as shown. - Torque 1/2" fasteners to 110 lb-ft and 3/8" fasteners to 45 lb-ft.
Hardware List:
- Bolt, Carriage, 1/2-13 UNC, 2-1/4, Grade 8, YZ: Qty 2
- Washer, Flat, 1/2, YZ: Qty 2
- Washer, Lock, 1/2, YZ: Qty 2
- HHCS, 3/8-16 UNC, 1-1/4, Grade 8, YZ: Qty 4
- Washer, Flat, 3/8, YZ: Qty 4
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2
- Nut, Hex, 1/2-13 UNC, Grade 8, YZ: Qty 2
- Nut, Nyl Lock, 3/8-16 UNC, Grade 8, YZ: Qty 4
- 1/2" Fishwire: Qty 1
Safety Notes:
- Gross Load Capacity: 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads applied to this product must be supported by stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 44 minutes
- Novice (DIY): 45 minutes
- Hole enlargement is required.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
Warranty covers defects in material and workmanship for the specified duration. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Taillight Wiring Converter
Part Numbers:
- 58044
Wiring Access Locations:
- S1: Behind driver’s side taillight housing
- S2: Behind passenger’s side taillight housing
- S3: Behind driver’s side rear access panel
- S4: Behind passenger’s side rear access panel
- T1: Behind driver’s side taillight housing
- T2: Behind passenger’s side taillight housing
- T3: Behind driver’s side rear bumper
- T5: Behind passenger’s side rear bumper
Tools Required:
- Test light
Step-by-Step Instructions:
- Locate the vehicle's taillight wiring using the typical locations based on the vehicle type.
- Using a test light, identify the corresponding wires for:
- Left turn signal
- Right turn signal
- Tail lights
- Brake lights
- Temporarily disconnect the vehicle's negative battery cable.
- Using wire taps, connect the converter input wires to the vehicle harness wires:
- Brown Wire: Tail Light Circuit
- Yellow Wire: Left Turn/Brake Circuit
- Green Wire: Right Turn/Brake Circuit
- Locate a system ground wire:
- Use a terminal ring or tap into an existing ground wire.
- Test the installation:
- If testing with a test light:
- Attach the test light ground lead to the exposed ground terminal of the 4-flat end.
- Activate the left turn, right turn, tail, and brake lights on the vehicle one at a time.
- Probe the 4-flat end receptacles to confirm functionality.
- If testing with a trailer:
- Mate the 4-flat with the trailer and repeat the same tests.
- If any trailer light functions fail, recheck the vehicle wiring with a circuit tester.
- If testing with a test light:
Hardware List:
- 4-flat connector (60” car end):
- White Wire: To Ground
- Green Wire: To Right Turn Signal
- Yellow Wire: To Left Turn Signal
- Brown Wire: To Taillight Signal
Safety Notes:
- Ensure the product is only used on 2-wire, 12-volt negative ground systems.
- Double-check all connections and secure wires to avoid potential hazards.
Specifications:
- Compliance: Designed for 2-wire 12V systems with a negative ground.
- Ensure proper alignment and secure attachment to avoid wiring faults.
Installation Instructions for Taillight Wiring Converter
Part Numbers:
- 58044
Wiring Access Locations:
- S1: Behind driver’s side taillight housing
- S2: Behind passenger’s side taillight housing
- S3: Behind driver’s side rear access panel
- S4: Behind passenger’s side rear access panel
- T1: Behind driver’s side taillight housing
- T2: Behind passenger’s side taillight housing
- T3: Behind driver’s side rear bumper
- T5: Behind passenger’s side rear bumper
Tools Required:
- Test light
Step-by-Step Instructions:
- Locate the vehicle's taillight wiring using the typical locations based on the vehicle type.
- Using a test light, identify the corresponding wires for:
- Left turn signal
- Right turn signal
- Tail lights
- Brake lights
- Temporarily disconnect the vehicle's negative battery cable.
- Using wire taps, connect the converter input wires to the vehicle harness wires:
- Brown Wire: Tail Light Circuit
- Yellow Wire: Left Turn/Brake Circuit
- Green Wire: Right Turn/Brake Circuit
- Locate a system ground wire:
- Use a terminal ring or tap into an existing ground wire.
- Test the installation:
- If testing with a test light:
- Attach the test light ground lead to the exposed ground terminal of the 4-flat end.
- Activate the left turn, right turn, tail, and brake lights on the vehicle one at a time.
- Probe the 4-flat end receptacles to confirm functionality.
- If testing with a trailer:
- Mate the 4-flat with the trailer and repeat the same tests.
- If any trailer light functions fail, recheck the vehicle wiring with a circuit tester.
- If testing with a test light:
Hardware List:
- 4-flat connector (60” car end):
- White Wire: To Ground
- Green Wire: To Right Turn Signal
- Yellow Wire: To Left Turn Signal
- Brown Wire: To Taillight Signal
Safety Notes:
- Ensure the product is only used on 2-wire, 12-volt negative ground systems.
- Double-check all connections and secure wires to avoid potential hazards.
Specifications:
- Compliance: Designed for 2-wire 12V systems with a negative ground.
- Ensure proper alignment and secure attachment to avoid wiring faults.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- Warranty Duration: [Insert warranty period]
- Coverage Details: [Insert coverage details]
- For complete warranty information, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
