For 1998‑2003 Isuzu Rodeo Trailer Hitch Fits w/ Under‑Vehicle Spare Curt 13222 2 inch Tow Receiver
Model: 13222-CH2440This Trailer Tow Hitch Fits The Following Vehicles:
1998 - 2003 Isuzu Rodeo w/ Under-Vehicle Spare
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
1998, 1999, 2000, 2001, 2002, 2003

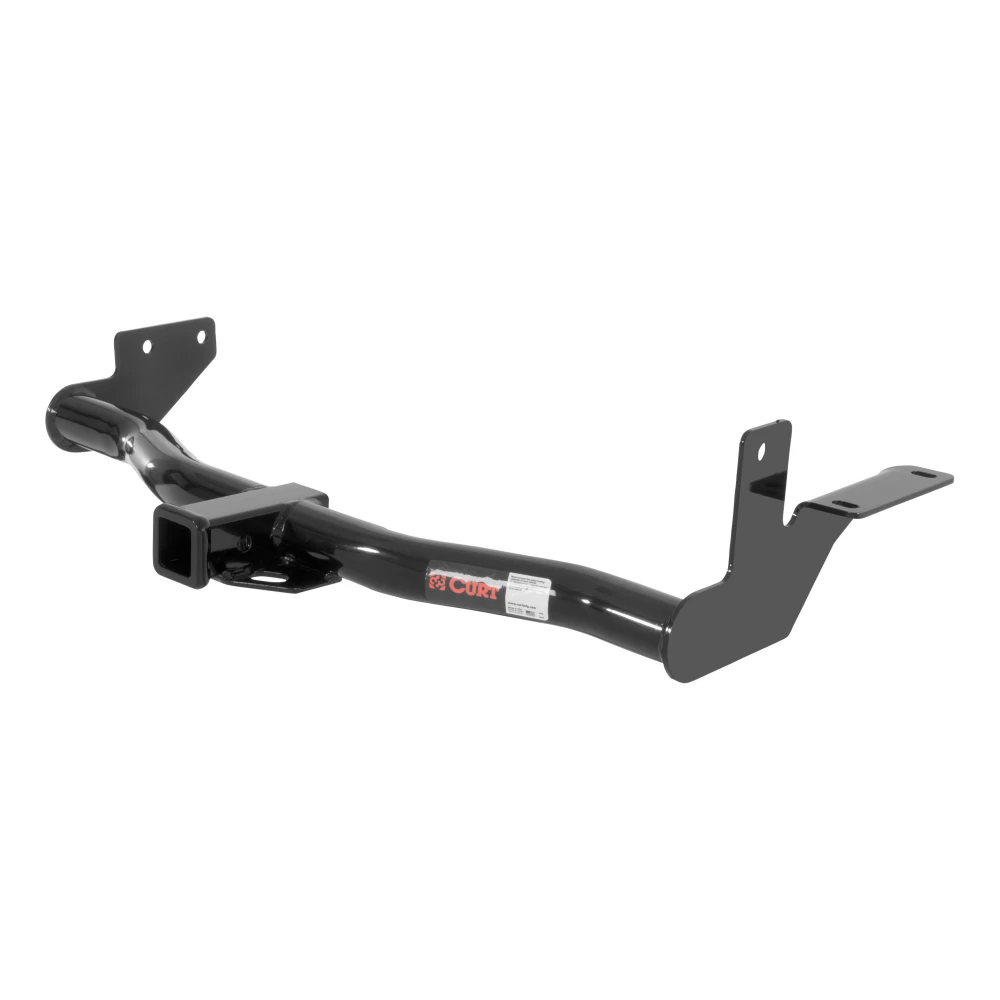

CURT 13222 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Honda Passport, Isuzu Axiom and Isuzu Rodeo (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 400 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs WD and 600 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 4,000 lbs. gross trailer weight and 400 lbs. tongue weight
- Compatible with weight distribution hitch (6,000 lbs. WD / 600 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit

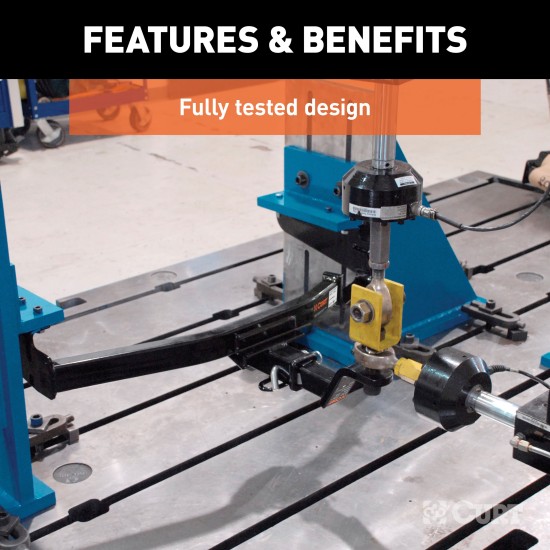

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$204 70 $318.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$318.95 $204 70
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13222-CH2440
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 1998-2003 Isuzu Rodeo Trailer Hitch Fits w/ Under-Vehicle Spare Curt 13222 2 inch Tow Receiver Install Notes
Installation Instructions for 1998-2004 Isuzu Rodeo, 2002-2003 Isuzu Axiom,
and 1998-2002 Honda Passport
Part Numbers:
- 13222
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
- 15/16" socket
- Fishwire tool (provided)
Step-by-Step Instructions:
-
Position the Hitch:
- Position the hitch on the vehicle frame as shown in the diagram.
- Align the hitch holes with the existing weldnuts on the passenger side and the slots in the tow hook mounting pad on the driver side.
- Loosely install the provided hex bolts.
-
Fishwire Carriage Bolts:
- Fishwire a 1/2" carriage bolt and square hole spacer through the end of the frame on the passenger side.
- Secure the bolt with a 1/2" flange nut.
-
Tighten Fasteners:
- Tighten the fasteners on the driver side and the side fastener on the passenger side first.
- Tighten the fasteners on the bottom of the passenger side frame last.
-
Install Spacers:
- Use two 5/8" flat washers as spacers between the hitch and the tow hook mounting pad on the driver side.
-
Torque Fasteners:
- Torque the following hardware to the specified values:
- M12 fasteners: 86 lb-ft
- 1/2" fasteners: 110 lb-ft
- 5/8" fasteners: 210 lb-ft
- Torque the following hardware to the specified values:
-
Final Check:
- Periodically check the hitch to ensure all fasteners remain tight and all structural components remain sound.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8, YZ: Qty 1
- Hex Bolt, 5/8-11 x 1-1/2, Grade 8, YZ: Qty 3
- Hex Bolt, M12 x 1.25 x 35, CL10.9, YZ: Qty 2
- Square Hole Spacer, .250 x 1.50 x 2.00": Qty 1
- Flat Washer, 5/8, YZ: Qty 2
- Washer, S-Con, 1/2, YZ: Qty 2
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 1
- Nut, Ser-Flange, 5/8-11 UNC, Grade 8, YZ: Qty 3
- 1/2" Fishwire Tool: Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 4,000 lbs (trailer weight), 400 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check the receiver hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 45 minutes
- Drilling Required: No
- Fishwire Fasteners: Required
- Lower Spare Tire: Recommended for ease of installation
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 1998-2004 Isuzu Rodeo, 2002-2003 Isuzu Axiom,
and 1998-2002 Honda Passport
Part Numbers:
- 13222
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
- 15/16" socket
- Fishwire tool (provided)
Step-by-Step Instructions:
-
Position the Hitch:
- Position the hitch on the vehicle frame as shown in the diagram.
- Align the hitch holes with the existing weldnuts on the passenger side and the slots in the tow hook mounting pad on the driver side.
- Loosely install the provided hex bolts.
-
Fishwire Carriage Bolts:
- Fishwire a 1/2" carriage bolt and square hole spacer through the end of the frame on the passenger side.
- Secure the bolt with a 1/2" flange nut.
-
Tighten Fasteners:
- Tighten the fasteners on the driver side and the side fastener on the passenger side first.
- Tighten the fasteners on the bottom of the passenger side frame last.
-
Install Spacers:
- Use two 5/8" flat washers as spacers between the hitch and the tow hook mounting pad on the driver side.
-
Torque Fasteners:
- Torque the following hardware to the specified values:
- M12 fasteners: 86 lb-ft
- 1/2" fasteners: 110 lb-ft
- 5/8" fasteners: 210 lb-ft
- Torque the following hardware to the specified values:
-
Final Check:
- Periodically check the hitch to ensure all fasteners remain tight and all structural components remain sound.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8, YZ: Qty 1
- Hex Bolt, 5/8-11 x 1-1/2, Grade 8, YZ: Qty 3
- Hex Bolt, M12 x 1.25 x 35, CL10.9, YZ: Qty 2
- Square Hole Spacer, .250 x 1.50 x 2.00": Qty 1
- Flat Washer, 5/8, YZ: Qty 2
- Washer, S-Con, 1/2, YZ: Qty 2
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 1
- Nut, Ser-Flange, 5/8-11 UNC, Grade 8, YZ: Qty 3
- 1/2" Fishwire Tool: Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 4,000 lbs (trailer weight), 400 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check the receiver hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 45 minutes
- Drilling Required: No
- Fishwire Fasteners: Required
- Lower Spare Tire: Recommended for ease of installation
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
